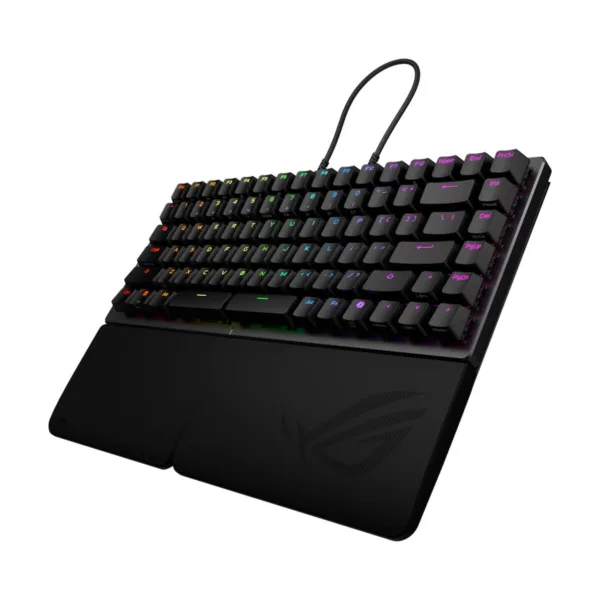

ASUS M703 ROG Falcata Ace Falcata 75% Wireless Gaming Keyboard

Overview

ROG Falcata Gaming Keyboard

ROG Falcata 75% split gaming keyboard with hot-swappable ROG HFX V2 Magnetic Switches and ROG Hall Sensor; featuring Rapid Trigger toggle, intuitive control and multi-function wheel, tri-mode connectivity with ROG SpeedNova 8K wireless technology, Zone Mode, four-layer dampening and detachable silicone wrist rests Versatile split-keyboard design: Suits different gaming setups, allowing players to use the left keyboard module, freeing up space for their mousing hand Hot-swappable ROG HFX V2 Magnetic Switch: Refined keystrokes with customizable 0.1–3.5 mm actuation and 0.01 mm-step precise tuning New ROG Hall Sensor: Exceptional precision, accurate input detection, reduces electrical noise and

SWIFT. SLEEK. SPLIT.

ROG Falcata is a 75% split gaming keyboard designed for precision and flexibility. It features the hot-swappable ROG HFX V2 Magnetic Switch and ROG Hall Sensor for ultra-responsive keystrokes. It includes a Rapid Trigger toggle, intuitive multi-function wheel and button, ROG SpeedNova 8K wireless technology, and tri-mode connectivity. A unique Zone Mode optimizes hardware settings and primes the Falcata for top-tier performance in an instant. For user comfort, the Falcata includes four-layer dampening and detachable silicone wrist rests.

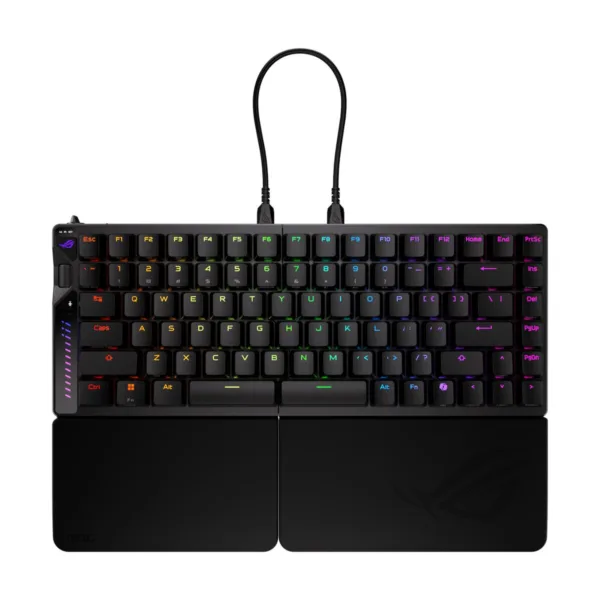

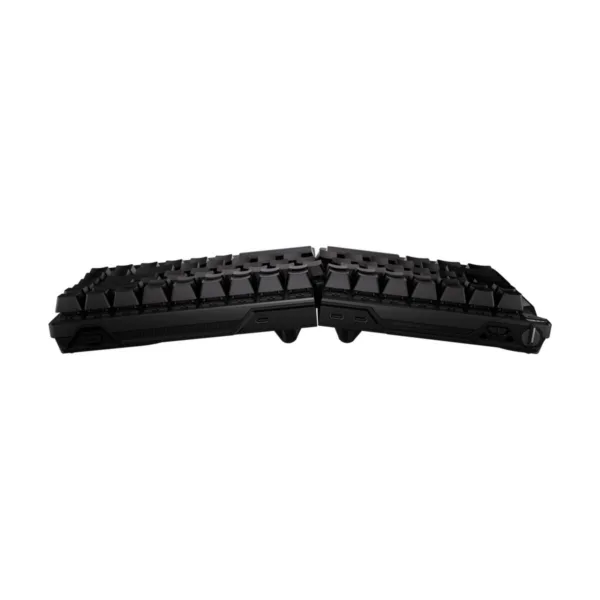

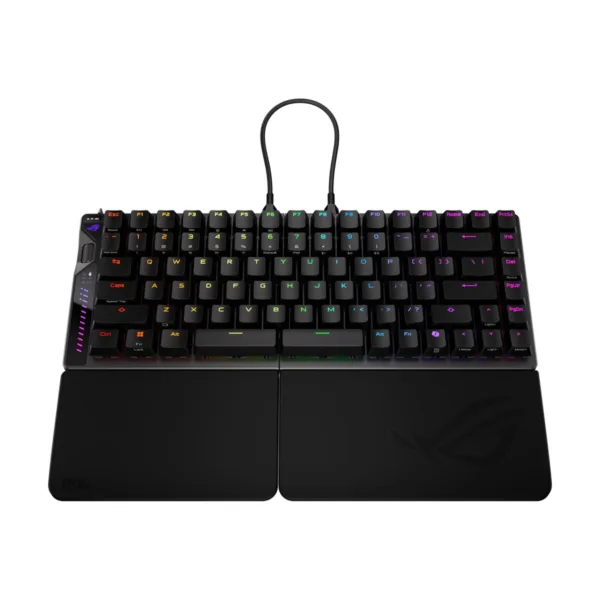

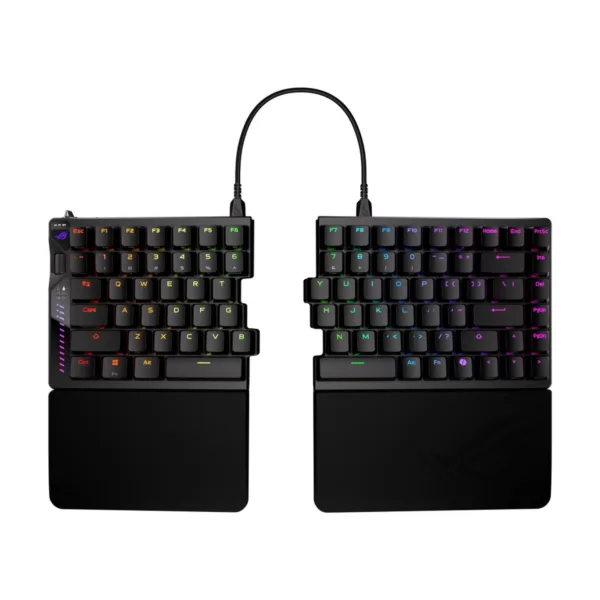

Compact 75% Split Design

The 75% layout of the Falcata includes the essential arrow, function, and navigation keys while keeping overall dimensions compact. The unique split design allows users to detach the side of the right keyboard, retaining the left half when gaming. Compared to a 65% keyboard, the split design frees up even more space for mouse movement. A bundled link cable is required to ensure stable connection and optimal performance. Using third-party cables may result in the keyboard not responding.

ROG HFX V2 Magnetic Switches

This latest pre-lubed magnetic switch delivers solid, ultra-precise feel with lightning-fast responsiveness along with a 100-million-keystroke lifespan. The polycarbonate top housing and POM plastic stem and bottom housing ensure ultrasmooth keystrokes, while the walled-stem design enhances stability and keeps out dust and debris. This results in consistently smooth, reliable, and precise keypresses when gaming or typing. 3.5 mm Travel Distance 32 gf Initial Force 49 gf Total Force

1. Upper Housing PC top housing with highly polished stem contact areas ensures ultra-smooth key actuation. 2. Compatible with Aftermarket Keycaps Standard cross-shaped stem design ensures compatibility with most keycaps, allowing users to customize their setup. 3. Switch Stem Composite POM material enables a low friction coefficient for exceptionally smooth keystrokes. 4. Snap-fit Design A unique snap-fit mechanism prevents key wobble from affecting magnet movement, ensuring precise and accurate actuation.

5. Walled Stem Design Enhance keystroke stability and prevent dust intrusion while maintaining compatibility with most keycaps. 6. Larger Magnet Enlarged magnet boosts magnetic flux for even greater precision and responsiveness, reducing risk of accidental or missed keystrokes. 7. Based housing POM bottom housing delivers a deeper, more refined keystroke sound.

Customizable Actuation Point

With the ROG Hall Sensor and HFX V2 Magnetic Switch, the 0.1–3.5 mm actuation range of the Falcata can be adjusted in precise 0.01 mm increments. The actuation point can be tweaked via the multi-function wheel or web-based Gear Link interface.

ROG Hall Effect Technology

Leveraging the increased magnetic flux tolerance of the HFX V2 Magnetic Switch, the IC is now directly mounted on the PCB, allowing it to be positioned closer to the magnet without being affected by board thickness. This further enhances magnetic sensing accuracy without affecting saturation.

Rapid Trigger

A dedicated toggle switch on the top-left rear panel of the Falcata activates the Rapid Trigger feature for the fastest typing response and key repeat rate. By default, only WASD keys are enabled when this feature is activated. Rapid Trigger for other keys can be enabled via Gear Link.

Traditional mechanical switches require a return to the reset point before the next click registers. With ROG HFX V2 Magnetic Switch and the Rapid Trigger feature, the switch resets instantly as it moves upward, delivering maximum counter-strafing potential with minimal effort.

Speed Tap Mode

In Speed Tap mode, as soon as the system detects the input of two keys (e.g., A + D) it will prioritize the last input and automatically release the previous one. This means that in FPS games, pressing two opposing directional keys will no longer cause the character to stop moving; instead, directional changes can now be done immediately without releasing the previous key, eliminating any time gap for counter-strafing and ensuring precise aim every time. *Speed Tap feature is turned off by default. Simultaneously press Fn + Caps keys for 1 second to activate.

Intuitive Controls

The innovative multi-function button and wheel allow for easy adjustments to various settings, including Rapid Trigger sensitivity, keyboard actuation point, volume, media playback, lighting, and custom commands. Additionally, the LED sidebar showcases dynamic light effects that reflect these adjustments in real-time.
