| Weight | 1 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Brand | ASUS |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support up to 8200+MT/s (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) 3 x PCIe 4.0 x16 slots (support x1 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| SATA RAID | * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.3 |

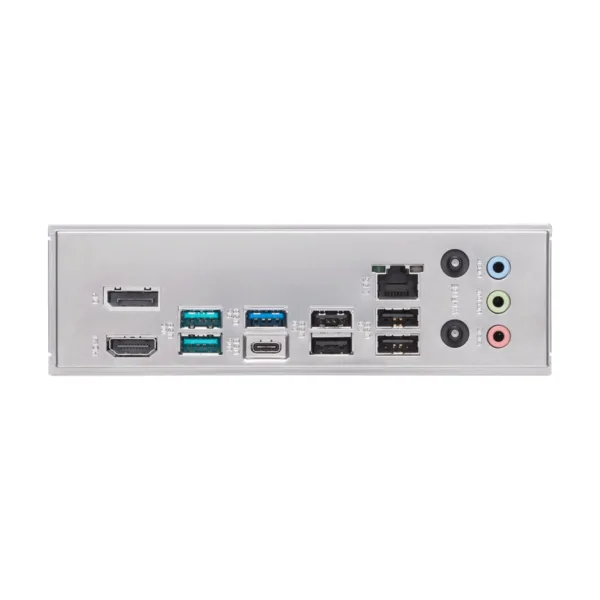

| Back I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Onboard USB | 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front P |
| BIOS Feature | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS E |
| Windows 11 | Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector |
| Features | ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage Protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot AS |
| MPN | PRIME B860-PLUS WIFI-CSM |
| UPC | 197105814738 |

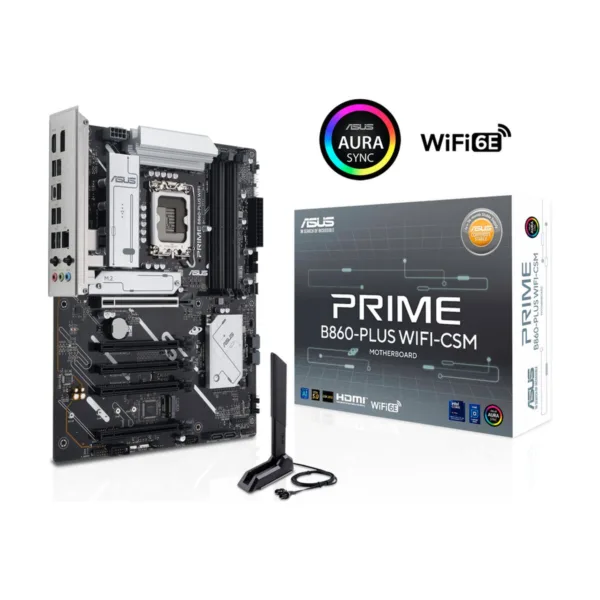

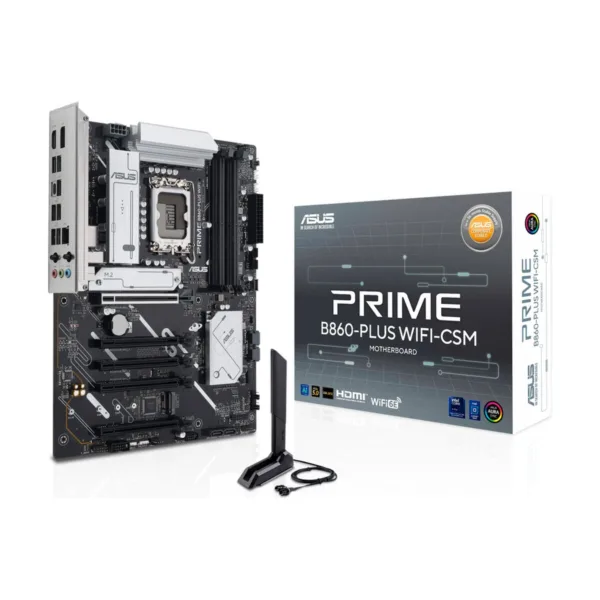

ASUS PRIME B860-PLUS WIFI-CSM LGA 1851
Original price was: $184.99.$147.99Current price is: $147.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
B860-PLUS WIFI-CSM

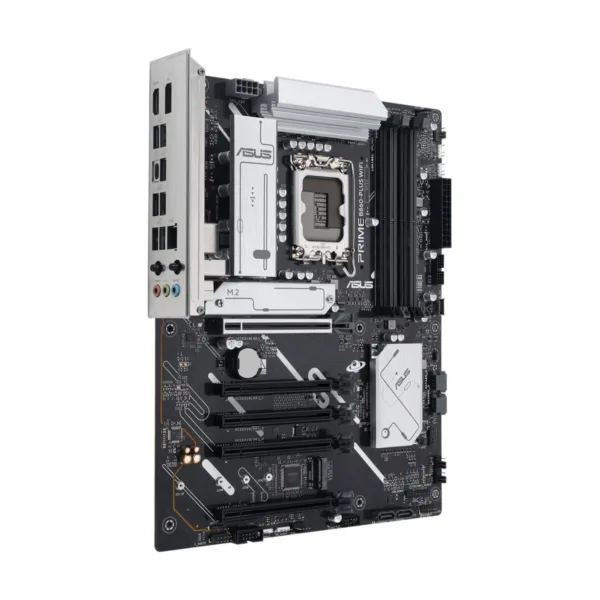

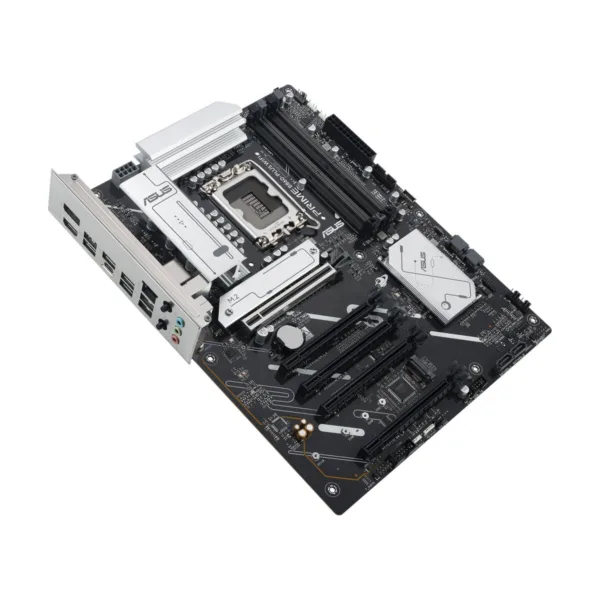

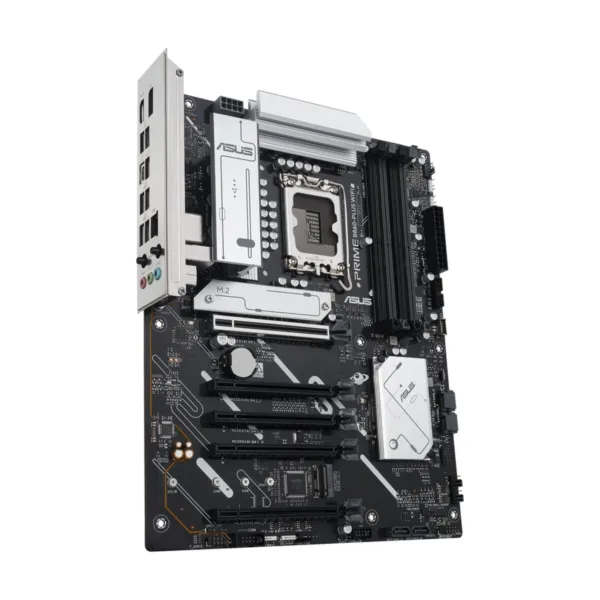

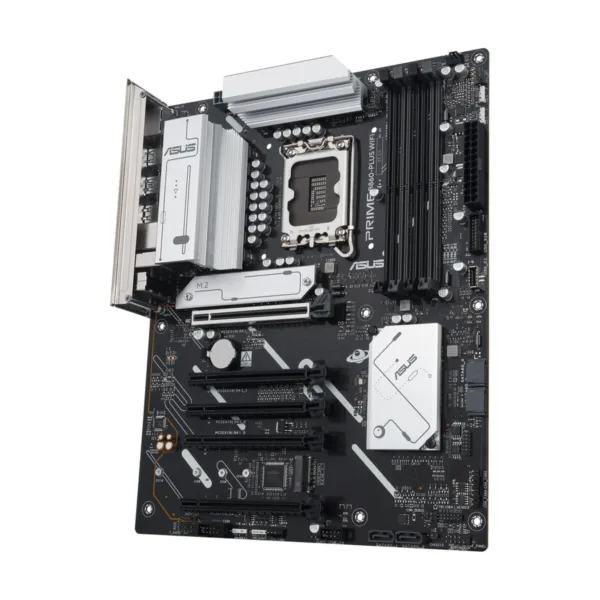

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. * CEC Tier II ready
8(80A) + 1(80A) + 1(80A) + 1(80A)
power stages with enlarged VRM heatsinks

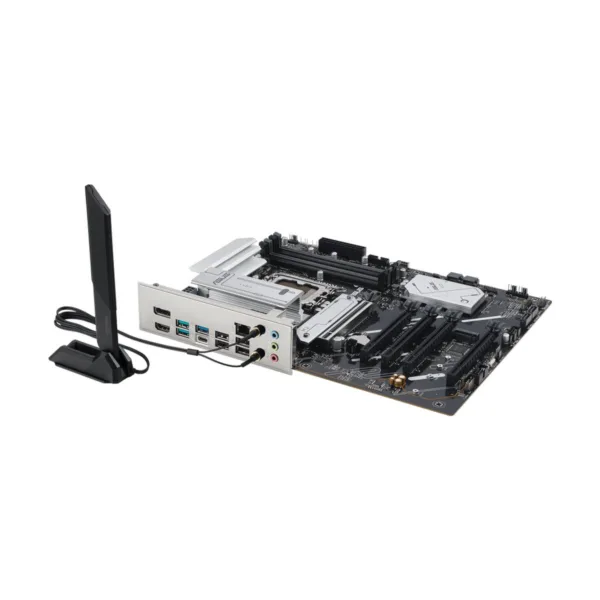

Wi-Fi 6E
for stable Wi-Fi connection and lower latency

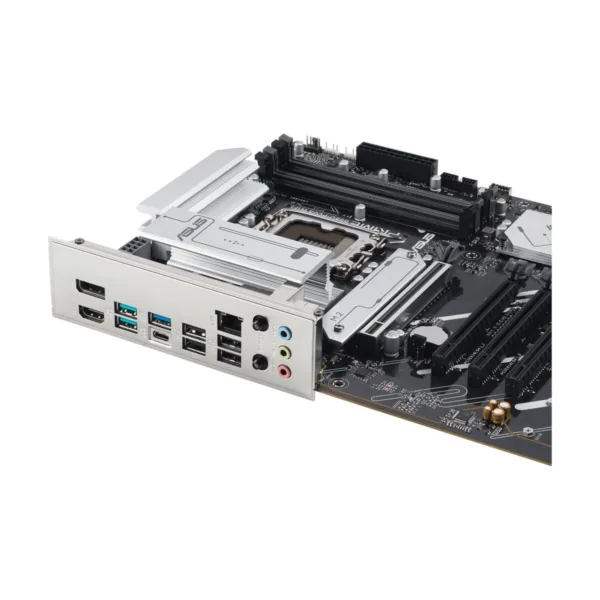

Pre-mounted I/O shield
for safeguarding ports and enhancing aesthetics

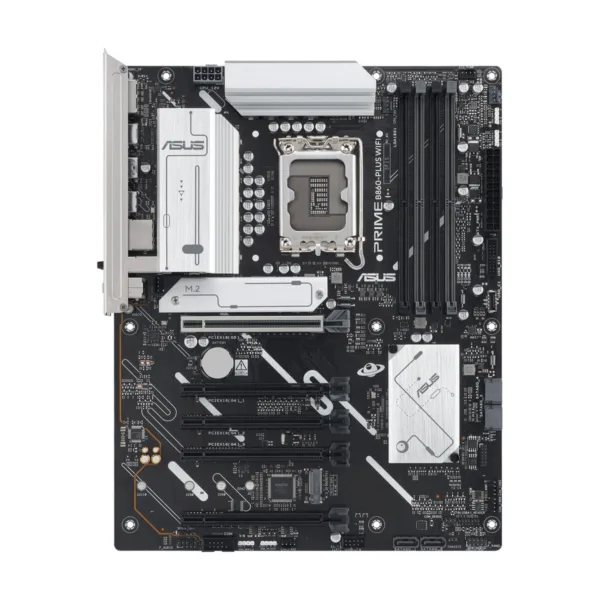

Support Intel® Core™ Ultra Processors (Series 2), LGA1851 1 x PCIe 5.0 x16 (supports x16 mode) SafeSlot 1 x PCIe® 4.0 x16 (supports x1 mode) 1 x PCIe® 4.0 x16 (supports x4 mode) 2 x PCIe® 4.0 x16 (supports x1 mode)
8(80A) + 1(80A) + 1(80A) + 1(80A) Power stages 4 x DIMM slots DDR5 support Dual channel AEMP III M.2_1 2242/2260/2280 (PCIe® 5.0 x4 mode) M.2_2 2242/2260/2280/22110 (PCIe® 4.0 x4 mode)
DisplayPort™ HDMI™ port 2 x USB 10 Gbps Type-A 1 x USB 5 Gbps Type-A 1 x USB 20 Gbps Type-C® 4 x USB 2.0 Type-A 2.5 Gb Ethernet
