| Weight | 3 lbs |
|---|---|
| Dimensions | 10.6 × 10.2 × 2 in |
| Brand | ASUS |
| Series | Prime |
| Part Number | PRIME H610M-A-CSM |
| CPU Socket Type | LGA 1700 |
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel H610 |
| Number of Memory Slots | 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory |
| Maximum Memory Supported | 96GB |
| Serial ATA (SATA) | 4 x SATA 6Gb/s ports |
| M.2 | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
| Wireless LAN | 1 x Intel® 1Gb Ethernet ASUS LANGuard |

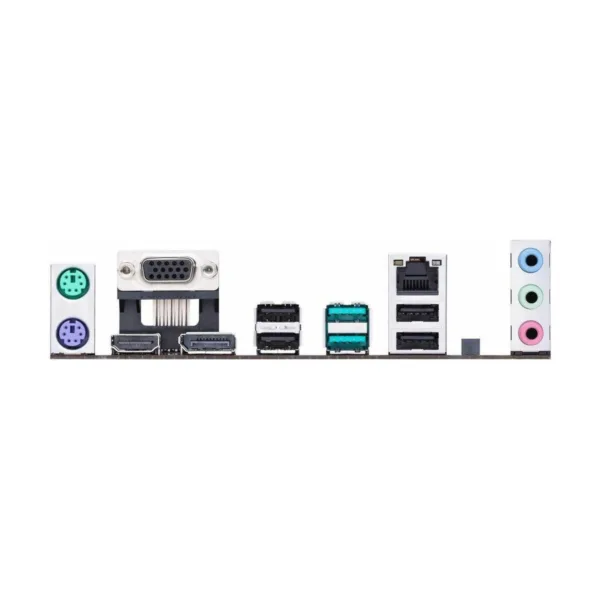

| Video Ports | 1 x VGA port |
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| Onboard USB | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 |
| MPN | PRIME H610M-A-CSM |
| UPC | 197105293915 |

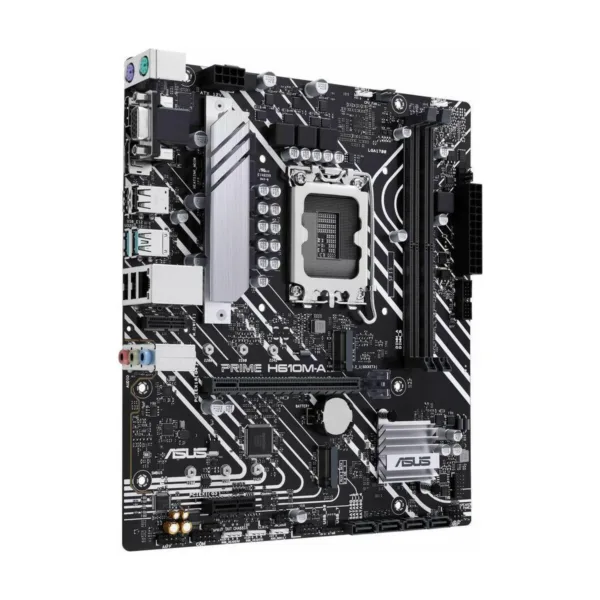

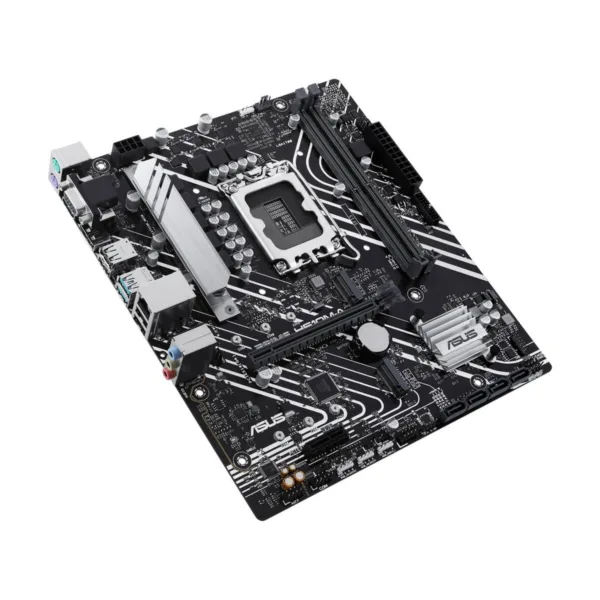

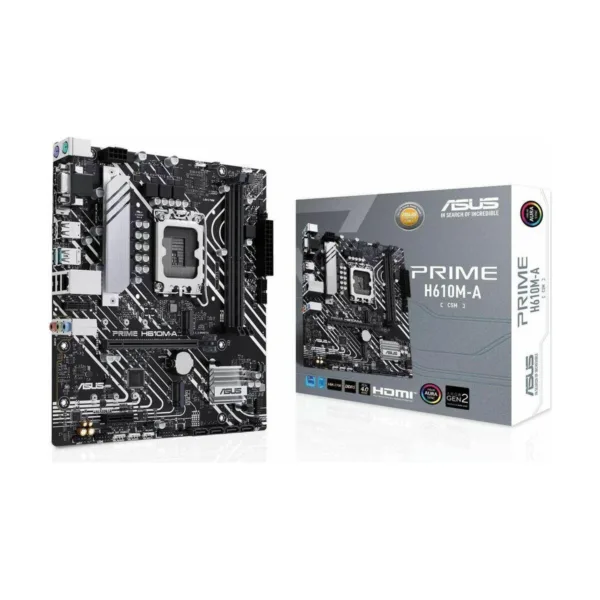

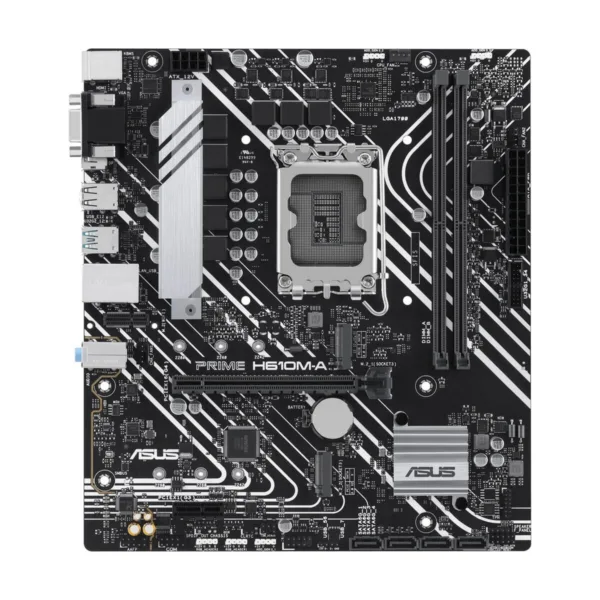

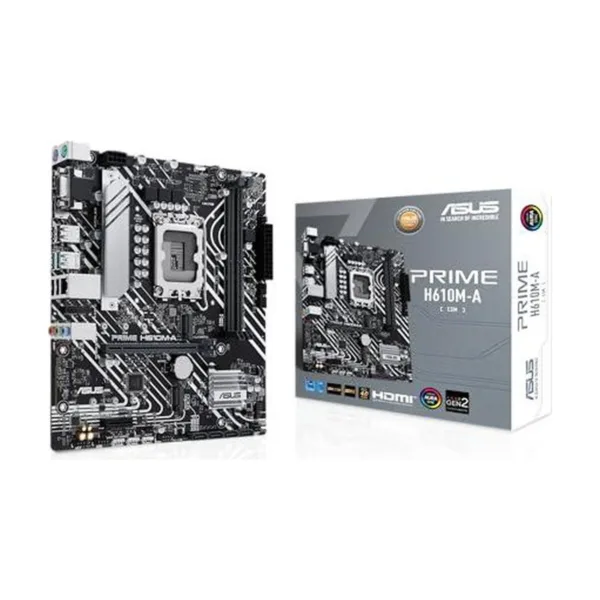

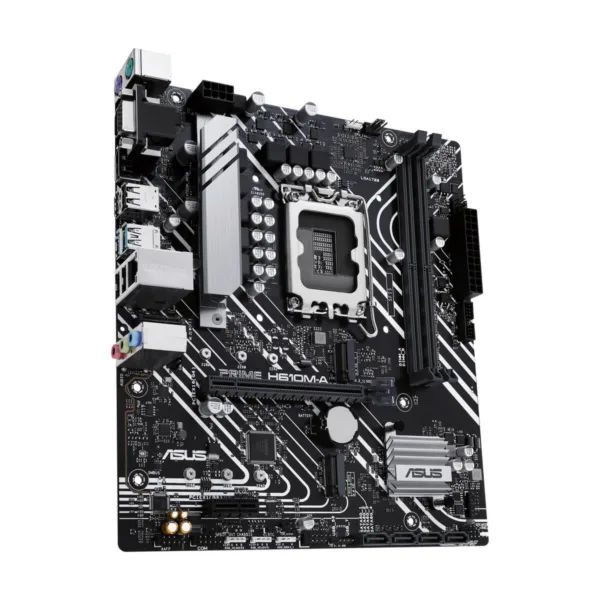

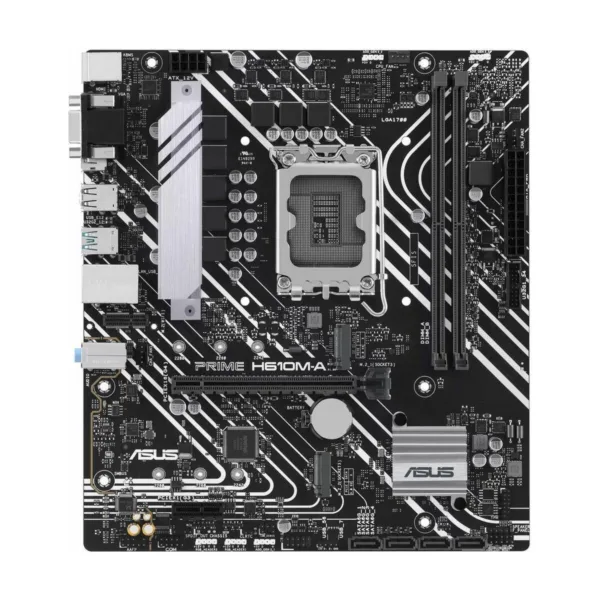

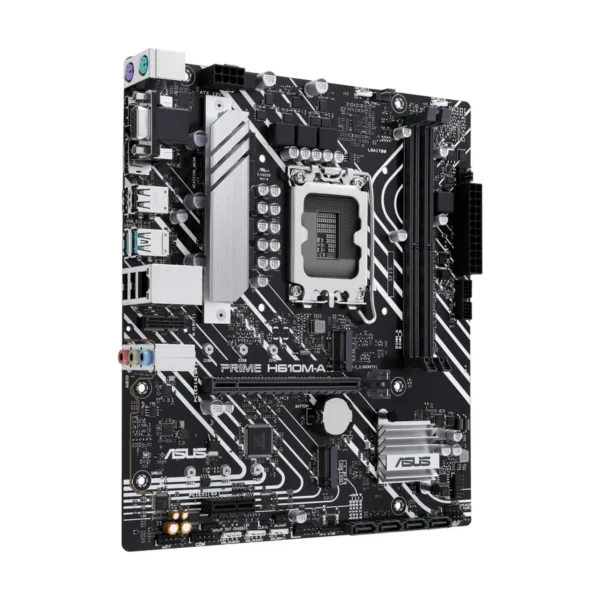

ASUS Prime H610M-A-CSM LGA 1700 Micro-ATX Motherboard, Intel H610, DDR5
$132.99
Intel H610 Chipset Socket LGA-1700
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
