| Weight | 2.16 lbs |
|---|---|
| Dimensions | 10.63 × 10.24 × 2.03 in |
| Brand | ASUS |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ * Refer to http://www.asus.com for CPU support list. |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H610 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to http://www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 2.0 |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Actual support may vary by CPU. |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 1Gb Ethernet |
| Max LAN Speed | 1Gbps |

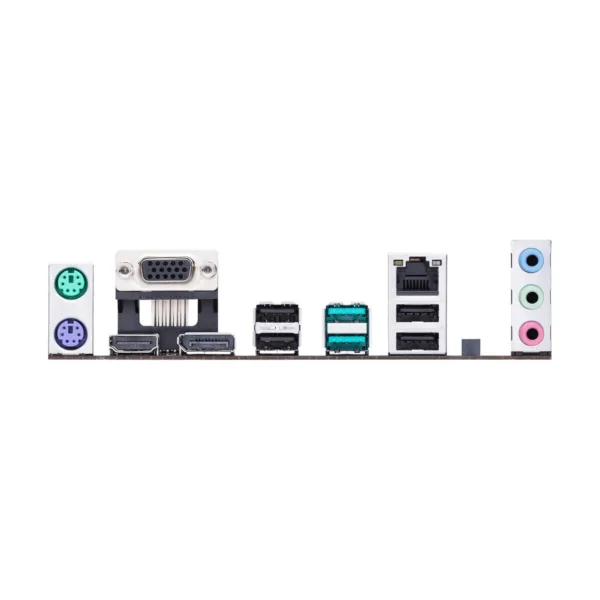

| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x D-Sub port 1 x V-M.2 slot (Key E) 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM heade |
| Windows 11 | Supported |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 8.3" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Features | Special Features: ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – VRM heatsink design AURA Sync – AURA RGB headers – Addressable Gen 2 headers Software Featur |

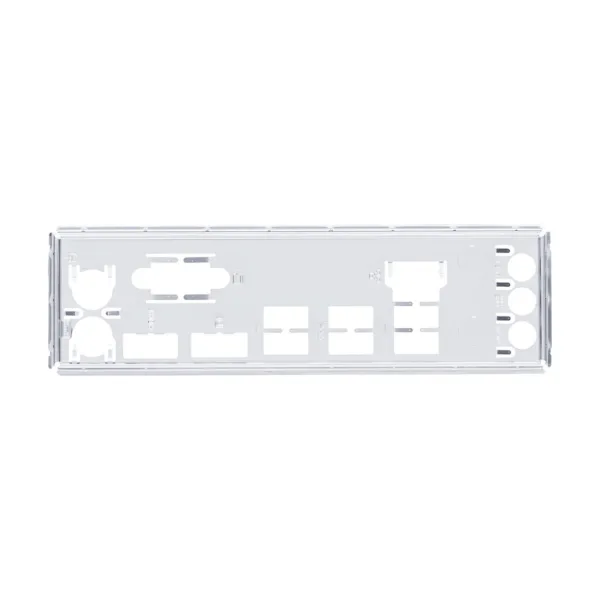

| Package Contents | Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User guide |
| MPN | PRIME H610M-A D4-CSM |
| UPC | 195553514446 |
ASUS PRIME H610M-A D4-CSM LGA 1700 * Dedicated LGA1700 mounting bracket is required.
$119.99
Intel LGA 1700 socket: Ready for 12th & 13th Gen Intel Core processors and Windows 11. BIOS update may be required to boot the 13th gen Intel Core desktop processors Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen…
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
