| Weight | 5.75 lbs |
|---|---|
| Dimensions | 14.5 × 11 × 3.5 in |
| Brand | ASUS |
| Part Number | 90MB1IG0-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4400 |
| Maximum Memory Supported | 256GB |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| PCI Express 5.0 x16 | AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)** ** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. |
| PCI Express 4.0 x16 | AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD X870 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 |
| SATA RAID | *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. |
| Audio Chipset | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless LAN | Bluetooth 5.4 |
| Bluetooth | Yes |

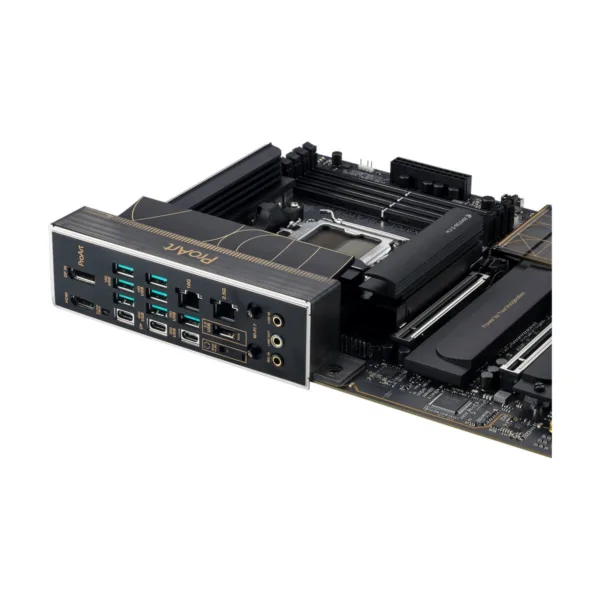

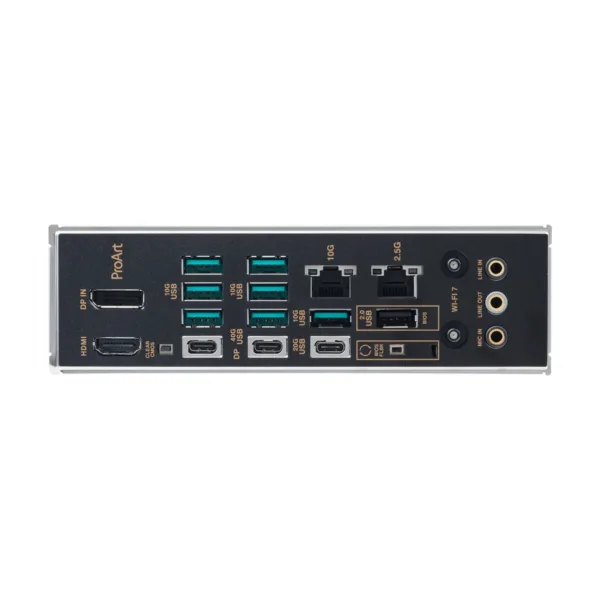

| Back I/O Ports | 2 x USB4 (40Gbps) with ASMedia ASM4242 USB4 controller ports (2 x USB Type-C) 1 x USB 20Gbps port(s) (1 x USB Type-C) 7 x USB 10Gbps port(s) (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI port 1 x Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet 1 x |
| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 3.2 Gen 1 ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio hea |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design) – Enhanced DRAM Overcurrent Protection – ESD Guards – LANGuard – Overvoltage Protection – Safeslot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCI |

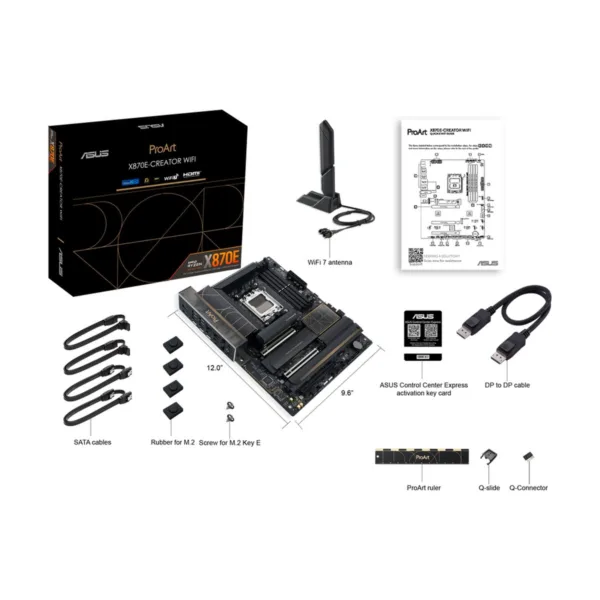

| Package Contents | Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 1 x M.2 Q-Latch package(s) 1 x M.2 Q-Latch Q-Slide package for M.2 backplate 2 x Rubber Packages for M.2 1 x ProArt ruler Documentation 1 x Quick start guide 1 x ACC Ex |
| MPN | ProArt X870E-CREATOR WIFI |
| UPC | 197105730779 |

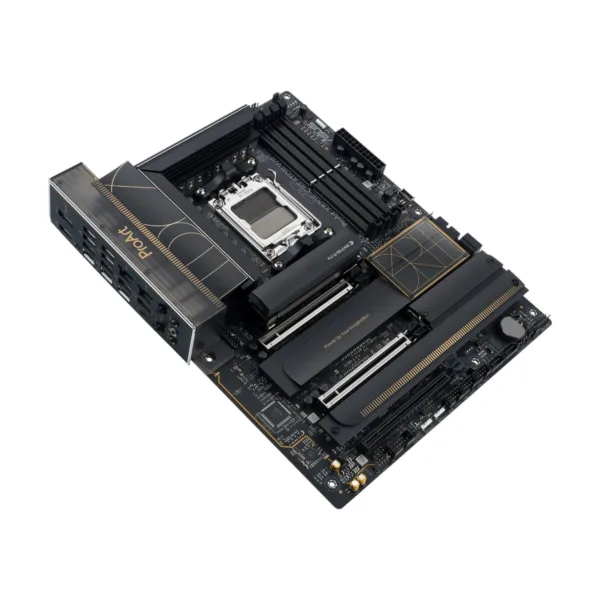

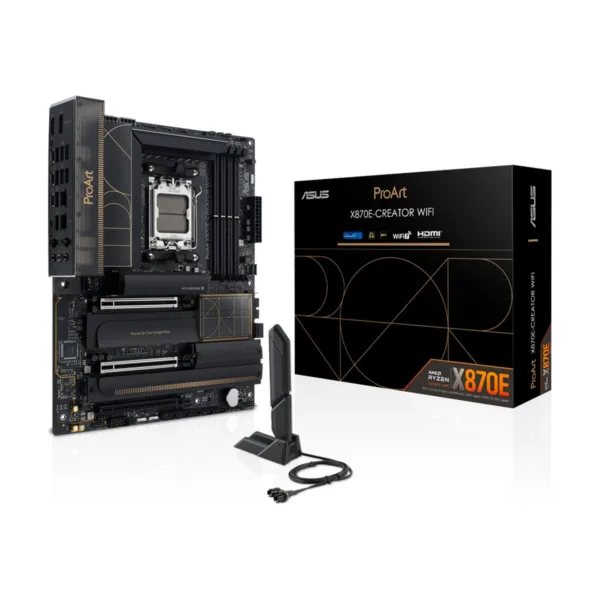

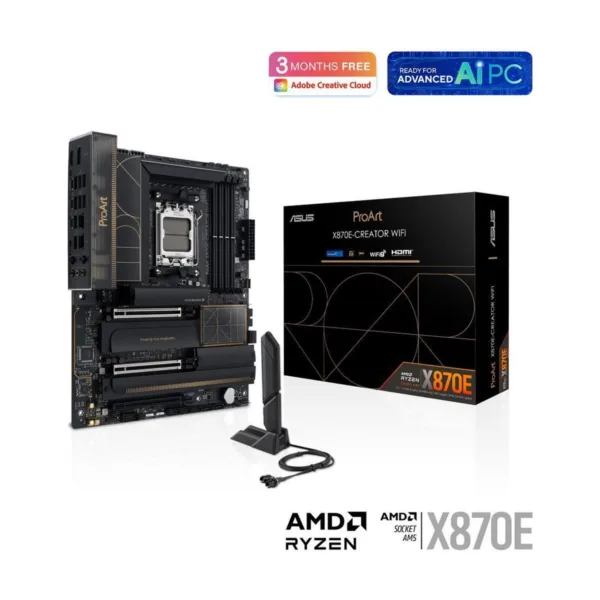

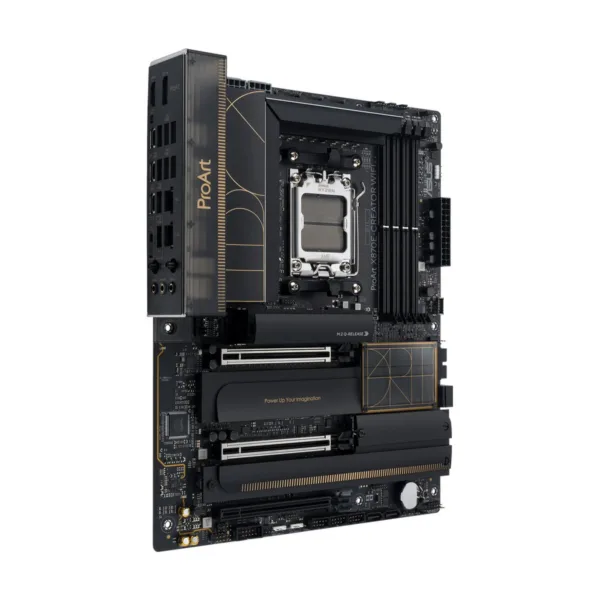

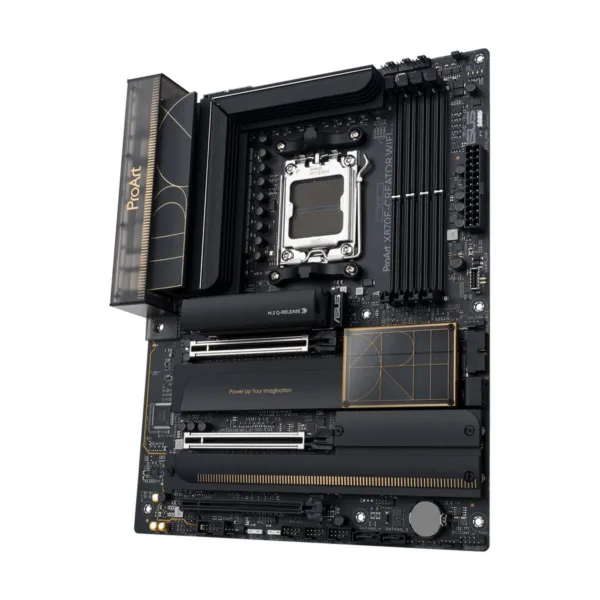

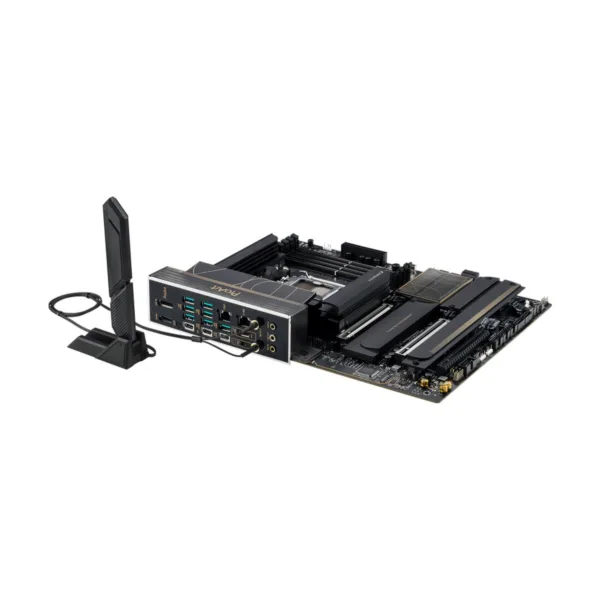

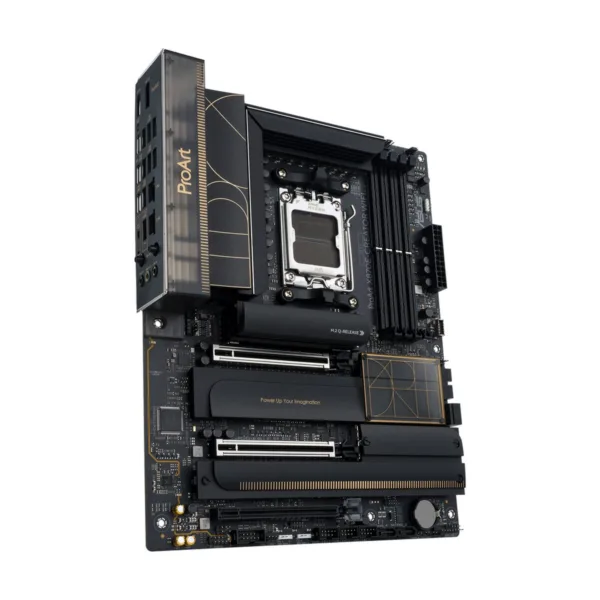

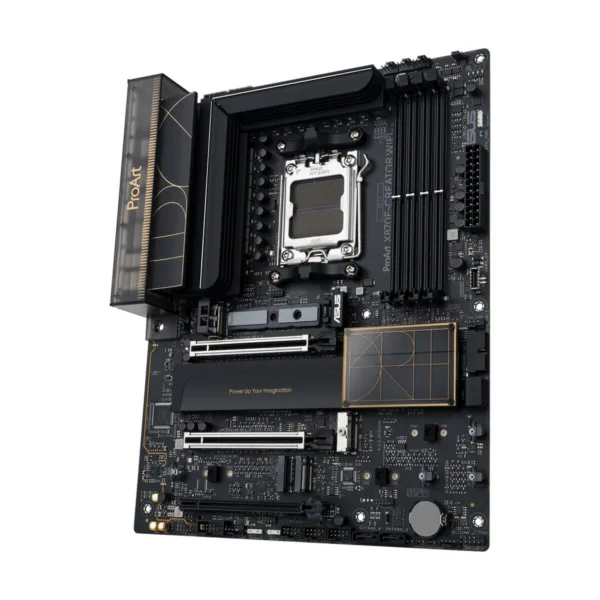

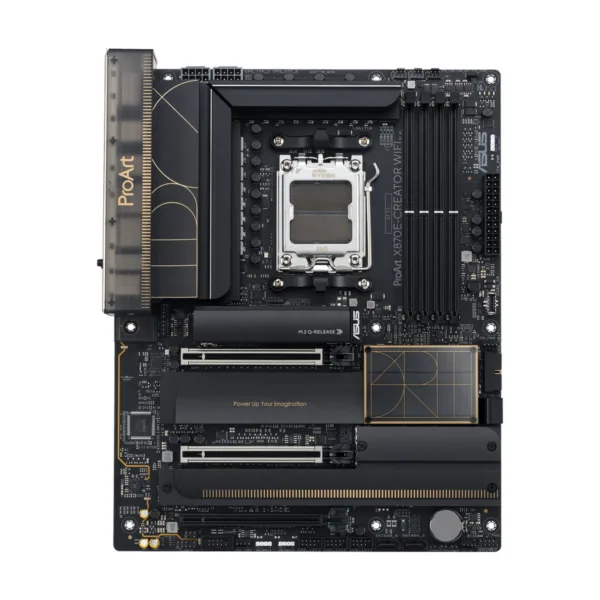

ASUS ProArt X870E-CREATOR WIFI AM5
Original price was: $543.99.$435.19Current price is: $435.19.
Save 20%Sale ends Dec 23Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
ProArt X870E-CREATOR WIFI
The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and Wi-Fi 7. This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
DisplayPort™ input port for USB4® HDMI® 2.1 port (4K @ 60 Hz) 7 x USB 10 Gbps ports 2 x USB4® ports with DisplayPort™ 1.4 (8K @ 60 Hz) 1 x USB 20 Gbps Type-C® port 10 Gb & 2.5 Gb Ethernet BIOS FlashBack™ 1 x USB 2.0 port
Wi-Fi 7 3 x Audio jacks 1 x USB 20 Gbps Type-C® front-panel connector with 30-watt PD, QC 4+ 1 x USB 5 Gbps front-panel header 4 x SATA 6 Gb/s 3 x USB 2.0 headers 3 x Aura addressable Gen 2 RGB headers
ProCool II power connectors Expansion slots 2x PCIe® 5.0 x16 SafeSlots (x16 single or x8/x8 dual) 1 x PCIe® 4.0 x16 slot (Max. x4 ) Realtek® S1220A codec De-pop circuit Audio shielding Premium audio capacitors Dedicated audio PCB layers 16+2+2 power stages (80 A)
AMD Socket AM5 for AMD Ryzen™ 9000, 8000 and 7000 Series desktop processors 4 x DDR5 DIMM slots Dual channels 2 x M.2 PCIe® 5.0 slots with heatsinks 2 x 2280 (PCIe® 5.0 x4 ) AMD X870E chipset 2 x M.2 PCIe® 4.0 slots with heatsink 1 x 2280 (PCIe® 4.0 x4 ) 1 x 22110 (PCIe® 4.0 x4 )
VRM heatsinks M.2 heatsinks 4-pin PWM/DC fan headers Every onboard header supports auto-detection of PWM or DC fans.
Multiple temperature sources Each header can be set to monitor and react to multiple user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI. Chipset heatsink
Q-Antenna Attach a Wi-Fi antenna in a snap. M.2 Q-Release A convenient switch helps to quickly remove the heatsink. M.2 new Q-Latch A simple locking mechanism secures an M.2 SSD without the need for specific tools. M.2 Q-Slide The sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation. SafeSlot This slot provides stronger PCIe® device retention and greater shearing resistance.
Q-DIMM One-sided clips deliver simple and secure handling of memory modules. Q-LED This diagnostic display indicates CPU, memory, graphics card or boot device issues for quick diagnosis. SafeDIMM A fortified metal divider adds support and damage prevention. PCIe® Slot Q-Release Slim Simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe® slot. Q-Connector This helps organize all front-panel cables for a neater setup.
All you need for maximum productivity
Dual USB4® Connectivity Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port. Up to 40 Gbps Bi-directional bandwidth DisplayPort™ 1.4 Supports one 8K or dual 4K displays Daisy-Chaining For up to five devices Up to 15 W Charging
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.
