| Weight | 9.3 lbs |
|---|---|
| Dimensions | 14.5 × 12 × 4.5 in |
| Brand | ASUS |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports up to 8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors 9600+MT/s(OC)/9200+MT/s(OC) with Ryzen 8000 Series Processors 8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) *When both PCIEX16_1 and PCIEX16_2 are in use, they will each run in x8 mode. AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors 2 x PCIe 4.0 x16 slots (Total band |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (su |
| SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| Max LAN Speed | 10Gbps + 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

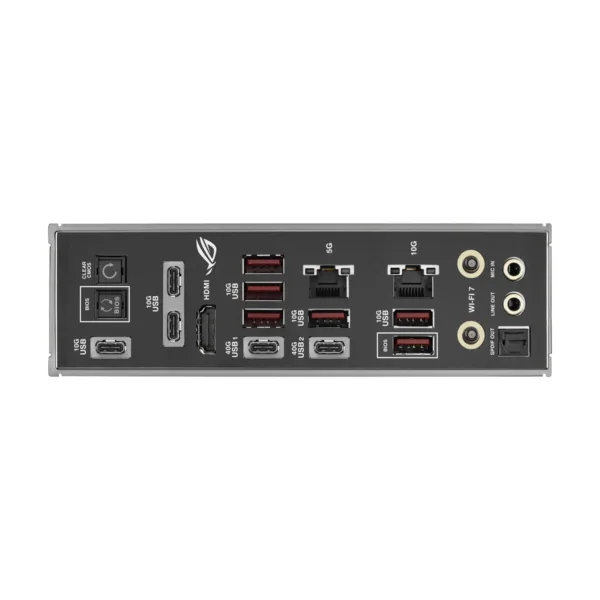

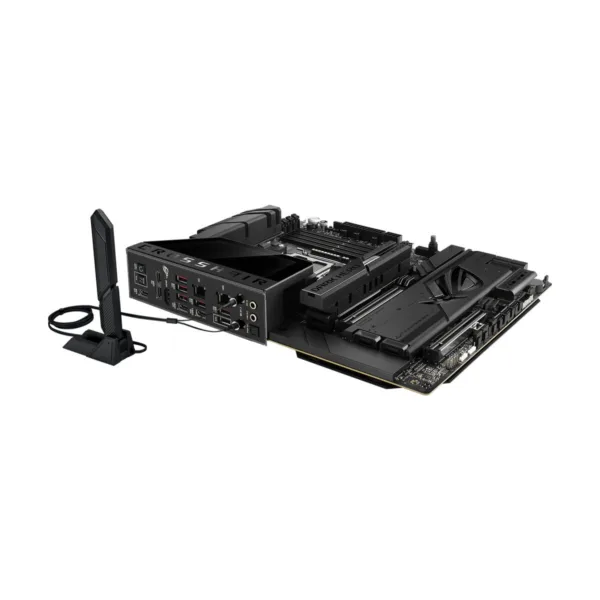

| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 9 x USB 10Gbps connector (6 x Type-A + 3 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 10Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear |
| Onboard USB | 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x AIO Q-Connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen2 headers 1 x A |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector |
| BIOS Feature | 64 MB (512Mb) Flash ROM, UEFI AMI BIOS |
| Software | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Internet Security (1-year full version) – Polymo Lighting II ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – WiFi Q-Antenna – MLO Wizard ASUS DriverHub – ASUS MB M |
| Features | Extreme OC Kit – FlexKey button – LN2 Mode – ReTry button – Start button Extreme Engine Digi+ – 10K Black metallic capacitors – MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release – Q-Antenna – Q-Code – Q-Connector – Q-Dashboard – |

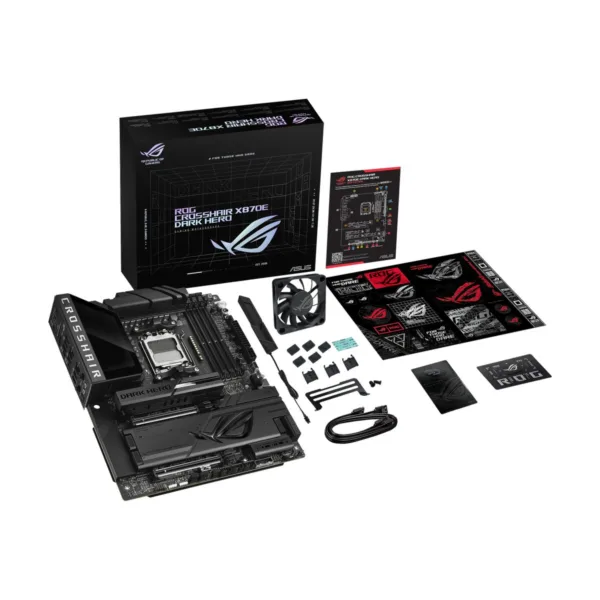

| Package Contents | Cables 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x DDR5 fan holder 1 x ROG assistant fan (60mm) 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG |
| MPN | ROG CROSSHAIR X870E DARK HERO |
| UPC | 199291398672 |

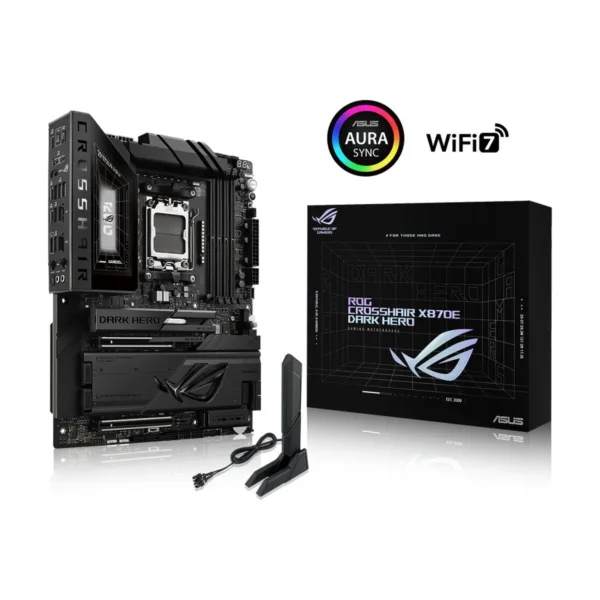

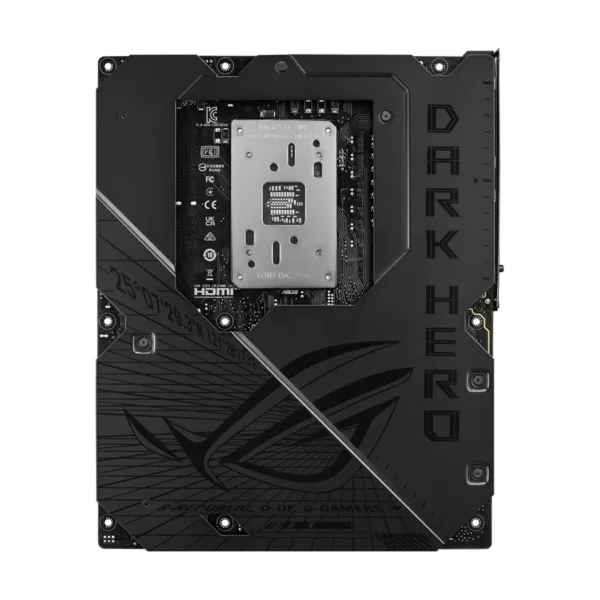

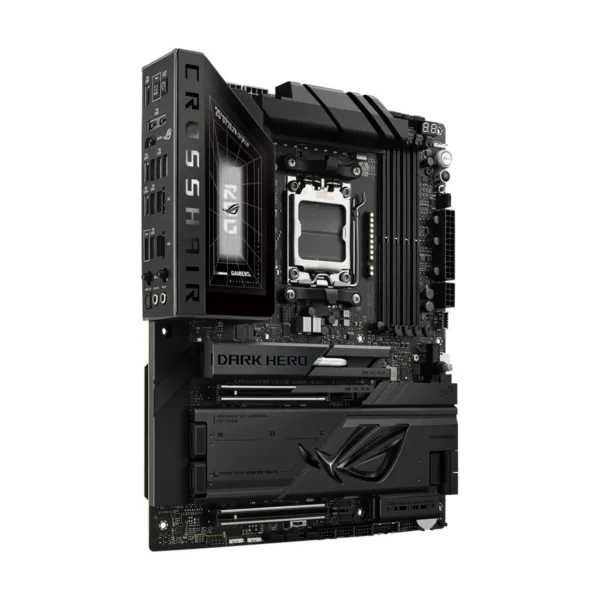

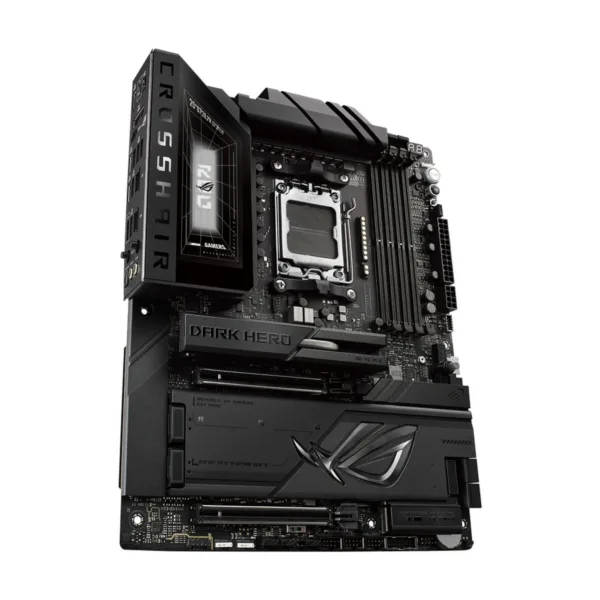

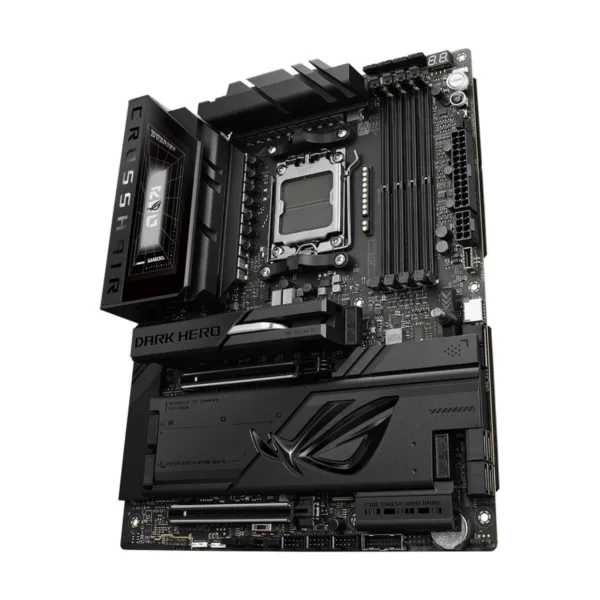

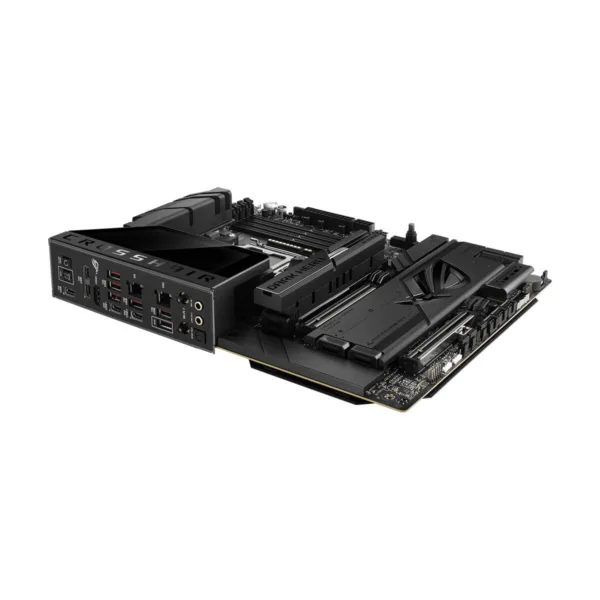

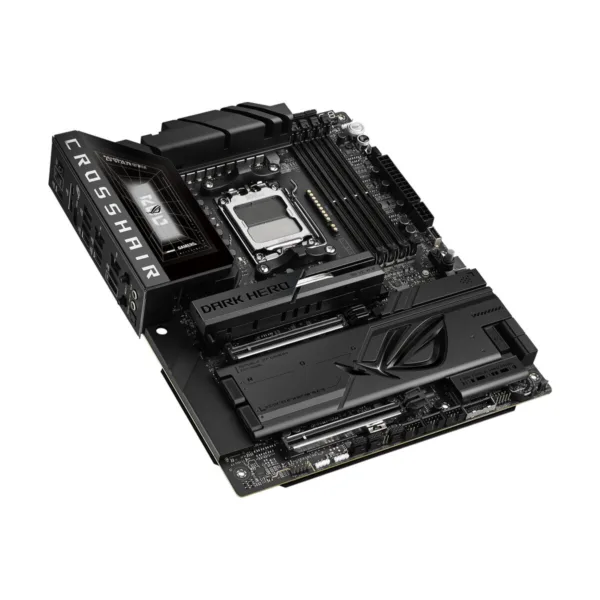

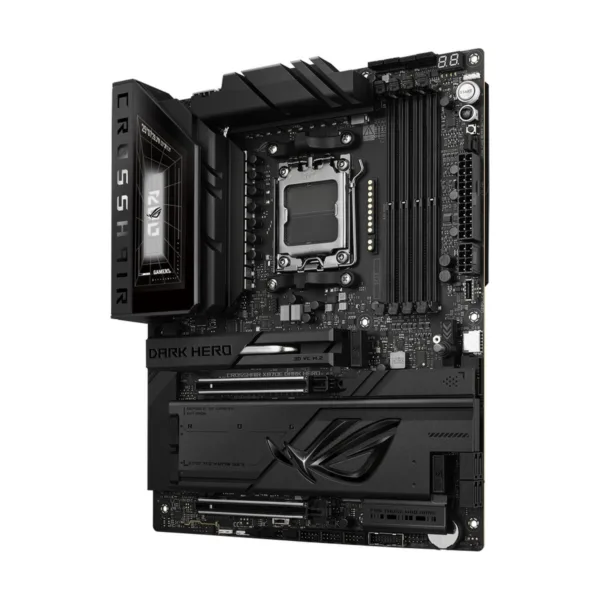

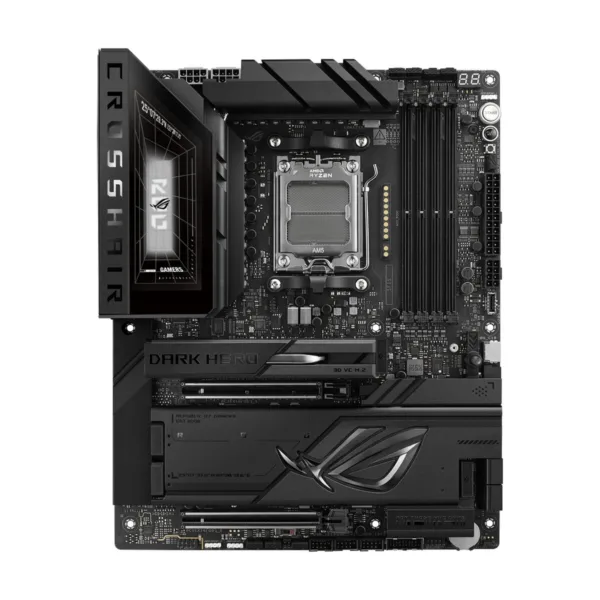

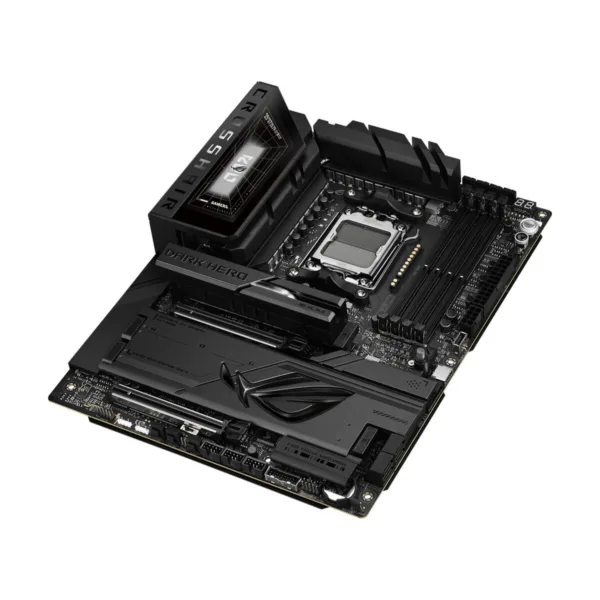

ASUS ROG CROSSHAIR X870E DARK HERO AM5
Original price was: $699.99.$559.99Current price is: $559.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview
Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe® 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4® ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.
DDR5
Max. 256 GB, Server-Grade DRAM Enhancement, NitroPath DRAM Technology, AEMP
Extensive Gen 5
x2 onboard M.2 slots, and x2 PCIe 5.0 x16 slots
DUAL PROCOOL II POWER CONNECTORS 20(110 A) + 2(110 A) + 2(80 A) POWER STAGES EXPANSION SLOTS 2 x PCIe® 5.0 x16 Slots AMD AM5 SOCKET For AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
