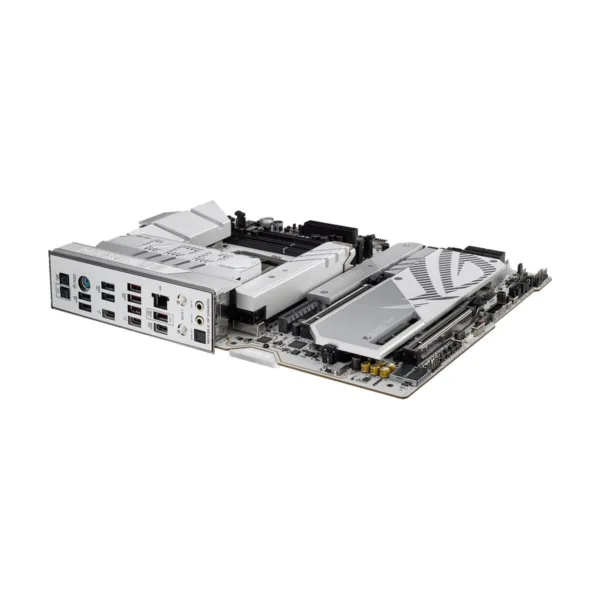

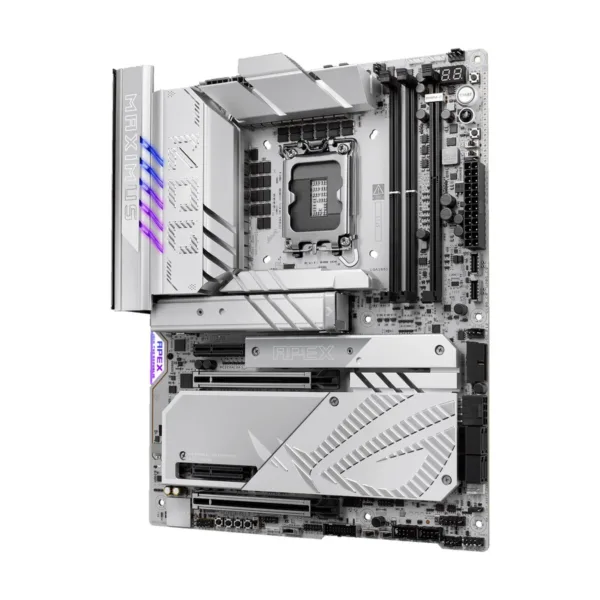

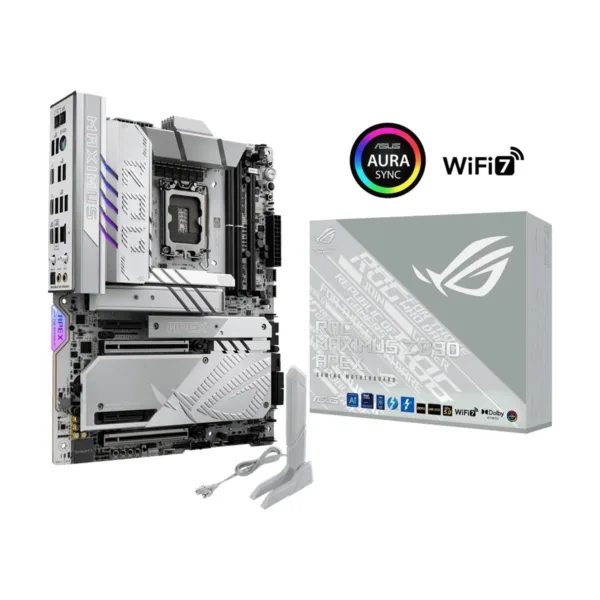

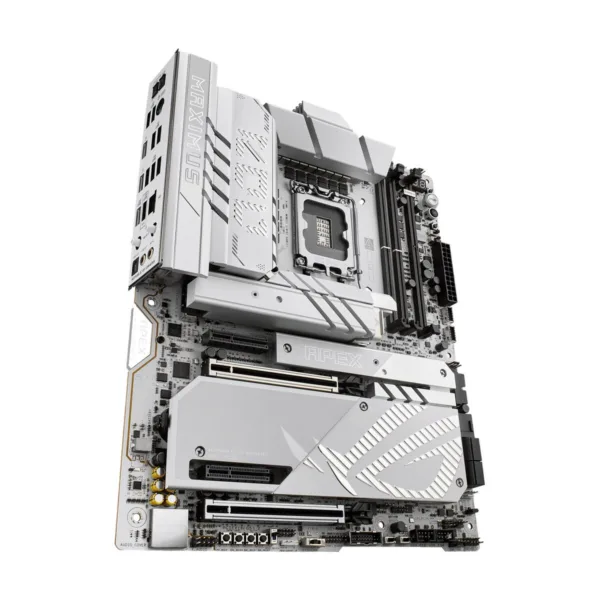

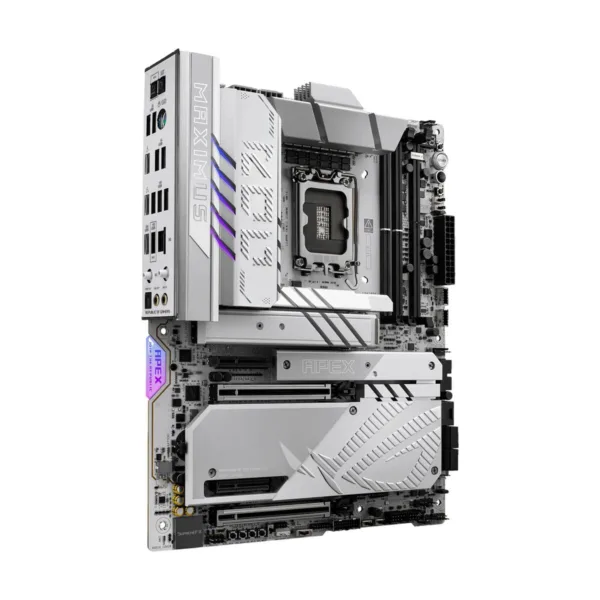

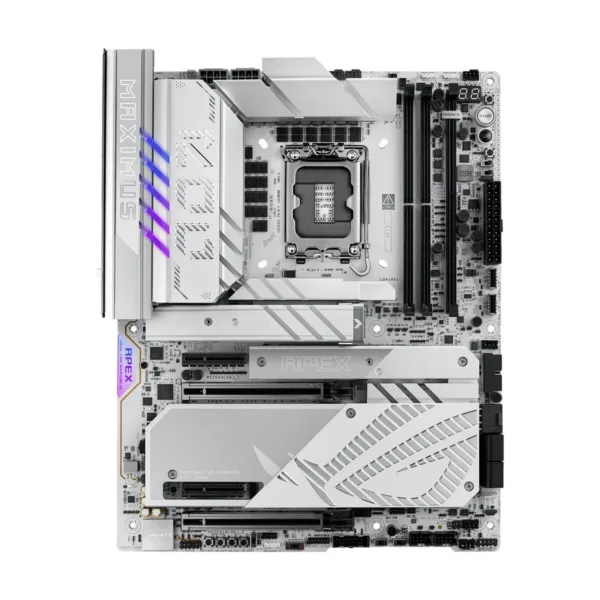

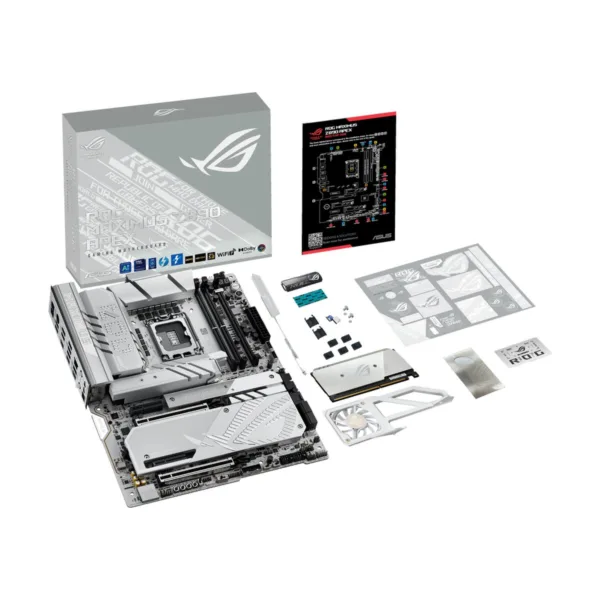

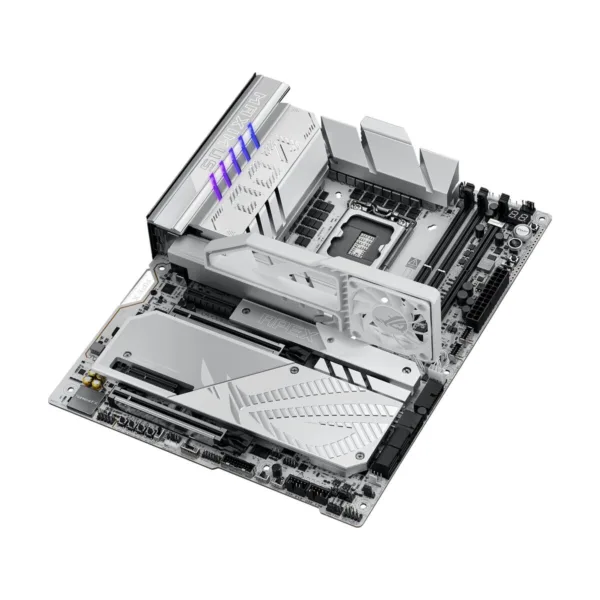

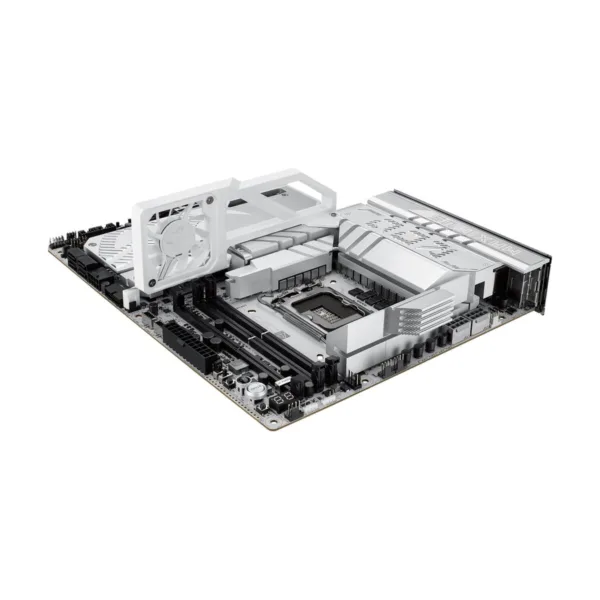

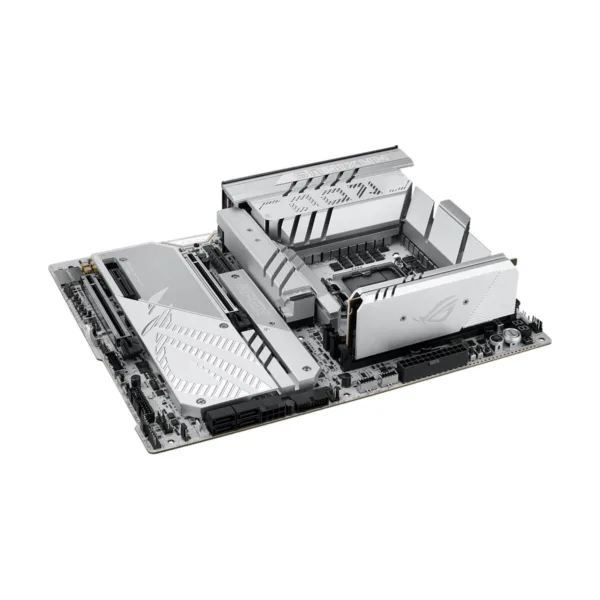

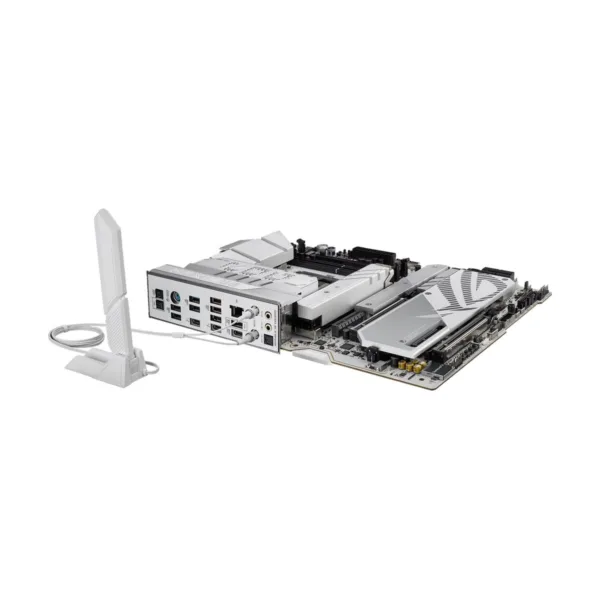

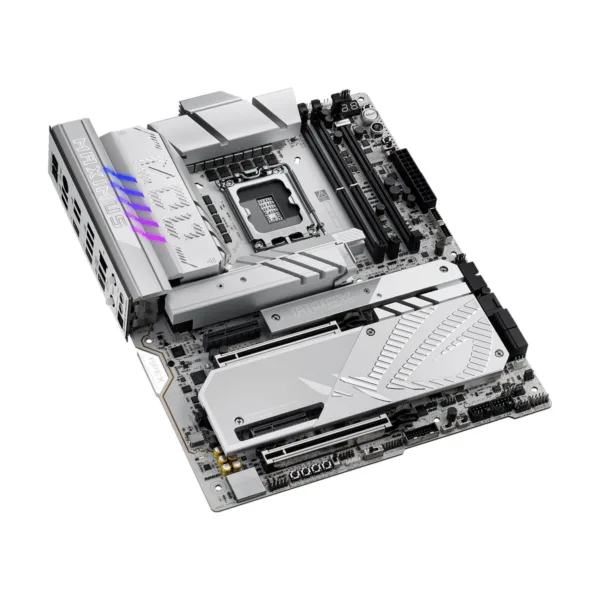

ASUS ROG MAXIMUS Z890 APEX LGA 1851 ATX Motherboard, DDR5, 3x PCIe 5.0 M.2, Thunderbolt 4, Wi-Fi 7
$610.99Original price was: $610.99.$488.79Current price is: $488.79.
Save 20%Sale ends Dec 23
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel® LGA 1851 Socket: Supports Intel Core™ Ultra Processors (series 2) Exclusive AI Technologie…
In stock
Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
Secure checkout Visa, Mastercard, American Express and Discover.

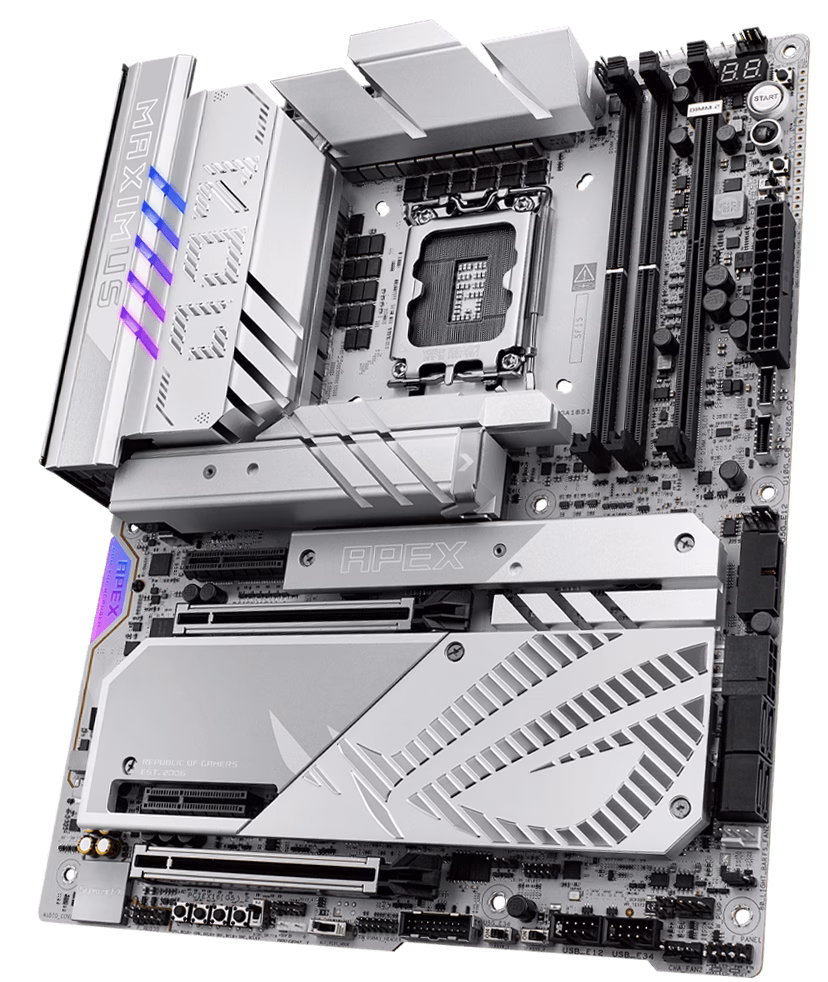

The ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.
DDR5
Max. 96 GB, DIMM Fit, DIMM Flex and AEMP III
Extensive Gen 5
x3 onboard M.2 slots, and x2 PCIe® 5.0 x16 slots
DUAL PROCOOL II POWER CONNECTORS 22(110 A)+1(90 A)+2(90 A)+2(80 A) POWER STAGES EXPANSION SLOTS 2 x PCIe® 5.0 x16 Slots 2 x PCIe® 4.0 x4 Slots Intel® Socket LGA1851 Intel® Core™ Ultra Processors (Series 2) DDR5, 2 X DIMM Max. 96 GB Dual Channel
6 x M.2 SLOTS 1 x M.2 22110 (PCIe® 5.0 x4) 1 x M.2 2280 (PCIe® 4.0 x4) 2 x M.2 2280 (PCIe® 5.0 x4) 2 x M.2 22110 (PCIe® 4.0 x4) (via ROG DIMM.2 Card)
Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex ASUS Enhanced Memory Profile III (AEMP III) * Non-ECC, un-buffered DDR5 m
PCI Express 5.0 x16
Support Intel Core Ultra Processors(series 2)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
PCI Express x4
2 x PCIe 4.0 x4 slots ** M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
Support Intel Core Ultra Processors(series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)** M.2_4 slot (Key M),
Audio Channels
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
Max LAN Speed
5Gbps
Wireless LAN
Wi-Fi 802.11 be
Bluetooth
Bluetooth 5.4

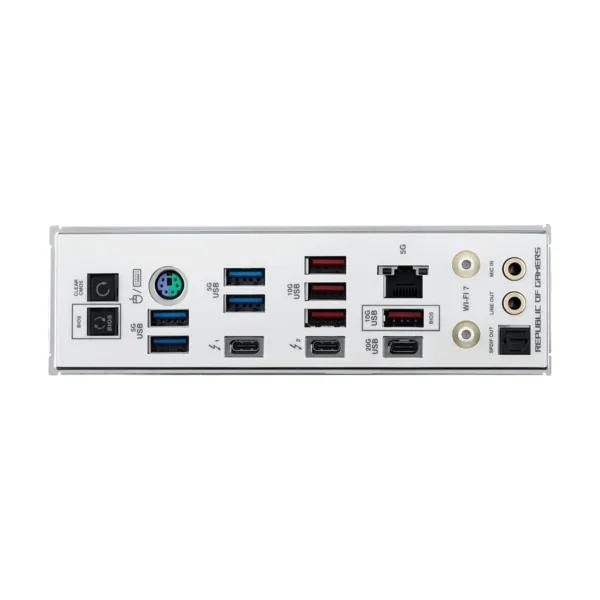

Back I/O Ports
2 x Thunderbolt 4 ports (USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear
Onboard USB
1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header Miscellaneous 1 x 80 Light Bar jumper 3 x Addressable Gen 2 headers
BIOS Feature
2 x 256 Mb Flash ROM, UEFI AMI BIOS
Software
ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – Power Saving – HWiNFO ASUS AI Adviso
Windows 11
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector
