| Weight | 3 lbs |
|---|---|
| Dimensions | 9 × 7.5 × 4 in |
| Brand | ASUS |
| Part Number | 90MB1K30-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B850 |
| Number of Memory Slots | 2x288pin (DDR5) |
| Memory Standard | DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot(s) |
| PCI Express 4.0 x16 | AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot(s) |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type02242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports |
| SATA RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1 |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |
| Back I/O Ports | 1 x USB 20Gbps port(s) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C with DP Alt mode) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 3 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button 1 |
| Onboard USB | 1 x USB 10Gbps connector (support(s) USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) 1 x Extra Flow Fan header(s) Miscellaneous 2 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System |
| Form Factor | Mini ITX |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS // UEFI AMI BIOS(text-based) |
| Software | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – GameFirst – HWiNFO – Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free Trial) Nor |
| Windows 11 | Windows 11, Windows 10 64-bit Windows 11 (22H2 later) |
| Features | Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solut |

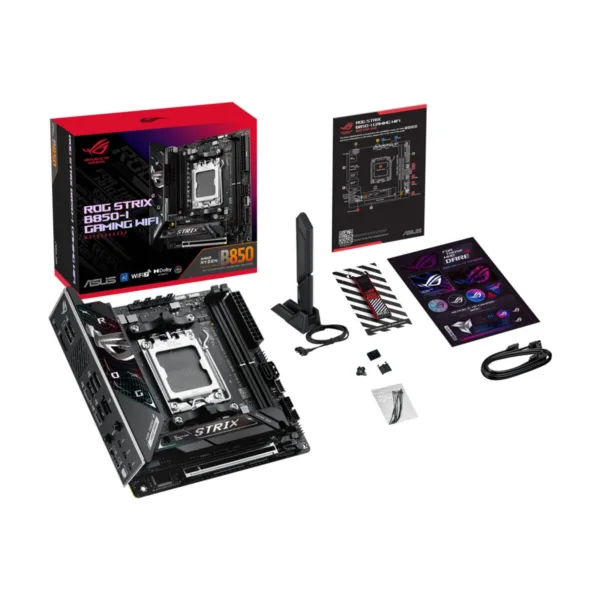

| Package Contents | Cables 1 x Panel cable 1 x ROG USB2.0 splitter cable 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 backplate Q-Latch package(s) 1 x M.2 Q-Slide package 1 x ROG key chain 1 x M.2 backplate rubber package(s) 1 x Screw package(s) for M.2 |
| MPN | ROG STRIX B850-I GAMING WIFI |
| UPC | 197105823624 |

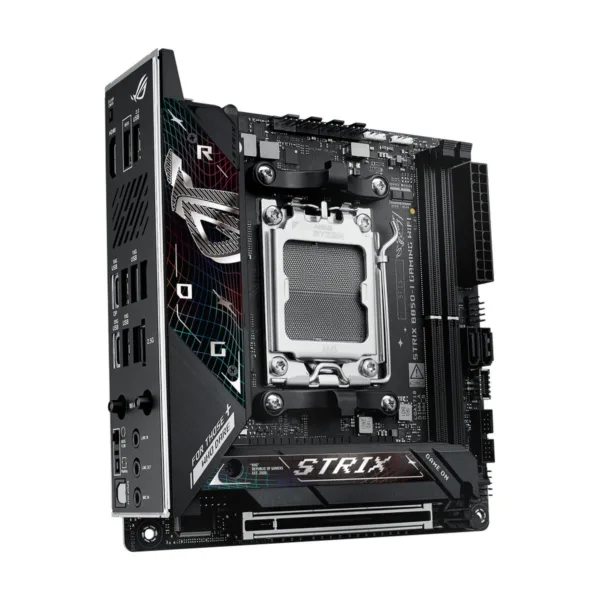

ASUS ROG STRIX B850-I GAMING WIFI AM5
Original price was: $349.99.$279.99Current price is: $279.99.
Save 20%Sale ends Dec 23AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors Intelligent Control: ASUS AI Advisor, AI Overclocking, AI Networking II and AEMP to simplify setup and improve performance
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview

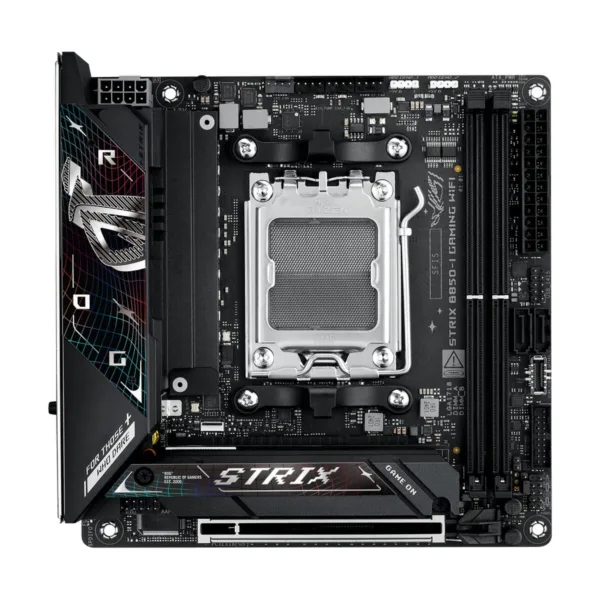

ROG STRIX B850-I GAMING WI-FI
The ROG Strix B850-I Gaming Wi-Fi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe ® 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and Wi-Fi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.
ROBUST POWER SOLUTION
10 + 2 + 1 power solution rated for up to 70A per stage
PROCOOL POWER CONNECTOR AMD SOCKET AM5 FOR AMD RYZEN™ 9000 & 8000 & 7000 SERIES DESKTOP PROCESSORS 10(70A)+2(70A)+1 POWER STAGES
DDR5 8400+ (OC) ・ 2 x DIMM ・ Dual Channel 2 X M.2 Slots ・ 2 x M.2 2242-2280 (PCIe 5.0 x4)
SupremeFX ALC4080 Codec + Savitech SV3H712 AMP ・ Impedance sense ・ 120 dB SNR stereo playback output ・ SupremeFX shielding DOLBY ATMOS ®

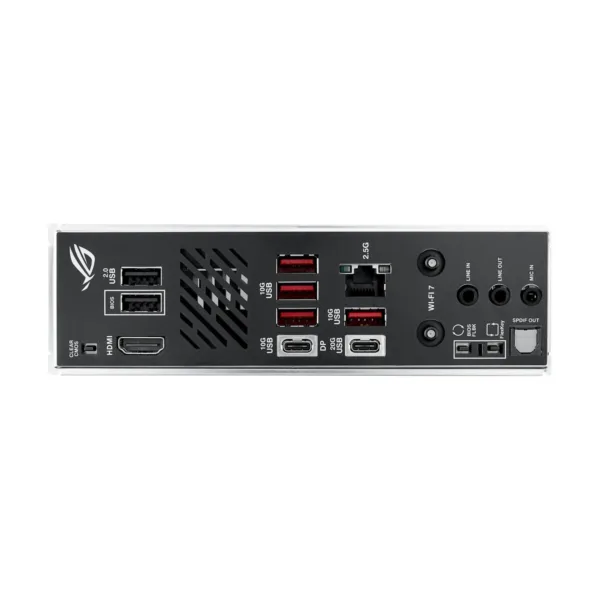

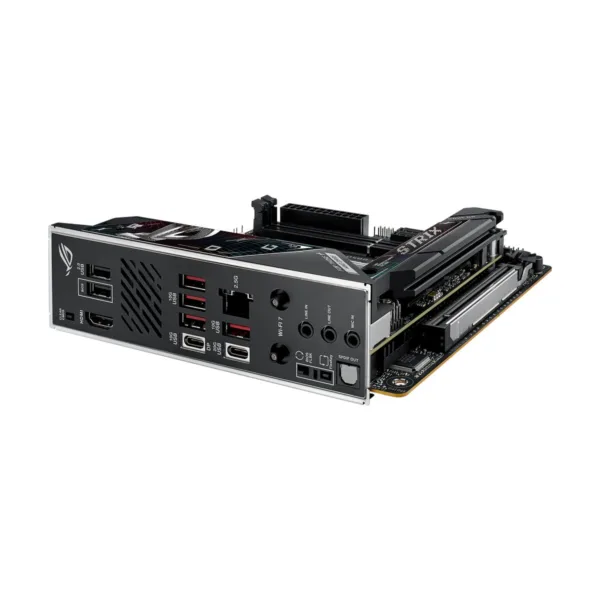

CLEAR CMOS BUTTON 1 X HDMI™ PORT 2 X USB 2.0 PORTS (2 x Type-A) 5 X USB 10 Gbps PORTS (4 x Type-A + 1 x USB Type-C ® ) 1 X USB 20 Gbps PORT (1 x USB Type-C ® ) 1 X INTEL ® 2.5 Gb ETHERNET WI-FI 7 BIOS FLASHBACK™ BUTTON
