| Weight | 6.05 lbs |
|---|---|
| Dimensions | 14.1 × 11.3 × 3.5 in |
| Brand | ASUS |
| Series | ROG STRIX |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports up to 8600+MT/s(OC)/8200+MT/s(OC) with Ryzen 9000 Series Processors 9600+MT/s(OC)/9000+MT/s(OC) with Ryzen 8000 Series Processors 8000+MT/s(OC)/8000+MT/s(OC) with Ryzen 7000 Series Processors |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO / ASUS Enhanced Memory Profile (AEMP) |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors 1 x PCIe 4.0 x16 slots (supports x8 mode) AMD Ryzen 8500 & 8300 Series Desktop Processors 1 x PCIe 4.0 x16 slots (suppo |
| PCI Express 4.0 x16 | AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 22 |
| SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Yes |

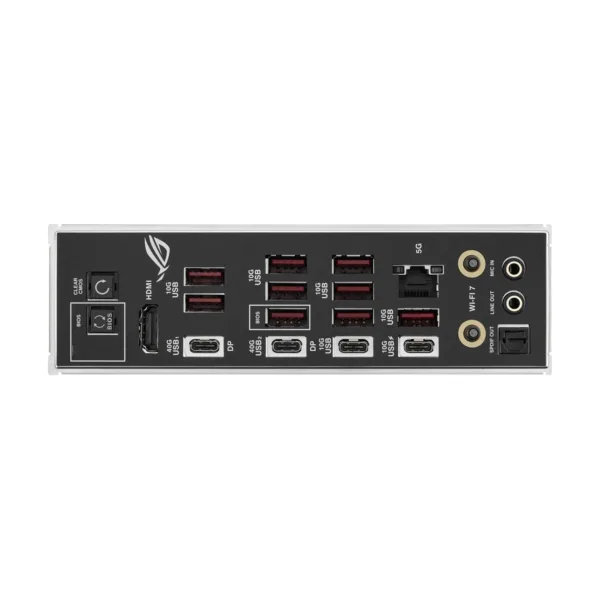

| Back I/O Ports | 2 x USB4 (40Gbps) (2 x USB Type-C with DP Alt mode) 11 x USB 10Gbps port(s) (9 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD/PPS Fast-charge) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack |
| Onboard USB | 2 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) 1 x AIO Q-Connector Miscellaneous 3 x Addressable RGB Gen 2 header(s) 1 x Alteration PCIe mode switch 1 x Chassis Intrusion header 1 x |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector |
| BIOS Feature | 64MB (512Mb) Flash ROM, UEFI AMI BIOS |
| Software | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Polymo Lighting ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – WiFi Q-Antenna – MLO Wizard ASUS DriverHub – ASUS MB Manager – ASUS AI Advisor – AIDA64 Extreme (60 |
| Windows 11 | Supported |
| Features | Asynchronous Clock Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release – Q-Antenna – Q-Code – Q-Dashboard – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solut |

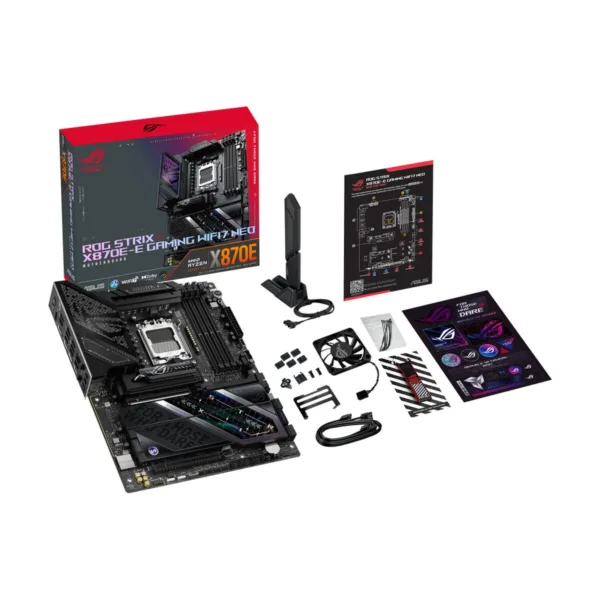

| Package Contents | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x DDR5 fan holder 1 x Screw package for cooling kit 1 x ROG assistant fan (60mm) Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package(s) 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix s |
| MPN | ROG STRIX X870E-E GAMING WIFI7 NEO |
| UPC | 199291407947 |

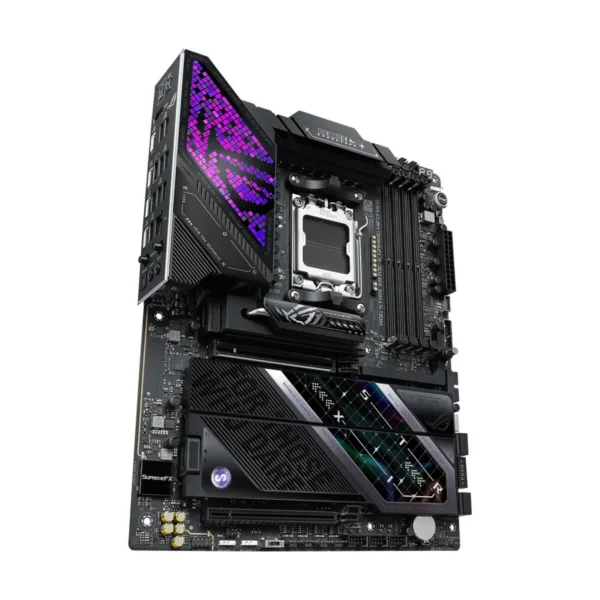

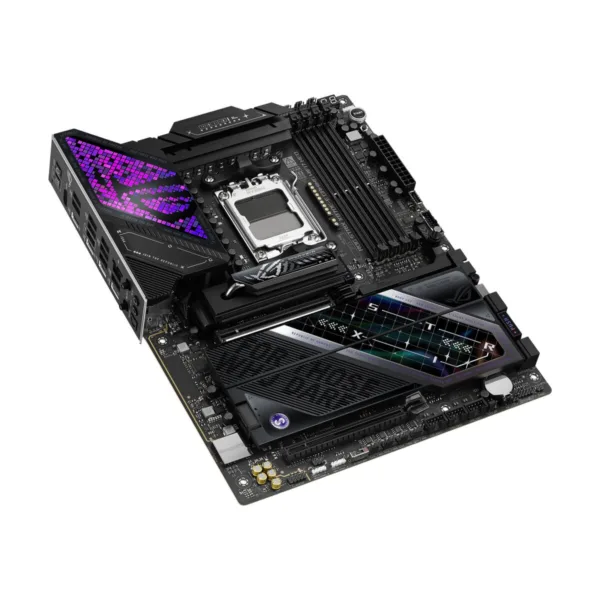

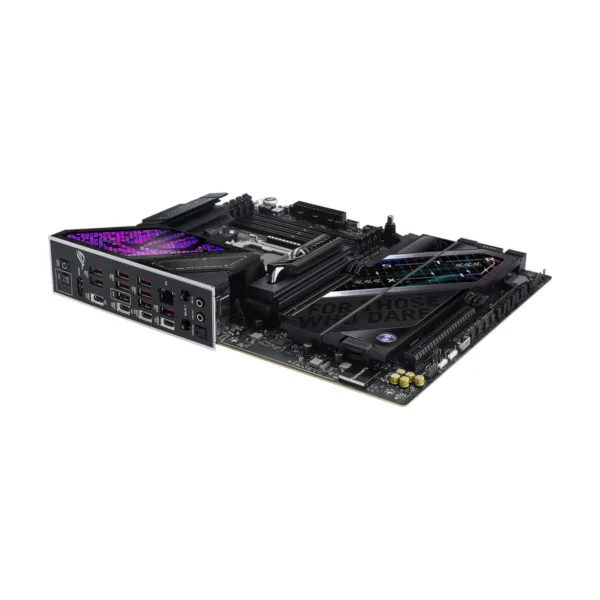

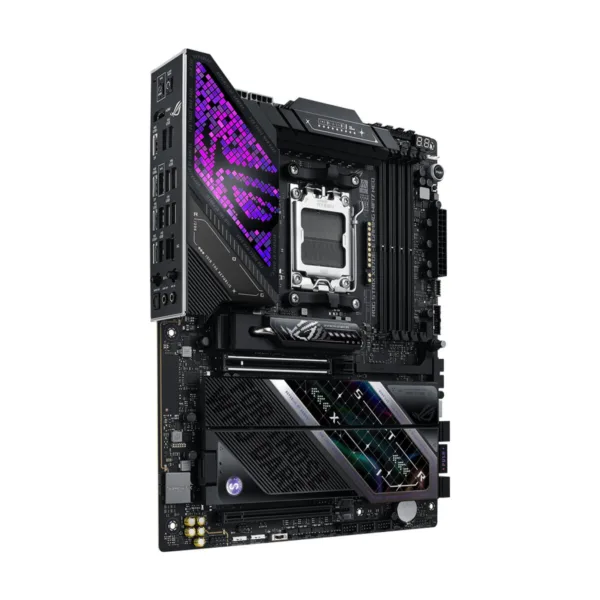

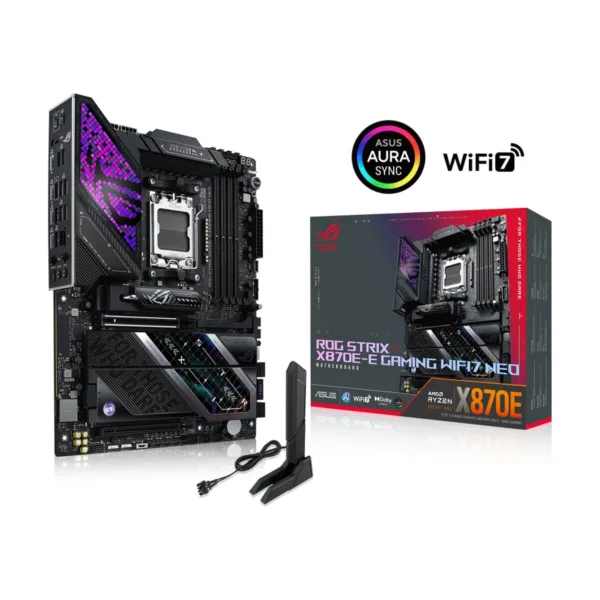

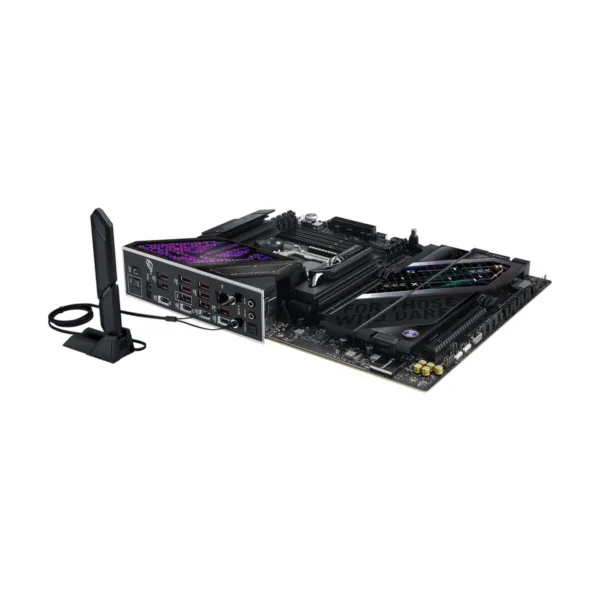

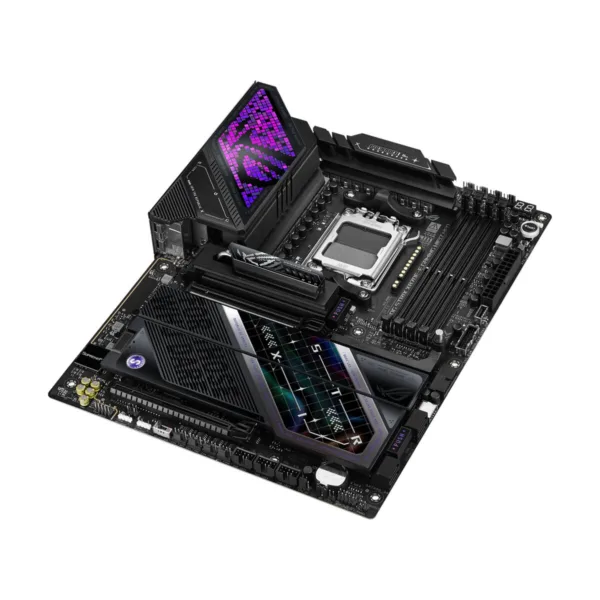

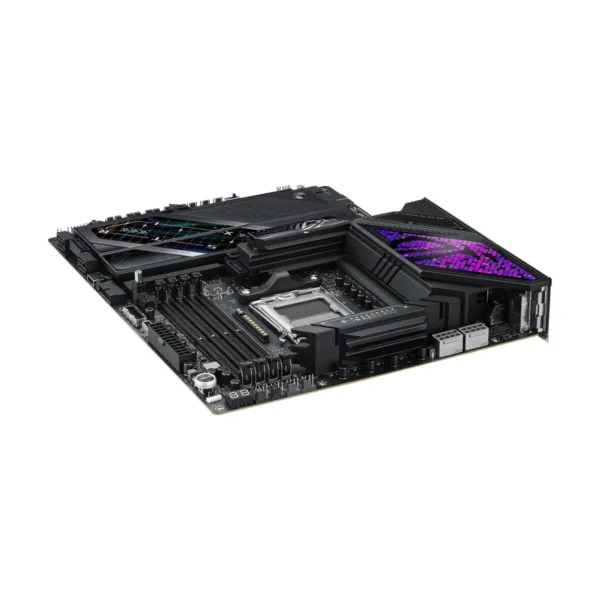

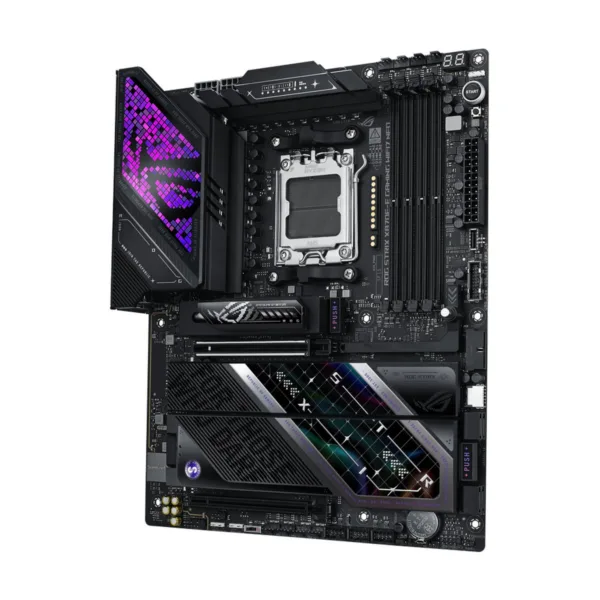

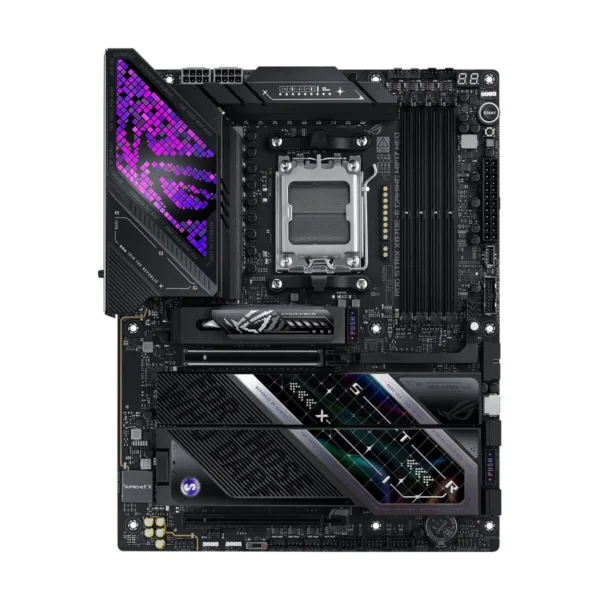

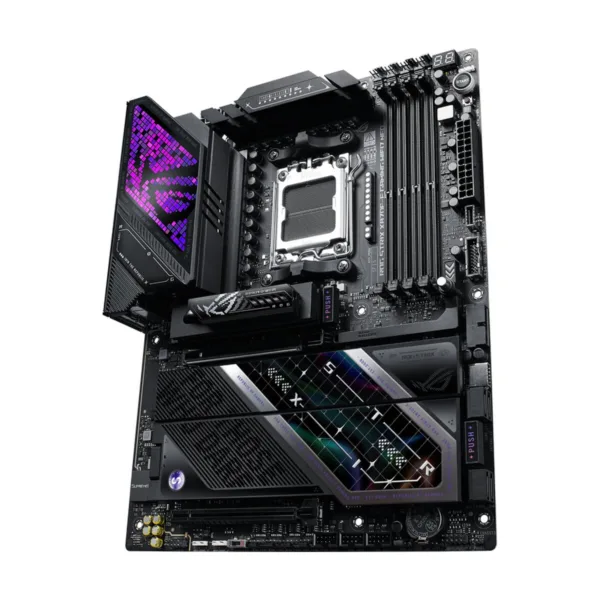

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AM5 ATX Motherboard, DDR5, 5x M.2, PCIe 5.0, Dual USB4
Original price was: $599.99.$479.99Current price is: $479.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview

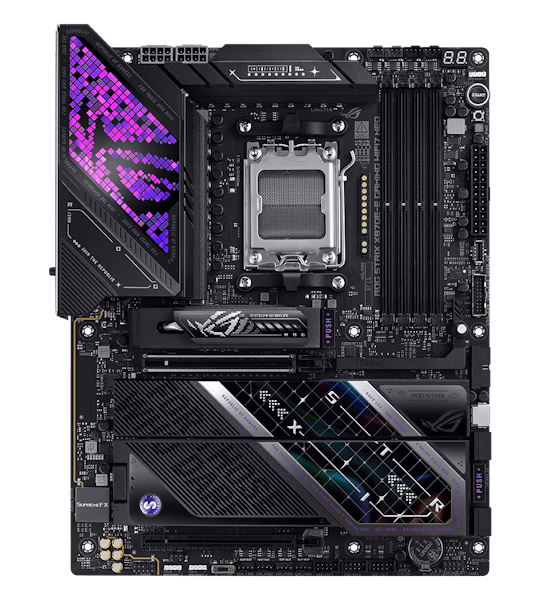

The ROG Strix X870E-E Gaming WiFi7 Neo is designed to unleash the power of AMD Ryzen™ 9000 Series processors. Enhancements such as PCIe® lane optimization deliver higher speeds to five M.2 slots, all of which feature Q-Release for EZ DIY installation, just like the PCIe® 5.0 x16 slot. AI Cache Boost optimizes CPU cache and memory pathways to accelerate AI workloads, while NitroPath DRAM Technology and a server-grade low-etch PCB enhance signal integrity for more stable DDR5 tuning and greater overclocking headroom. A spacious 64 MB BIOS chip delivers broad AM5 CPU compatibility, and the redesigned BIOS interface offers a smoother user experience.
DDR5
Max. 256 GB, NitroPath DRAM Technology, AEMP
ROBUST POWER SOLUTION
18 + 2 + 2 power solution rated for up to 110A per stage
DUAL PROCOOL II POWER CONNECTORS AMD SOCKET AM5 FOR AMD RYZEN™ 9000 & 8000 & 7000 SERIES DESKTOP PROCESSORS EXPANSION SLOTS 1 x PCIe® 5.0 x16 SafeSlot [CPU] 1 x PCIe® 4.0 x16 Slot (x4) [Chipset]
18 (110A) + 2 (110A) + 2 (80A) POWER STAGES DDR5 9600+ MT/S (OC) 4 x DIMM Dual Channel 5 x M.2 SLOTS 2 x M.2 2280 (PCIe® 5.0 x4) 3 x M.2 2280 (PCIe® 4.0 x4)
