| Weight | 3.03 lbs |
|---|---|
| Dimensions | 11 × 10.5 × 2.75 in |
| Brand | ASUS |
| CPU Socket Type | AM4 |
| CPU Type | BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | 3rd Gen AMD Ryzen Processors DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * Next Generation AMD Ryzen PRO Processors DDR4 4800(O.C.)/ 4600(O.C)/ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| PCI Express 3.0 x16 | AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| PCI Express x1 | 1 x PCIe 3.0 x1 slot * Support PCIe bifurcation for RAID on CPU function. |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |

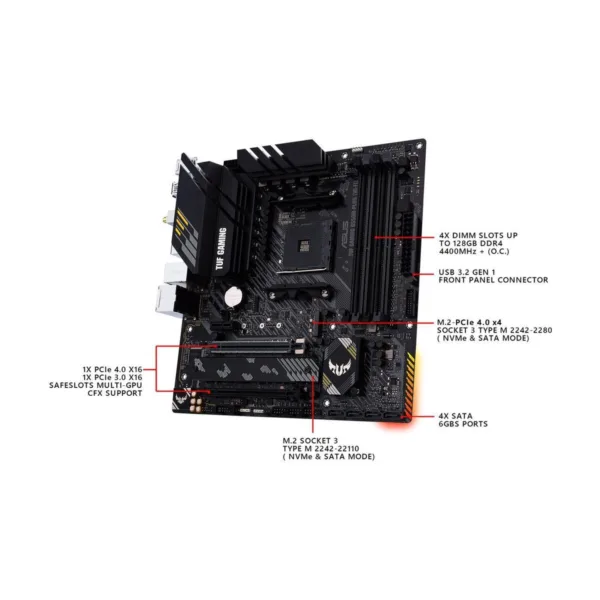

| M.2 | 3rd Gen AMD Ryzen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x DisplayPort 1.2 1 x HDMI 2.1 (4K@60HZ) |
| Audio Chipset | Realtek ALC S1200A High Definition Audio CODEC |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B |
| Max LAN Speed | 2.5Gbps |

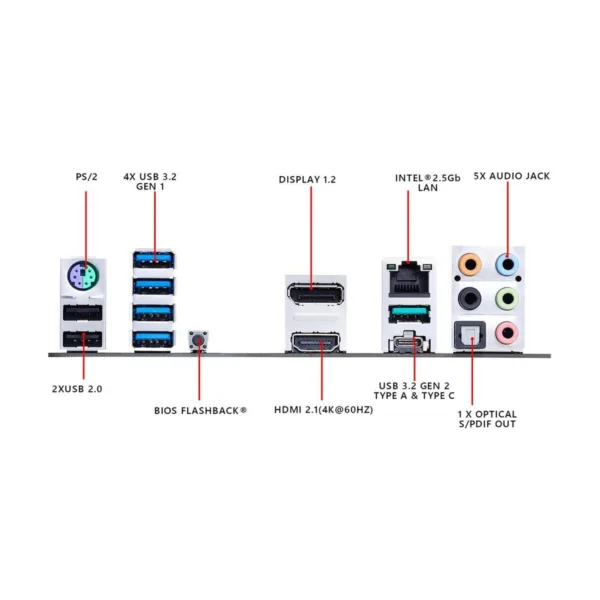

| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek RTL8125B 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x PS/2 Keyboard |
| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

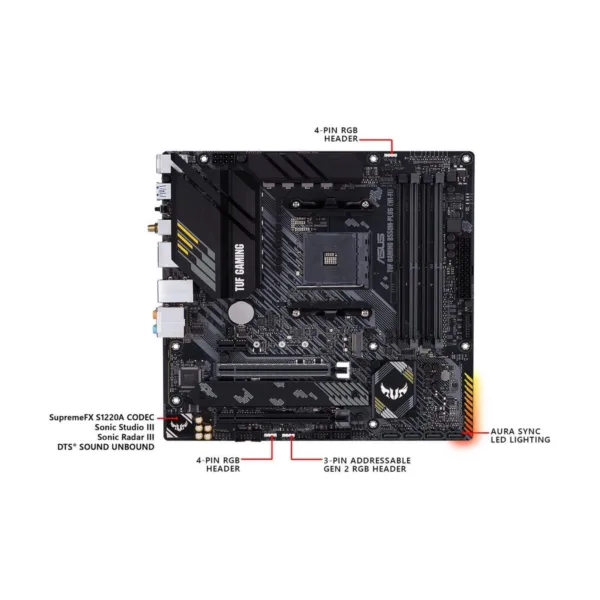

| Other Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 1 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SP |
| Form Factor | Micro ATX |
| LED Lighting | RGB |

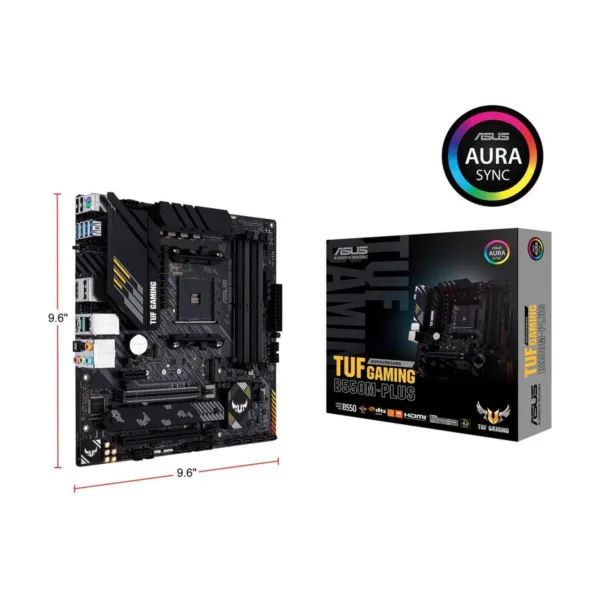

| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
| Features | Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology ASUS Exclusive Software: Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update TUF GAMING CPU-Z AI C |

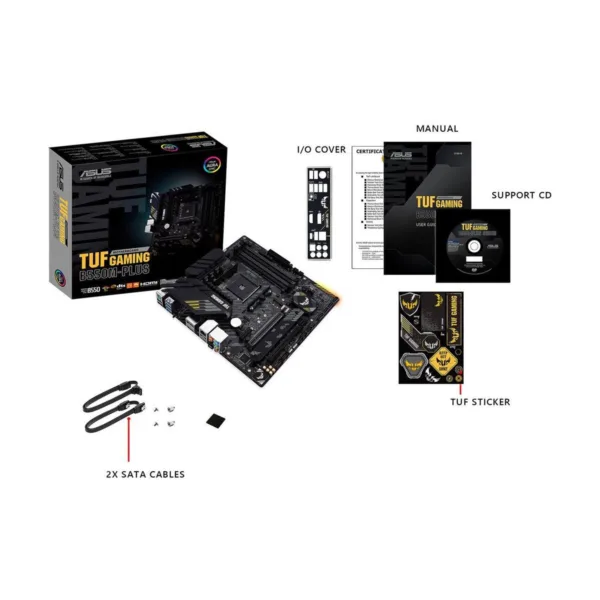

| Package Contents | Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual |
| MPN | TUF GAMING B550M-PLU |
| UPC | 192876750155 |

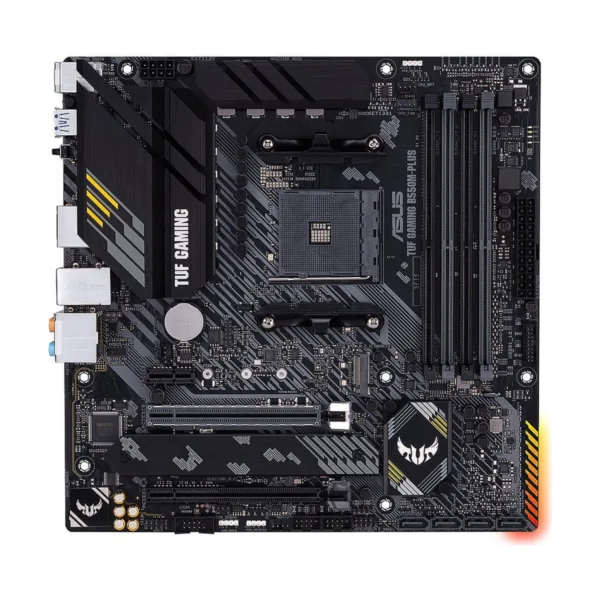

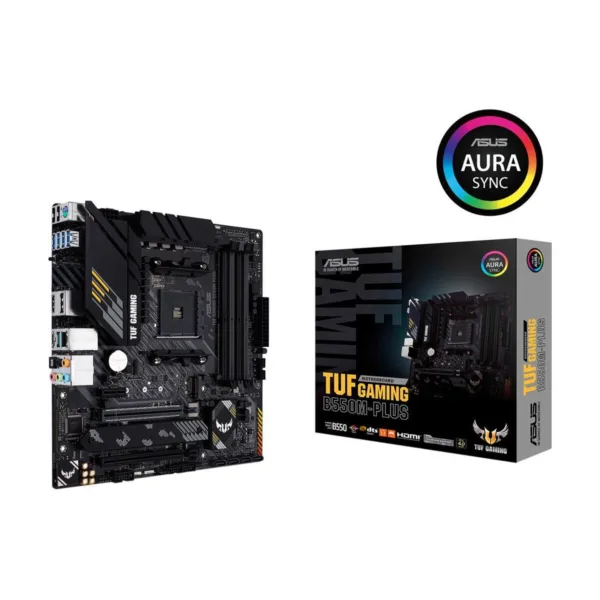

ASUS TUF GAMING B550M-PLUS AM4
$99.08
BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
