Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI application AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
In stock
Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
Secure checkout Visa, Mastercard, American Express and Discover.

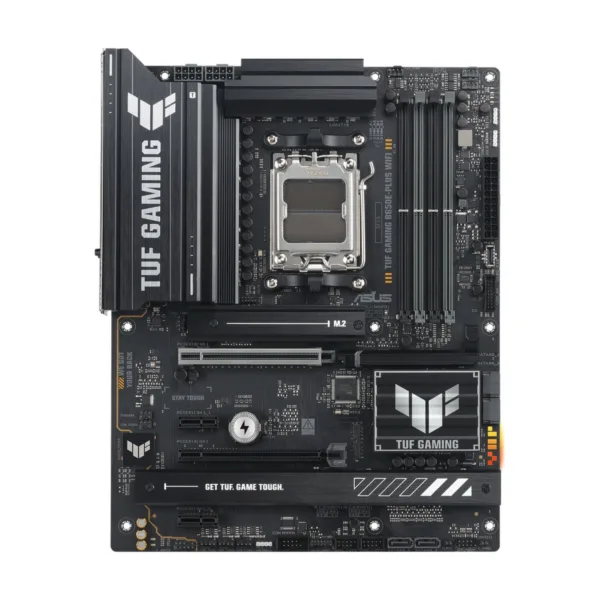

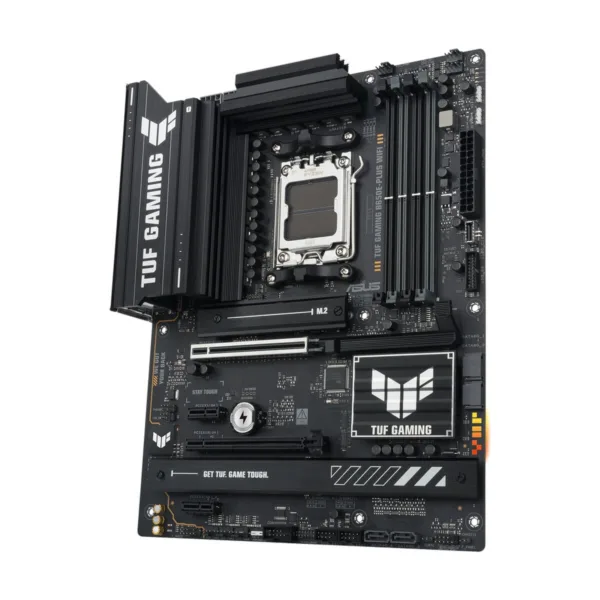

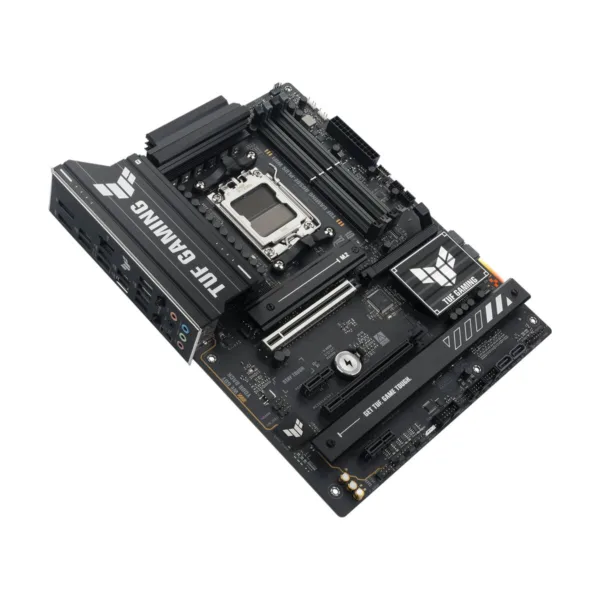

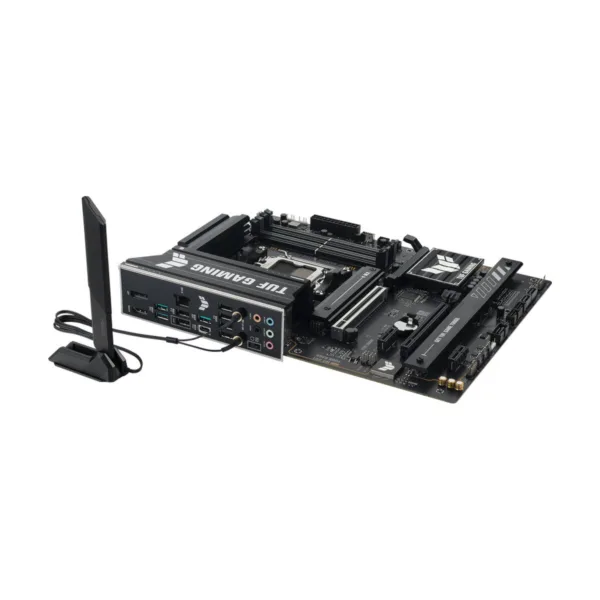

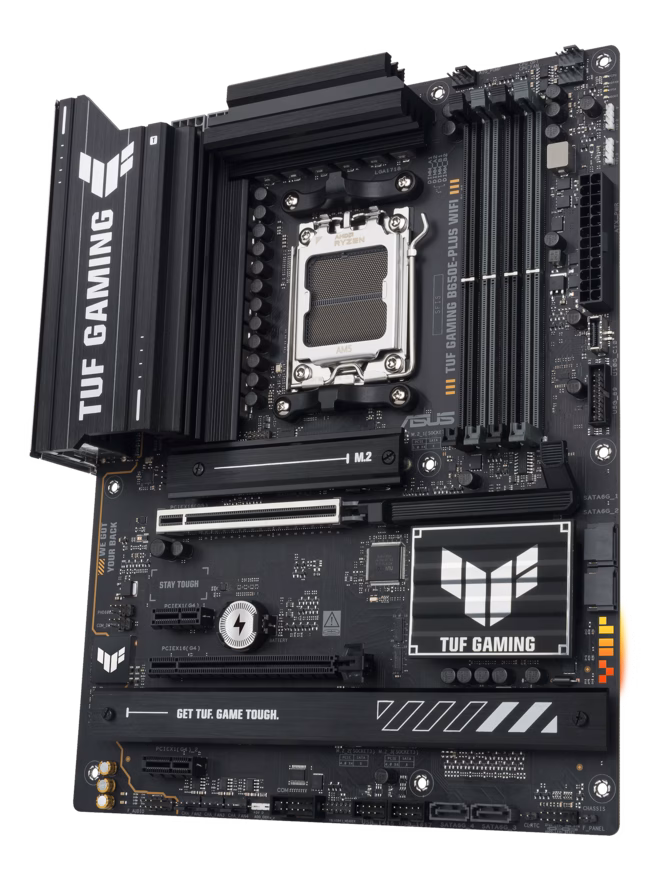

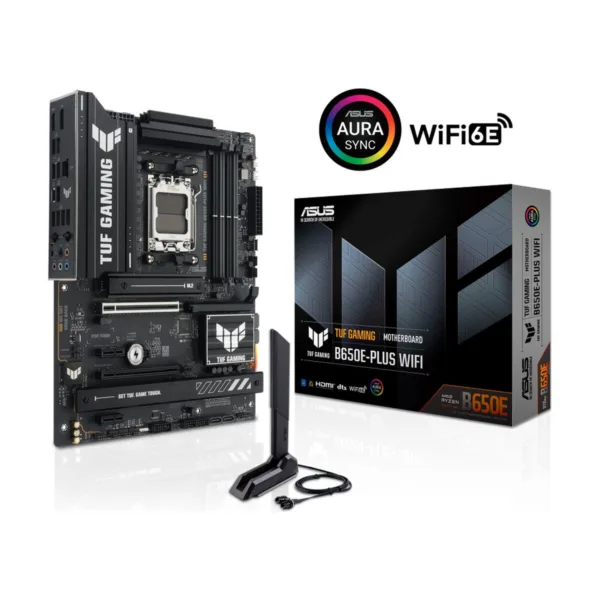

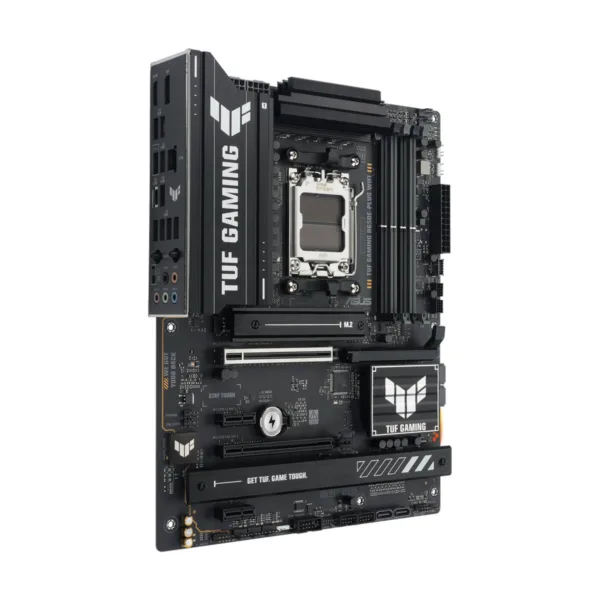

ASUS TUF GAMING B650E-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This pla
HDMI® DisplayPort™ 2 x USB 10Gbps Realtek 2.5Gb 2 x USB 2.0 1 x USB 10Gbps 1 x USB 20Gbps Type-C® 4 x USB 2.0 Wi-Fi 6E BIOS FlashBack™ 7.1-ch Audio
3 x Addressable Gen 2 RGB headers 12(80A)+2(80A)+1(80A) Power Stages DDR5 Dual Channel AEMP 1 x Front USB 10Gbps Type-C® 1 x Front USB 5Gbps Header 1 x M.2 2280 PCIe 5.0 x 4 1 x M.2 22110 PCIe 4.0 x 4 1 x M.2 2280 PCIe 4.0 x 4 4 x SATA 6Gb/s Ports AMD B650 Chipset 2 x Front USB 2.0 Headers
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650E motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
PBO ENHANCEMENT
CPU Performance Boost AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset
AMD B650
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
Supports up to DDR5 8000+MT/s (OC)
Maximum Memory Supported
256GB
Channel Supported
Dual Channel
Memory Performance Profile
AMD EXPO
ECC Supported
Yes
Buffer Supported
Un-buffered
Memory Feature
Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Non-ECC, un-buffered DDR5 memory
PCI Express 5.0 x16
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
PCI Express 4.0 x16
AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)*** *** The M.2_3 shares bandwidth with PCIEX16(G4). The PCIEX16(G4) will be disabled when M.2_3 runs.
PCI Express x1
2 x PCIe 4.0 x1 slots
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mod
SATA RAID
Ryzen 9000 series processors: RAID 0/1/5/10 Ryzen 8000 series processors: RAID 0/1 Ryzen 7000 series processors: RAID 0/1/10
Audio Channels
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retaskin
Max LAN Speed
2.5Gbps
Wireless LAN
Wi-Fi 802.11 ax
Bluetooth
Bluetooth 5.3

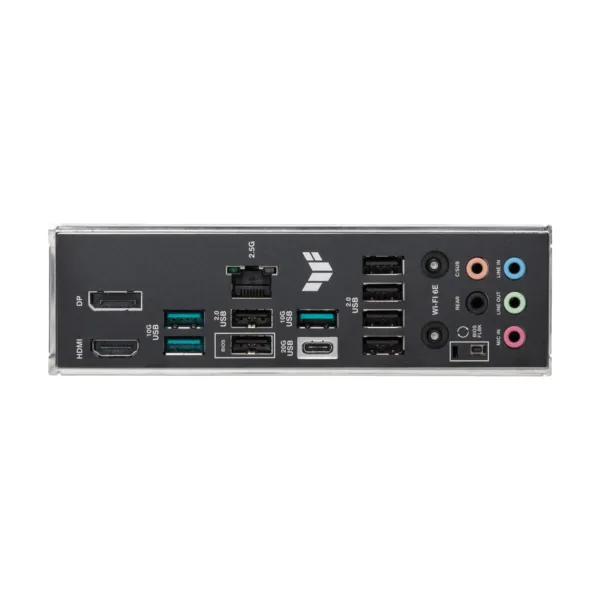

Back I/O Ports

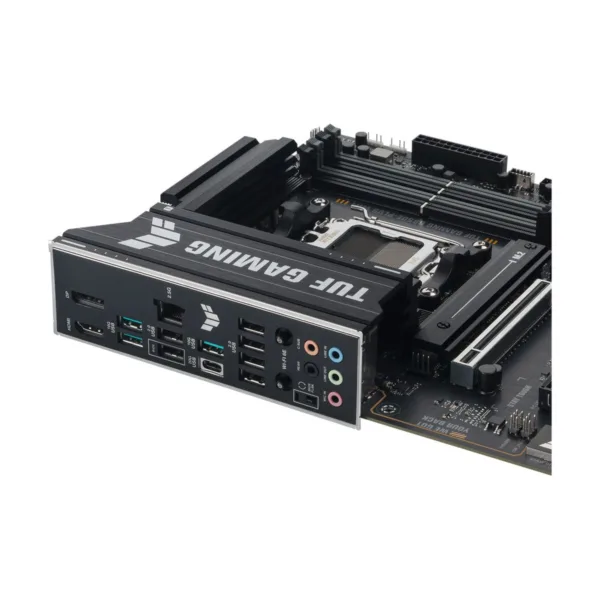

1 x Antenna Bracket / 1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2×2 Type-C / 3 x USB 3.2 Gen 2 Type-A / 5 x Audio Jacks / 6 x USB 2.0/1.1
Other Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors
BIOS Feature
256 Mb Flash ROM, UEFI AMI BIOS
Software
ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner ASUS DriverHub TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Fre
Features
ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Bo

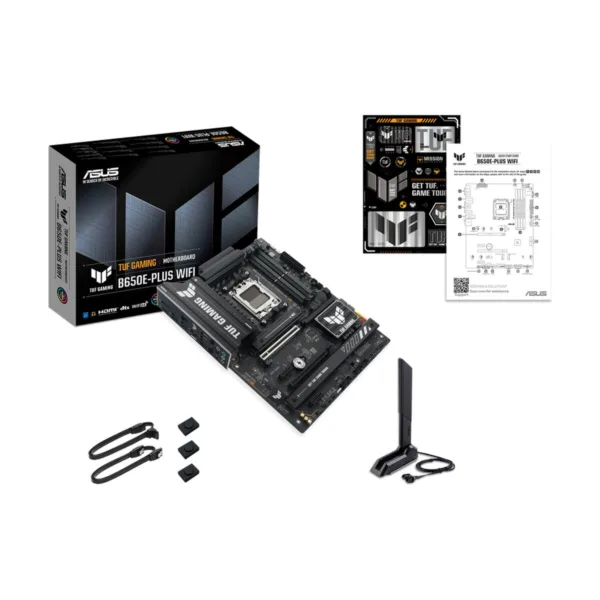

Package Contents

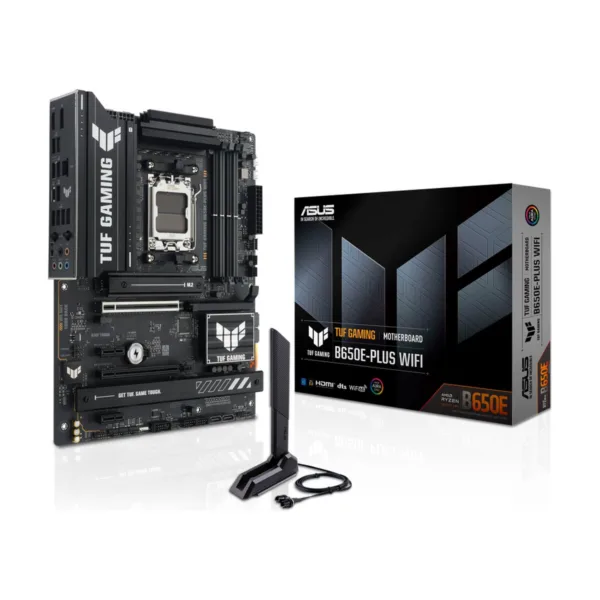

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF GAMING sticker 2 x M.2 rubber packages Documentation 1 x Quick start guide
