| Weight | 4.37 lbs |
|---|---|
| Dimensions | 13.98 × 10.83 × 2.75 in |
| Brand | ASUS |
| Part Number | 90MB1ER0-M0AAY0 |
| CPU Socket Type | LGA 1700 |
| CPU Type | Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to http://www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 s |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more informati |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| Memory Feature | Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| PCI Express 5.0 x16 | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot |
| PCI Express 3.0 x16 | Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode. – To ensure compatibility of the device installed, p |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots* |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| SATA RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB |
| Audio Channels | 7.1 Channels |
| LAN Chipset | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Bluetooth | Bluetooth v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |

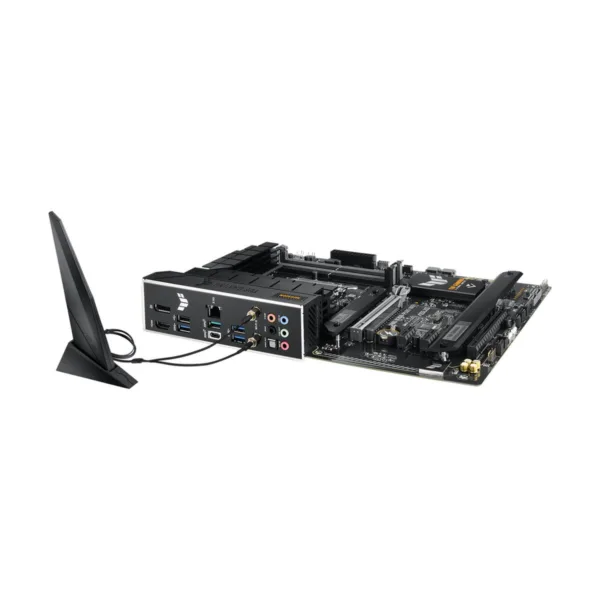

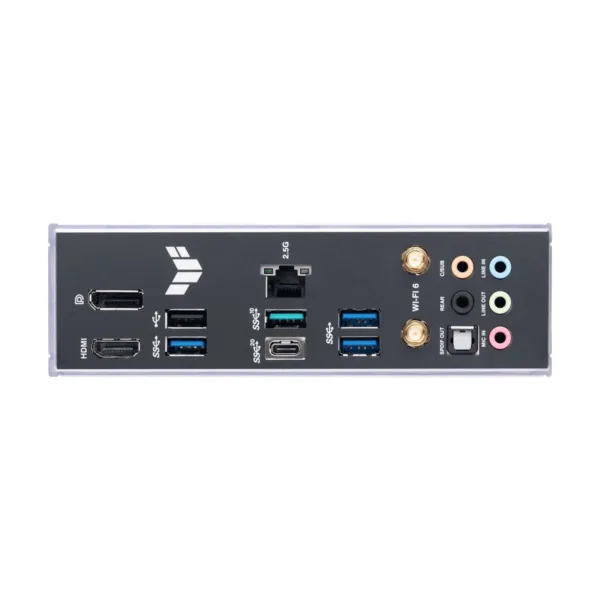

| Back I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Onboard USB | 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 |
| Windows 11 | Supported |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
| Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – |

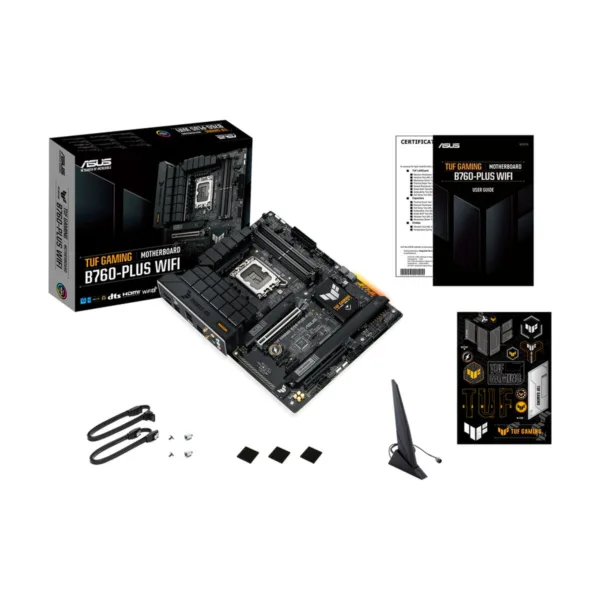

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF Gaming sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide |
| MPN | TUF GAMING B760-PLUS WIFI |
| UPC | 197105095113 |

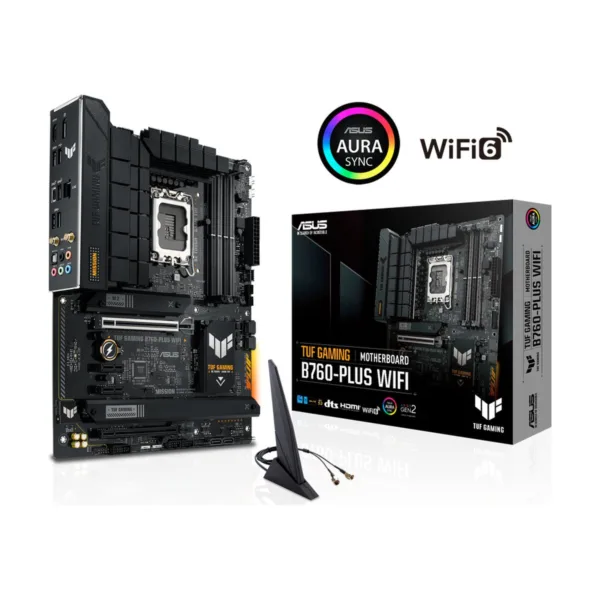

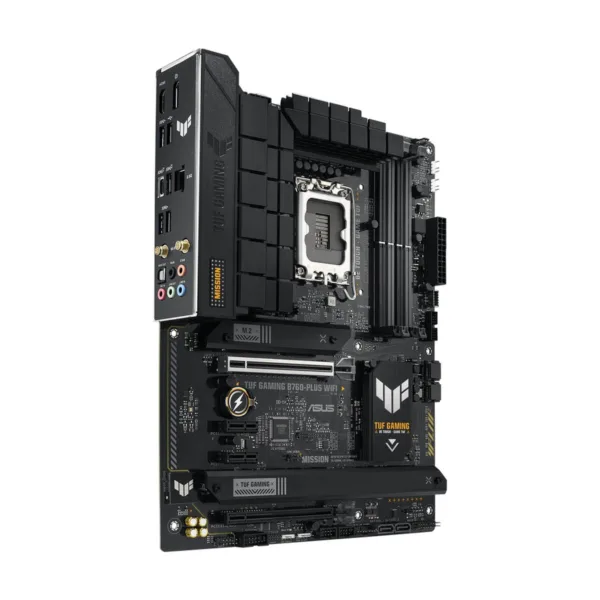

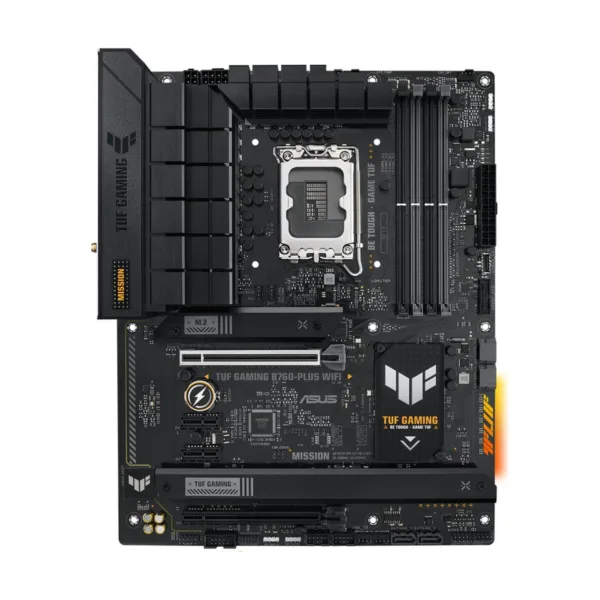

ASUS TUF GAMING B760-PLUS WIFI LGA 1700 ATX Motherboard, DDR5, 3x PCIe 4.0 M.2, 2.5Gb LAN
Original price was: $184.59.$138.44Current price is: $138.44.
Save 25%Sale ends Dec 23Intel LGA 1700 socket: Ready for 14th Gen Intel Core Processors, 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium® Gold and Celeron Processors. Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool so…
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
TUF GAMING B760-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
HDMI DisplayPort™ 1 x USB 3.2 Gen 1 1 x USB 2.0 1 x USB 3.2 Gen 2 1 x USB 3.2 Gen 2×2 Type-C® Realtek 2.5 G Ethernet 2 x USB 3.2 Gen 1 Wi-Fi 6 7.1-ch Audio Expansion Slots 1 x PCIe® 5.0 x16 SafeSlot Core+ 1 x PCIe® 3.0 x16 Slot (max @x4) 2 x PCIe® 3.0 x1
Realtek 7.1-ch Audio CODEC Exclusive DTS Audio Processing TUF Gaming Audio Cover Audio Shielding Dedicated Audio PCB Layers Premium Audio Capacitors ProCool Connectors 3 x Addressable Gen 2 RGB headers 1 x RGB strip header 12+1 DrMOS 4 x DIMM Dual Channel OptiMem II
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors 1 x Front USB 3.2 Gen 2 Type-C® Port 1 x Front USB 3.2 Gen 1 Header 4 x SATA 6 Gb/s ports Intel® B760 chipset 2 x M.2 2280 PCIe® 4.0 x 4 1 x M.2 22110 PCIe® 4.0 x 4 2 x Front USB 2.0 Headers
INTELLIGENT CONTROL
The TUF GAMING B760 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
POWER SAVING
All-Around Energy Efficiency The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
