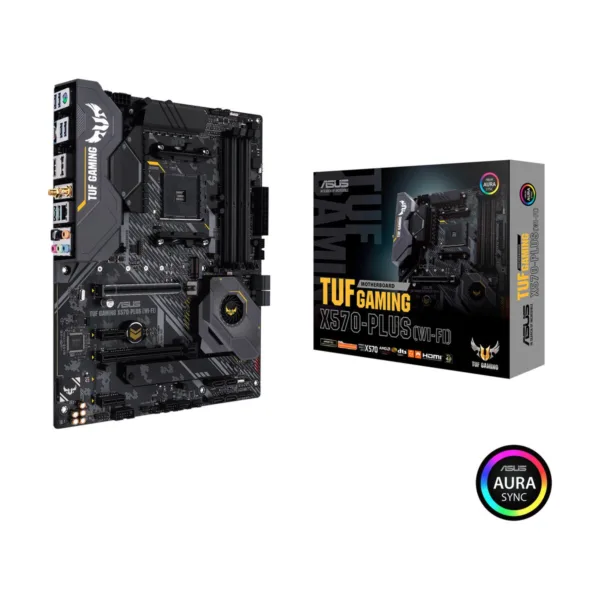

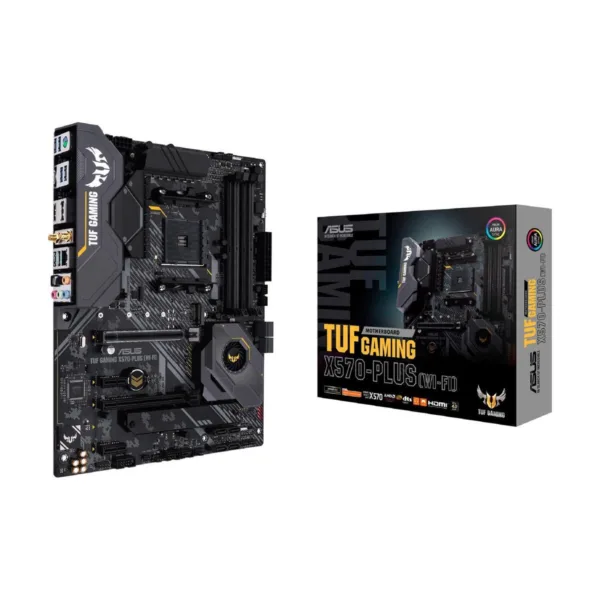

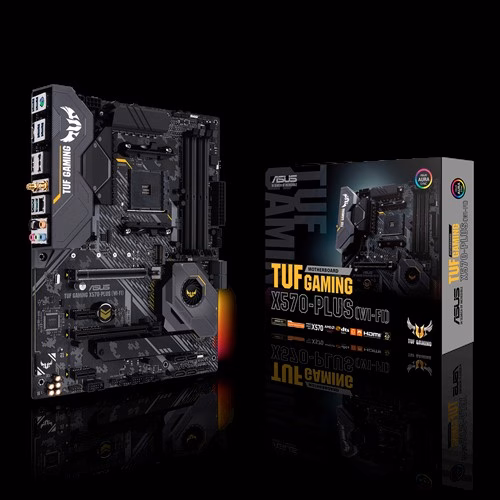

ASUS TUF GAMING X570-PLUS (Wi-Fi) AM4

Name: ASUS TUF GAMING X570-PLUS (Wi-Fi) AM4
Brand: ASUS
SKU: 13-119-197
Price: 249.58 USD
Availability: InStock

$249.58

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI

In stock

Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
Secure checkout Visa, Mastercard and American Express and Discover.

Shipping policy Returns

SKU: 13-119-197 Category: Motherboards Brand: ASUS

Overview

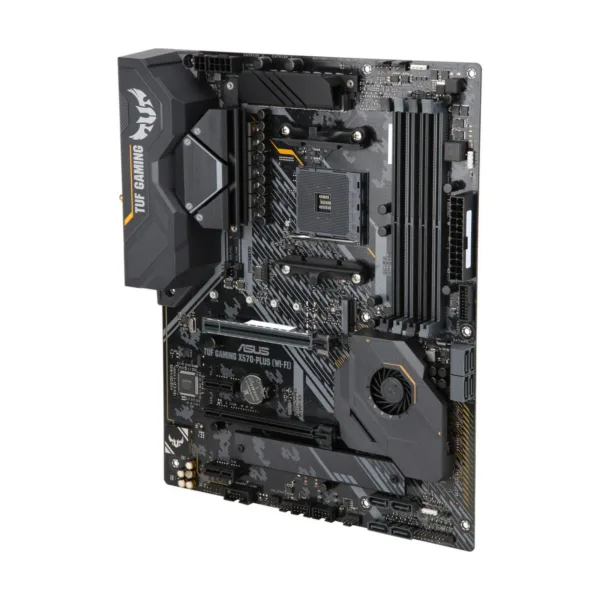

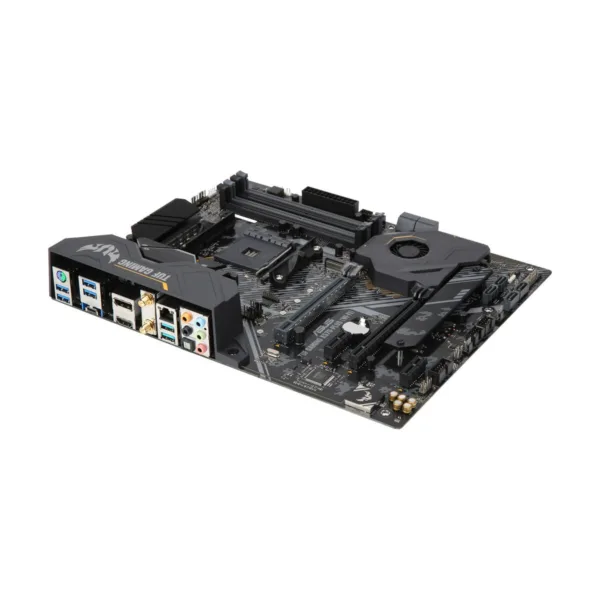

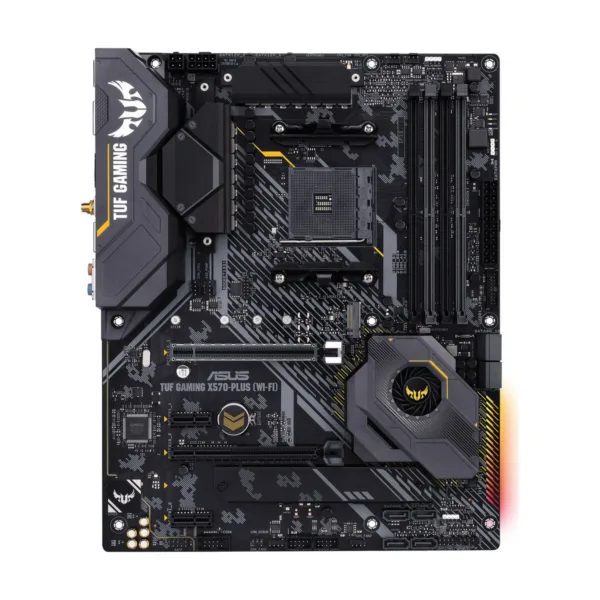

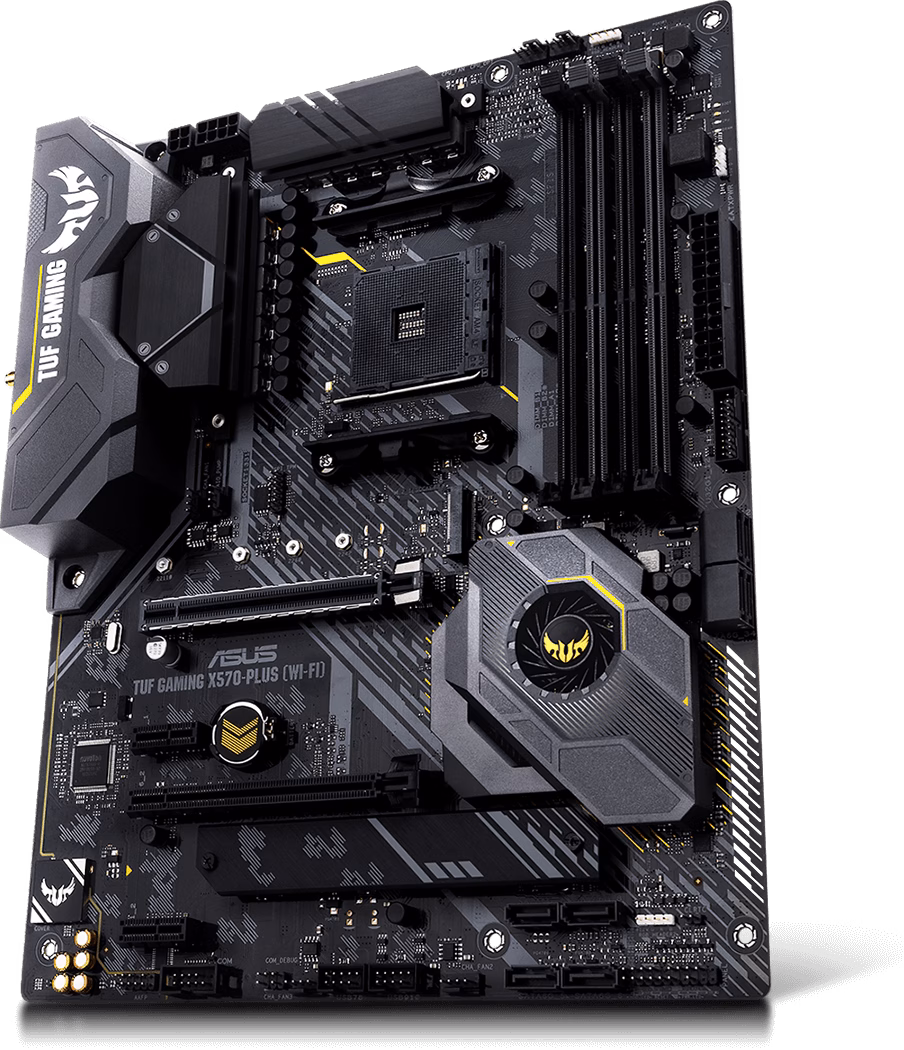

Asus AM4 TUF Gaming X570-Plus (Wi-Fi) AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard With PCIe 4.0, Dual M.2, 12+2 With Dr. MOS power stage, USB 3.2 Gen 2 And Aura Sync RGB lighting

AMD AM4 Socket and PCIe 4.0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2×2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology Realtek S1200A Codec: Features an unprecedented 108 dB signal-to-noise ratio for the stereo line-out and a 103 dB SNR for the line-in, providing pristine

DURABLE. STABLE. RELIABLE. TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

TUF Gaming Armor USB 3.2 Gen 2 Type-C™ USB 3.2 Gen 1 Display Port HDMI Port Intel® Wi-Fi & BT 5.0 USB 3.2 Gen 2 Realtek® L8200A LAN Turbo LAN Utility Audio

2 x PCIe 4.0 X16 Slots ・ 2-Way CrossFireX™ ・ ASUS SafeSlot Realtek® S1200A Exclusive DTS Custom for GAMING Headsets ・TUF Gaming Audio Cover ・Audio Shielding ・Dedicated audio PCB layers ・Premium Japanese audio capacitors ProCool Connector Dr. MOS DDR4

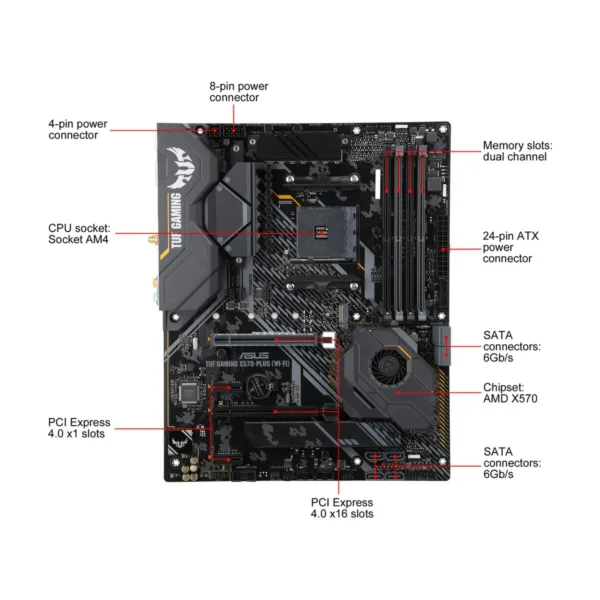

Addressable Gen 2 RGB header AMD AM4 Socket 2 x Front USB 3.2 Gen 2 ports 2 x M.2 x4 PCIe Gen 4 & SATA mode 8 x SATA 3.0 ports AMD X570 Chipset Aura Sync 2 x RGB headers 4 x Front USB 2.0 ports

ROCK-SOLID PERFORMANCE With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.

DR. MOS The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

6-LAYER PCB DESIGN The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

PROCOOL SOCKETS ENHANCED EATX 4-PIN & 8-PIN SOCKETS Solid and more durable Prevent hotspots and connector failure Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

TUF CHOKES Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.

DIGI+ VRM The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

Specifications

Weight	3.4 lbs
Dimensions	13.3 × 10.9 × 2.8 in
Brand	ASUS
CPU Socket Type	AM4
CPU Type	AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.
Chipset	AMD X570
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Gen AMD Ryzen Processors DDR4 4400(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 2.0
PCI Express 4.0 x16	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0
PCI Express x1	2 x PCIe 4.0 x1
Serial ATA (SATA)	8 x SATA 6Gb/s
M.2	3rd Gen AMD Ryzen Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (
SATA RAID	0/1/10
Onboard Video Chipset	Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors Multi-VGA output support: HDMI/DisplayPort ports – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz – Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Audio Chipset	Realtek ALC S1200A High Definition Audio CODEC
Audio Channels	8 Channels
LAN Chipset	Realtek L8200A
Max LAN Speed	1Gbps
Wireless LAN	Intel Wireless-AC 9260 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Bluetooth	Bluetooth 5.0

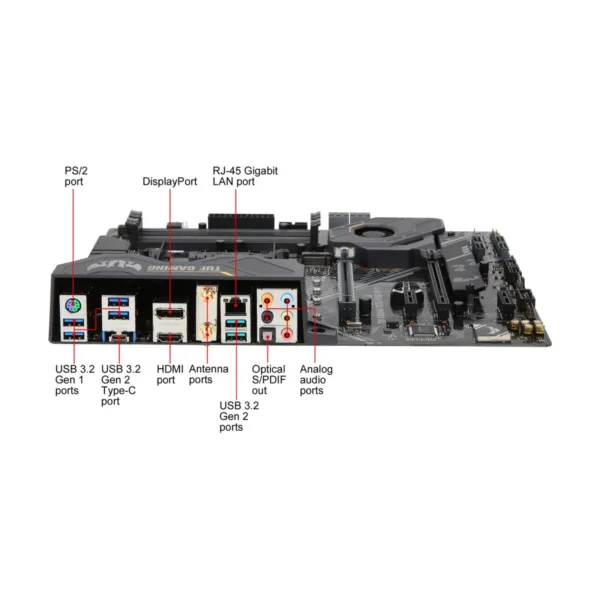

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C) ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetoo
Onboard USB	1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)
Windows 11	Supported
Features	Multi-GPU Support: 3rd and 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors Supports AMD CrossFireX Technology Special Features: ASUS TUF PROTECTION – ASUS SafeSlot: Protect your graphics card Investment – ASUS ESD Guard: Enhanced ESD protection

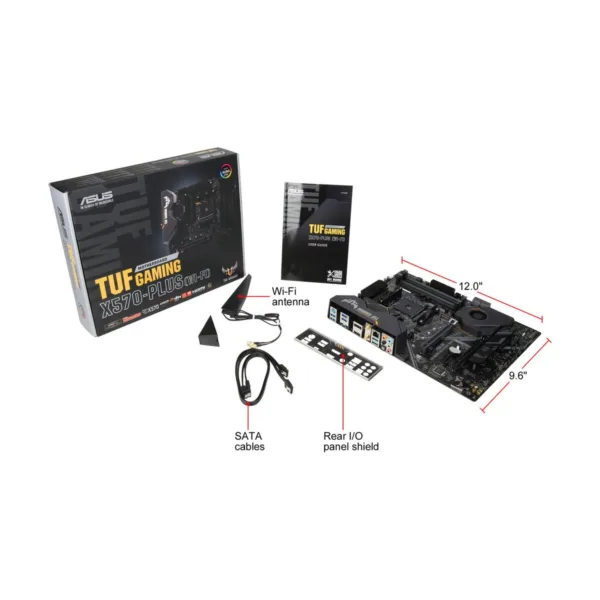

Package Contents	Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant) 1 x TUF GAMING Sticker 1 x TUF Certification card(s)
MPN	TUF GAMING X570-P Wi
UPC	192876388495
