| Weight | 4.5 lbs |
|---|---|
| Dimensions | 14 × 10.5 × 2.5 in |
| Brand | ASUS |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| Memory Feature | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) ** Non-ECC, un-buffered DDR5 memory supports On-Die |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 (Support PCIe 5.0 x4) / 3 x M.2 (Support PCIe 4.0 x4) |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |

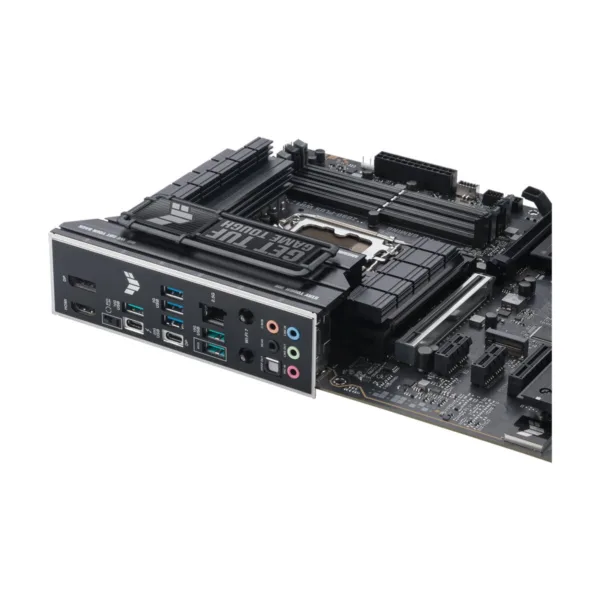

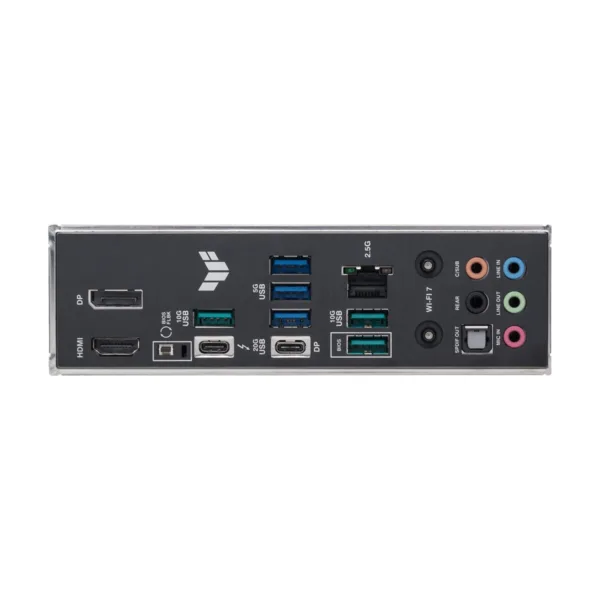

| Back I/O Ports | 1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x Thunderbolt 4 / 1 x USB 3.1 Gen 2 Type-C / 5 x Audio Jacks / 6 x USB 3.1 Gen 2 Type-A |
| Windows 11 | Supported |
| Form Factor | ATX |
| MPN | TUF GAMING Z890-PLUS WIFI |
| UPC | 197105763920 |

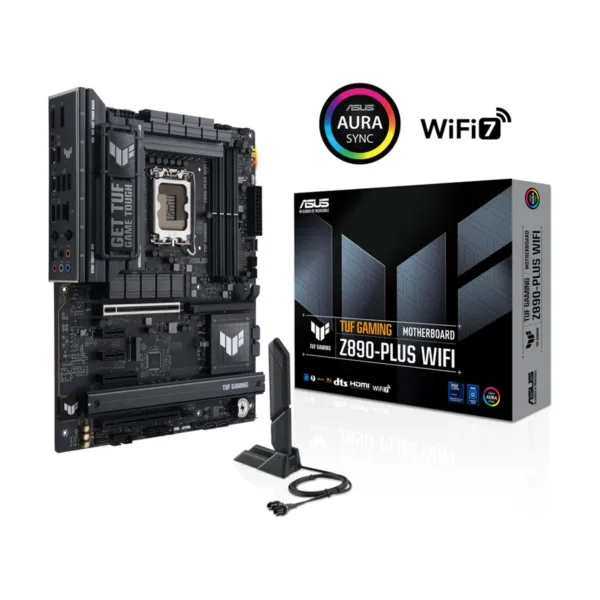

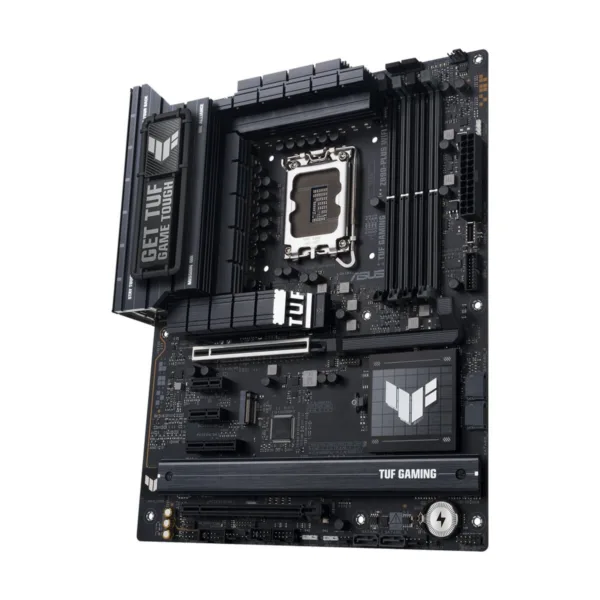

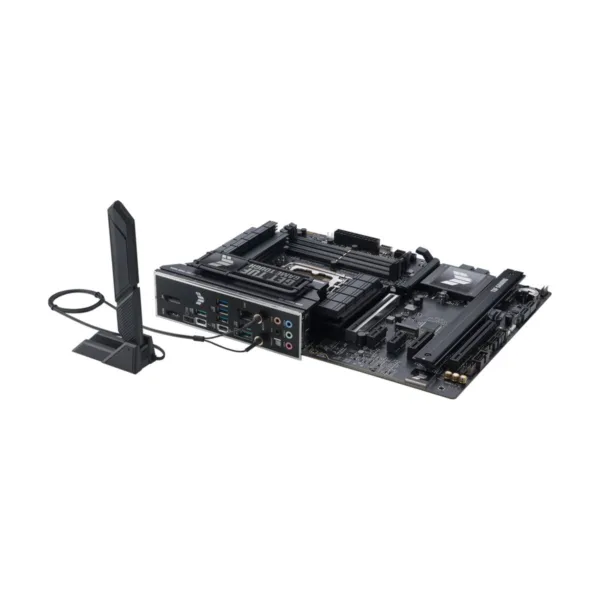

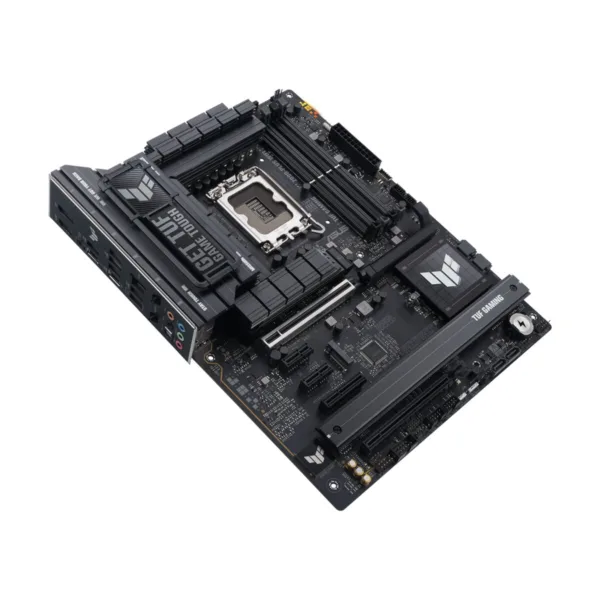

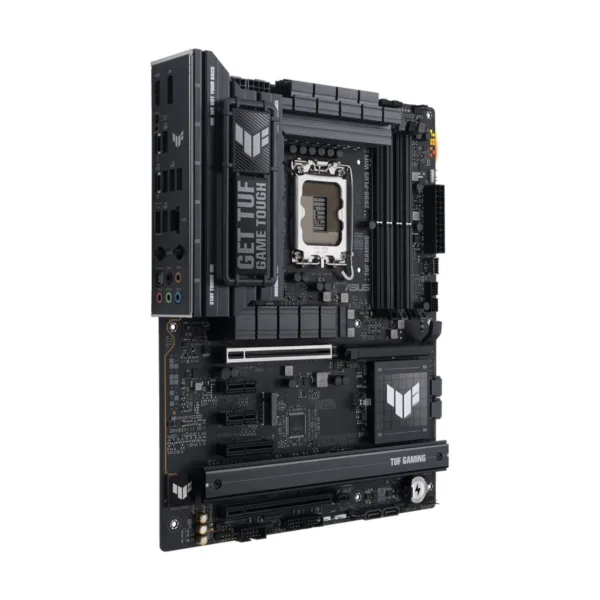

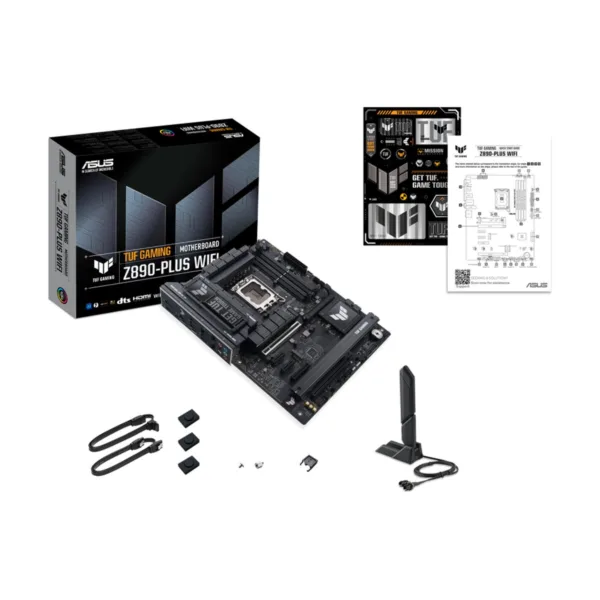

ASUS TUF GAMING Z890-PLUS WIFI Z890 LGA 1851 ATX motherboard, Intel® Core™
Original price was: $279.99.$223.99Current price is: $223.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (series 2)
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview

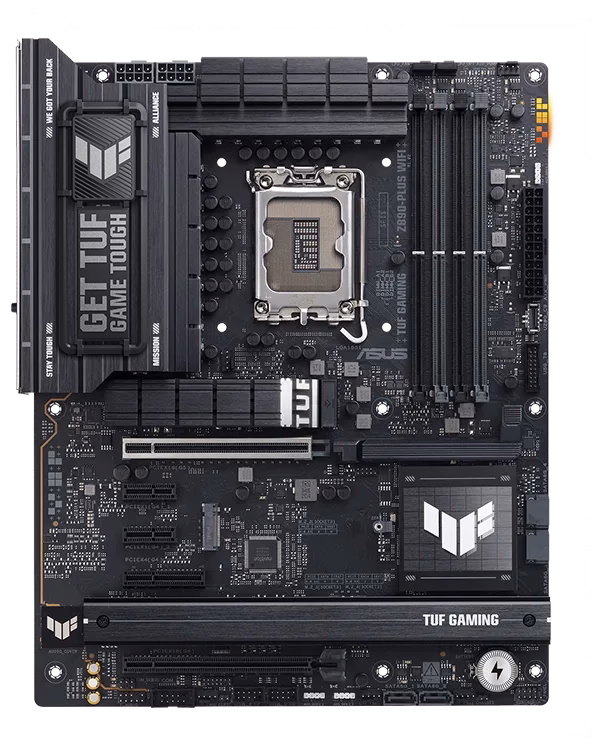

ASUS TUF GAMING Z890-PLUS Wi-Fi takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
16+1+2+1 (80A), DrMOS
Premium power stages with enlarged VRM heatsinks
AI Intelligence
AI Advisor, AI Cooling II & AI Networking II
NPU Boost
The BIOS feature overclocks the NPU with just one click
8600+ MT/s, AEMP III, DIMM Fit
Effortlessly apply to unleash performance
PCIe 5.0 for Graphics Card
Supports next-gen graphics cards and is robust for handling data-heavy tasks
Empowering Connectivity
One Thunderbolt™ 4 & front USB 20Gbps Type-C®
DIY Friendly
PCIe Slot Q-Release, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, BIOS Flashback™ Button

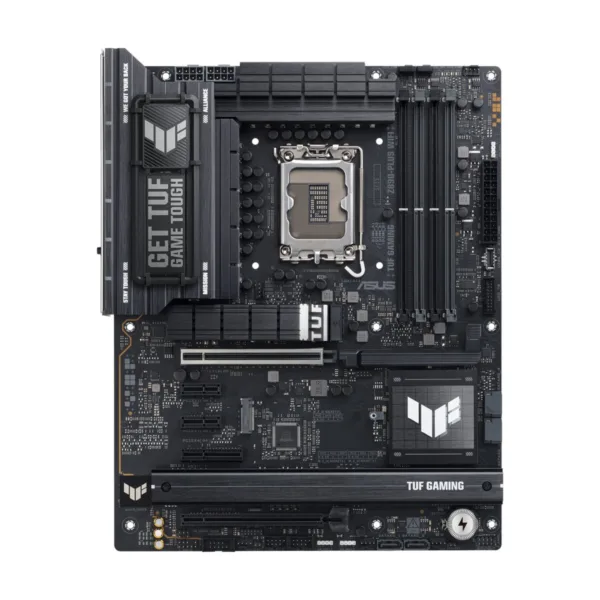

Intel® Core™ Ultra Processors (Series 2) Expansion Slots 1 x PCIe® 5.0 x16 SafeSlot 1 x PCIe® 4.0 x16 Slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 4.0 x1 slots 16(80A) + 1(80A) + 2(80A) + 1(80A) Power Stages
4 x DIMM DDR5 Dual Channel AEMP III 4 x M.2 Slots 1 x M.2 2242/2260/2280 PCIe 5.0 x4 1 x M.2 2280 PCIe 4.0 x4 1 x M.2 2280/22110 PCIe 4.0 x4 1 x M.2 2242/2260/2280 PCIe 4.0 x4 & SATA
VRM Heatsinks Two M.2 Heatsinks for Three M.2 Slots CPU & CPU OPT Fan Headers & AIO Pump Header
Realtek ALC1220P Audio Codec Exclusive DTS Audio Processing Audio Shielding Rear Optical S/PDIF Out Port Premium Audio Capacitors Dedicated Audio PCB Layers TUF Gaming Audio Cover Unique De-pop Circuit
