| Weight | 1 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Brand | GIGABYTE |
| Series | Prime |
| Part Number | B550 EAGLE WIFI6 |
| CPU Socket Type | AM4 |
| CPU Type | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B550 |
| Number of Memory Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules |
| Memory Standard | DDR4 2133 / DDR3 1600 / DDR4 2400 / DDR4 2667 / DDR4 2933 / DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and nu |
| Memory Feature | DDR4, 3200 MHz, 4, 128 GB |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one g |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x4 | 3 x PCI Express x4 |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: – AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs – AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 conn |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Channels | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN Chipset | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Max LAN Speed | (1 Gbps/100 Gbps/10 Mbps) |
| Wireless LAN | Realtek® Wi-Fi 6 RTL8851BE – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Bluetooth | BLUETOOTH 5.3 |

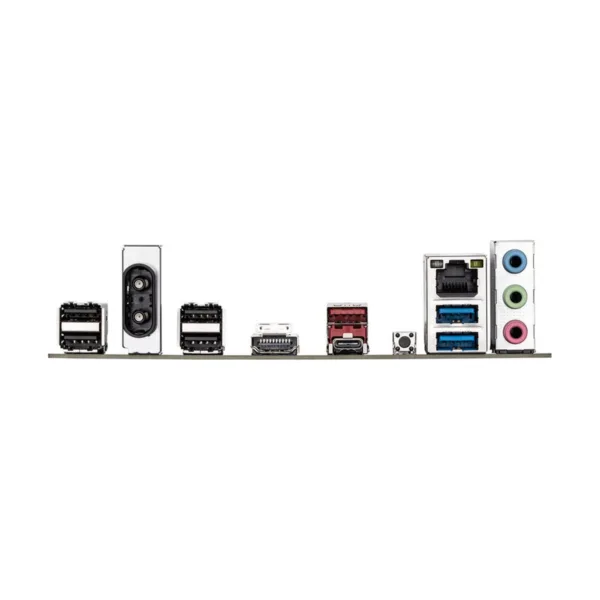

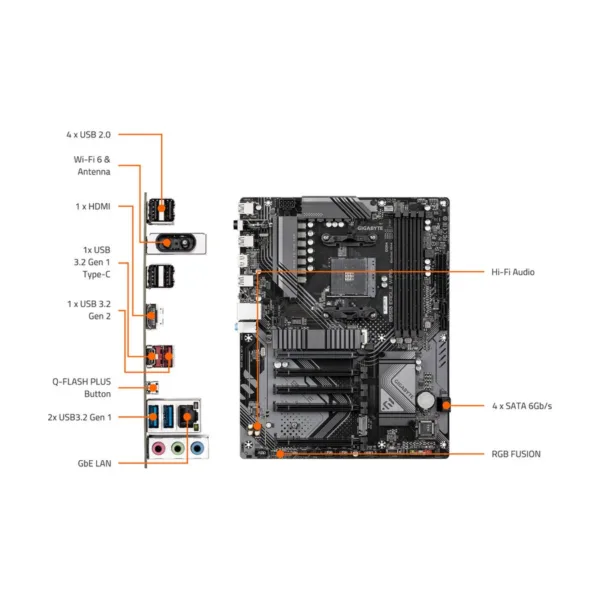

| Back I/O Ports | 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks (Note) Actual support |
| PS/2 | 1 |
| COM | 3 |
| Video Ports | 1 |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| USB 3.0 | 10 x USB 3.0 |
| USB 1.1/2.0 | 9 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| Game/MIDI Ports | 1 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.0 + 8 x USB 2.0 |
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connect |
| Form Factor | ATX |
| Dimensions (W x L) | 30.5cm x 24.4cm |
| Power Pin | 24 Pin |
| Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Features | AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors Digital twin 10+3+1 phases VRM solution Dual Channel DDR4 : 4*DIMMs with AMD EXPO™Memory Module Support EZ-Latch : PCIe slots with Quick Release Design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flas |
| Package Contents | 1 unit |
| MPN | B550 Eagle WIFI6 |
| UPC | 889523047262 |

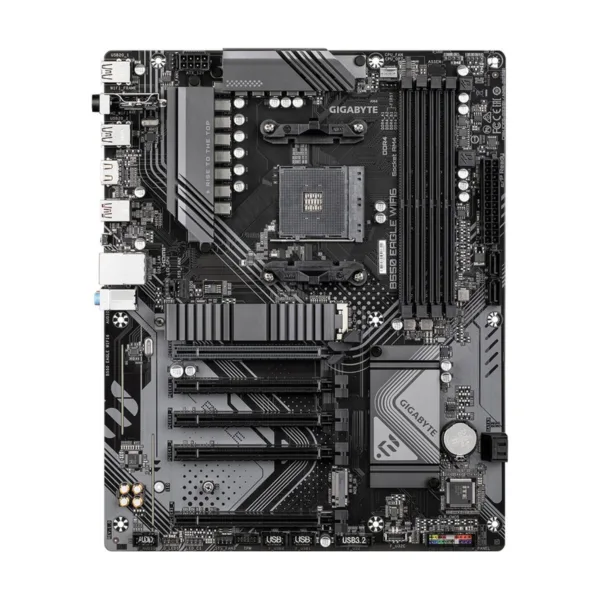

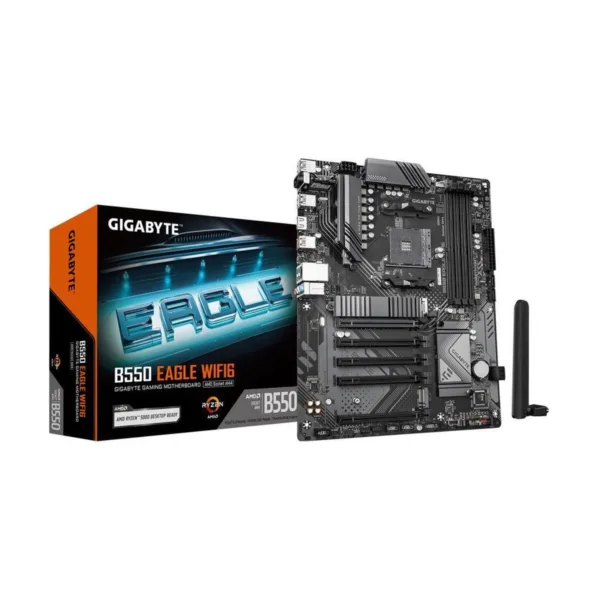

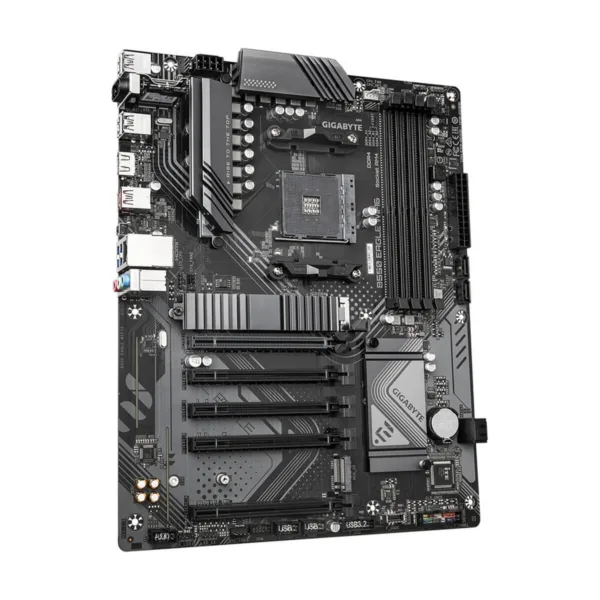

GIGABYTE B550 EAGLE WIFI6 AM4 ATX Motherboard, DDR4, 2x M.2, PCIe 4.0, Wi-Fi 6
$132.16
AMD Socket AM4: Supports AMD Ryzen 5000 / Ryzen 4000 / Ryzen 3000 Series Processors DDR4 Compatible: 4*DIMMs with AMD EXPO Memory Module Support
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
B550 EAGLE WIFI6
Performance
Thermal
Connectivity
DIY Friendly
Infinite Memory Performance
EAGLE motherboards boost DDR4 memory performance and offer top-notch compatibility using various advanced methods. * Memory overclocking and XMP/EXPO support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model. DDR4 Overclocking Up to
Steady Power
Eagle Series with steady power keeps your AI operation smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level. 10
VCORE Phases Ppak
Unlock the full power of your multi-core CPU for unmatched performance. * 5+5 phases parallel power design 3
SOC Phase Ppak
Optimized for integrated GPU performance and memory management within the CPU.
Related products
-
2 MODELS−20%GIGABYTEGIGABYTE X870E AORUS ELITE X3D
From Original price was: $379.99.$303.99Current price is: $303.99.Select options This product has multiple variants. The options may be chosen on the product page -

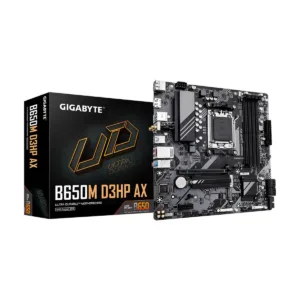

−25%GIGABYTEGIGABYTE B650M D3HP AX AM5 Micro-ATX Motherboard, DDR5, 2x M.2, Wi-Fi 6E, 2.5GbE
