| Weight | 2.6 lbs |
|---|---|
| Dimensions | 11 × 11 × 3 in |
| Brand | GIGABYTE |
| Series | Prime |
| Part Number | B550M AORUS ELITE AX |
| CPU Socket Type | AM4 |
| CPU Type | Ryzen 3000G Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 2.0 |
| ECC Supported | Yes |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Expres |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x4 | 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode |
| PCI Express x1 | 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| PCI Slots | 1 x PCI Slot |
| Other Slots | 1 x CNR |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support SAT |
| SATA RAID | 0/1/10 |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.3 |

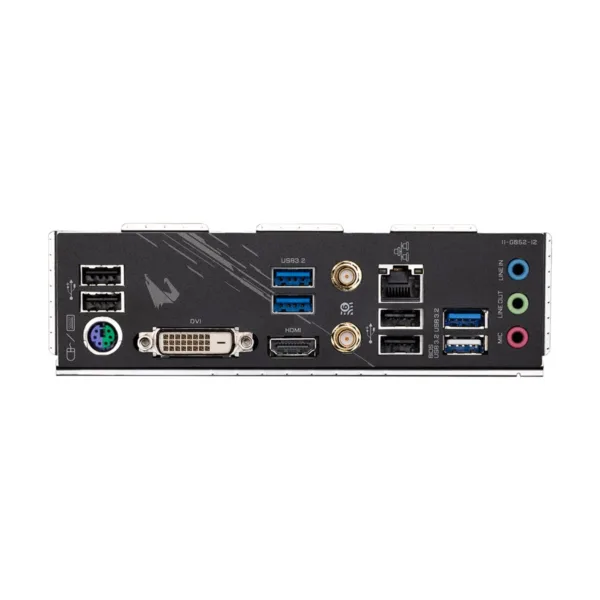

| Back I/O Ports | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| PS/2 | 1 |
| COM | 3 |
| Video Ports | 1 |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| USB 3.0 | 10 x USB 3.0 |
| USB 1.1/2.0 | 9 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| S/PDIF In | 1 x Optical, 1 x Coaxial |
| Game/MIDI Ports | 1 |
| Audio Ports | 6 Ports |
| Onboard USB | 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
| Other Connectors | 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Modul |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
| Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Su |
| Package Contents | 1 unit |
| MPN | B550M AORUS ELITE AX |
| UPC | 889523037294 |

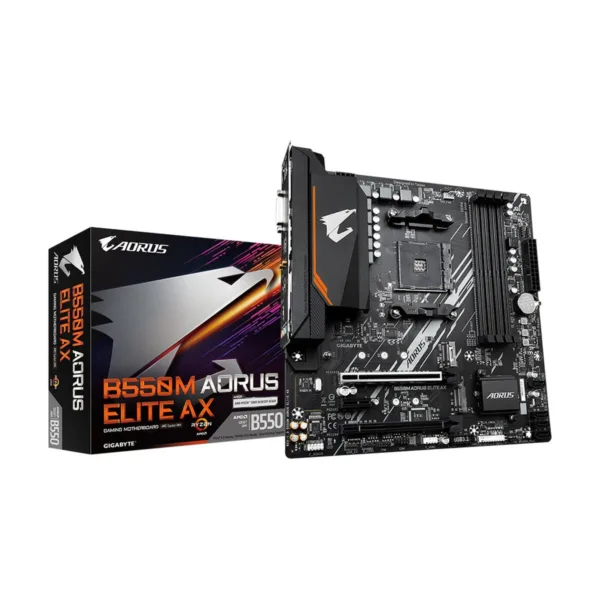

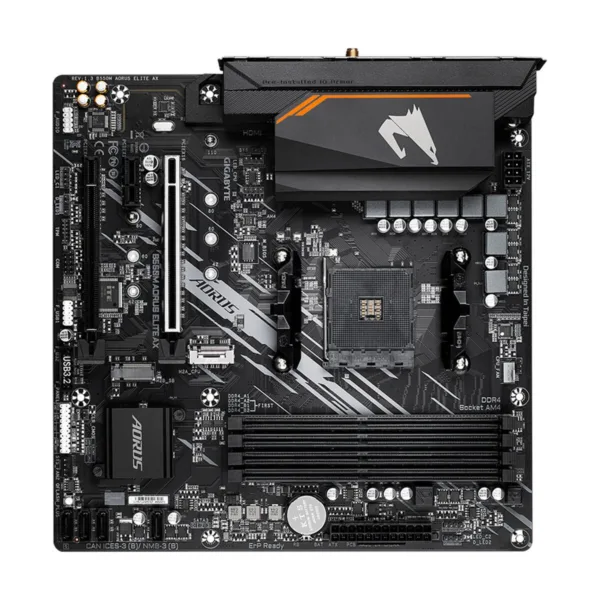

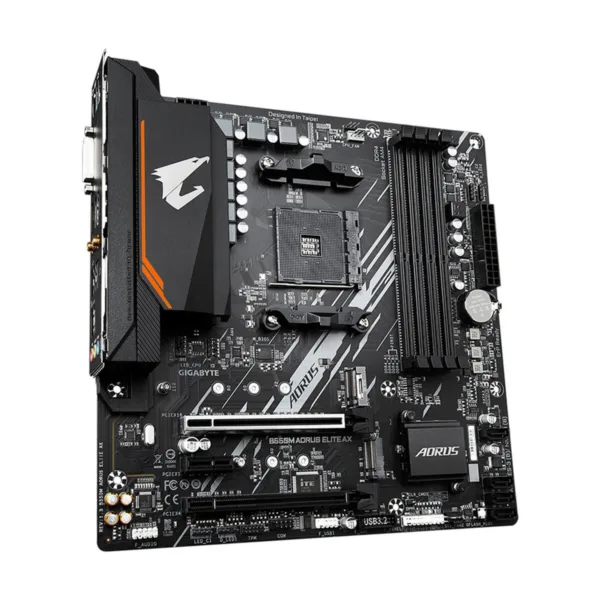

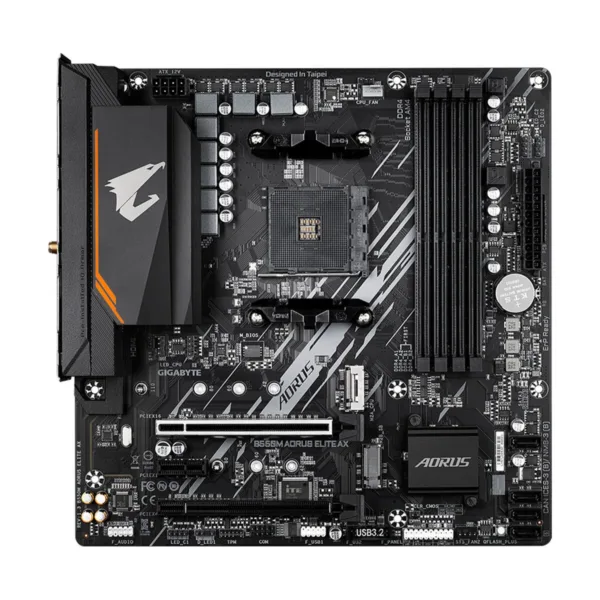

GIGABYTE B550M AORUS ELITE AX (rev 1.3) AM4 Micro-ATX Motherboard, PCIe 4.0, M.2, GbE LAN
$135.99
AMD AM4 Socket: Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors DDR4 Compatible: Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
