AMD B550 Ryzen 3000 Series / Ryzen 3000G Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series
In stock
Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
Secure checkout Visa, Mastercard, American Express and Discover.
Ryzen 3000 Series / Ryzen 3000G Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series
Chipset
AMD B550
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
DDR4 2133 / DDR4 2667 / DDR4 2933 / DDR4 3200
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Memory Performance Profile
Intel XMP 3.0
ECC Supported
Yes
Buffer Supported
Un-buffered
PCI Express 4.0 x16
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one
PCI Express x4
1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
PCI Express x1
1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: – AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs – AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M
SATA RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Channels
7.1 Channels
Max LAN Speed
1Gbps
Wireless LAN
Wi-Fi 802.11 ax
Bluetooth
BLUETOOTH 5.3

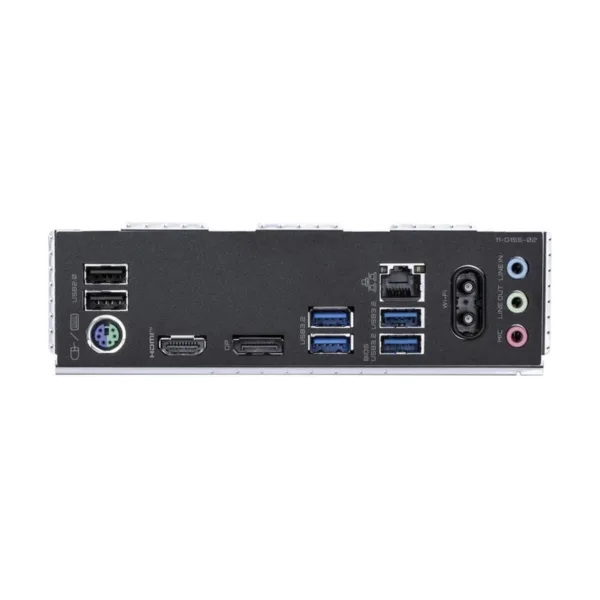

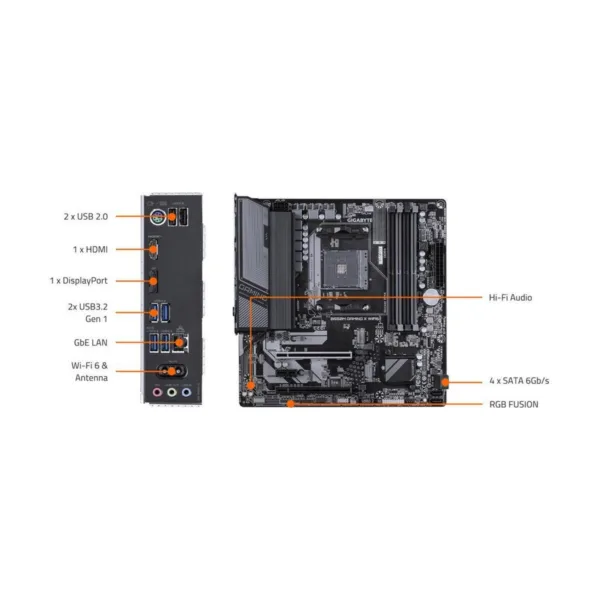

Back I/O Ports
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks
Onboard USB
1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors
1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Modul
Form Factor
Micro ATX
Dimensions (W x L)
9.6" x 9.6"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
BIOS Feature
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11
Supported
Features
Support for APP Center – @BIOS – EasyTune – RGB Fusion – Smart Backup – System Information Viewer Support for Q-Flash Plus Support for Q-Flash
