| Weight | 4.27 lbs |
|---|---|
| Dimensions | 13.06 × 10.53 × 3.12 in |
| Brand | GIGABYTE |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series |
| Chipset | AMD B650 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 5200 |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 / AMD EXPO |
| ECC Supported | Non-ECC |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot c |
| PCI Express 3.0 x16 | 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used. |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: – AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 2 Processo |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Additional RAID Controller | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |

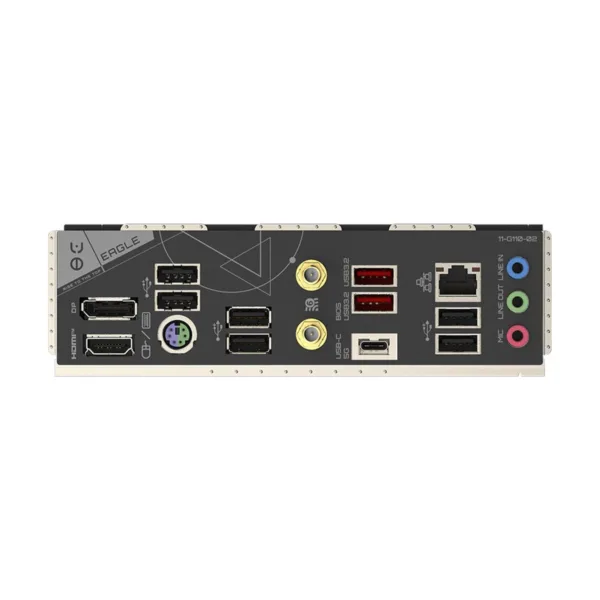

| Back I/O Ports | 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front pane |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| MPN | B650 EAGLE AX |
| UPC | 889523041703 |

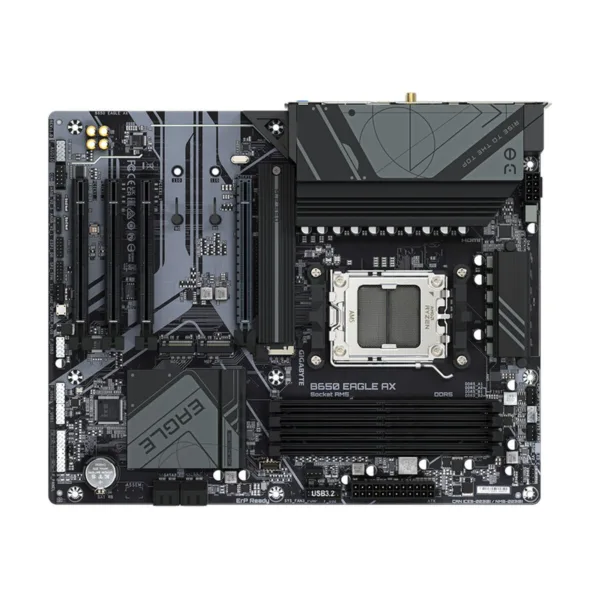

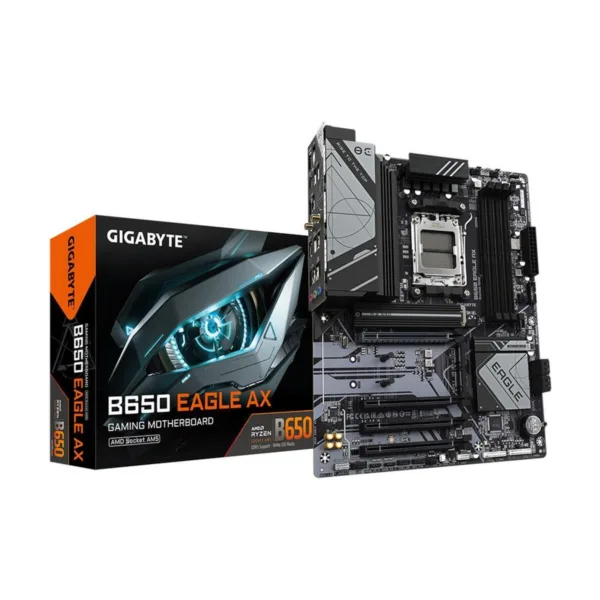

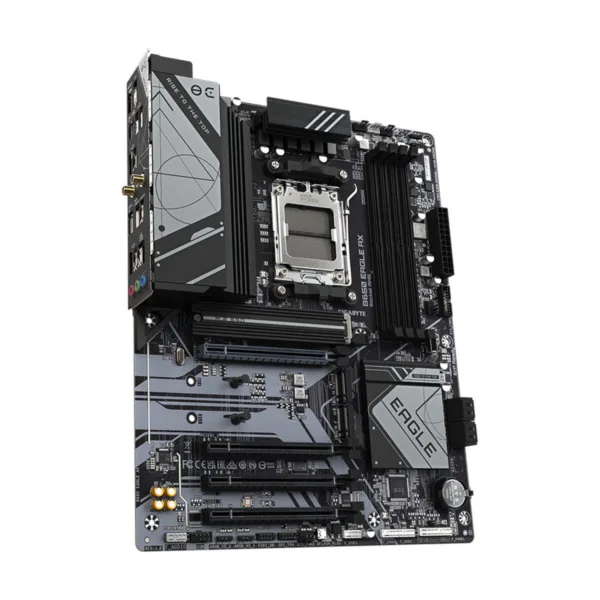

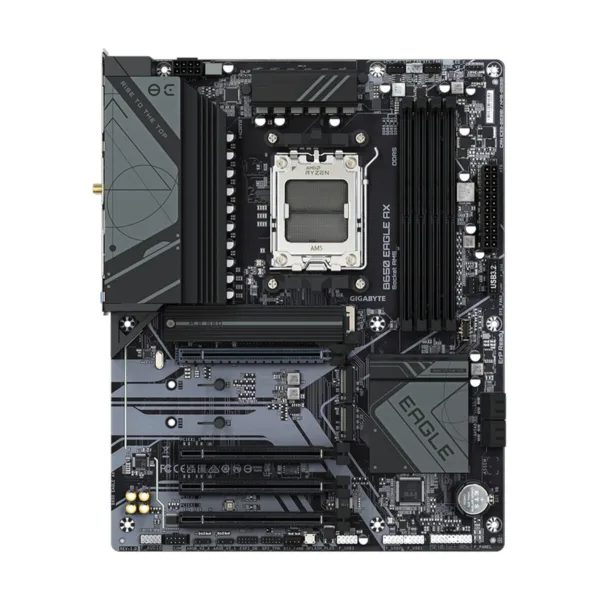

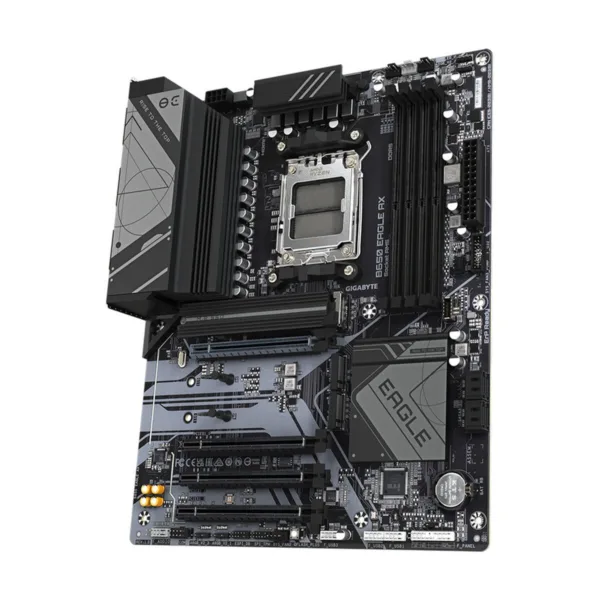

GIGABYTE B650 EAGLE AX AM5 ATX Motherboard, DDR5, 3x M.2, PCIe 5.0, Wi-Fi 6E
Original price was: $179.99.$134.99Current price is: $134.99.
Save 25%Sale ends Dec 23AMD Socket AM5:Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
B650 EAGLE AX

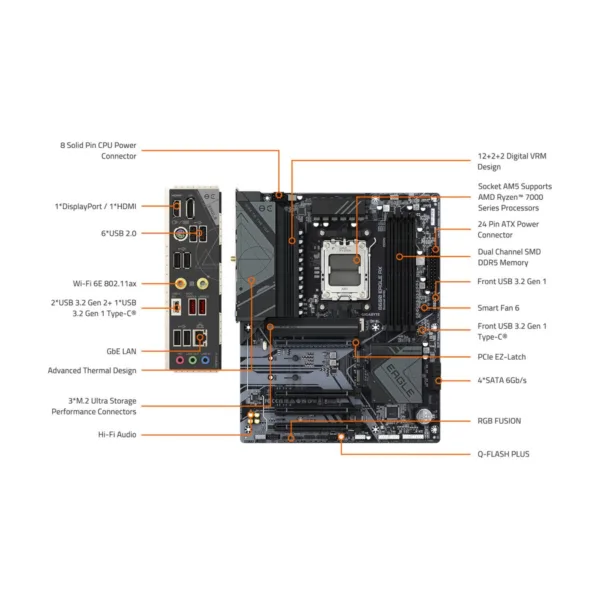

AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance: 12+2+2 Phases Digital VRM Solution Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance EZ-Latch: PCIe x16 Slot with Quick Release Design Fast Networks: Wi-Fi 6E 802.11ax & GbE LAN Extended Connectivity: DP, HDMI, Rear USB® 1
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
The best VRM design ever built with the highest quality components. 12+2+2 Phases digital PWM + Low RDS(on) MOSFETs Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability. * Photo for reference only
EXPO & XMP Support
DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond* GIGABYTE is offering a tested and proven platform with extreme memory performance boost. * Memory overlocking and XMP profile support may vary depending on hardware configuration. * Please see the complete validated memory support list. Product features may vary by model.
Thermal
Fully Covered MOSFET Heatsink
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
GbE LAN with Bandwidth Management
Helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Benefit of Wi-Fi 6E
– Dedicated spectrum in 6GHz band for less interference. – 4X better network capacity, no traffic jams especially in those dense area with lots of devices – Network efficiency increase for better user experience
Wi-Fi 6E bring you the Ultimate VR experience!
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video. Wi-Fi 6E compared to Wi-Fi 5 provide… 40% faster speed for smoother gaming/streaming experience 50% higher resolution for video game related content Better battery life for VR devices
