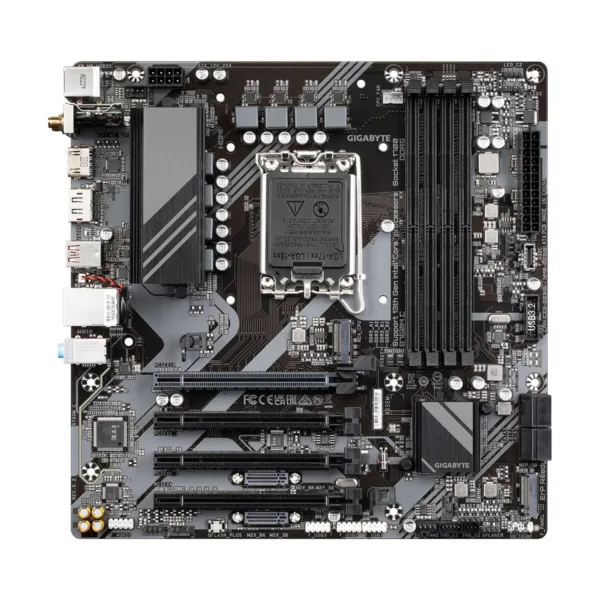

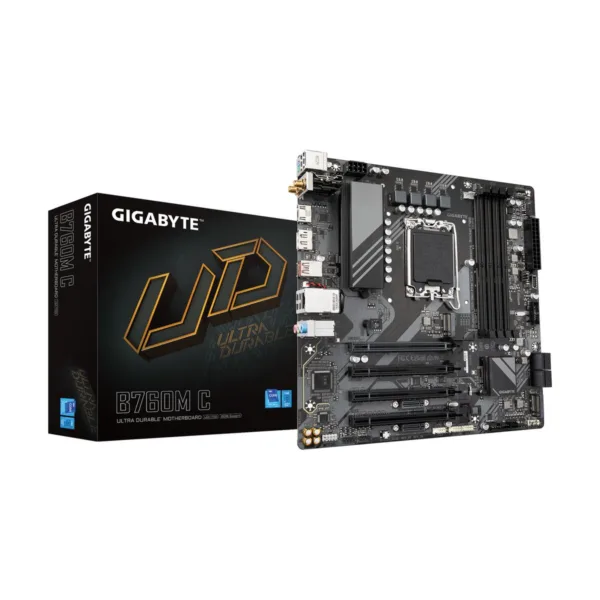

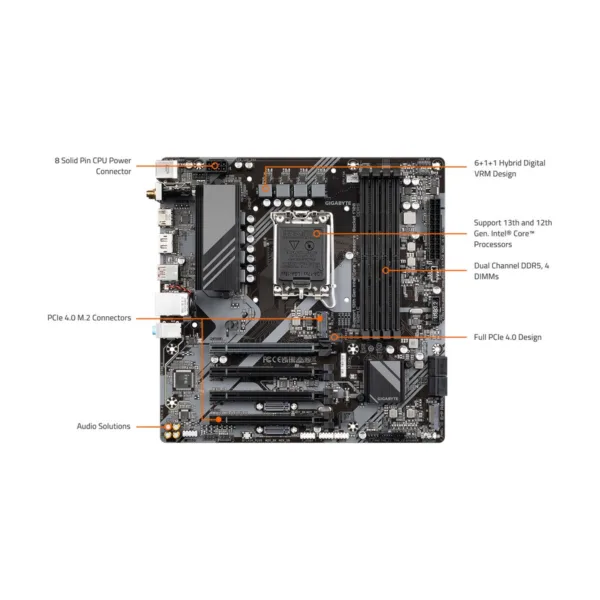

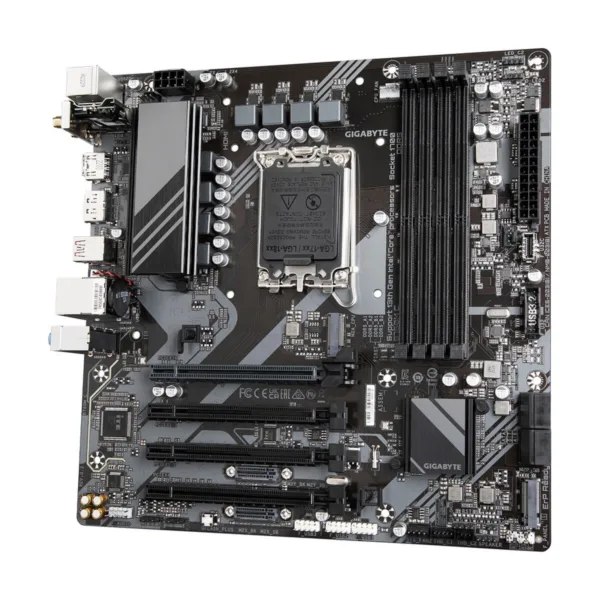

Name: GIGABYTE B760M C LGA 1700 Micro-ATX Motherboard, DDR5, PCIe 4.0, M.2, Wi-Fi
Brand: GIGABYTE
SKU: 13-145-453R
Price: 104.99 USD
Availability: InStock

GIGABYTE B760M C LGA 1700 Micro-ATX Motherboard, DDR5, PCIe 4.0, M.2, Wi-Fi

Save 25%

Sale ends Dec 23

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors DDR5 Compatible: Dual Channel DDR5, 4 DIMMs

In stock

Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.

30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.

Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.

Secure checkout Visa, Mastercard, American Express and Discover.

SKU: 13-145-453R Category: Motherboards Brand: GIGABYTE

Weight	2.53 lbs
Dimensions	10.62 × 10.55 × 2.67 in
Brand	GIGABYTE
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipset	Intel B760
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 3.0
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)(PCB rev. 1.0) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x4	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
PCI Express x1	2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 3.0 x1 SSD support) (M2Y_SB, M2X_SB)
SATA RAID	0/1/5/10
Audio Channels	7.1 Channels
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ac
Bluetooth	Bluetooth 4.2

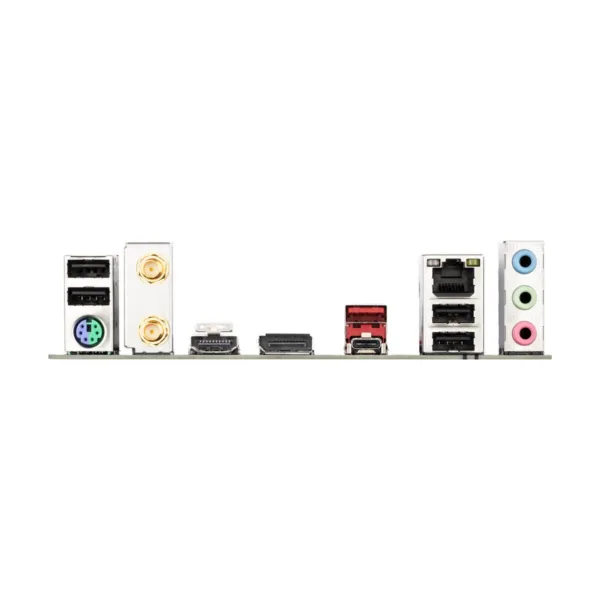

Back I/O Ports	1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 2 x Thunderbolt add-in card connectors 1 x Q-Flash Pl
Windows 11	Supported
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
MPN	B760M C
UPC	889523036594
