| Weight | 3.7 lbs |
|---|---|
| Dimensions | 14 × 11 × 4 in |
| Brand | GIGABYTE |
| Part Number | B860 AORUS ELITE WIFI7 ICE |
| CPU Socket Type | LGA 1851 |
| CPU Type | LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel B860 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 2 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| PCI Express 4.0 x16 | 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s connectors |
| M.2 | 3 x M.2 |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio Channels | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Max LAN Speed | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless LAN | Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carri |
| Bluetooth | BLUETOOTH 5.4 |

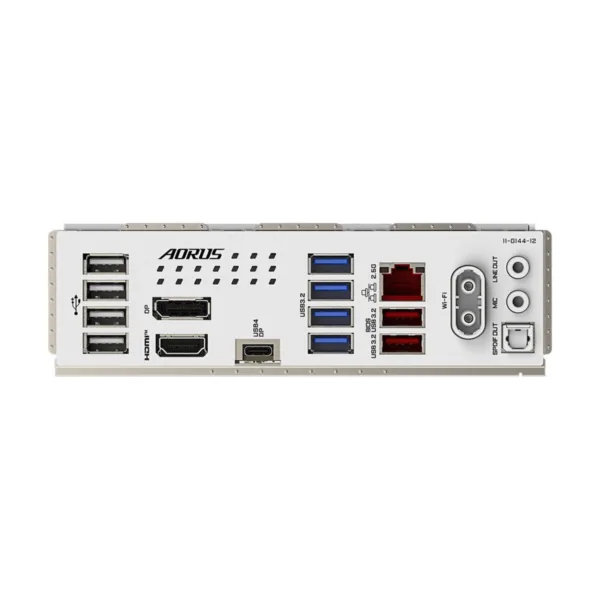

| Back I/O Ports | 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks (Note) Actu |
| Other Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 con |
| Windows 11 | Support for Windows 11 64-bit |
| Form Factor | ATX |
| Dimensions (W x L) | 30.5cm x 24.4cm |
| Features | Supports Intel® Core™ Ultra processors (Series 2) Digital twin 14+1+2 phases VRM solution Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users WIFI E |
| MPN | B860 A ELITE WF7 ICE |
| UPC | 889523046289 |

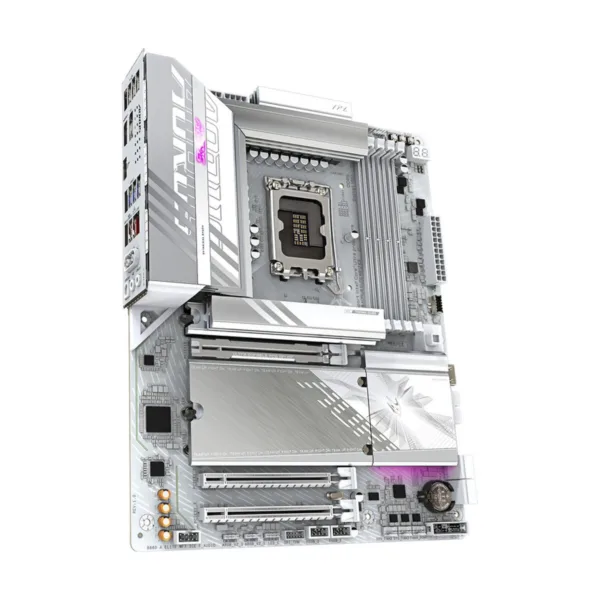

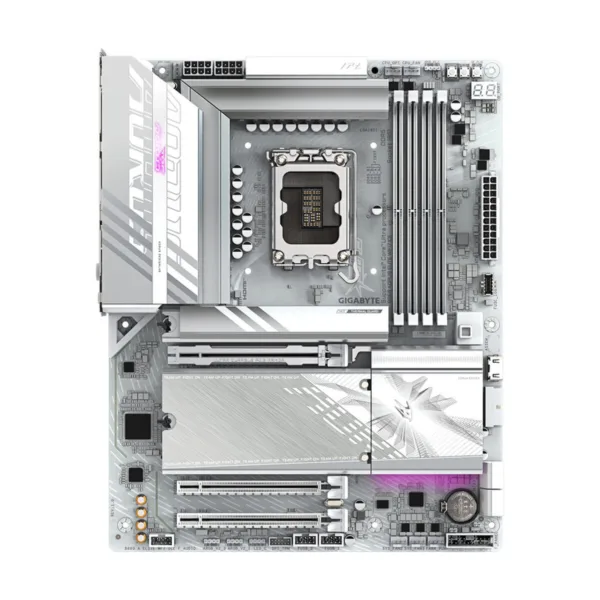

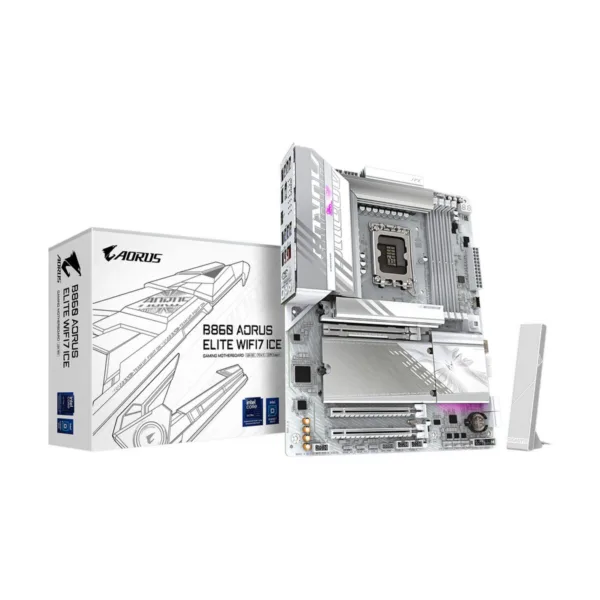

GIGABYTE B860 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard, DDR5, 3x M.2, PCIe 5.0, Wi-Fi 7
Original price was: $209.99.$167.99Current price is: $167.99.
Save 20%Sale ends Dec 23Supports Intel Core Ultra Processors (Series 2) DDR5 Compatible: 4*DIMMs
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview
B860 AORUS ELITE WIFI7 ICE
Performance
Thermal
Connectivity
DIY Friendly
Infinite Memory Performance
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. * Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
AI Overclocking For peak performance
AORUS AI SNATCH
Auto-Overclocking Software by AI model * Coming soon
AI SNATCH Engine
Advanced AI Overclocking Model
AI Design For MB signal enhancement
