| Weight | 2.8 lbs |
|---|---|
| Dimensions | 14.5 × 7.5 × 3.2 in |
| Brand | GIGABYTE |
| Series | Gaming |
| Part Number | GV-N506TGAMING OC-16GD |
| Interface | PCI Express 5.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5060 Ti |
| Core Clock | 2647 MHz |
| Effective Memory Clock | 28 GHz |
| Memory Size | 16GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| Thermal Design Power | 180W |
| Recommended PSU Wattage | 650W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 281 mm |
| Card Dimensions (L x H) | 281 x 119 x 40 mm |
| Slot Width | 2 Slots |
| MPN | GV-N506TGAMING OC-16GD |
| UPC | 889523049303 |
GIGABYTERTX 5060 Ti · 16GB

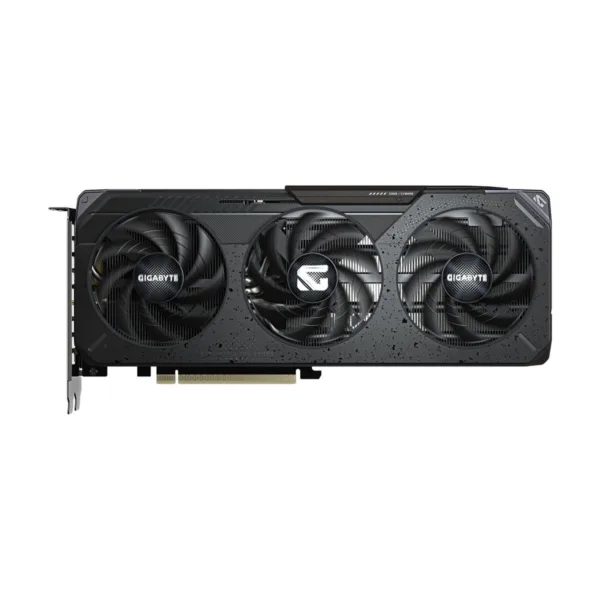

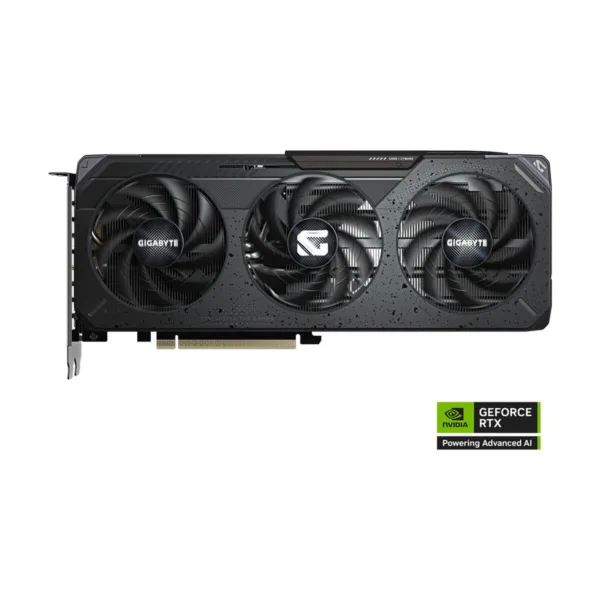

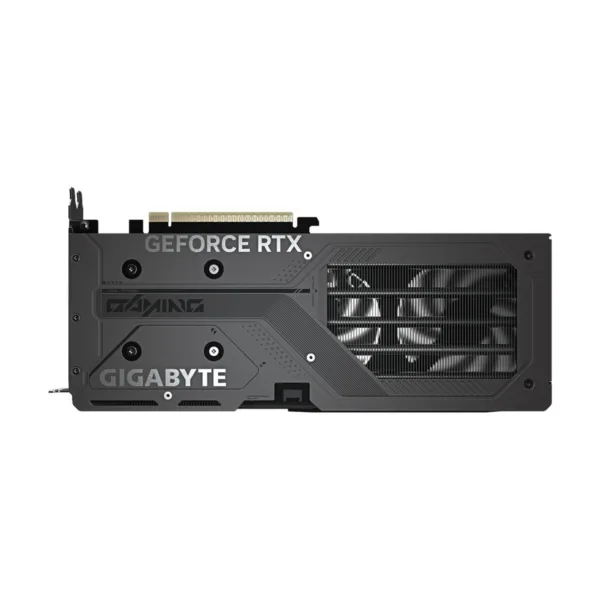

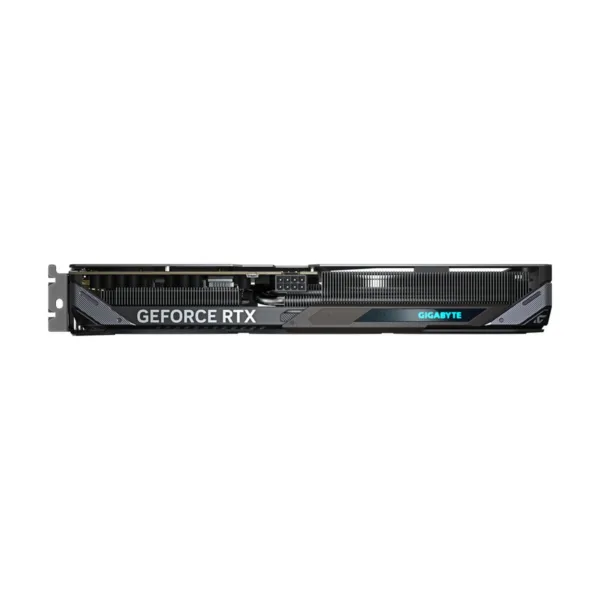

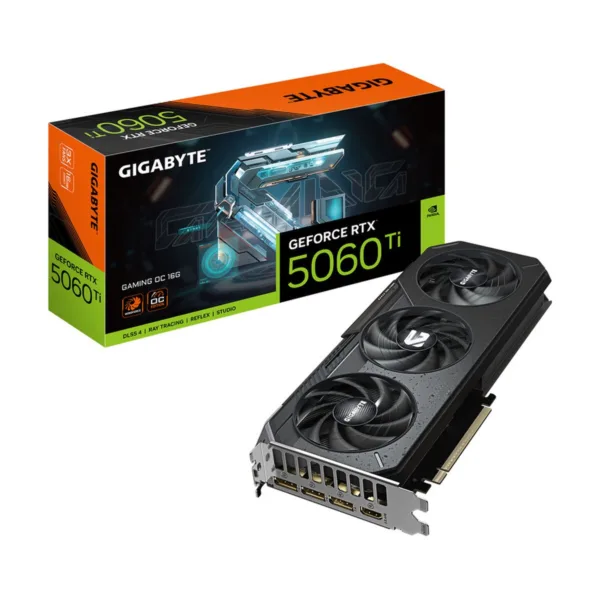

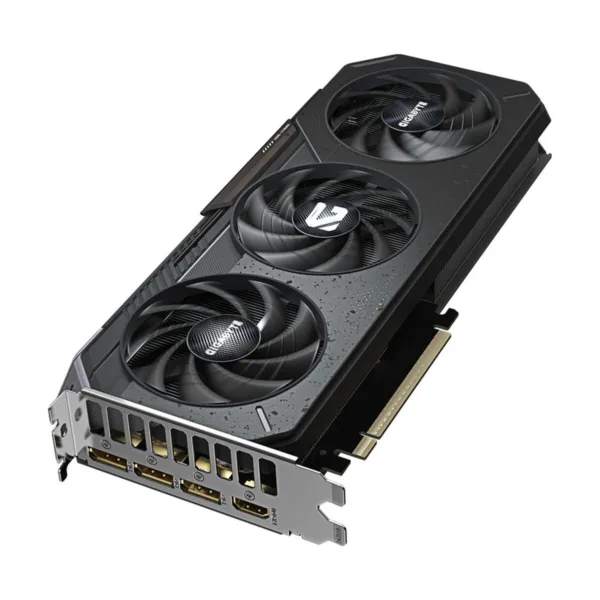

GIGABYTE Gaming GeForce RTX 5060 Ti 16GB
Original price was: $899.99.$764.99Current price is: $764.99.
Save 15%Sale ends Dec 2316GB 128-Bit GDDR7 Core Clock 2647 MHz
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Related products
-

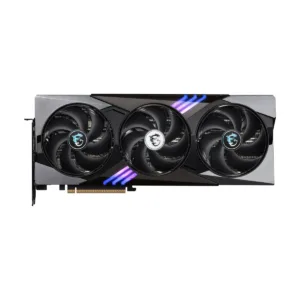

2 MODELS−15%MSIMSI Gaming GeForce RTX 5080 16GB Trio OC
From Original price was: $1,899.99.$1,614.99Current price is: $1,614.99.Select options This product has multiple variants. The options may be chosen on the product page -
RTX 4060 · 8GB−20%GIGABYTEGIGABYTE WINDFORCE GeForce RTX 4060 8GB
Original price was: $229.99.$183.99Current price is: $183.99. -

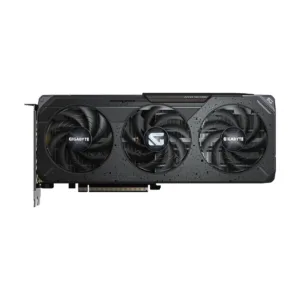

2 MODELS−20%GIGABYTEGIGABYTE Gaming Radeon RX 9060 XT 16GB
