| Weight | 24.6 lbs |
|---|---|
| Dimensions | 19.2 × 18.8 × 10.3 in |
| Brand | GIGABYTE |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support for 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 / AMD EXPO |
| ECC Supported | Non-ECC |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 sl |
| PCI Express x4 | Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: – AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen 8000 Series-Phoenix 2 Proc |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices |
| Audio Chipset | 1 ESS ES9280AC DAC chip+2 ESS ES9080 chips |
| Audio Channels | 2 Channels |
| Max LAN Speed | 2 x 10Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.4 |

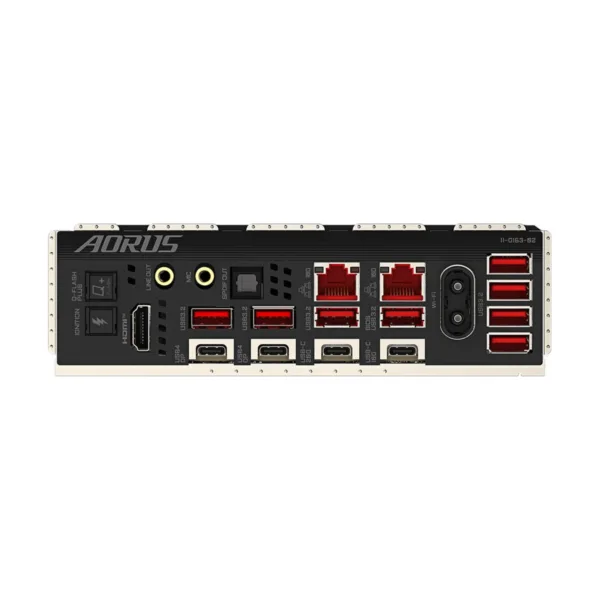

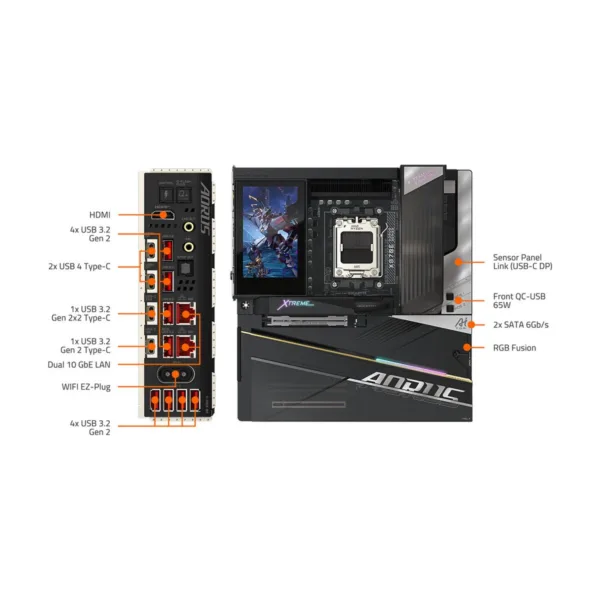

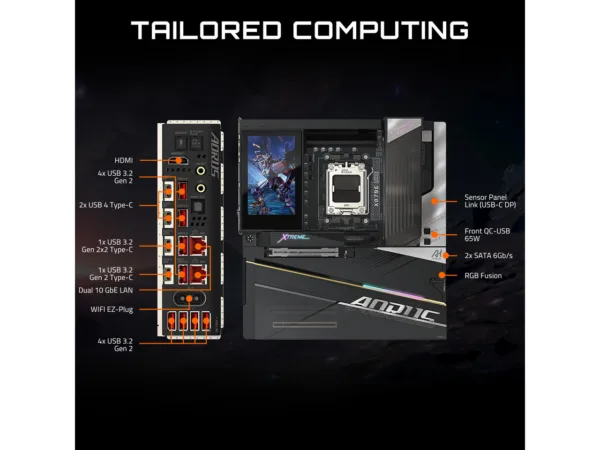

| Back I/O Ports | 1 x Q-Flash Plus button 1 x OC Ignition button 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPorts (Note)) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB Type-C port, with USB 3.2 Gen 2×2 support 8 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 ports 2 x antenna c |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB Type-C port (DisplayPort (Note)), with USB 2.0 support 2 x USB 3.2 Gen 1 headers 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 h |
| Other Connectors | 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan extension cable header (can extend three system fan headers through one cable) 1 x system fan/water cooling pump extension cable header (can extend three system |
| Form Factor | Extended ATX |
| Dimensions (W x L) | 12.0" x 11.2" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| BIOS Feature | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| MPN | X870E AORUS XTREME X3D AI TOP |
| UPC | 889523055946 |

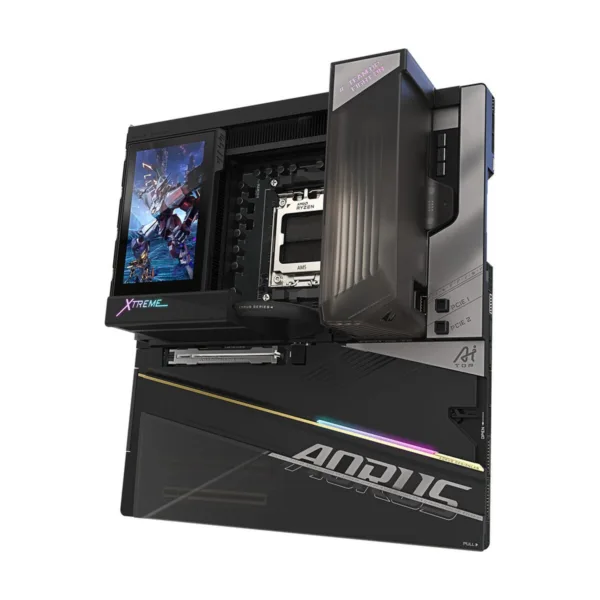

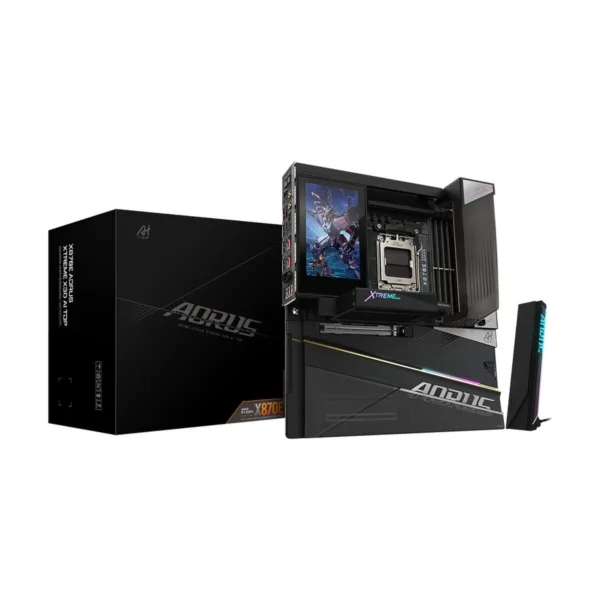

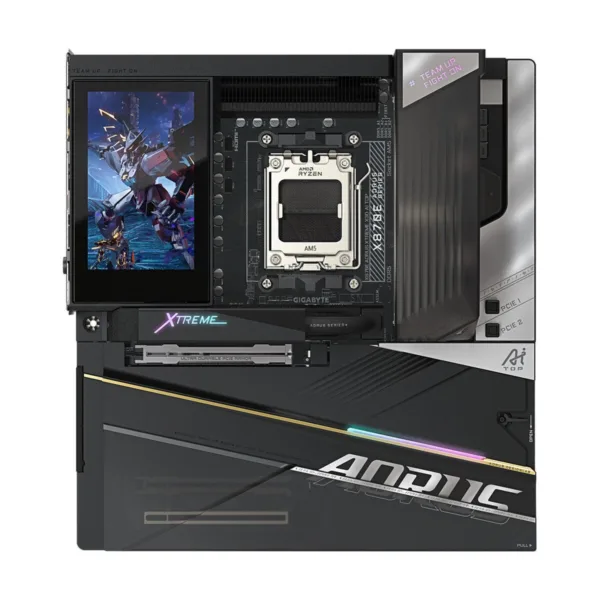

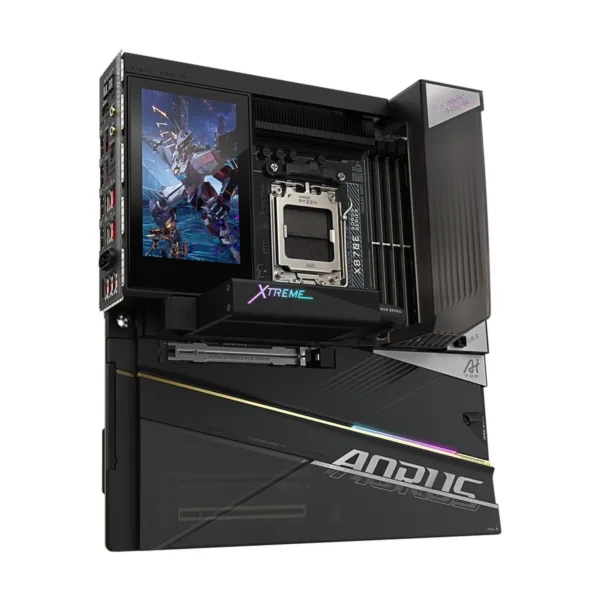

GIGABYTE X870E AORUS XTREME X3D AI TOP AM5 E-ATX Motherboard, DDR5, 5x M.2, USB4, Wi-Fi 7, Dual 10GbE
Original price was: $1,037.87.$830.29Current price is: $830.29.
Save 20%Sale ends Dec 23AMD Socket AM5: Ready to support Ryzen 9000/8000/7000 Series Processors. Enhanced Power Solution: Digital Twin 24+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
