GIGABYTE

GIGABYTE Z790 AORUS ELITE AX LGA 1700

Original price was: $239.99.Current price is: $179.99.

Save 25%Sale ends Dec 23

Intel LGA 1700 Socket: Supports 14th, 13th & 12th Gen Intel Core Series Processors DDR5 Compatible: 4*SMD DIMMs with XMP 3.0 Memory Module Support

In stock

  • Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
  • 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
  • Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
  • Secure checkout Visa, Mastercard and American Express and Discover.

Shipping policyReturns

SKU: 13-145-417R Category: Brand:
Weight 5 lbs
Dimensions 13.3 × 10.68 × 3.25 in
Brand

GIGABYTE
CPU Socket Type

LGA 1700
CPU Type

Supports 14th / 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
Chipset

Intel Z790
Number of Memory Slots

4x288pin (DDR5)
Memory Standard

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2
Maximum Memory Supported

192GB
Channel Supported

Dual Channel
Memory Performance Profile

Intel XMP 3.0
PCI Express 5.0 x16

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
PCI Express 4.0 x16

2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Serial ATA (SATA)

6 x SATA 6Gb/s
M.2

CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD s
SATA RAID

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Chipset

Realtek Audio CODEC High Definition Audio
Audio Channels

7.1 Channels
LAN Chipset

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed

2.5Gbps
Wireless LAN

Intel Wi-Fi 6E AX211 – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth

Bluetooth 5.3

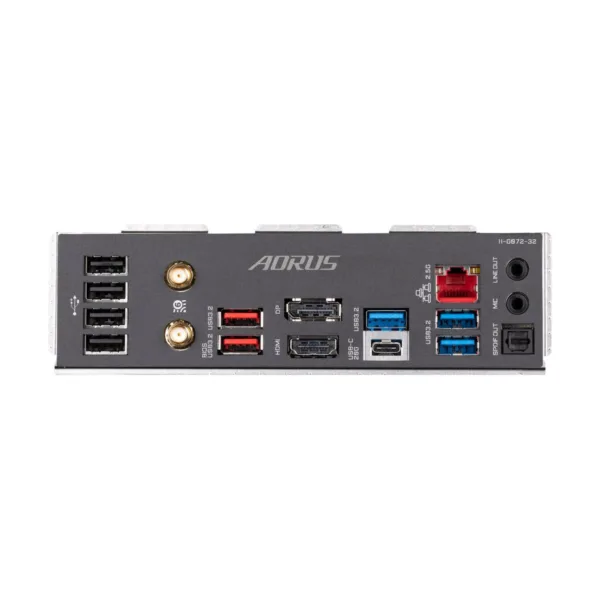

Back I/O Ports

1 x USB Type-C port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Onboard USB

1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors

1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio heade
Windows 11

Supported
Form Factor

ATX
LED Lighting

RGB
Dimensions (W x L)

12.0" x 9.6"
Power Pin

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Features

BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary d
MPN

Z790 AORUS ELITE AX
UPC

889523034002
