| Weight | 3.3 lbs |
|---|---|
| Dimensions | 13.3 × 10.75 × 2.5 in |
| Brand | MSI |
| CPU Socket Type | LGA 1700 |
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6 |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
| PCI Express x1 | 3x PCIe 3.0 x1 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio Channels | 8-Channel (7.1) HD Audio with Audio Boost |
| Max LAN Speed | Realtek® RTL8125BG 2.5G LAN |
| Wireless LAN | ntel® Wi-Fi 6E |
| Bluetooth | , Bluetooth 5.3 |

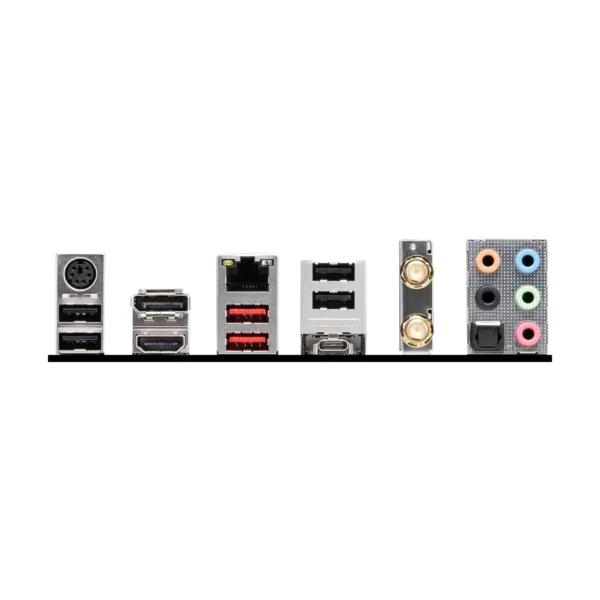

| Back I/O Ports | Keyboard/Mouse, Displayport 1.4, 2.5G LAN, USB2.0, Wi-fi/Bluetooth, HD Audio Connectors, USB2.0, HDMI 2.1 Port, USB 3.2 Gen 2 10Gbps (type-A), USB 3.2 Gen 2 10Gbps(Type C), Optical S/PDIF-Out. |
| Other Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector |
| Windows 11 | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX |
| Dimensions (W x L) | 243.84mmx304.8mm |
| Features | Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC) Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost Premium |
| MPN | B760 GAMING PLUS WIFI |
| UPC | 824142319420 |

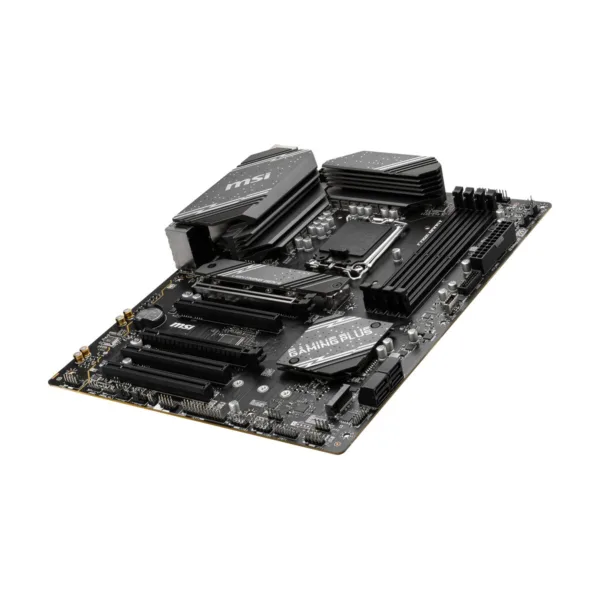

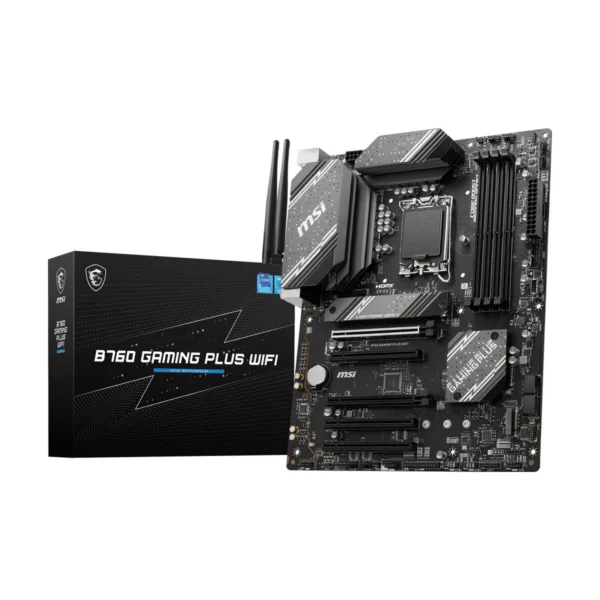

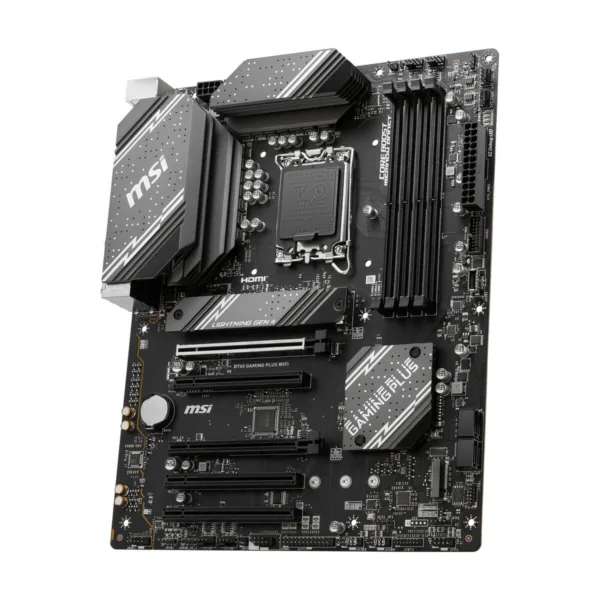

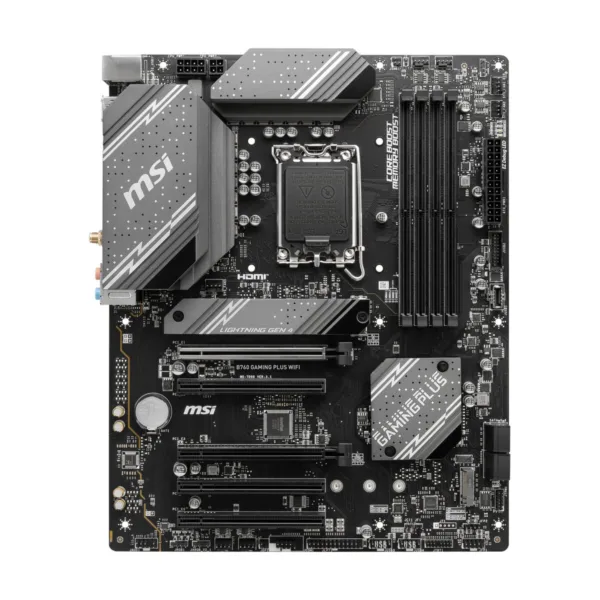

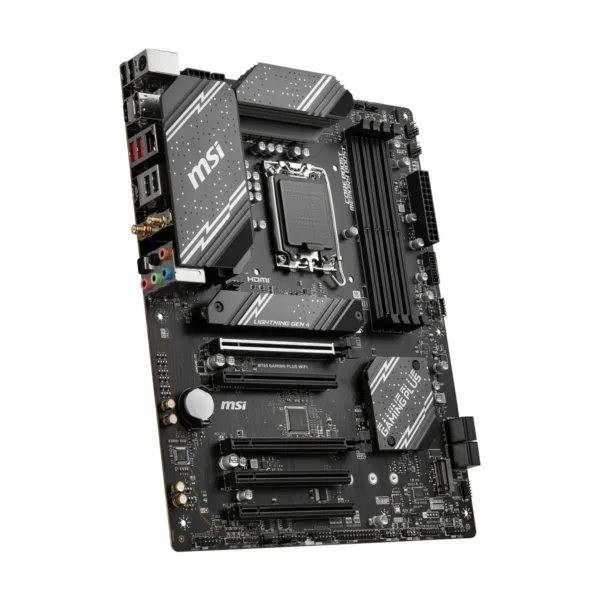

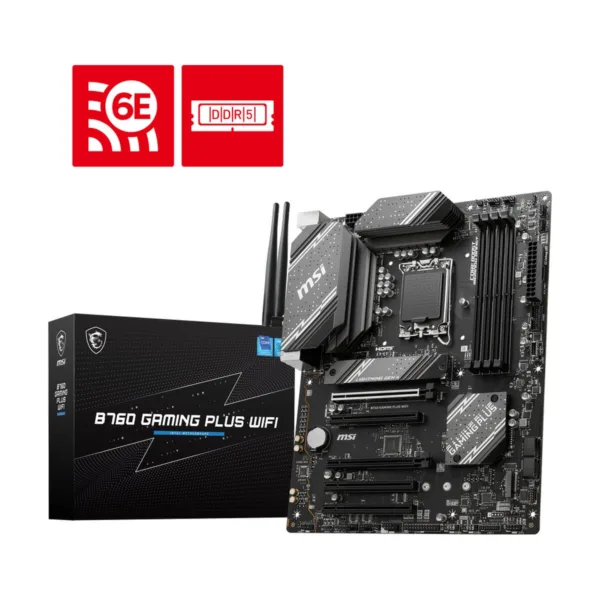

MSI B760 GAMING PLUS WIFI LGA 1700 ATX Motherboard, DDR5, PCIe 4.0, Wi-Fi 6E, 2.5G LAN
Original price was: $199.99.$149.99Current price is: $149.99.
Save 25%Sale ends Dec 23BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
