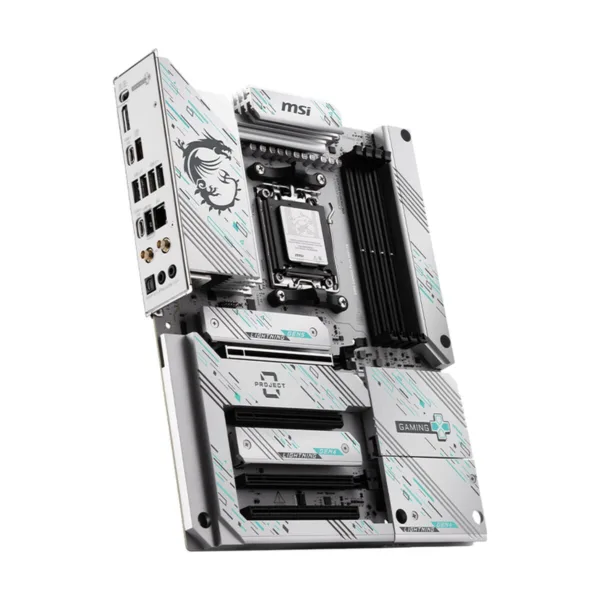

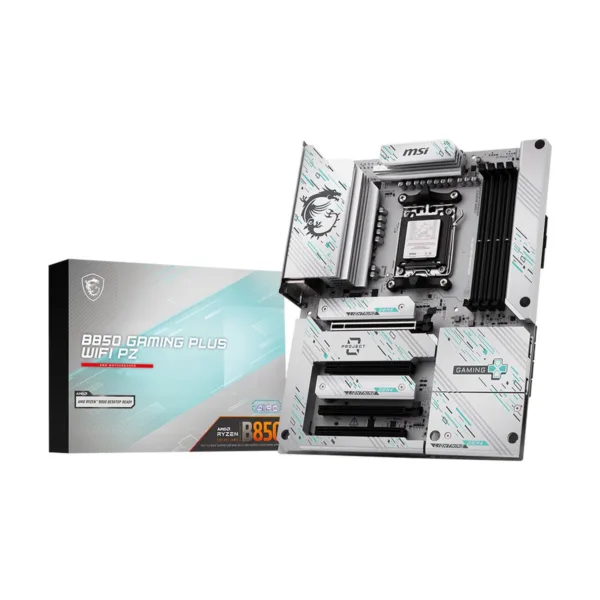

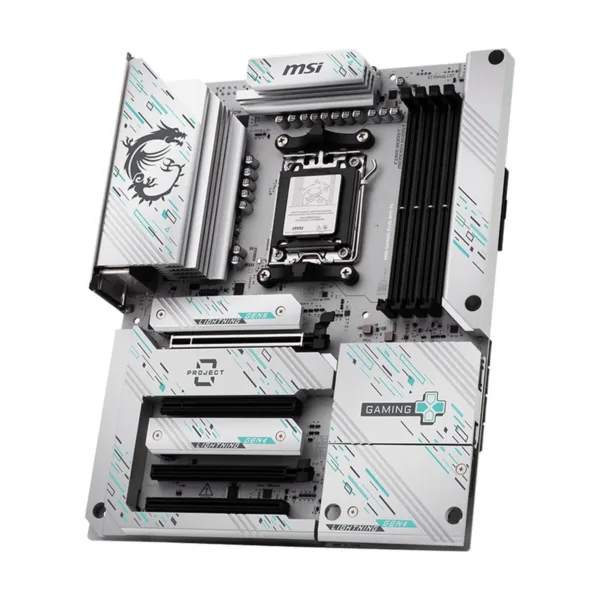

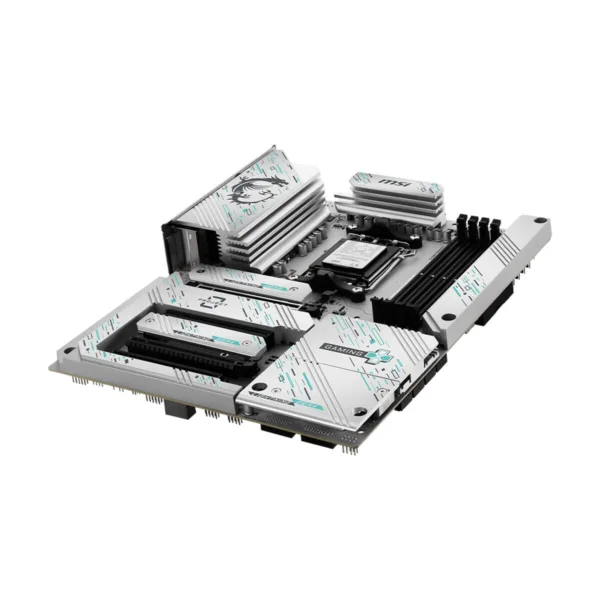

MSI B850 GAMING PLUS WIFI PZ AM5 ATX Back-Connect Motherboard, DDR5, PCIe 5.0, Wi-Fi 7, 5Gb LAN
$249.99Original price was: $249.99.$199.99Current price is: $199.99.
Save 20%Sale ends Dec 23
AMD B850 Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
In stock
Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
Secure checkout Visa, Mastercard, American Express and Discover.
The B850 GAMING PLUS WIFI PZ is a gaming oriented ATX motherboard that is constructed with the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring Wi-Fi 7, 5G LAN, PCIe 5.0 and DDR5 memory that balances both value and hardware.

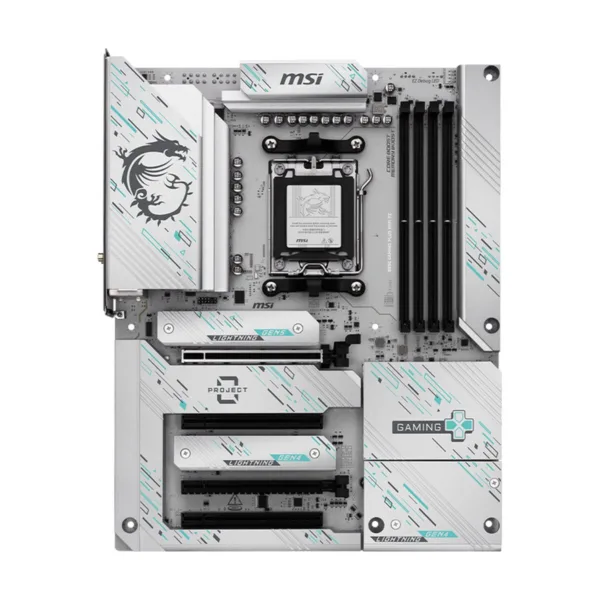

Cleaner Front View

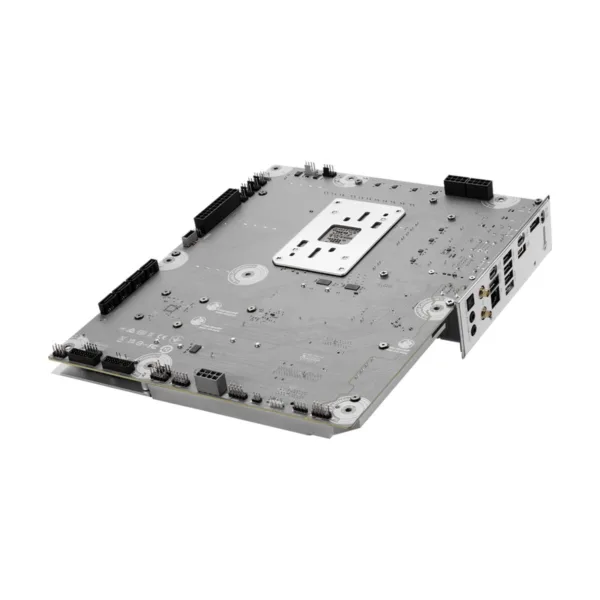

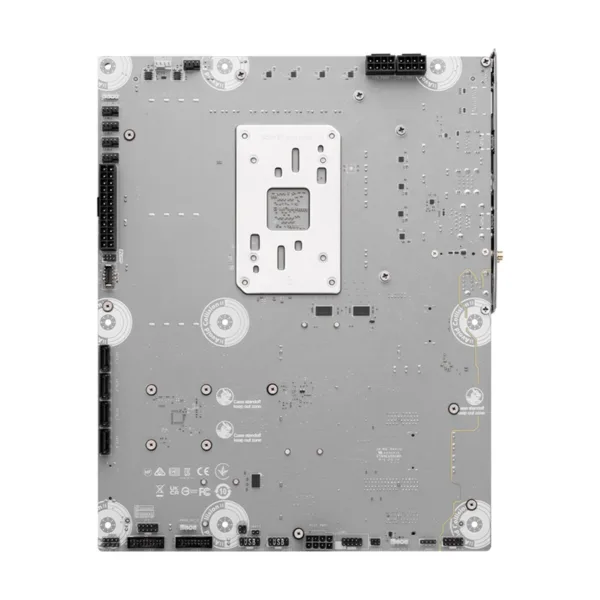

The B850 GAMING PLUS WIFI PZ moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Back-Connect Design
: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless. Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.
The B850 GAMING PLUS WIFI PZ motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors. Form Factor: ATX Socket Type: AM5 Chipset: AMD B850
Ultra Power – 12 Duet Rail Power System with P-PAK
With exclusive Core Boost technology and EZ OC Tuning functions, the B850 GAMING PLUS WIFI PZ is able to sustain heavy CPU power loads to support system-demanding game settings: Digital PWM IC 12 Phase Duet Rail Power System w/ P-PAK 2 Phase SOC Power 1 Phase MISC Power
Frozr Design
Frozr Guard: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A) and system fans. Frozr Sync: Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules. EXPO Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor and EZ PCIe Clip II) 1 x PCIe 4.0 x4 slot* 2 x PCIe 3.0 x1 slot * Supports x16/x4
Gen5 M.2 Connector
The B850 GAMING PLUS WIFI PZ motherboard features MSI's M.2 slots: 1 x Gen5 x4 128Gbps slot 1 x Gen4 x4 64Gbps slot 1 x Gen4 x2 32Gbps slot

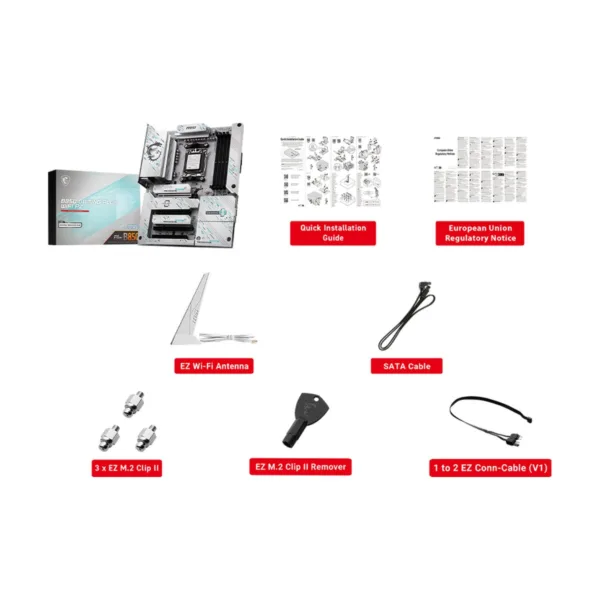

The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws. EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces. EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: – 1DPC 1R Max speed up to 8200+ MT/s – 1DPC 2R Max speed up to 6400+ MT/s – 2DPC 1R Max speed up to 6400+ MT/s – 2DPC 2R Max speed up to 5600+ MT/s Suppo
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
PCI Express x1
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)
4 x SATA 6Gb/s
M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M2_1 slot – Supports up to PCIe 5.0
SATA RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 Series Processors
Audio Chipset
Realtek ALC897
Audio Channels
7.1-Channel High Definition Audio
LAN Chipset
Realtek 8126VB 5G LAN
Max LAN Speed
5Gbps
Wireless LAN
Wi-Fi 802.11 be
Bluetooth
Bluetooth 5.4

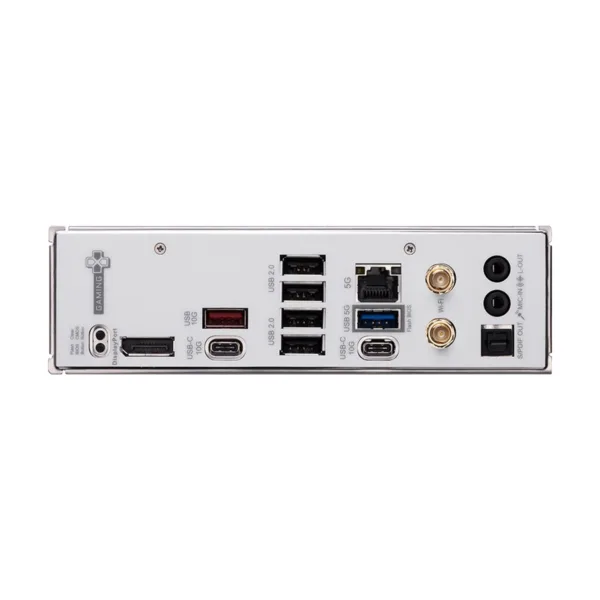

Back I/O Ports
Clear CMOS Button 5G LAN Wi-Fi / Bluetooth Audio connectors S/PDIF-OUT Flash BIOS Button DisplayPort 1 x USB 10Gbps (Type-A) 4 x USB 2.0 2 x USB 10Gbps (Type-C) 1 x USB 5Gbps (Type-A)
Onboard USB
4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 5Gbps Type C ports
Other Connectors
1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 4 x System Fan 1 x EZ Conn-header (JAF_1) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x Tuning Controller connector(JDASH) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED conne
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin)
