| Weight | 5.1 lbs |
|---|---|
| Dimensions | 13.7 × 11.5 × 3.1 in |
| Brand | MSI |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16 |
| PCI Express x4 | PCI_E3 slot (From Chipset X870) Supports up to PCIe 4.0 x4 |
| PCI Express x1 | PCI_E2 slot (From Chipset X870) Supports up to PCIe 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M2_1 slot (From CPU) – Supports up to PCIe 5.0 x4 – Supports 2280/110 storage devices M2_2 slot (From CPU) – Supports up to PCIe 5.0 x4 – Supports 2260/80 storage devices M2_3 slot (From Chipset) – Supports up to PCIe 4.0 x2 – Supports 2260/80 storage devices M2_4 slot (From Chip |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8126-VB |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

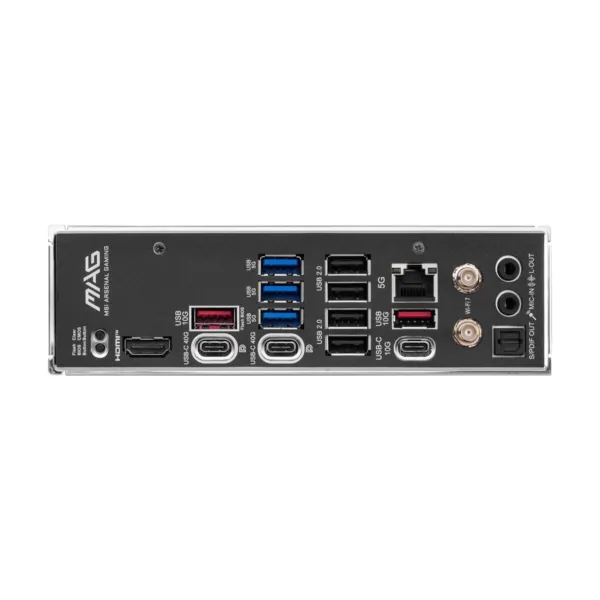

| Back I/O Ports | 1 x Flash BIOS button 1 x Clear CMOS button 1 x HDMI port 1 x USB 10Gbps Type-A (From CPU) 1 x USB 10Gbps Type-A (From X870 chipset) 1 x USB 10Gbps Type-C (From X870 chipset) 2 x USB 40Gbps Type-C (From ASM4242) 3 x USB 5Gbps Type-A (From GL3523) 4 x USB 2.0 Type-A ports (From GL |
| Onboard USB | AMD X870 Chipset – 1 x USB 20Gbps Type-C front panel port with Power Delivery Supports up to 27W fast charging – 2 x USB 5Gbps connectors Supports additional 4 USB 5Gbps ports – 2 x USB 2.0 connectors Supports additional 4 USB 2.0 ports |
| Other Connectors | Fan Connectors – 1x 4-pin CPU fan connector – 6x 4-pin system fan connectors – 1x 4-pin water-pump/ system fan connector – 1x EZ Conn-Header V2 (JAF_2 with 11-Pin) System Connectors – 1x Front panel audio connector – 2x System panel connectors – 1x Chassis Intrusion connector – 1 |
| Form Factor | ATX |
| LED Lighting | 1 x 4-pin RGB LED connector 3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors 4 x EZ Debug LED 1 x 2-Digit Debug Code LED 1 x EZ Conn-Header V2 (JAF_2 with 11-Pin) |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Power Connector (ATX_PWR) 2 x 8-pin Power Connector (CPU_PWR) 1 x 8-pin Power Connector (PCIE_PWR) |
| BIOS Feature | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.7 Multi-language |
| Software | Drivers MSI Center Acrobat Adobe Creative Cloud AIDA64 Extreme-MSI Edition CPU-Z MSI GAMING MSI App Player (BlueStacks) Norton 360 |
| Features | MSI Center Features – MSI AI Engine – Game Highlights – Frozr AI Cooling – Hardware Monitoring – Live Update – MSI Companion – System Diagnosis – Cooling Wizard – LAN Manager – Mystic Light – Ambient Link – True Color – User Scenario – Super Charger + Thermal Features – K7 MOSFET |
| MPN | MAG X870 TOMAHAWK WIFI |
| UPC | 824142380499 |

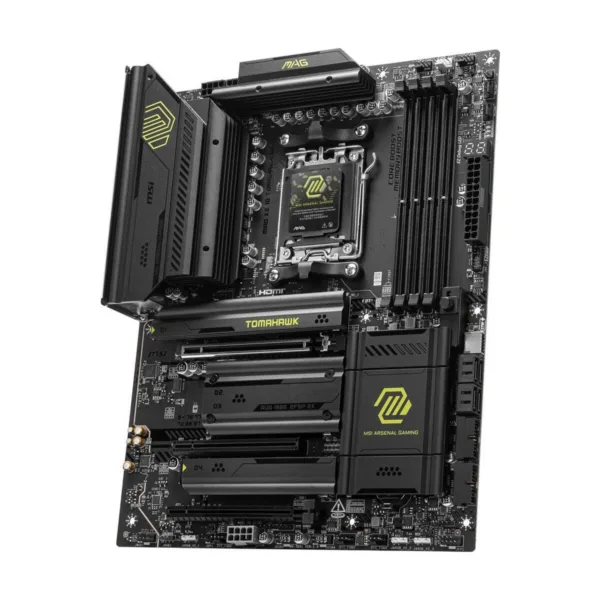

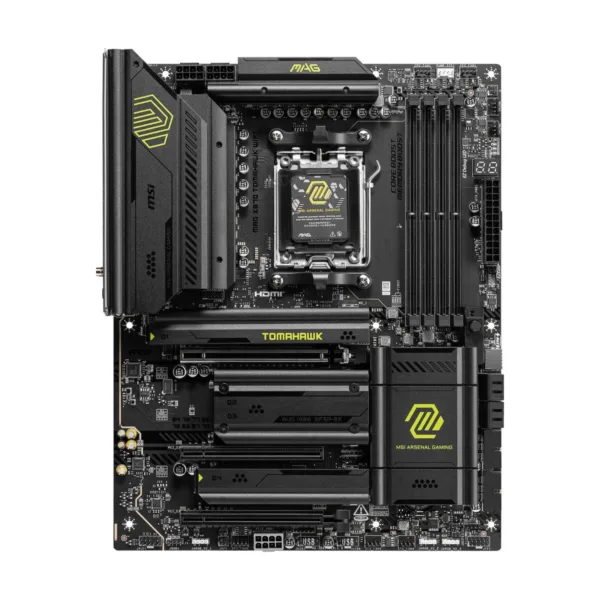

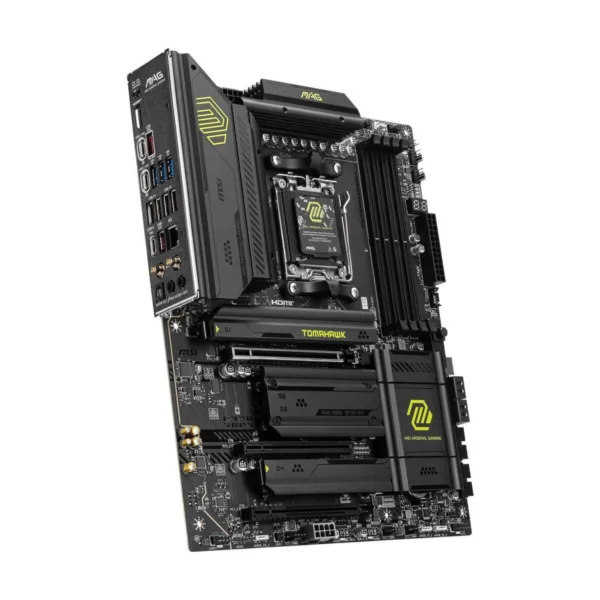

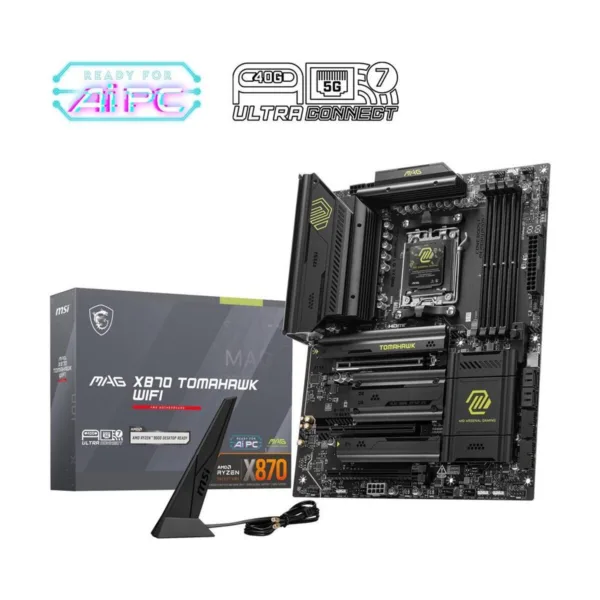

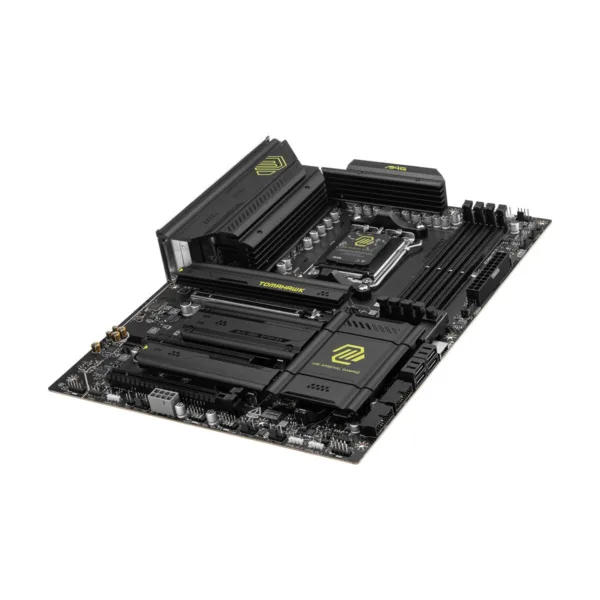

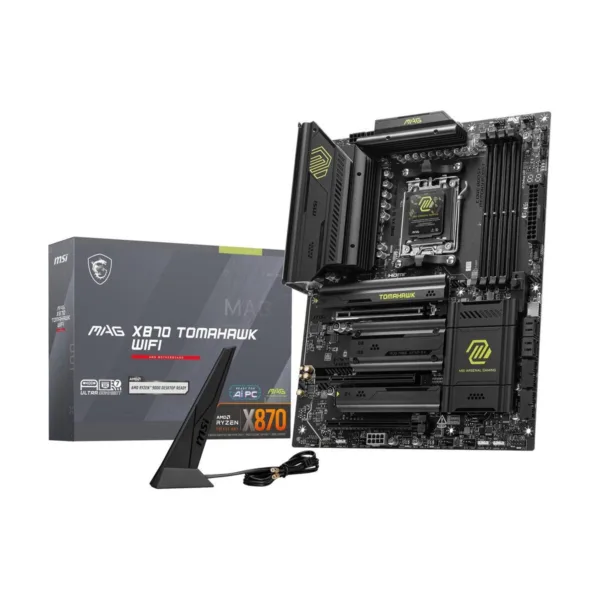

MSI MAG X870 TOMAHAWK WIFI AM5 ATX Motherboard, DDR5, PCIe 5.0, M.2 Gen5, Wi-Fi 7, 5G LAN
Original price was: $259.99.$207.99Current price is: $207.99.
Save 20%Sale ends Dec 23Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed. EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal …
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
Unite as One
The MAG X870 TOMAHAWK WIFI is a gaming oriented ATX motherboard that is contructued with a 14 Duet Rail Power System and the latest AMD X870 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The MAG X870 TOMAHAWK WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors. Form Factor: ATX Socket Type: AM5 Chipset: AMD X870
Ultra Power – 14 Duet Rail Power System with 80A Smart Power Stage
With exclusive Core Boost technology and dual 8 pin power connectors, the MAG X870 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: Digital PWM IC 14 Duet Rail Power System (80A / SPS) 2 Phase SOC Power 1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation. Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans. Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8400+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules. EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting up to twice the weight of graphics cards compared to 1st Gen Steel Armor. 1 x PCIe 5.0/4.0/3.0 x16 slot* (one with Steel Armor II** and EZ PCIe Release) 2 x PCIe 4.0/3.0 x16 slots* * Supports x16x1x4 ** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MAG X870 TOMAHAWK WIFI motherboard features MSI's M.2 slots: 2 x Gen5 x4 128Gbps slots (one with double-sided M.2 Shield Frozr) 1 x Gen4 x4 64Gbps slot 1 x Gen4 x2 32Gbps slot
EZ DIY

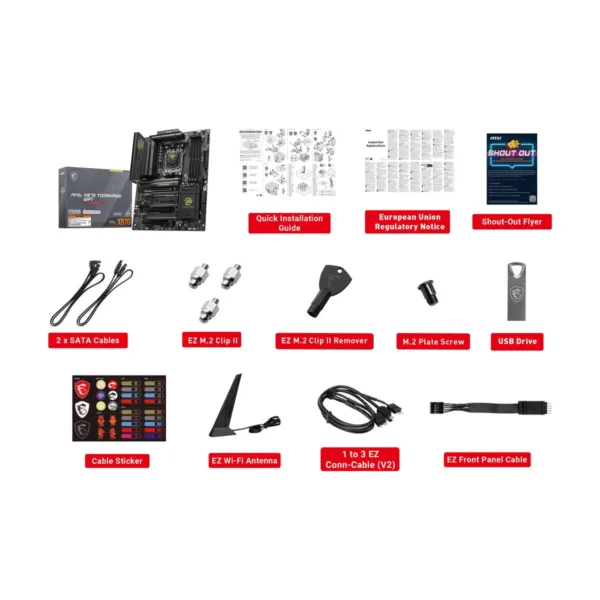

The DIY Friendly designs optimize the assemble process and experience. EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening. EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws. EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand. EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a bea
Ultra Connect
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K/60Hz display support.
