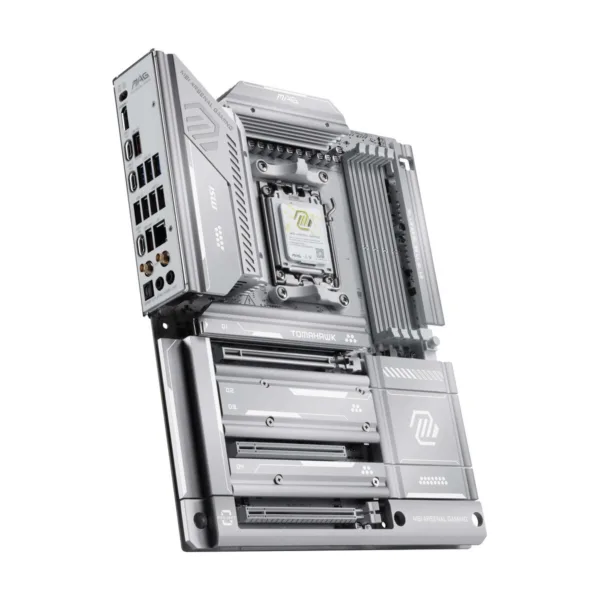

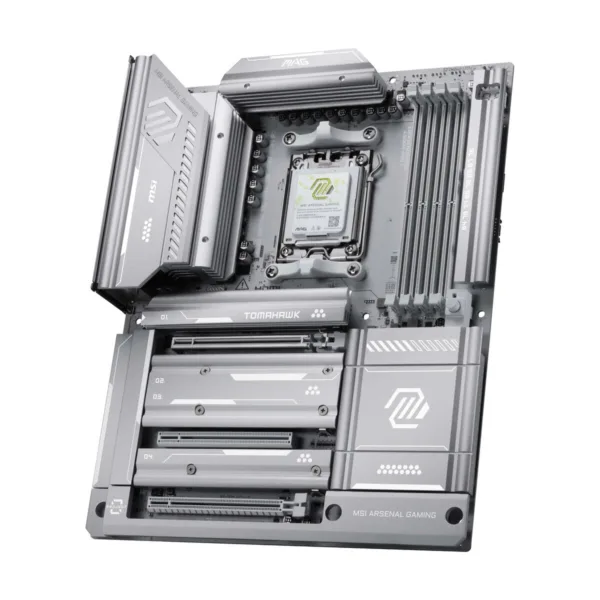

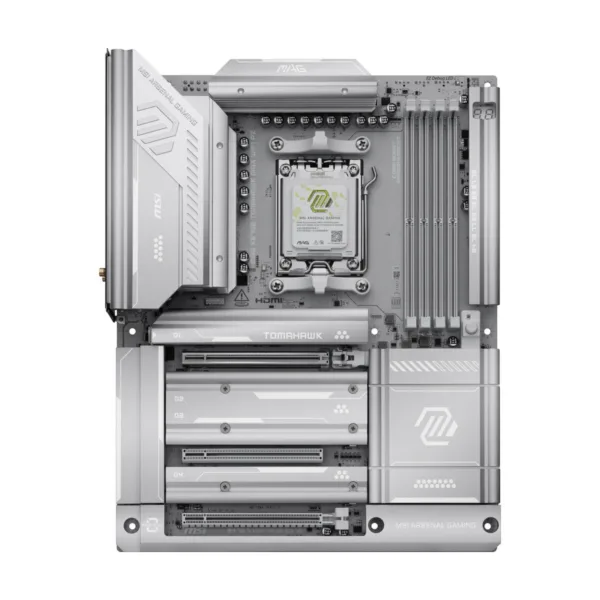

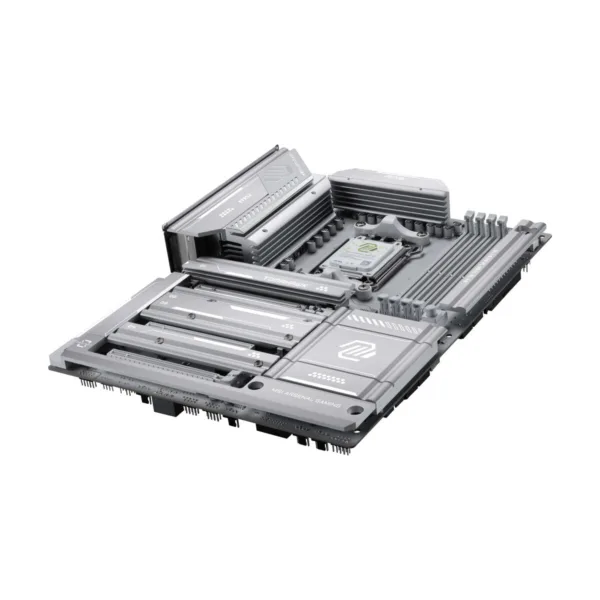

Name: MSI MAG X870E TOMAHAWK MAX WIFI PZ AM5 ATX Back-Connect Motherboard, DDR5, M.2, Wi-Fi 7, 5G LAN
Brand: MSI
SKU: 13-144-728
Price: 255.99 USD
Availability: InStock

MSI MAG X870E TOMAHAWK MAX WIFI PZ AM5 ATX Back-Connect Motherboard, DDR5, M.2, Wi-Fi 7, 5G LAN

Save 20%

Sale ends Dec 23

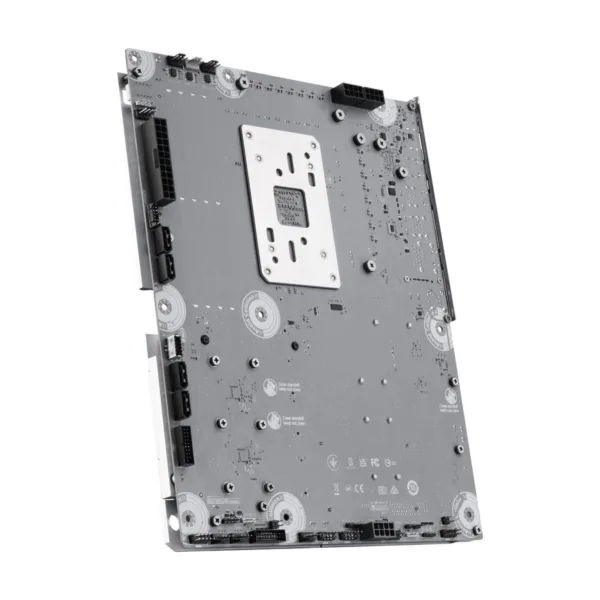

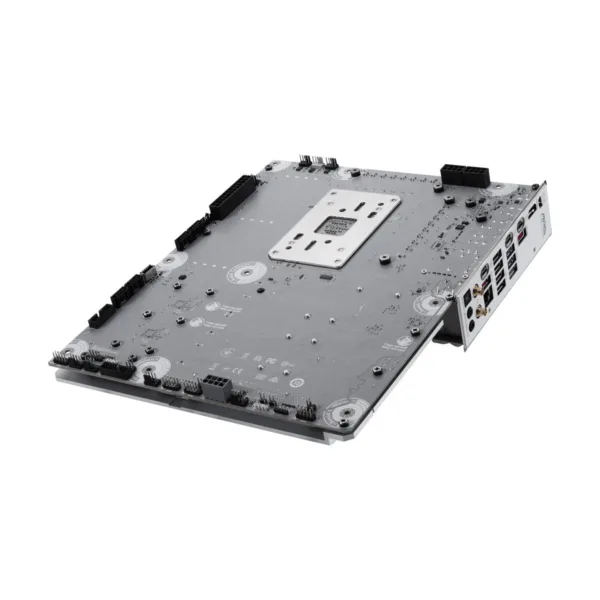

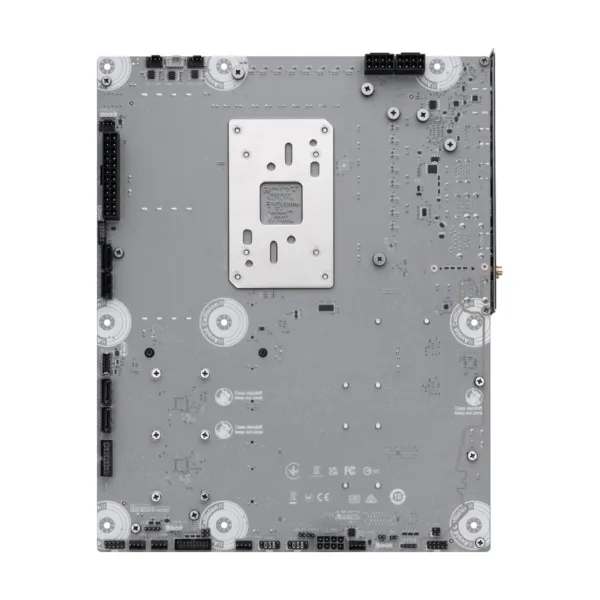

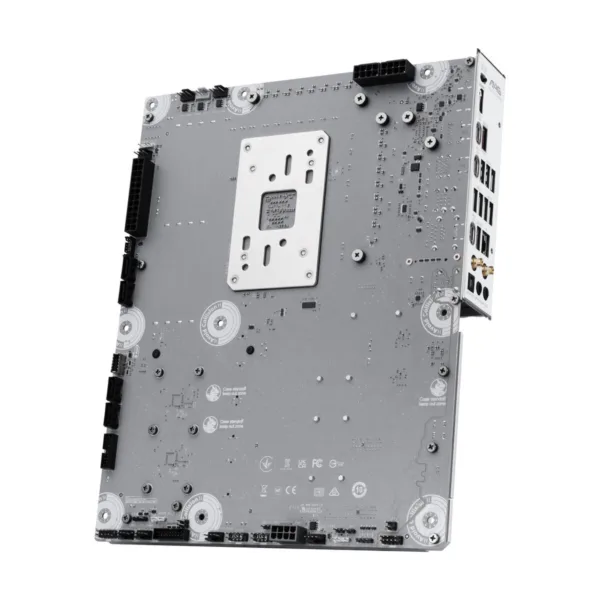

Back-Connect Design: Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management. 64MB BIOS: A larger BIOS ROM capacity allows the motherboard to support

In stock

Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.

30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.

Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.

Secure checkout Visa, Mastercard and American Express and Discover.

SKU: 13-144-728 Category: Motherboards Brand: MSI

Weight	5.9 lbs
Dimensions	13.6 × 11.5 × 3 in
Brand	MSI
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset	AMD X870E
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8333 / DDR5 8400
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Performance Profile	AMD EXPO
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Supports CUDIMM, Clock Driver bypass mode only
PCI Express 5.0 x16	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot – Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) – Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) – Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
PCI Express x4	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) support
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen 9000 series processors. RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/700
Audio Chipset	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
Audio Channels	7.1 Channels
Max LAN Speed	5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Bluetooth 5.4

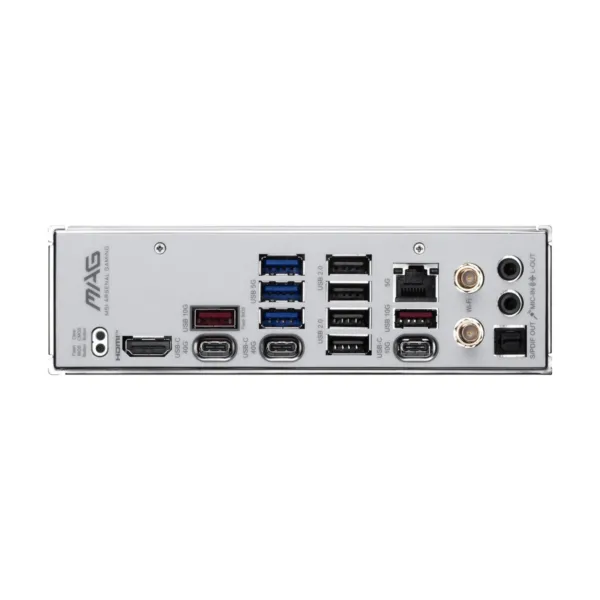

Back I/O Ports	1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 2 x USB 3.2 Gen 2×2 Type-C / 3 x USB 3.2 Gen 1 Type-A / 4 x USB 2.0/1.1
Onboard USB	4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 20Gbps Type C ports
Other Connectors	1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 6 x System Fan 1 x EZ Conn-header (JAF_2) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 2 x Direct O
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin)
MPN	MAG X870E TOMAHAWK MAX WIFI PZ
UPC	824142443835
