| Weight | 5 lbs |
|---|---|
| Dimensions | 13.46 × 10.55 × 2.76 in |
| Brand | MSI |
| CPU Socket Type | LGA 1700 |
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors |
| Chipset | Intel Z790 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports 1R 5600 MHz (by JEDEC & POR) – 1DPC 1R Max speed up to 6800+ MHz – 1DPC 2R Max speed up to 6400+ MHz – 2DPC 1R Max speed up to 6400+ MHz – 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffe |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| PCI Express 5.0 x16 | PCI_E1 slot (From CPU) – Supports up to PCIe 5.0 x16 |
| PCI Express 4.0 x16 | PCI_E3 slot (From Z790 Chipset) – Supports up to PCIe 4.0 x4 |
| PCI Express x1 | PCI_E2 slot (From Z790 Chipset) – Supports up to PCIe 3.0 x1 |
| Serial ATA (SATA) | 7x SATA 6Gb/s ports – SATA_1& SATA_5_6& SATA_7_8 (From Z790 chipset) – SATA_A1_A2 (From ASM1061) |
| M.2 | 1 x Key M (CPU) + 1 x Key M (PCIe/SATA) + 2 x Key M (PCIe) + 1 x Key E (WiFi/BT) 4x M.2 slots (Key M) M2_1 slot (From CPU) – Supports up to PCIe 4.0 x4 – Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z790 chipset) – Supports up to PCIe 4.0 x4 – Supports 2260/ 2280 st |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | 1x Intel 2.5Gbps LAN controller |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E – The Wireless module is pre-installed in the M.2 (Key-E) slot – Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz) up to 2.4Gbps – Supports 802.11 a/ b/ g/ n/ ac/ ax * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 2 |
| Bluetooth | Supports Bluetooth 5.2*, FIPS, FISMA * Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |

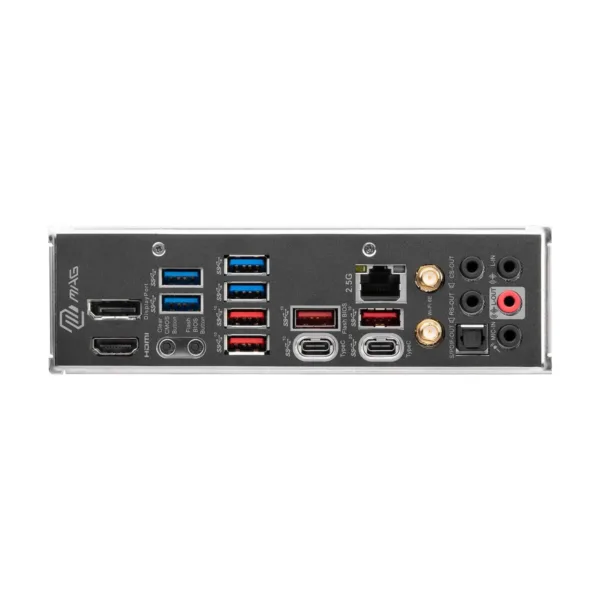

| Back I/O Ports | 1x DisplayPort 1x HDMI port 1x Clear CMOS button 1x Flash BIOS button 4x USB 3.2 Gen 1 5Gbps Type-A ports (From Hub GL3523) 4x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset) 1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset) 1x USB 3.2 Gen 2×2 20Gbps Type-C port (From |
| Onboard USB | 1x USB 3.2 Gen 2 10Gbps Type-C front panel connector (From Z790 chipset) 1x USB 3.2 Gen 1 5Gbps connector (From Hub GL3523) – Support additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub GL850G) – Supports additional 4 USB 2.0 ports |
| Other Connectors | Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors System Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning Controller connector 1x TBT conn |
| Windows 11 | Supported |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1x 24-pin ATX main power connector 2x 8-pin +12V power connectors |
| Features | MSI Center Features – Gaming Mode – Smart Priority – Game Highlights – Mystic light – Ambient Devices – Frozr AI Cooling – User Scenario – True Color – Live Update – Hardware Monitoring – Super Charger – Devices Speed Up – Smart Image Finder – MSI Companion – System Diagnosis – S |
| MPN | MAG Z790 TOMAHAWK WIFI |
| UPC | 824142305690 |

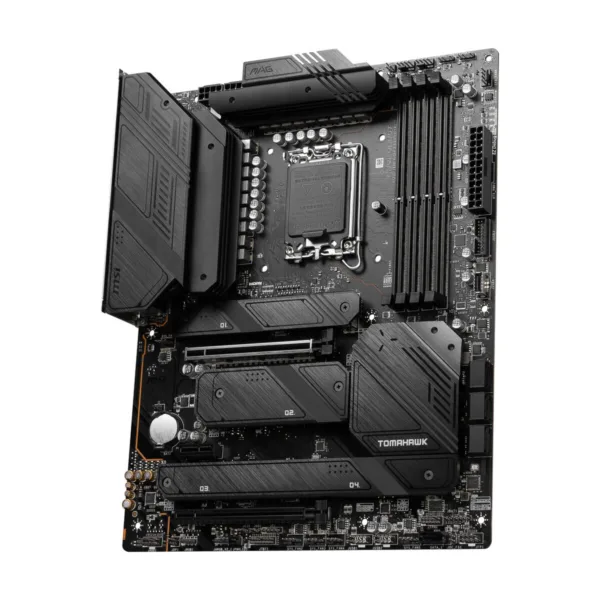

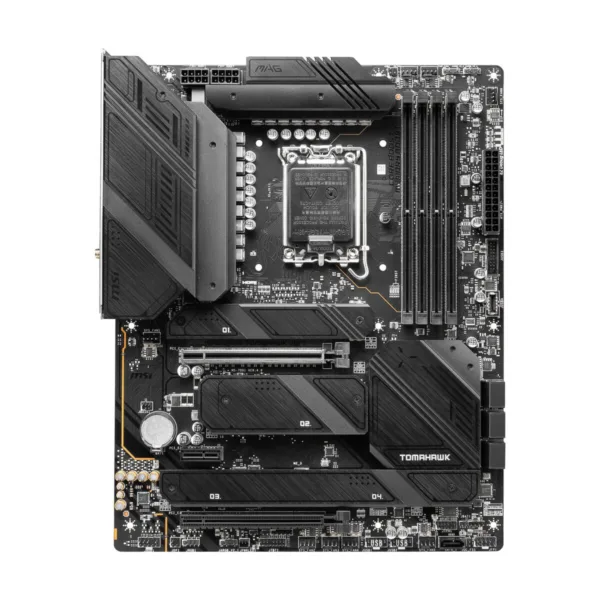

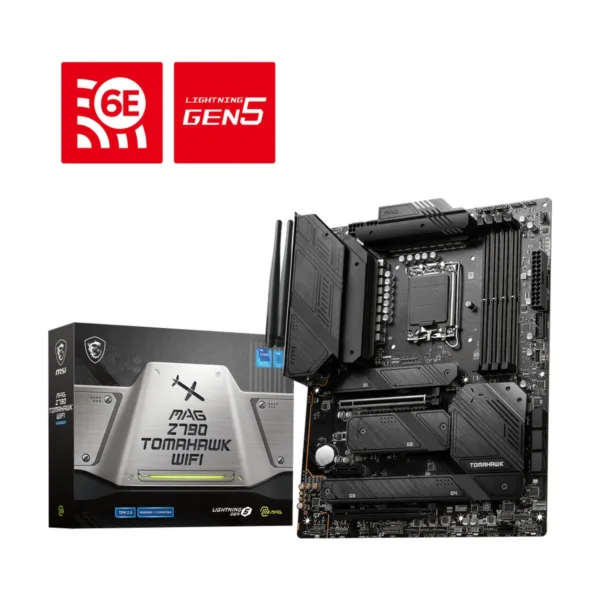

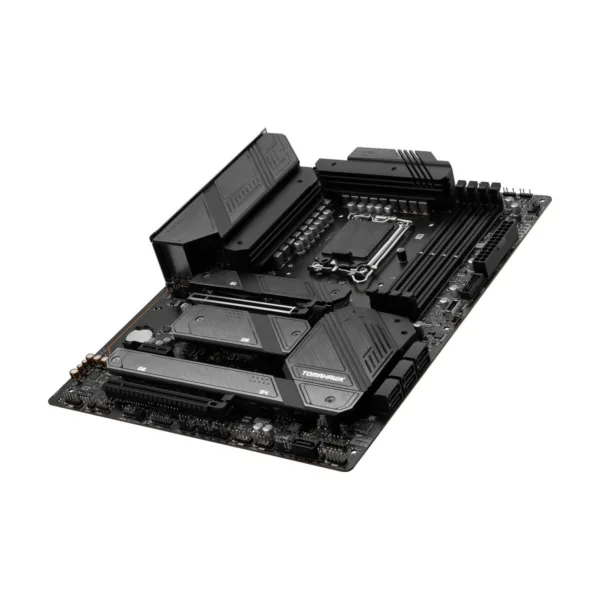

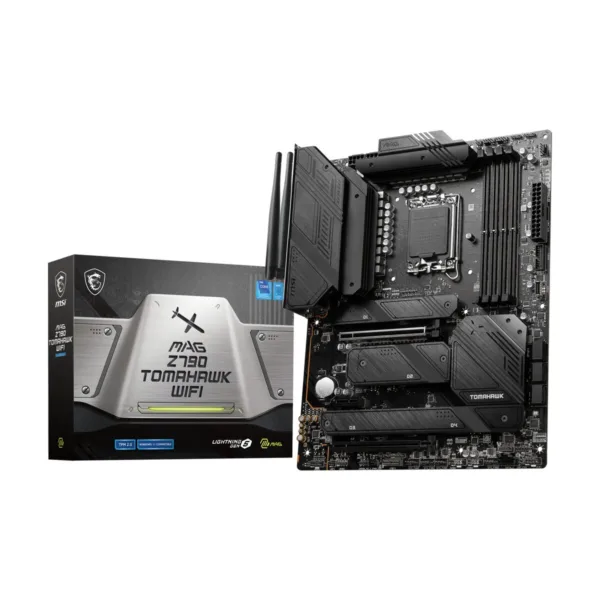

MSI MAG Z790 TOMAHAWK WIFI LGA 1700
Original price was: $291.00.$218.25Current price is: $218.25.
Save 25%Sale ends Dec 23BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
Unite as One
The MAG Z790 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest Intel Z790 chipset that balances value with premium hardware.
Supports Intel Core 12th & 13th Gen Processors
The MAG Z790 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Socket Type: LGA 1700 Chipset: Intel Z790
16+1+1 Duet Rail Power System with 90A SPS
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG Z790 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: 1. Digital PWM IC 2. 16-Phase Duet Rail CPU Power (Smart Power Stage / 90A) 3. 1-Phase GT Power 4. 1-Phase AUX Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
4 x DDR5 Dual Channel (7200 MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. * 1DPC 1R Max. overclocking frequency 7200+ MHz, supports Intel XMP.
Fortified PCI-e 5.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 5.0/4.0/3.0 x16 slot (with Steel Armor**) 1 x PCI-e 4.0/3.0 x16 slot* * Supports x16/x4 ** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen4 M.2 Connectors
The MAG Z790 TOMAHAWK WIFI motherboard features MSI's Gen4 M.2 slots: 4 x Gen4 x4 64Gb/s slots
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Wi-Fi 6E & Bluetooth 5.2
2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s. HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.
