| Weight | 5.65 lbs |
|---|---|
| Dimensions | 13.5 × 10.6 × 2.8 in |
| Brand | MSI |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | PCI_E1 slot (From CPU): Support up to PCIe 5.0 x16 PCI_E2 slot (From CPU): Support up to PCIe 5.0 x4 * Supports x16/x0 or x8/x4 (For Ryzen 9000/7000 Series processors) * Supports x8/x0 (For Ryzen 7 8700G and Ryzen 5 8600G processor) * Supports x4/x0 (For Ryzen 5 8500G processor) |
| PCI Express x4 | PCI_E3 slot (From X870E chipset): Supports up to PCIe 4.0 x1 |
| Other Slots | * PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot. |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 4 x M.2 slots (Key M) M2_1 slot (From CPU) – Supports up to PCIe 5.0 x4 – Supports 2260/2280 storage devices M2_2 slot (From CPU) – Supports up to PCIe 5.0 x4 – Supports 2260/2280 storage devices M2_3 slot (From Chipset) – Supports up to PCIe 4.0 x4 – Supports 2280/22110 storage |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8126 5Gbps LAN controller |
| Second LAN Chipset | Realtek 8125 2.5Gbps LAN controller |
| Max LAN Speed | 5Gbps + 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

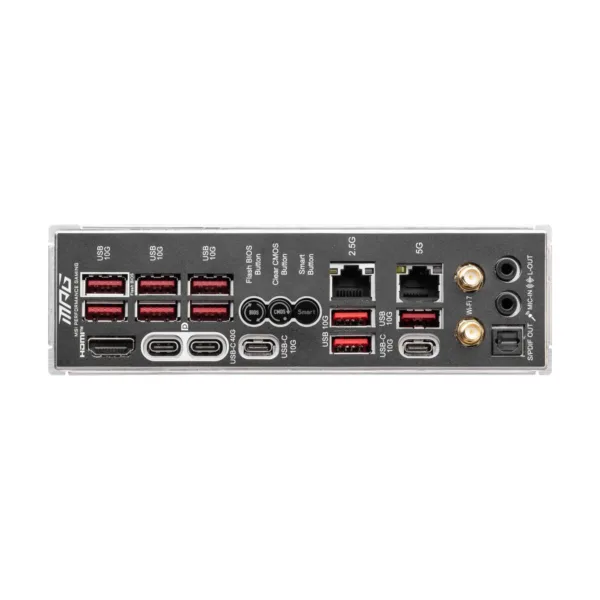

| Back I/O Ports | 2 x USB 10Gbps Type A (From X870E Chipset) 4 x USB 10Gbps Type A (From RTS5420) 1 x HDMI port 2 x USB 40Gbps Type-C (From CPU/ASM4242) 2 x USB 10Gbps Type C (1 from CPU/ 1 from X870E Chipset) 3 x USB 10Gbps Type A (1 from CPU/ 1 from X870E Chipset) 1 x Clear CMOS Button 1 x Flash |
| Other Connectors | AMD X870 Chipset – 1x USB 3.2 Gen 2×2 20Gbps Type-C connectors Supports up to 27W fast charging – 2x USB 3.2 Gen 1 5Gbps connectors Supports additional 4 USB 3.2 Gen 1 5Gbps ports – 2x USB 2.0 Type-A connectors Supports additional 4 USB 2.0 ports Fan Connectors – 1x 4-pin CPU fan |
| Form Factor | ATX |
| LED Lighting | 1 x 4-pin RGB LED connector 3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors 4 x EZ Debug LED 1 x 2-Digit Debug Code LED |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Power Connector (ATX_PER) 2 x 8-pin Power Connector (CPU_PWR) 1 x 8-pin Power Connector (PCIE_PWR) |
| BIOS Feature | 1 x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.7 Multi-language |
| Software | Drivers MSI Center Acrobat Adobe Creative Cloud AIDA64 Extreme-MSI Edition CPU-Z MSI GAMING MSI App Player(BlueStacks) Norton 360 Voicemod |
| Features | EZ DIY – Magnetic M.2 Shield Frozr – EZ M.2 Clip II – EZ PCIe Release – Smart Button – Flash BIOS Button – Clear CMOS Button – Pre-installed I/O Shield – EZ Antenna – EZ Front Panel Cable – EZ Conn-Design – PCI-E Steel Armor II – EZ Digi-Debug LED – EZ LED Control (Switch) Therma |
| MPN | MPG X870E CARBON WIFI |
| UPC | 824142382219 |

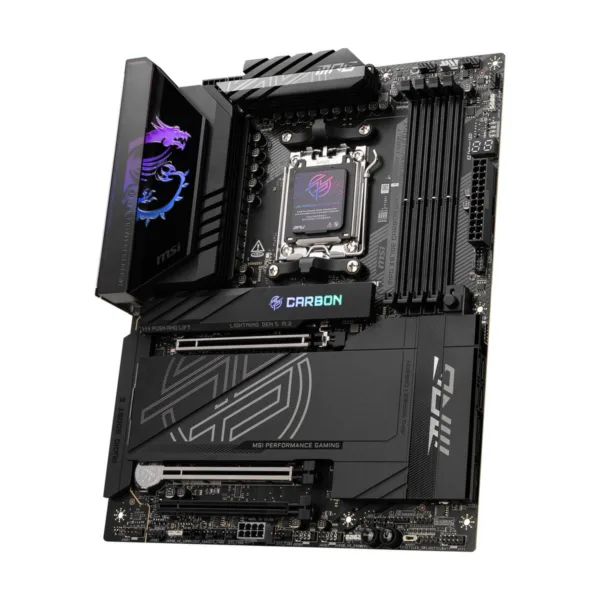

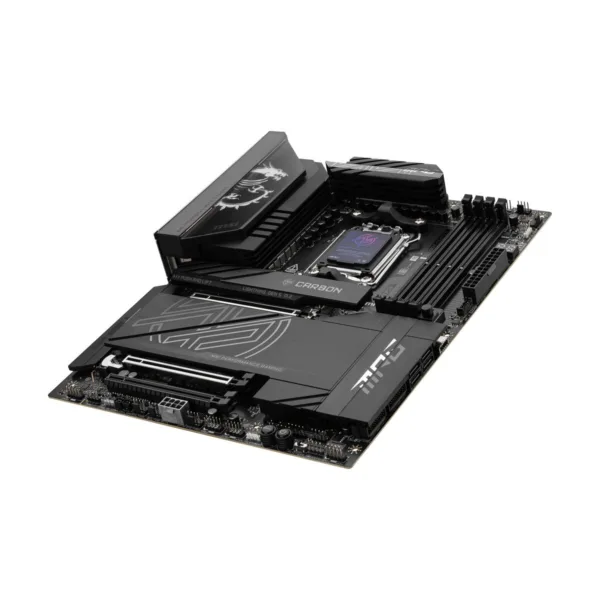

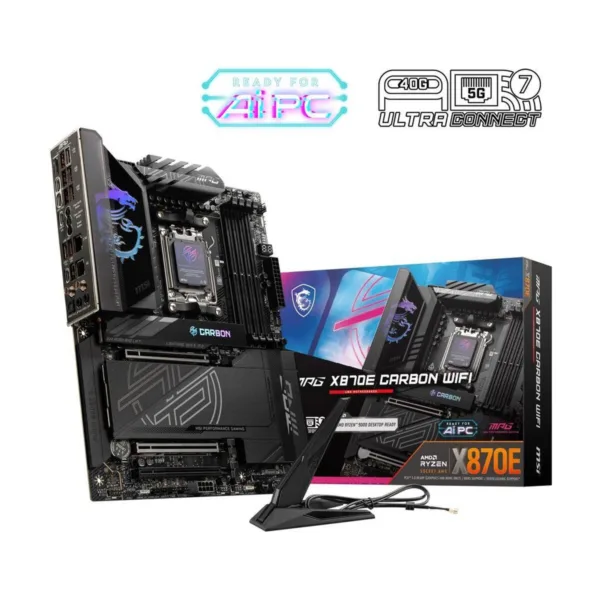

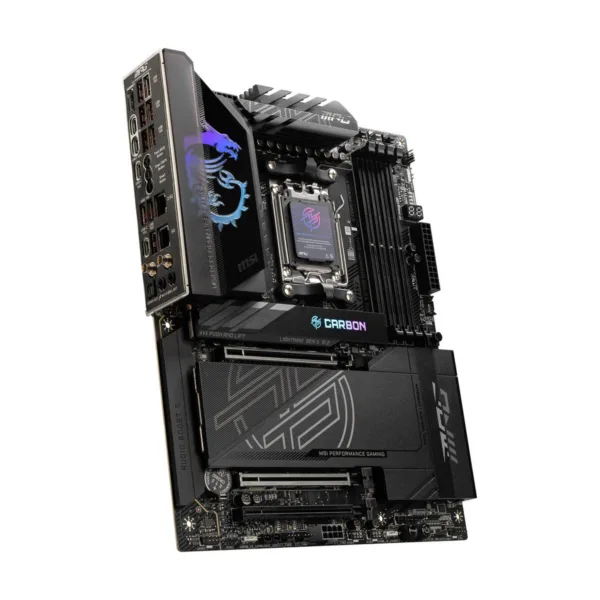

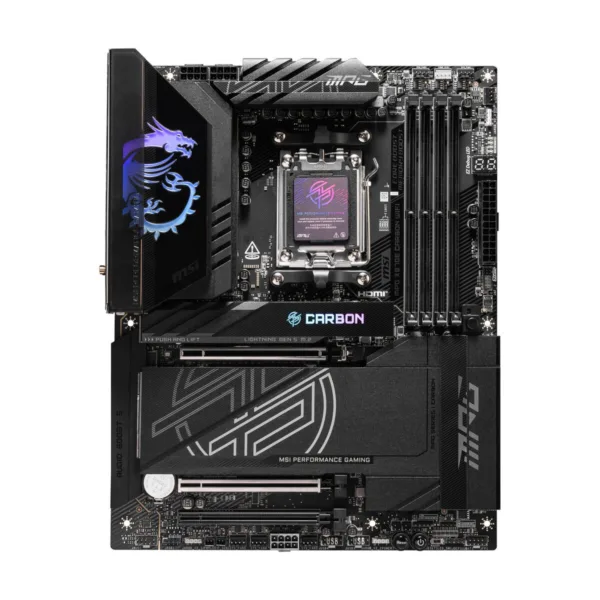

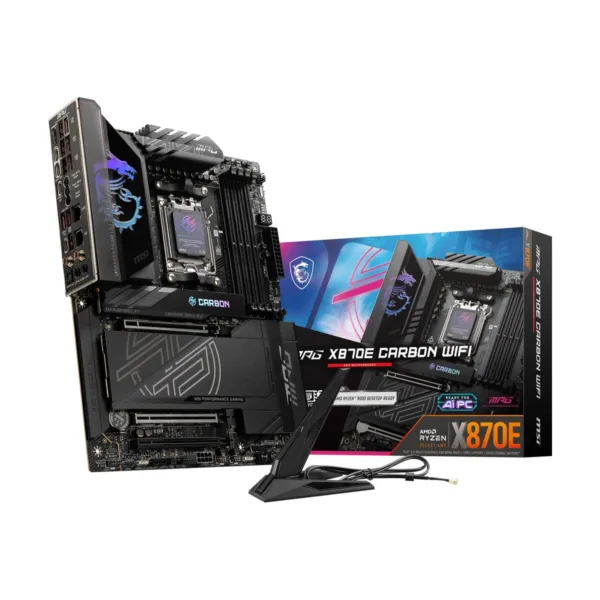

MSI MPG X870E CARBON WIFI AM5 ATX Motherboard, DDR5, PCIe 5.0, M.2 Gen5, Wi-Fi 7, 5G LAN
Original price was: $429.99.$343.99Current price is: $343.99.
Save 20%Sale ends Dec 23Premium Thermal Design:Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/ mK MOSTFET thermal pads / onboard M.2 Shield Frozr EZ PCIe Release:A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying…
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview
Perform in Style
The MPG X870E CARBON WIFI is a gaming oriented ATX motherboard with an 18 Duet Rail Power System, constructed around the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The MPG X870E CARBON WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors. Form Factor: ATX Socket Type: AM5 Chipset: AMD X870E
Ultra Power – 18 Duet Rail Power System with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MPG X870E CARBON WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: Digital PWM IC 18 Duet Rail Power System (110A / SPS) 2 Phase SOC Power 1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation. Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans. Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8400+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules. EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor. 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release) 1 x PCIe 4.0/3.0 x16 slot* * Supports x16x0x4 / x8x8x4 ** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MPG X870E CARBON WIFI motherboard features MSI's M.2 slots: 2 x Gen5 x4 128Gbps slots (with double-sided M.2 Shield Frozr) 2 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)
EZ DIY
The DIY Friendly designs optimize the assemble process and experience. EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening. EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws. EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand. EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a bea
Ultra Connect
5G LAN + 2.5G LAN: A Realtek 5Gbps LAN & Realtek 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support.
