| Weight | 7.5 lbs |
|---|---|
| Dimensions | 13.86 × 11.26 × 3.88 in |
| Brand | MSI |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Feature | Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Spee |
| PCI Express 5.0 x16 | 2 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports |
| Audio Chipset | Realtek ALC1220 |
| LAN Chipset | Intel I226-V |
| Second LAN Chipset | Killer E5000B |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Yes |

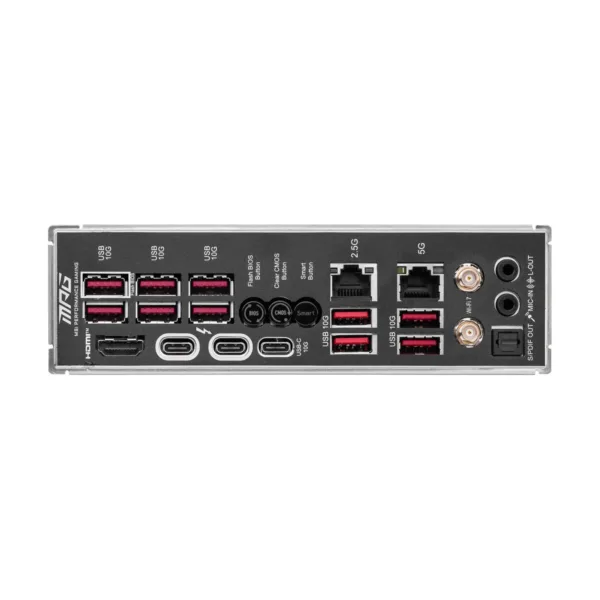

| Back I/O Ports | 1 x Audio Jack / 1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x Smart Button / 1 x USB 3.1 Gen 1 Type-C / 2 x Thunderbolt 4 / 4 x USB 3.1 Gen 2 Type-A / 6 x USB 3.1 Gen 2 Type-A |
| Windows 11 | Supported |
| Form Factor | ATX |
| MPN | MPG Z890 CARBON WIFI |
| UPC | 824142384343 |

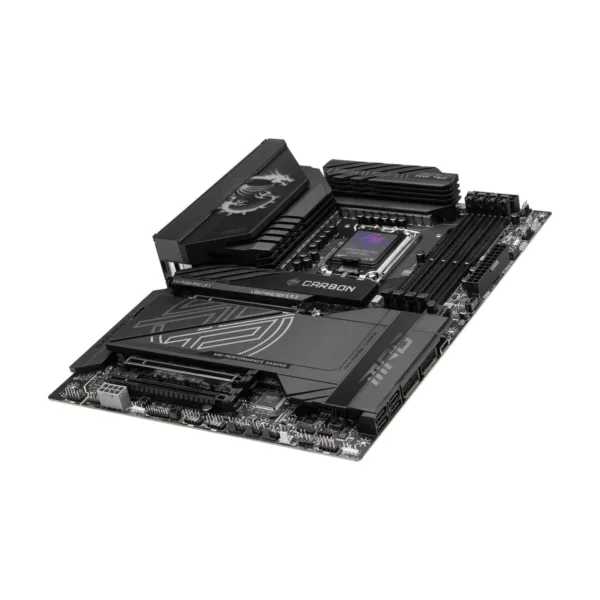

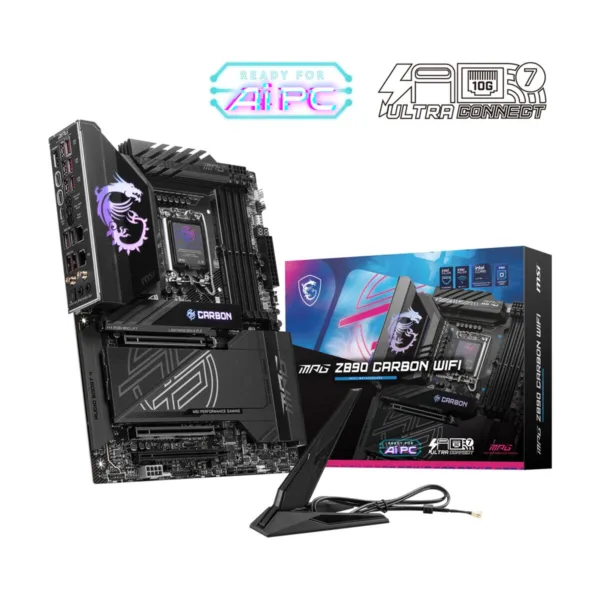

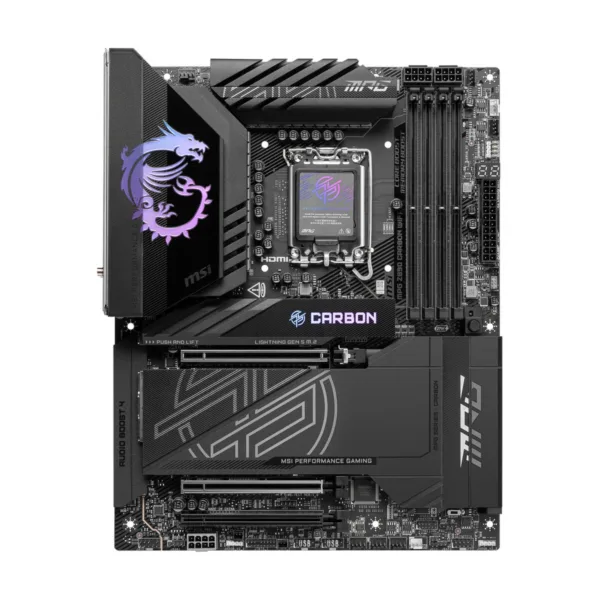

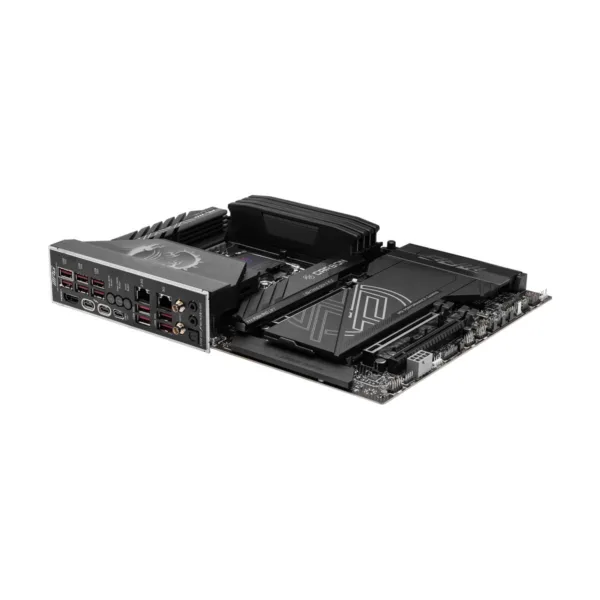

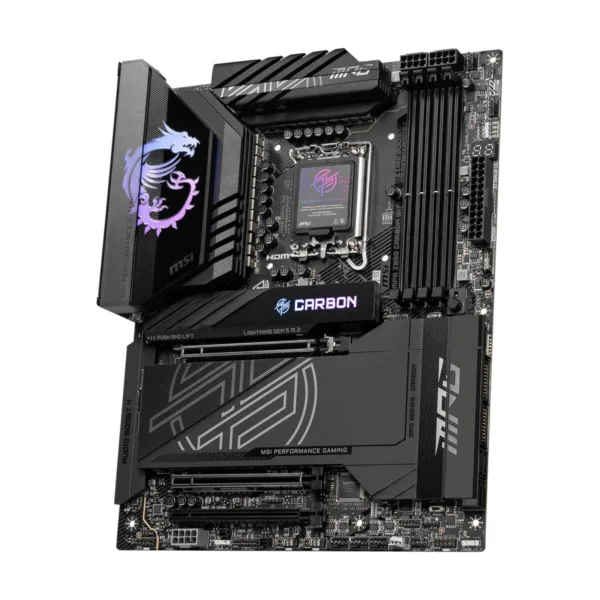

MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard, DDR5, PCIe 5.0, M.2 Gen5, Wi-Fi 7, 5G LAN
Original price was: $369.99.$295.99Current price is: $295.99.
Save 20%Sale ends Dec 23Premium Thermal Design:Heavy plated heatsink with heat-pipe / high quality / 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr EZ PCIe Release: A simple press of a button to effortlessly lock or unlock the P…
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
