| Weight | 2.4 lbs |
|---|---|
| Dimensions | 11 × 10.7 × 2.75 in |
| Brand | MSI |
| Series | PRO |

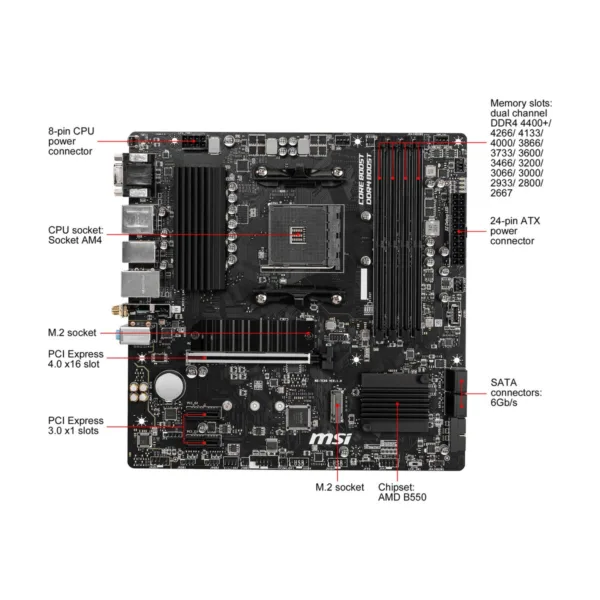

| Part Number | B550M PRO-VDH WIFI |
| CPU Socket Type | AM4 |
| CPU Type | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | Supports DDR4 4400+/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Feature | DDR4, 4400 MHz, 4, 128 GB |
| PCI Express 4.0 x16 | 1 x PCIe 4.0/3.0 x16 slot (PCI_E1) * * The supported specification depends on installed processor. |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x4 | 3 x PCI Express x4 |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/3.0 x4 * Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0 x4 Supports 2242/2260/2280 storage devices * The supported specification depends on inst |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x VGA port, supports resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz * 1 x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz * 1 x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz *,** Max |
| Audio Chipset | Realtek ALC892/ALC897 Codec |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111HN |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Intel Dual Band Wireless-AC 3168 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4 GHz, 5 GHz) up to 433 Mbps speed. |
| Bluetooth | Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 |

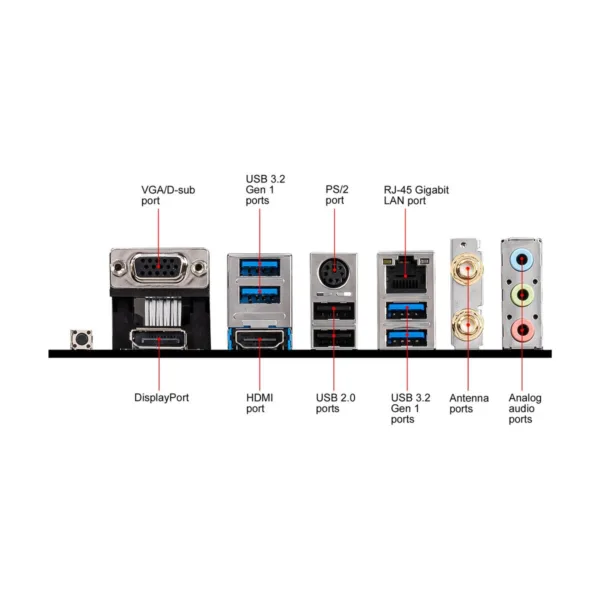

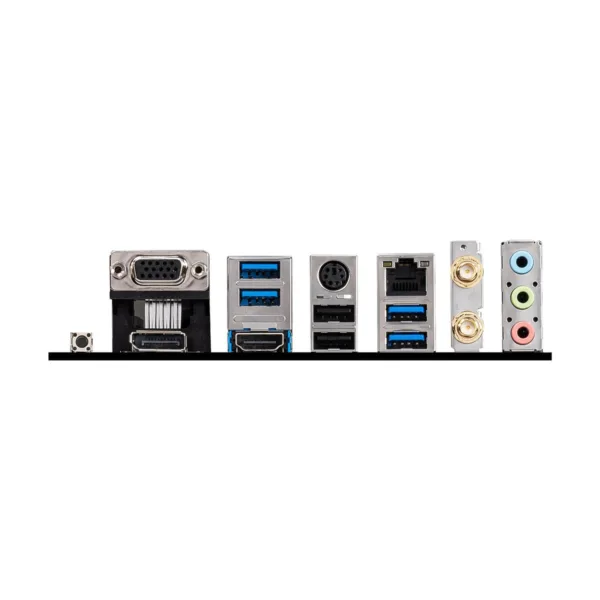

| Back I/O Ports | 4 x USB 3.1 Gen 1 |
| PS/2 | 1 |
| COM | 3 |
| Video Ports | 1 |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 9 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| S/PDIF In | 1 x Optical, 1 x Coaxial |
| Game/MIDI Ports | 1 |
| Audio Ports | 6 Ports |
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 1 x T |
| Form Factor | Micro ATX |
| LED Lighting | RGB |

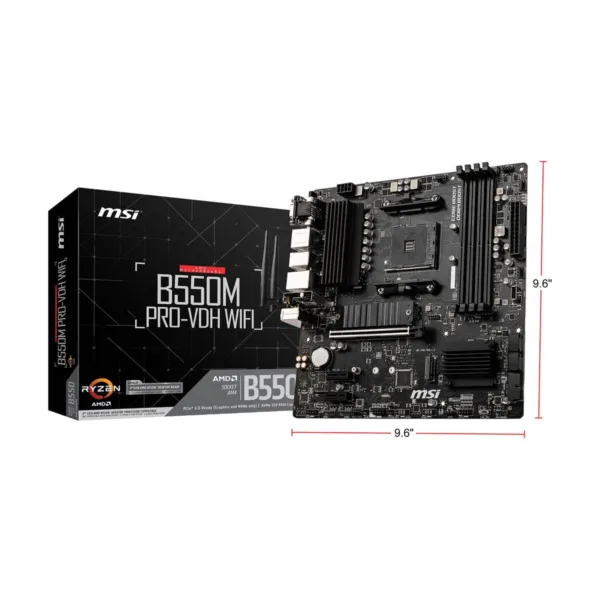

| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Software | windows_10 |
| Windows 11 | Supported |
| Features | Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update Supports DDR4 Memory, up to 4400(OC) MHz Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr Premium Thermal Solution: 7W/mK pad, additional choke thermal pad an |

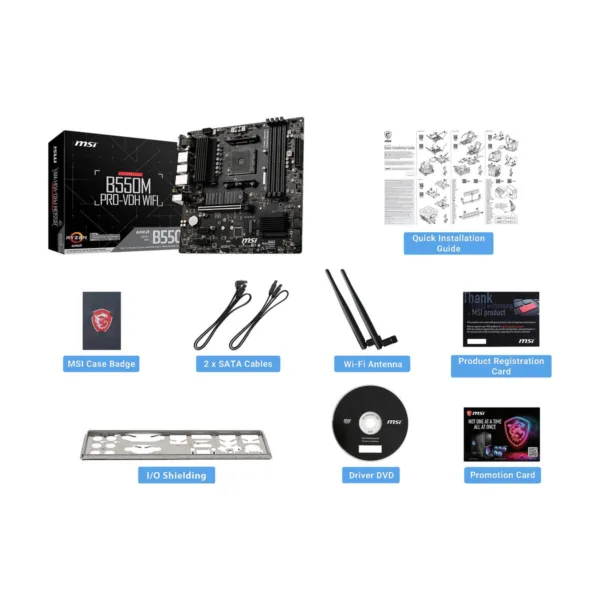

| Package Contents | 1 unit |
| MPN | B550M PRO-VDH WIFI |
| UPC | 824142219393 |

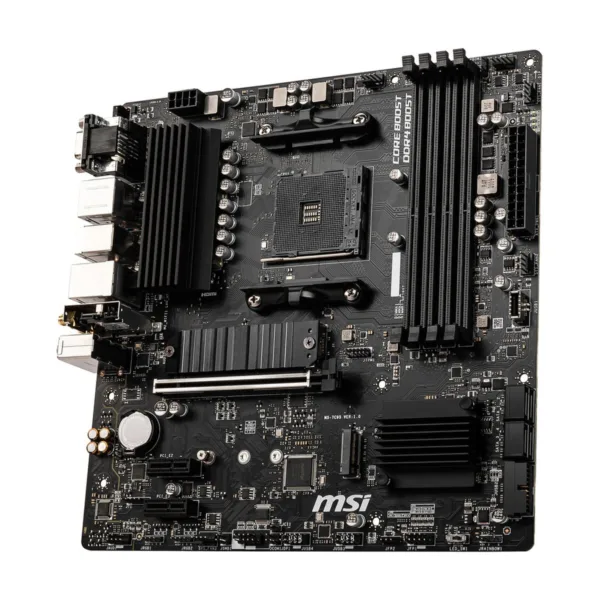

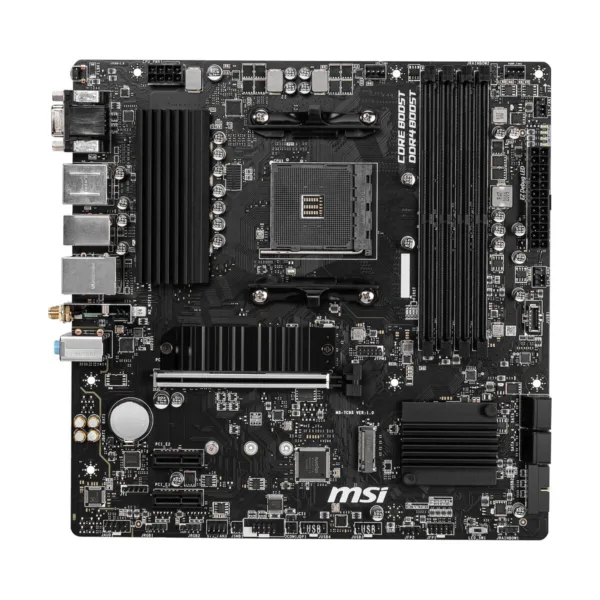

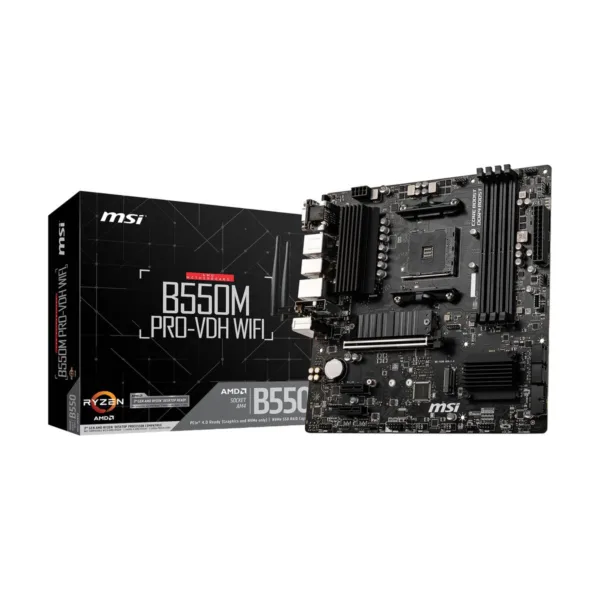

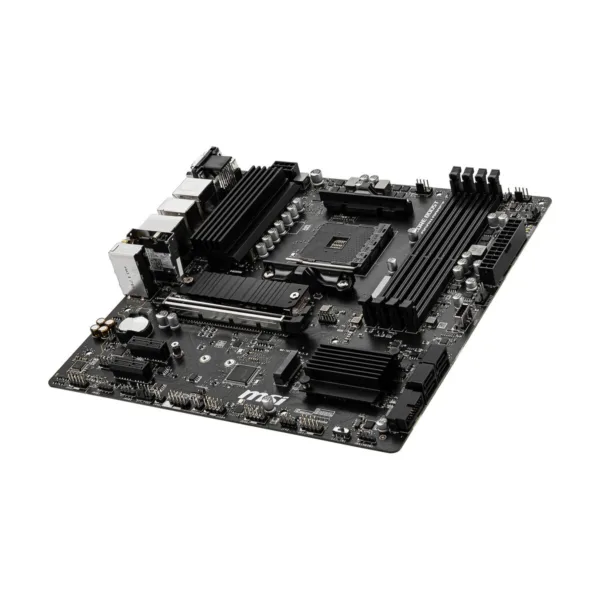

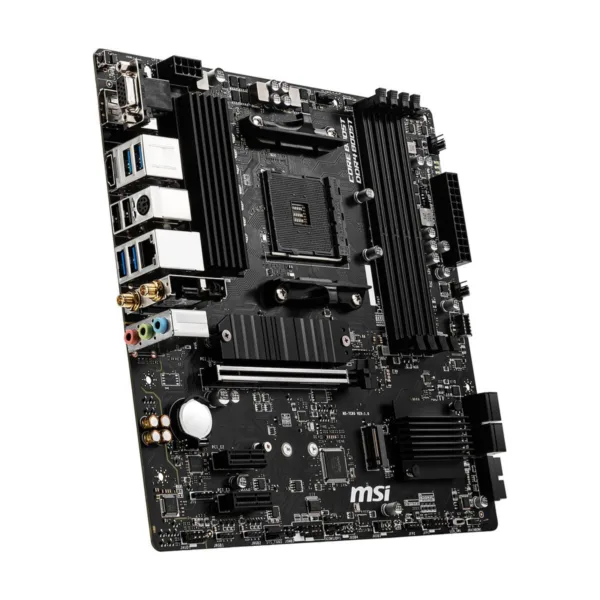

MSI PRO B550M PRO-VDH WIFI
$109.99
AMD B550 Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview
B550M PRO-VDH WIFI
This AMD B550 Pro Series motherboard from MSI is designed to unleash the full potential of your 3rd Gen AMD Ryzen processors and supports future AMD Ryzen processors with BIOS update. Experience unprecedented speeds with Lightning Gen 4 M.2, PCI-E 4.0, and up to 4400 MHz (OC) DDR4 memory frequency. Coupled with designs to enhance cooling, prolong lifespan, and protect components, it is a go-to choice for any professional setting.
Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Wi-Fi
Delivering AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
Audio Boost
Reward your ears with studio-grade sound quality for the most immersive gaming experience.
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
Core Boost
With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best performance and stability.
M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. COOLING
Fully Fan Control
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Pump Fan Ready
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amps, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit. DESIGN
