| Weight | 3.3 lbs |
|---|---|
| Dimensions | 13.8 × 10.7 × 2.6 in |
| Brand | MSI |
| CPU Socket Type | LGA 1700 |
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 2.0 |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
| PCI Express x1 | 3 x PCI Express 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| Audio Channels | 8 Channels (7.1) HD Audio with Audio Boost |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |

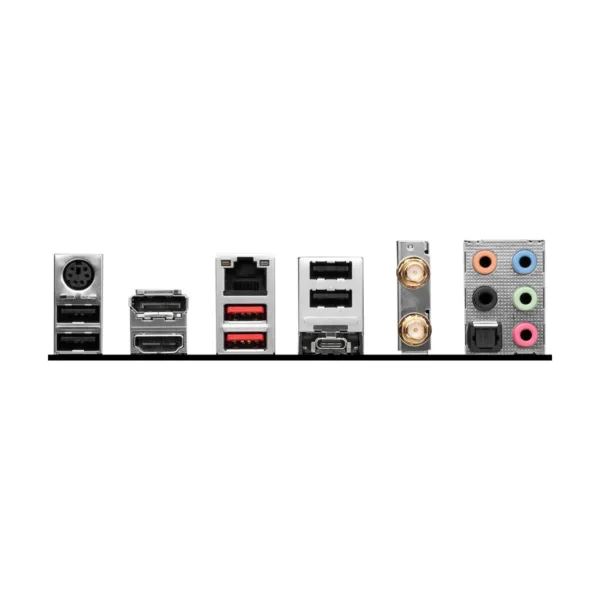

| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1 / 5 x Audio Jacks |
| Form Factor | ATX |
| MPN | PRO B760-P WIFI DDR4 |
| UPC | 824142306864 |

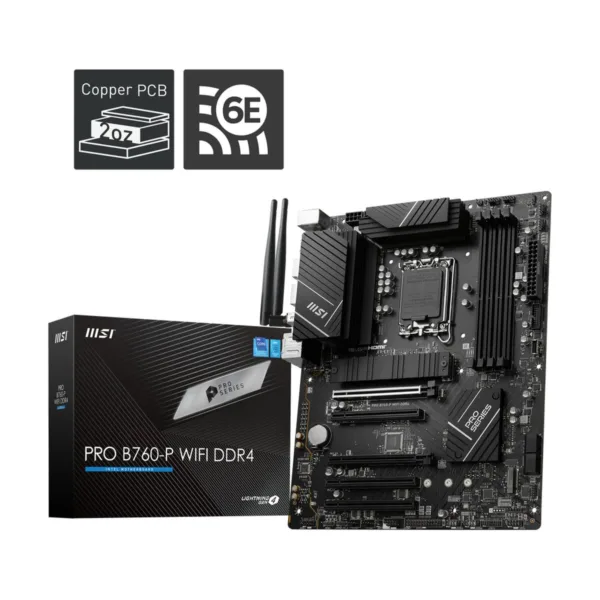

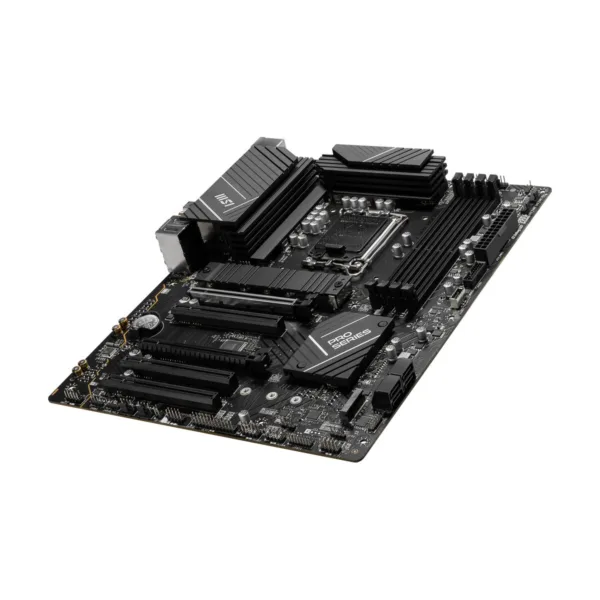

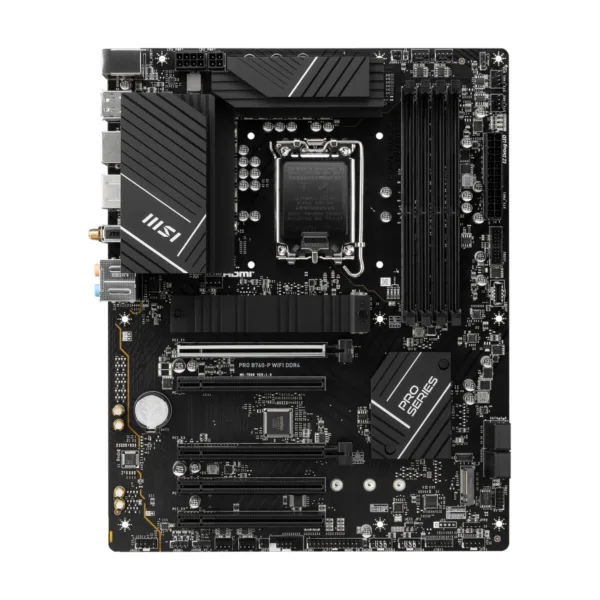

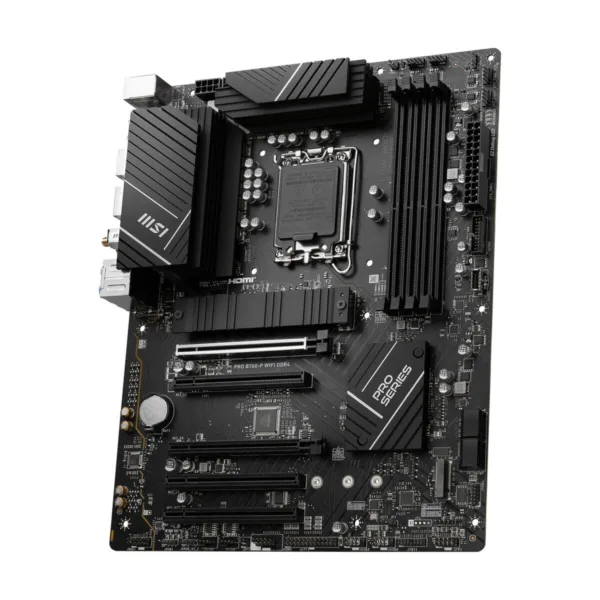

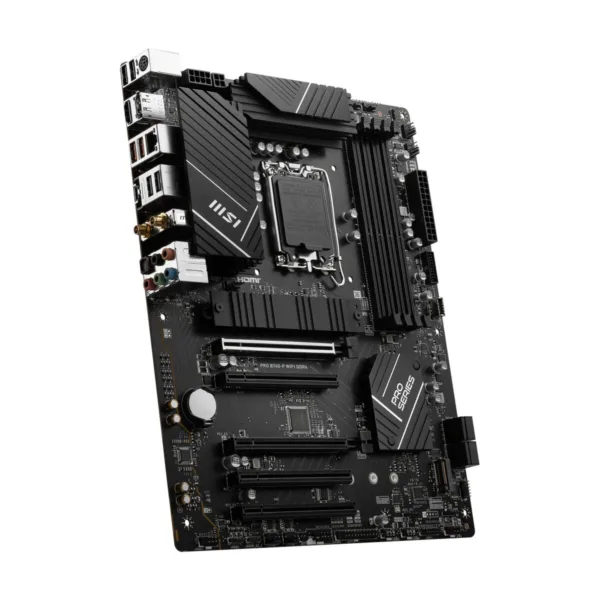

MSI PRO B760-P WIFI DDR4 LGA 1700 Motherboard, DDR4, 2x M.2, Wi-Fi 6, 2.5Gb LAN
Original price was: $159.99.$119.99Current price is: $119.99.
Save 25%Sale ends Dec 23BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information Supports 14th / 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
Business Elegance
The PRO B760-P WIFI DDR4 is a business-oriented ATX motherboard featuring the latest Intel B760 chipset that supports ample RAM capacity.
Supports Intel Core 12th & 13th Gen Processors
The PRO B760-P WIFI DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1700 Chipset: Intel B760
12+1 Duet Rail Power System with P-PAK
With its 8 pin + 4 pin power connectors and exclusive Core Boost technology, the PRO B760-P WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding work settings: 1. Digital PWM IC 2. 12-Phase Duet Rail CPU Power (P-PAK) 3. 1-Phase GT Power 4. 1-Phase AUX Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK MOSFET thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.
4 x DDR4 Dual Channel (5333 MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. * 1DPC 1R Max. overclocking frequency 5333+ MHz, supports Intel XMP.
Fortified PCIe 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 2 x PCIe 4.0/3.0 x16 slots* (primary slot with Steel Armor) 3 x PCIe 3.0 x1 slot * Supports x16/x4
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Gen4 M.2 Connectors
The PRO B760-P WIFI DDR4 motherboard features MSI's Gen4 M.2 slots: 2 x Gen4 x4 64Gbps slots* * 1 with M.2 Shield Frozr
Wi-Fi 6E & Bluetooth 5.3
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology. USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps. HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
