| Weight | 4 lbs |
|---|---|
| Dimensions | 13.5 × 10.5 × 2.75 in |
| Brand | MSI |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 5600+ (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Supports ECC UDIMM memory (non-ECC mode) |
| Buffer Supported | Un-buffered |
| Memory Feature | Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: – 1DPC 1R Max speed up to 8200+ MT/s – 1DPC 2R Max speed up to 6400+ MT/s – 2DPC 1R Max speed up to 6400+ MT/s – 2DPC 2R Max speed up to 4800+ MT/s Suppo |
| PCI Express 5.0 x16 | PCI_E1 supports up to PCIe 5.0 x16 (From CPU) |
| PCI Express x4 | PCI_E4* slot (From X870 chipset) PCI_E4 supports up to PCIe 4.0 x4 |
| PCI Express x1 | PCI_E2 & PCI_E3 (From Chipset X870, ASM2806) Supports up to PCIe 3.0 x1 |
| Other Slots | * PCI_E4 & M2_3 share the bandwidth. Default that PCI_E4 slot runs x2 when installing device into the M2_3 slot. Otherwise, PCI_E4 slot will run x4 when M2_3 has no device. |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M2_1 slot (From CPU) Supports up to PCIe 5.0 x4 Supports 2260/2280 storage devices M2_2 (From X870 chipset) Supports up to PCIe 4.0 x4 Supports 2280/110 storage devices M2_3 slot (From X870 chipset) * Supports up to PCIe 4.0 x2 Supports 2260/2280 storage devices * PCI_E4 & M2 |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8126VB |
| Max LAN Speed | 5Gbps |

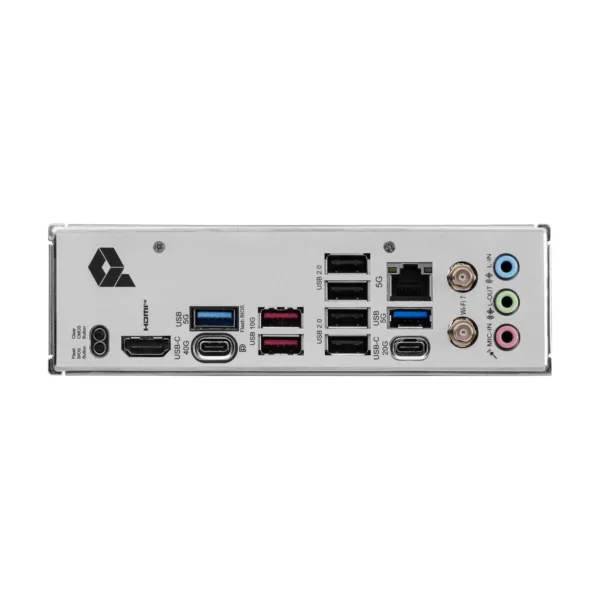

| Back I/O Ports | 1 x Flash BIOS button & Clear CMOS bottom 1 x HDMI port 1 x USB 40Gbps Type-C port (From CPU) 1 x USB 5Gbps Type-A port (1x from CPU, 1x from Chipset X870) 2 x USB 10Gbps Type-A ports (From Chipset X870) 4 x USB 2 Type-A ports (From GL850) 1 x 5G LAN (RJ45) port 1 x USB 20Gbp |
| Onboard USB | AMD X870 Chipset – 1 x USB 10Gbps Type-C connector – 1 x USB 5Gbps connectors Supports additional 2 USB 5Gbps ports – 2 x USB 2.0 connector Supports additional 4 USB 2.0 ports |
| Other Connectors | Fan Connectors – 1x 4-pin CPU fan connector – 1x 4-pin pump fan connector – 6x 4-pin System fan connectors – 1x 7-pin JAF1 System Connectors – 1x Front panel audio connector – 2x System panel connectors – 1x Chassis Intrusion connector – 1x Tuning Controller connector Jumpers – 1 |
| Form Factor | ATX |
| LED Lighting | 1 x 4-pin RGB LED connector 3 x 3-pin ARGB_V2 LED connectors 4 x EZ Debug LED |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pinPower Connector (ATX_PWR) 2 x 8-pin Power Connector (CPU_PWR) 1 x 8-pin Power Connector (PCIE_PWR) |
| BIOS Feature | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.5 Multi-language |
| Software | Drivers MSI Center 7-ZIP Acrobat Adobe Creative Cloud Adobe Redeem LauncherDropbox AIDA64 Extreme-MSI Edition CPU-Z MSI GAMING Norton 360 Realtek Console |
| Features | MSI Center Features – Mystic Light – Frozr AI Cooling – User Scenario – True Color – Live Update – Hardware Monitoring – Super Charger – Devices Speed Up – Smart Image Finder – MSI Companion – System Diagnosis Performance – Core Boost – Dual CPU Power – Memory Boost – Lightning G |
| MPN | PRO X870-P WIFI |
| UPC | 824142380987 |

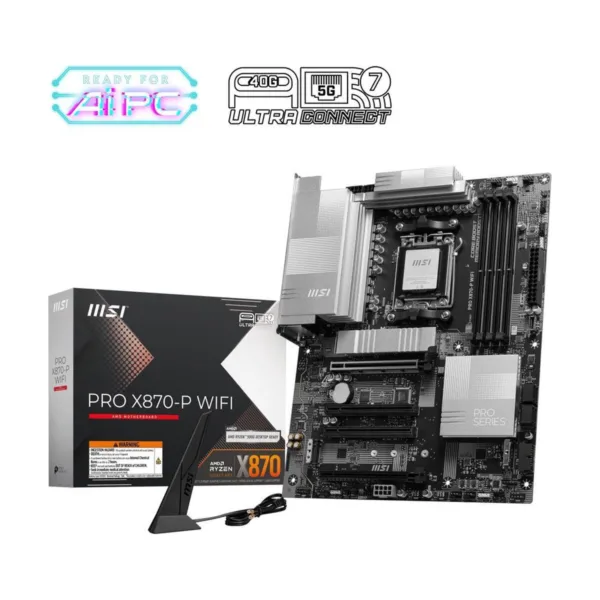

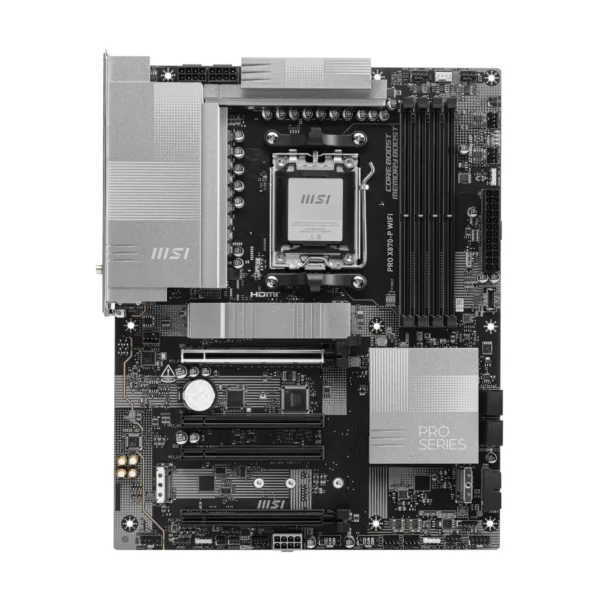

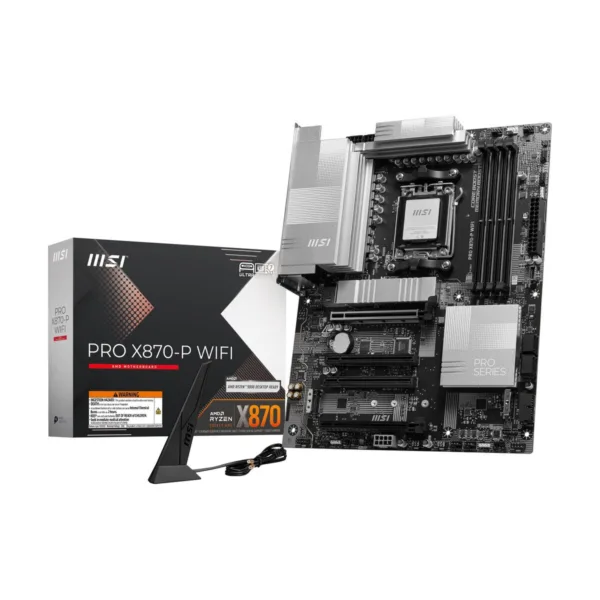

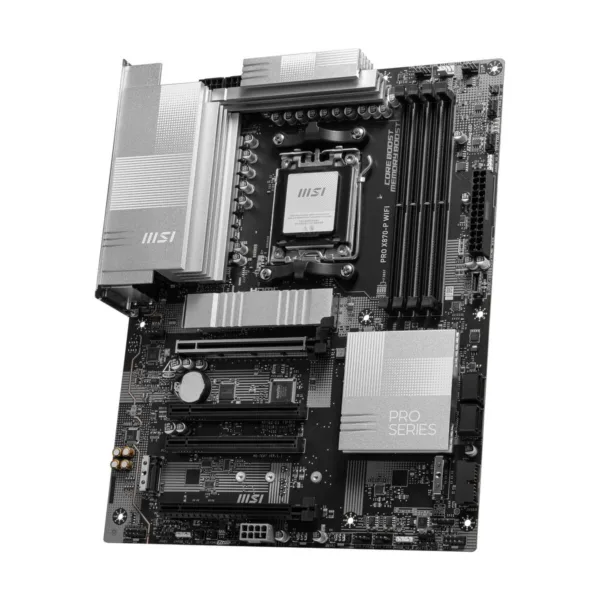

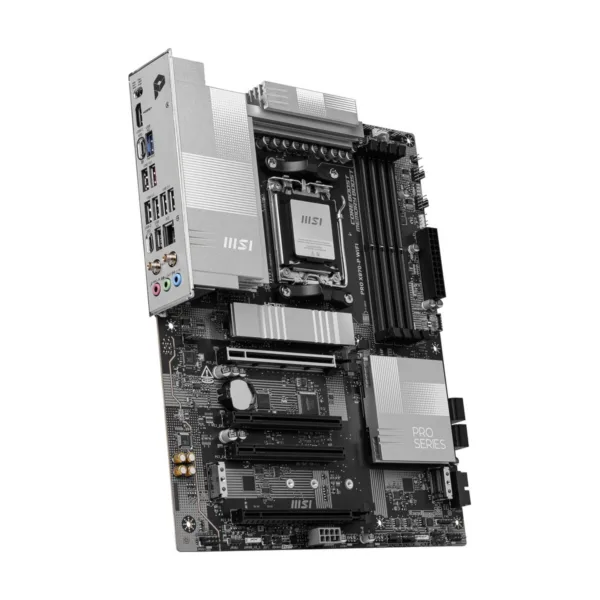

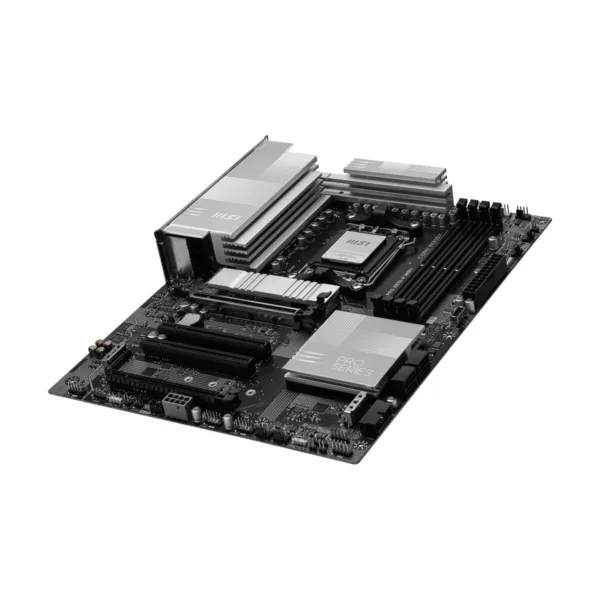

MSI PRO X870-P WIFI AM5 ATX Motherboard, DDR5, PCIe 5.0, M.2 Gen5, Wi-Fi 7, 5G LAN
Original price was: $229.99.$183.99Current price is: $183.99.
Save 20%Sale ends Dec 23Wi-Fi 7:The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps. Lightning USB 40G: Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
Business Elegance
The PRO X870-P WIFI is a creation-oriented ATX motherboard with a 14 Duet Rail Power System, constructed around the latest AMD X870 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The PRO X870-P WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors. Form Factor: ATX Socket Type: AM5 Chipset: AMD X870
Ultra Power – 14 Duet Rail Power System with 60A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO X870-P WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: Digital PWM IC 14 Duet Rail Power System (60A / SPS) 2 Phase SOC Power 1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation. Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans. Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules. EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor**) 1 x PCIe 4.0/3.0 x16 slot* 2 x PCIe 3.0 x1 slots * Supports x4/x2 (It will run at x2 speed when installing a device in M2_3.) ** MSI Surface Mount Technology (SMT) solder welding improves signa
Gen5 M.2 Connector
The PRO X870-P WIFI motherboard features MSI's M.2 slots: 1 x Gen5 x4 128Gbps slots (with EZ M.2 Shield Frozr II) 1 x Gen4 x4 64Gbps slot 1 x Gen4 x2 32Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience. EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening. EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws. EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Ultra Connect
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K/60Hz display support.
