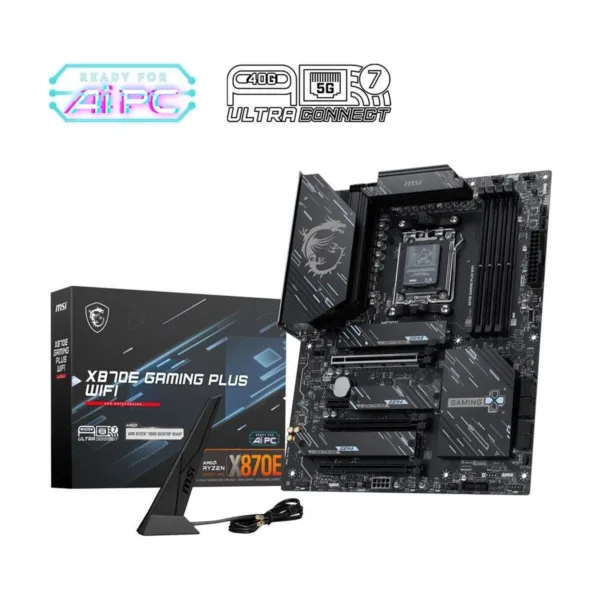

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard, DDR5, M.2, Wi-Fi 7, 5G LAN

Overview

Win the Competition

The X870E GAMING PLUS WIFI is a gaming oriented ATX motherboard that is constructed with a 14 Duet Rail Power System and the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.

Ryzen 9000, X870E Chipset, Ultra Power, Frozr Design, DDR5 Memory

The X870E GAMING PLUS WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors. Form Factor: ATX Socket Type: AM5 Chipset: AMD X870E

Ultra Power – 14 Duet Rail Power System with 60A Smart Power Stage

With exclusive Core Boost technology and dual 8 pin power connectors, the X870E GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings: Digital PWM IC 14 Duet Rail Power System (60A / SPS) 2 Phase SOC Power 1 Phase MISC Power

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation. Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans. Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8200+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules. EXPO Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference. 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor**) 1 x PCIe 4.0/3.0 x4 slot* 2 x PCIe 3.0 x1 slots * Supports x4/x2 (depending on M.2 configuration) ** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The X870E GAMING PLUS WIFI motherboard features MSI's M.2 slots: 1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II) 2 x Gen4 x4 64Gbps slots

EZ DIY

The DIY Friendly designs optimize the assemble process and experience. EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening. EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws. EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces. EZ Antenna: MSI's latest Wi-Fi ante

Ultra Connect

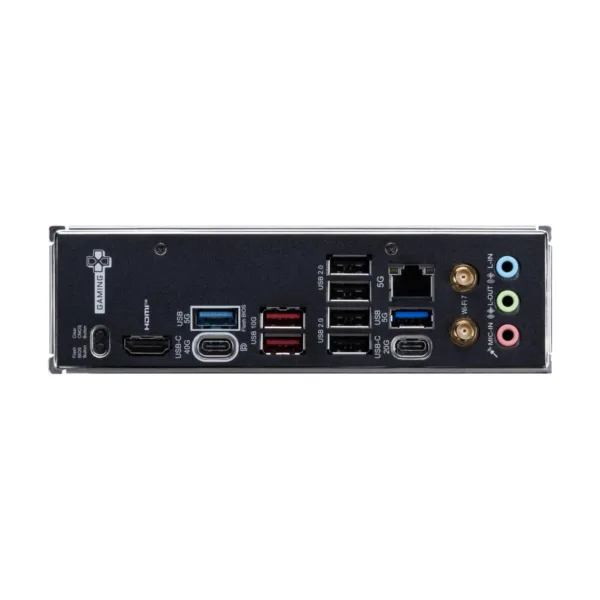

5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology. USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K/120Hz display support*. * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
