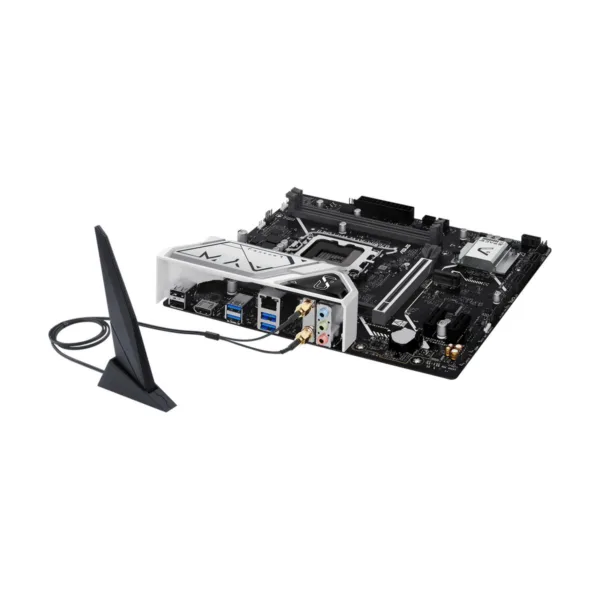

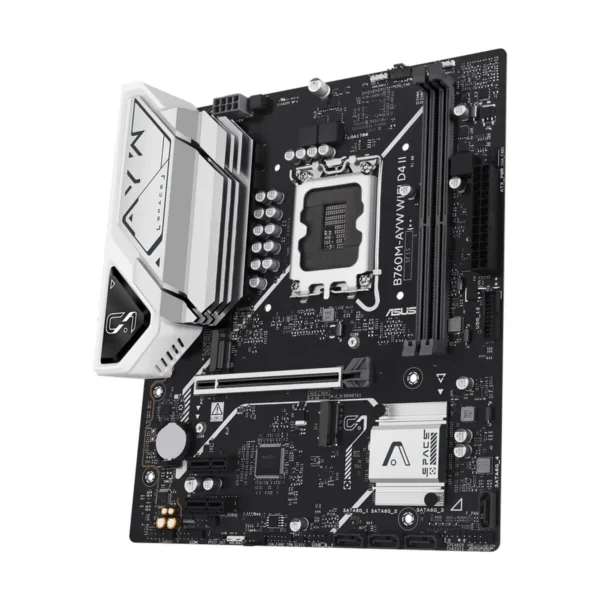

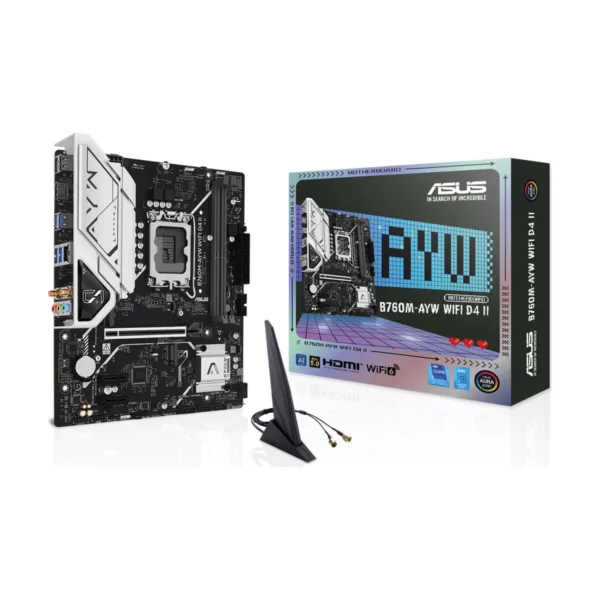

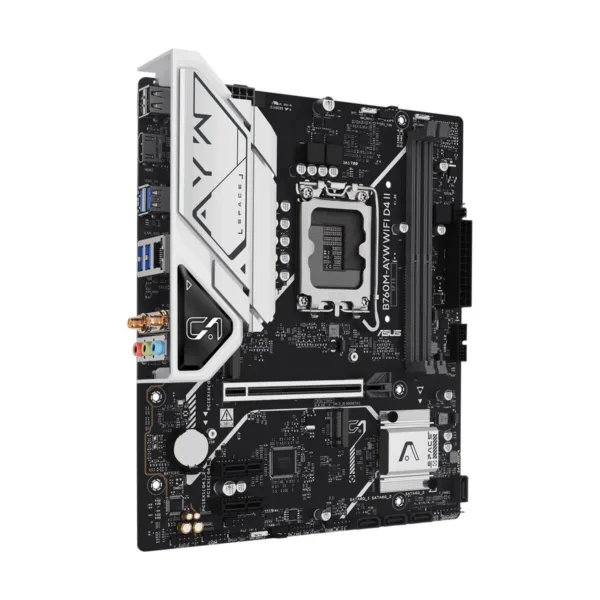

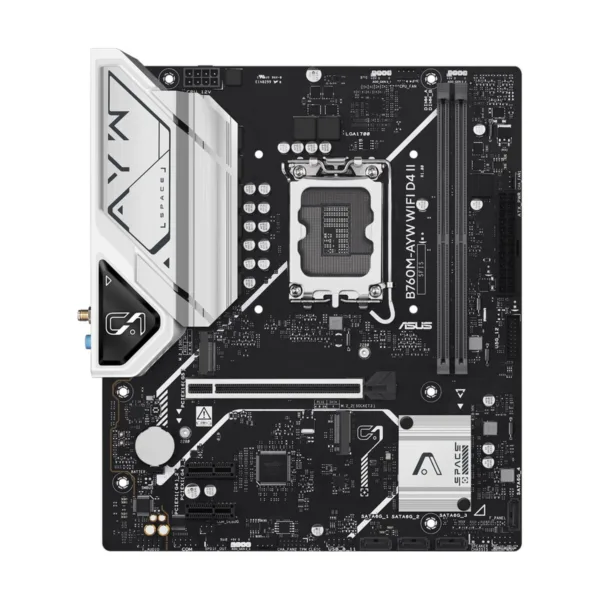

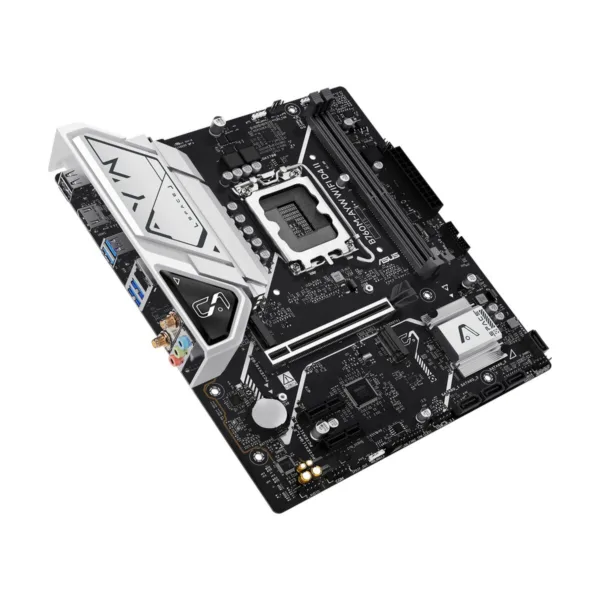

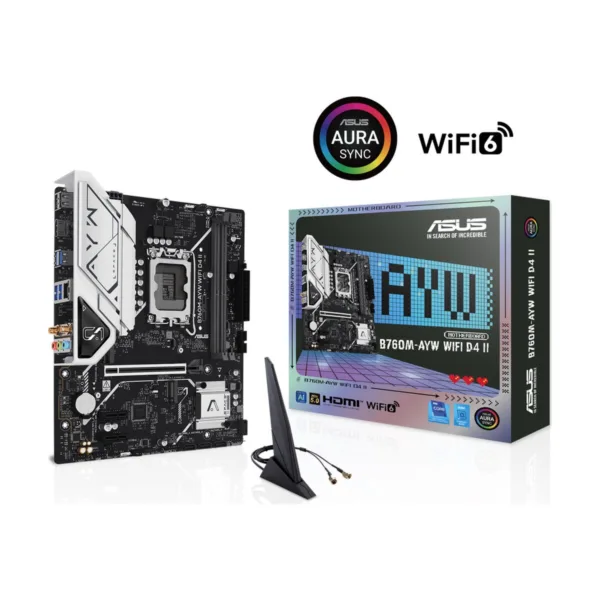

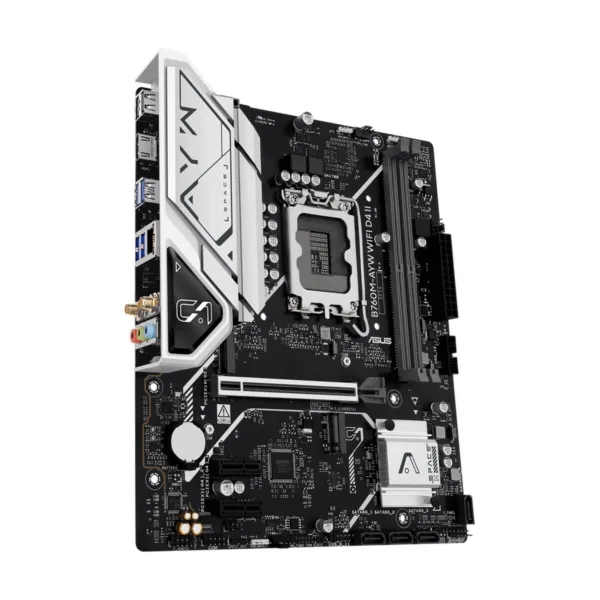

Name: ASUS B760M-AYW WIFI D4 II Micro ATX Motherboard
Brand: ASUS
SKU: 13-119-744
Price: 137.18 USD
Availability: InStock

ASUS B760M-AYW WIFI D4 II Micro ATX Motherboard

Save 25%

Sale ends Dec 23

Intel LGA 1700 Socket: Ready for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Ultrafast Connectivity: PCIe 5.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 5Gbps Type-A, fro…

In stock

Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.

30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.

Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.

Secure checkout Visa, Mastercard and American Express and Discover.

SKU: 13-119-744 Category: Motherboards Brand: ASUS

Weight	2.6 lbs
Dimensions	10.9 × 10.5 × 2.6 in
Brand	ASUS
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
Chipset	Intel B760
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 2133 / DDR4 2400 / DDR4 2666 / DDR4 2667 / DDR4 2933 / DDR4 3200 / DDR4 3333 / DDR4 3400 / DDR4 3466 / DDR4 3600 / DDR4 3733 / DDR4 4000 / DDR4 4266 / DDR4 4400 / DDR4 4600 / DDR4 4800 / DDR4 5000 / DDR4 5066 / DDR4 5333
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 3.0
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express x1	2 x PCIe 4.0 x1 slots
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SATA RAID	0/1/5/10
Audio Channels	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD

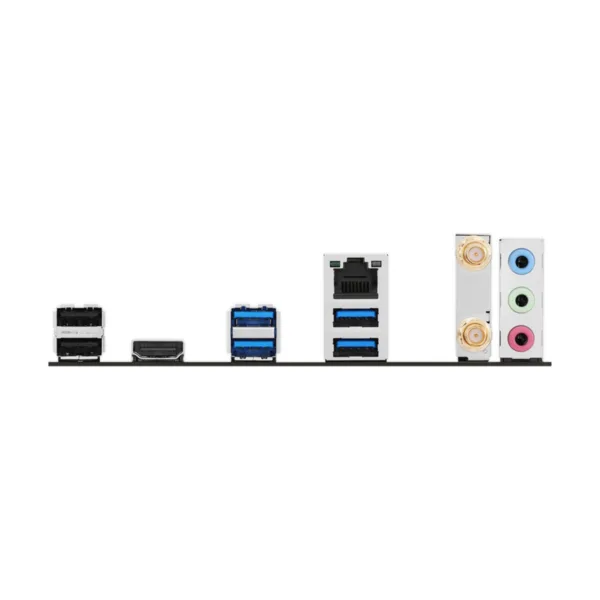

Back I/O Ports	4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Onboard USB	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1
BIOS Feature	128 Mb Flash ROM, UEFI AMI BIOS
Software	ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert 2+ – Two-Way AI Noise Cancellation ASUS DriverHub -ASUS CPU-Z AI Suite 3 – DIGI+ VRM – PC Cleaner Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS
Windows 11	Supported
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.3"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector
Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED Core – Q-Slot ASUS EZ DIY – ProCool ASUS Thermal Solution – M.2 heatsink – VRM heatsink design Aura Sync – Addressable RGB Gen

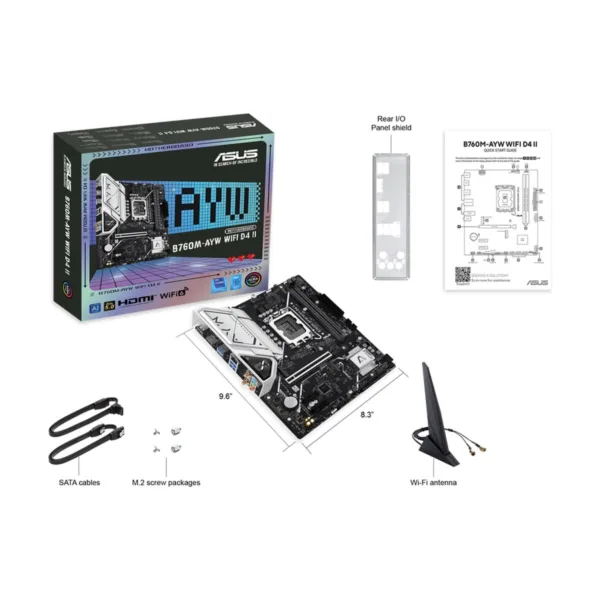

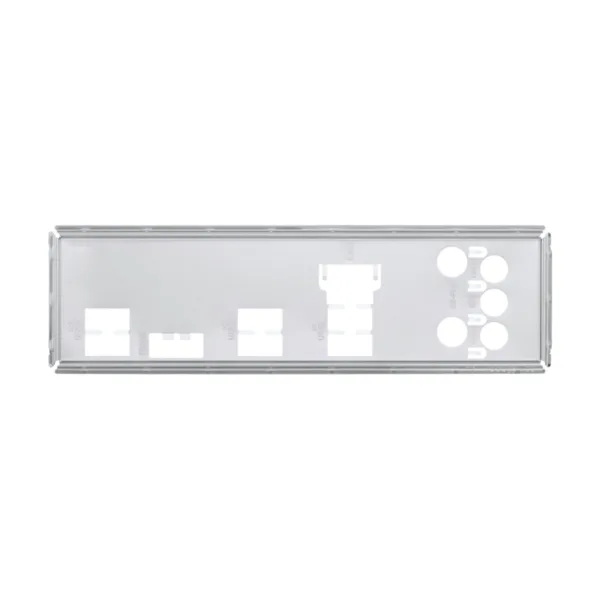

Package Contents	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
MPN	B760M-AYW WIFI D4 II
UPC	199291065475
