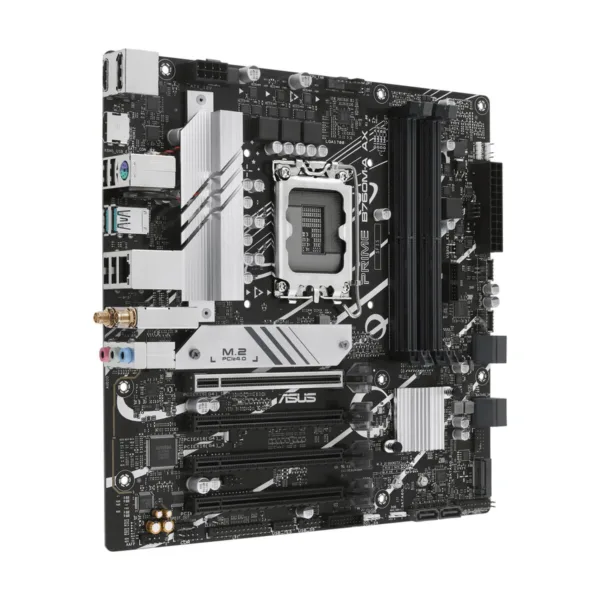

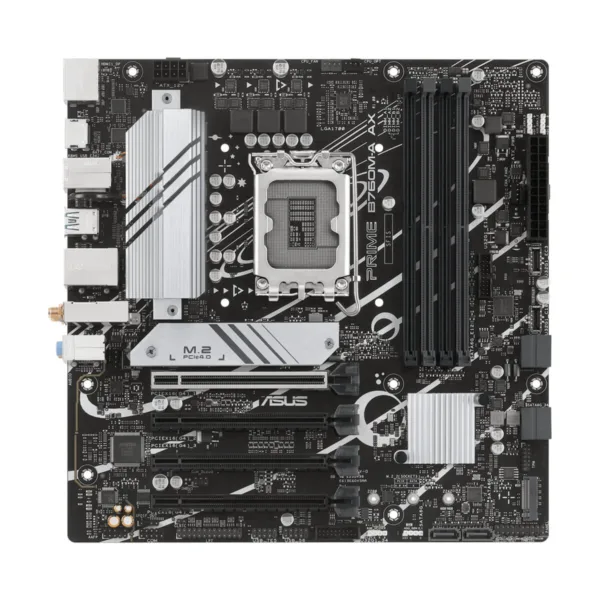

ASUS PRIME B760M-A AX LGA 1700 Micro-ATX Motherboard, DDR5, 2x M.2, PCIe 4.0, Wi-Fi 6, 2.5Gb LAN

Overview

Intel® B760 (LGA 1700) mATX motherboard, PCIe® 4.0, DDR5, two M.2 slots, Realtek 2.5 Gb Ethernet, Wi-Fi 6, DisplayPort™,

Intel® LGA 1700 Socket: Ready for 13th Gen and 12th Gen Intel® processors Ultrafast Connectivity: PCIe® 4.0, two M.2 slots, Realtek 2.5 Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C® Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware CEC Tier II ready

B760M-A AX

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

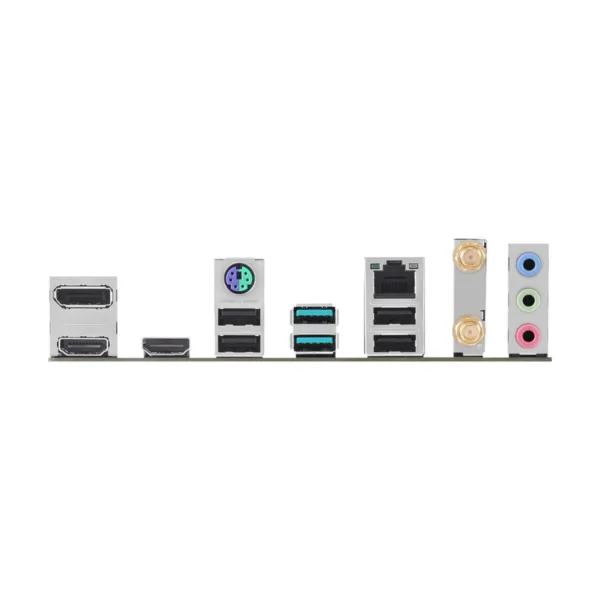

1 x DisplayPort™ 2 x HDMI™ ports PS/2 combo port 2 x USB 2.0 ports (Type-A) 2 x USB 3.2 Gen 2 ports (Type-A) Realtek 2.5G Ethernet Wi-Fi 6 3 x Audio Jacks

Expansion Slots 1 x PCIe® 4.0 x16 (max @x16 mode) SafeSlot Core+ 1 x PCIe® 4.0 x16 (@x4 mode) 2 x PCIe® 4.0 x16 (@x1 mode) 1 x LPT header 2 x Addressable Gen 2 headers DDR5 support Dual Channel OptiMem II

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors 1 x USB 3.2 Gen 1 Type-C® 1 x USB 3.2 Gen 1 header 2 x M.2 slots 1 x Addressable Gen 2 header 1 x Aura RGB header 1 x USB 3.2 Gen 1 header

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Power Saving

All-Around Energy Efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Fan Xpert 2+

Flexible Air- and Liquid-Cooling Controls ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, AiO coolers can also be controlled via the UEFI BIOS.

Digi+ VRM Control

Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments, so you can dial in performance just the way you want.
