| Weight | 5 lbs |
|---|---|
| Dimensions | 14 × 11 × 3.5 in |
| Brand | ASUS |
| Part Number | 90MB1JD0-M0AAY0 |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| Memory Feature | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) DIMM Fit * Non-ECC, un- |
| PCI Express 5.0 x16 | Intel Core Ultra Processors (Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) |
| PCI Express 4.0 x16 | Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Intel Core Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot |
| SATA RAID | * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| Audio Chipset | Realtek ALC1220P |
| Audio Channels | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retaski |
| Max LAN Speed | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless LAN | 2×2 Wi-Fi 7 (802.11be) |
| Bluetooth | Bluetooth 5.4 |
| Back I/O Ports | 2 x Thunderbolt 5 USB Type-C ports 1 x Thunderbolt 4 USB Type-C port 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI port 1 x Wi-Fi module 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 2 x Gold-plated aud |
| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS button 1 x COM Port header 1 |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 with AI Cooling II – Power Saving ASUS Driver Hub ASUS GlideX ASUS CPU-Z CreatonFirst MyASUS ProArt Creator Hub TurboV Core Thunderbolt Share USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norto |
| Windows 11 | Windows 11 (22H2 & later) |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector |
| Features | ASUS 5X PROTECTION III // ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – LANGuard – Overvoltage protection – SafeSlot – Stainless-steel back I/O ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q |

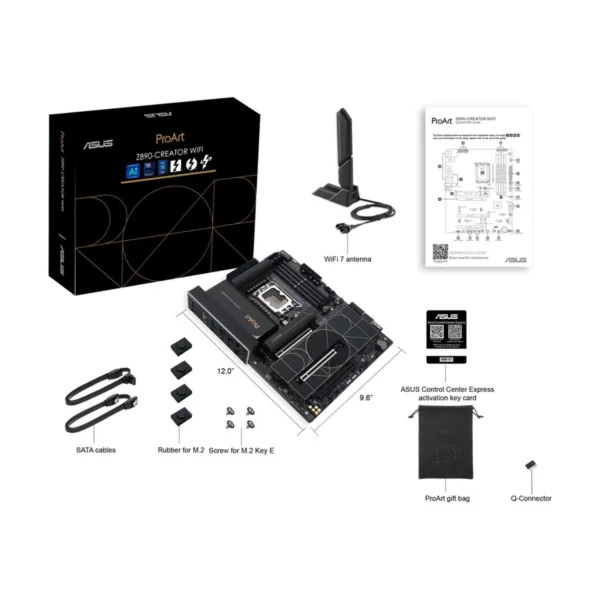

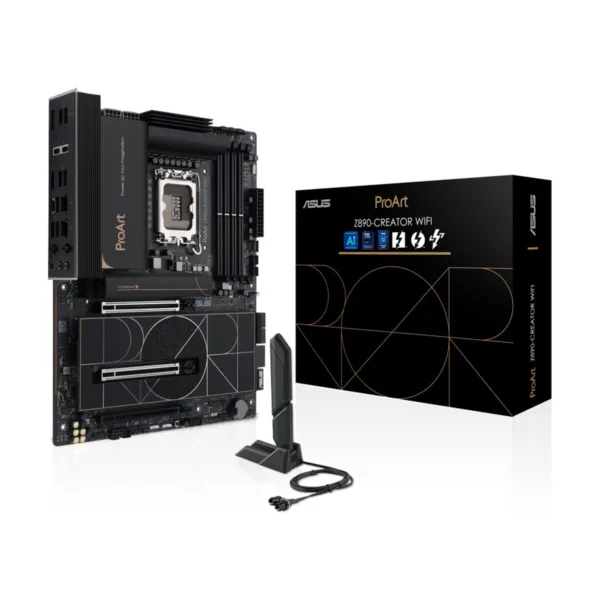

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch packages 2 x M.2 rubber packages 1 x ProArt leather bag Documentation 1 x ACC Express activation key card 1 x Quick start guide |
| MPN | PROART Z890-CREATOR WIFI |
| UPC | 197105766167 |

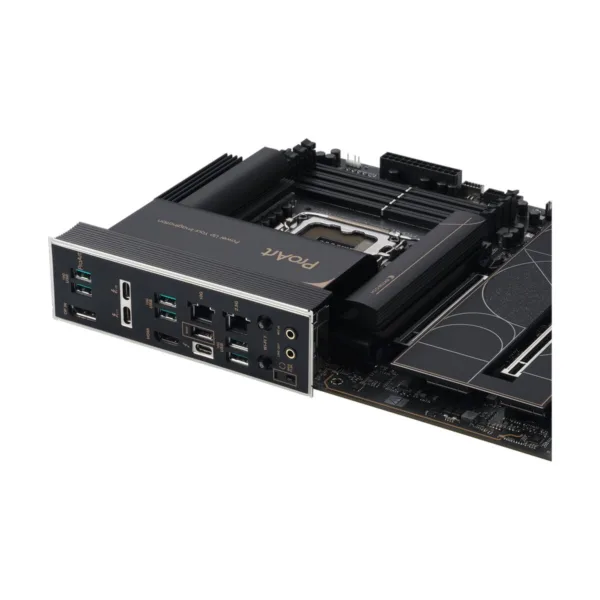

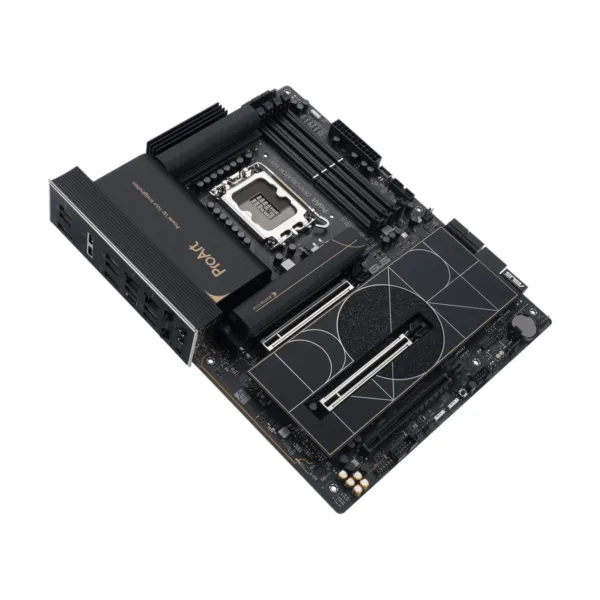

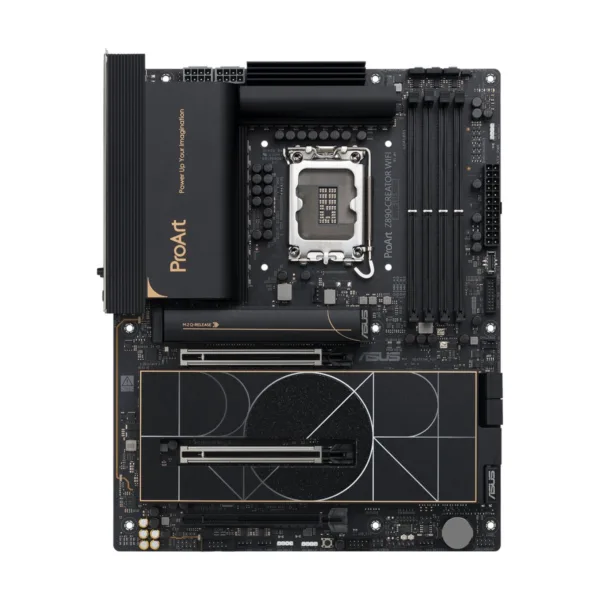

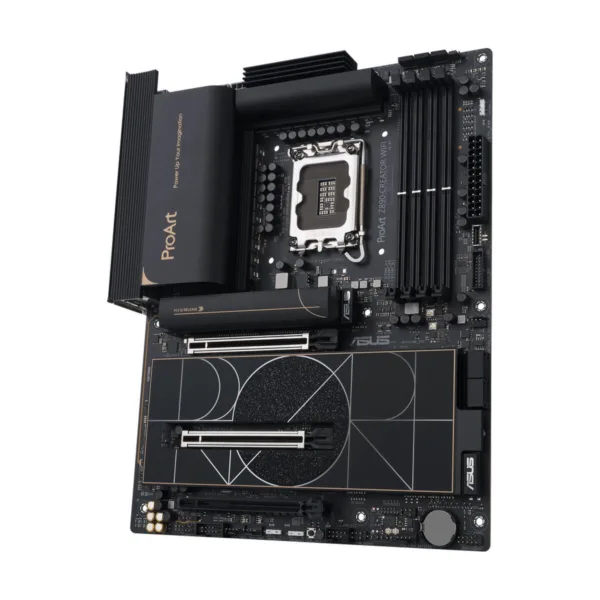

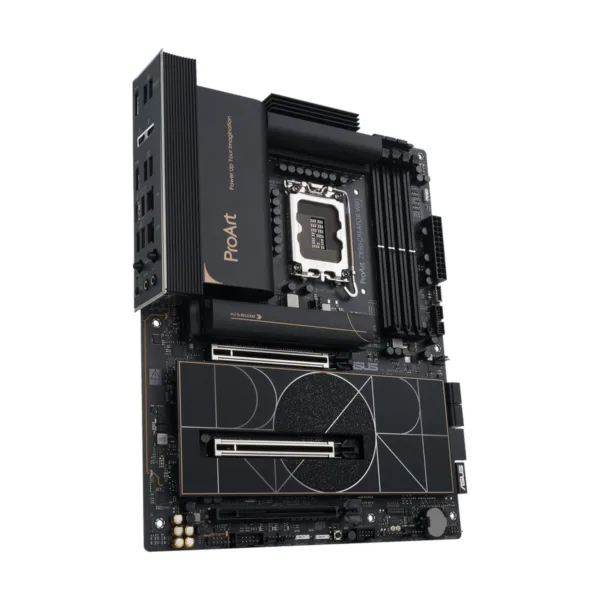

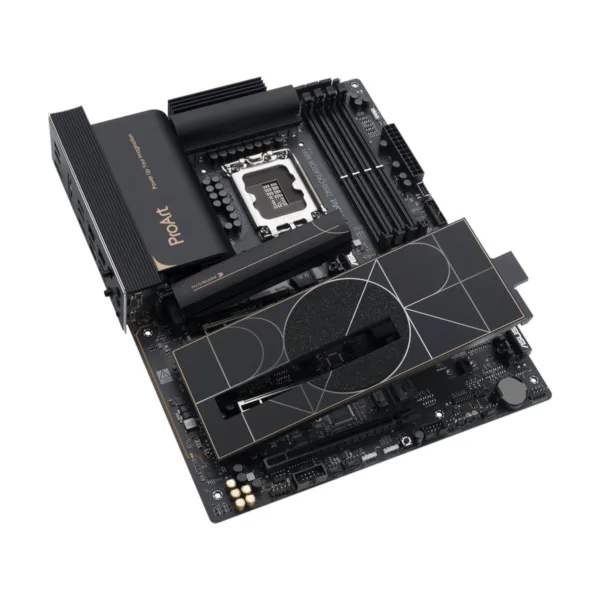

ASUS ProArt Z890-CREATOR WIFI LGA 1851 ATX Motherboard, DDR5, 5x M.2, Thunderbolt 5, 10Gb LAN, Wi-Fi 7
Original price was: $458.00.$366.40Current price is: $366.40.
Save 20%Sale ends Dec 23Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel LGA1851 socket: Ready for Intel® Core™ Ultra Series 2 9, 7, and 5 desktop processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
ProArt Z890-CREATOR WIFI
The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and Wi-Fi 7. This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.

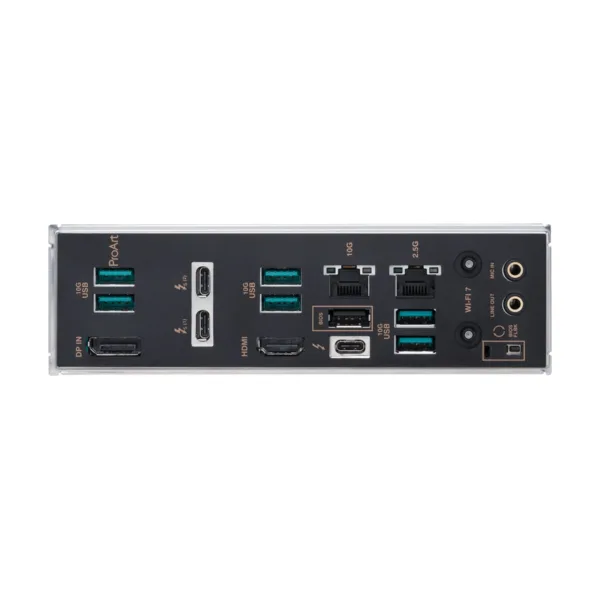

2 x USB 10 Gbps ports 1 x DP IN port for Thunderbolt™ 5 2 x Thunderbolt™ 5 Type-C® 1 x HDMI® 2.1 (4K @ 60 Hz) 2 x USB 10 Gbps ports 1 x USB2.0 port 10 Gb ethernet 1 x Thunderbolt™ 4 Type-C®
2 x USB 10 Gbps ports 2.5 Gb Ethernet Wi-Fi 7 BIOS Flashback™ 2 x Audio jacks 1 x USB 20 Gbps Type-C® Port 1 x USB 5 Gbps front-panel header 4 x SATA 6 Gb/s ports 1 x USB 2.0 header
Expansion slots 2x PCIe® 5.0 x16 SafeSlots (x16 single or x8/x8 dual) 1 x PCIe® 4.0 x16 slot (Max. x4) Realtek® ALC1220P codec De-pop circuit Audio shielding Premium audio capacitors Dedicated audio PCB layers 16+1+2+2 power stages (up to 90 A) Intel® Core™ Ultra Processors (Series 2) LGA1851
4 x DDR5 DIMM slots Dual channel 1 x M.2 PCIe® 5.0 slots with heatsinks 1 x 22110(PCIe® 5.0 x4) Intel® Z890 Chipset 4 x M.2 PCIe® 4.0 slots with heatsink 3 x 2280 (PCIe® 4.0 x4) 1 x 2280 (PCIe® 4.0 x4 & SATA modes)
VRM heatsinks 4-pin PWM/DC fan headers Every onboard header supports auto-detection of PWM or DC fans.
Multiple temperature sources Each header can be set to monitor and react to multiple user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI.

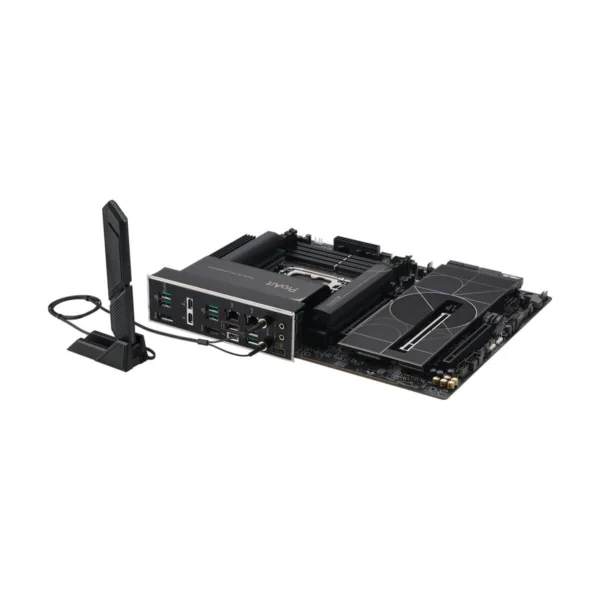

Q-Antenna Attach a Wi-Fi antenna in a snap. M.2 Q-Release A convenient switch helps to quickly remove the heatsink. M.2 new Q-Latch A simple locking mechanism secures an M.2 SSD without the need for specific tools. M.2 Q-Slide The sliding M.2 latch design supports sizes 2242, 2260 and 2280 for easy device installation. SafeSlot This slot provides stronger PCIe® device retention and greater shearing resistance.
Q-DIMM One-sided clips deliver simple and secure handling of memory modules. Q-LED This diagnostic display indicates CPU, memory, graphics card or boot device issues for quick diagnosis. SafeDIMM A fortified metal divider adds support and damage prevention. PCIe® Slot Q-Release Slim Simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe® slot.
All you need for maximum productivity
Thunderbolt™ Connectivity Get immersed in your creations with two Thunderbolt™ 5 ports and one Thunderbolt™ 4 port for connecting to all your compatible content-creation gadgets, enjoying up to 120 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port*. *DP In cable not included.
Up to 120 Gbps Bi-directional bandwidth DisplayPort™ 2.1 Supports one 8K or dual 4K displays Daisy-Chaining For up to five devices
