| Weight | 8.5 lbs |
|---|---|
| Dimensions | 14.5 × 12 × 4.5 in |
| Brand | ASUS |
| Series | ROG |
| Part Number | 90MB1KR0-MVAAY0 |
| CPU Socket Type | AM5 |
| CPU Type | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | AMD X870E |
| Number of Memory Slots | 2x288pin (DDR5) |
| Memory Standard | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9600+MT/s(OC) with Ryzen™ 8000 Series Processors 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Ex |
| Maximum Memory Supported | 128GB |
| ECC Supported | Non-ECC |
| PCI Express 5.0 x16 | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) ** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. ***When M.2_3 are enabled, PCIEX16_1 will run x8, and |
| PCI Express 4.0 x16 | AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Relea |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors*** M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 |
| SATA RAID | 0/1/5/10 |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| Second LAN Chipset | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full f |
| Bluetooth | Yes |

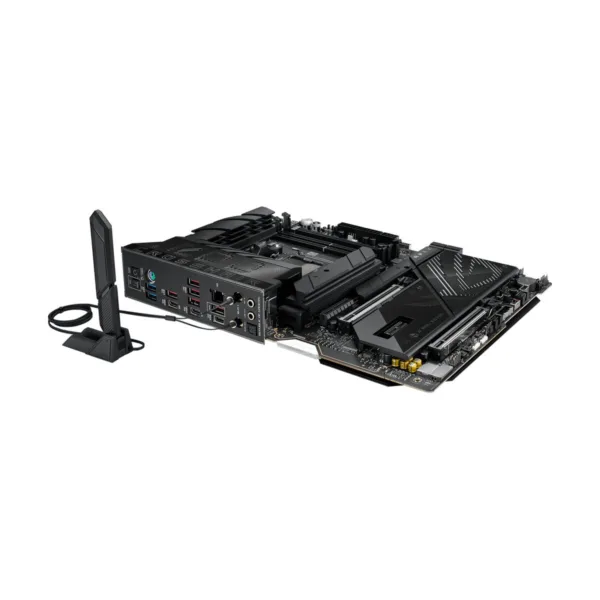

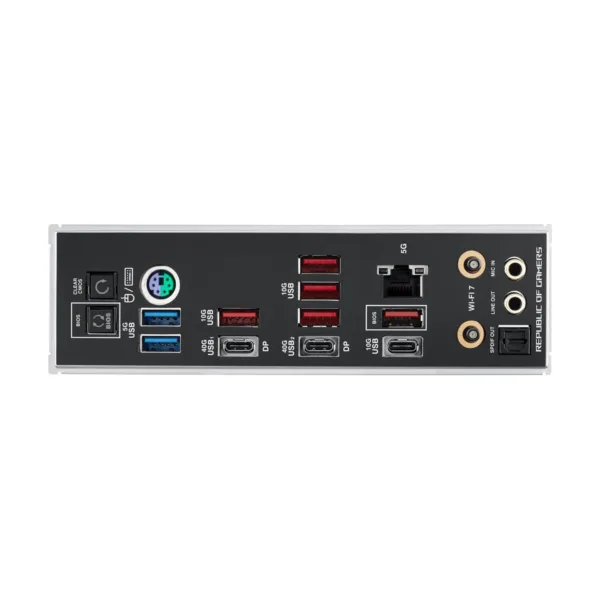

| Back I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 1 x PS/2 keyboard/mouse combo port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS Flash |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Pow |
| Form Factor | ATX |
| Dimensions (W x L) | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Windows 11 | Supported |
| MPN | ROG CROSSHAIR X870E APEX |
| UPC | 197105890244 |

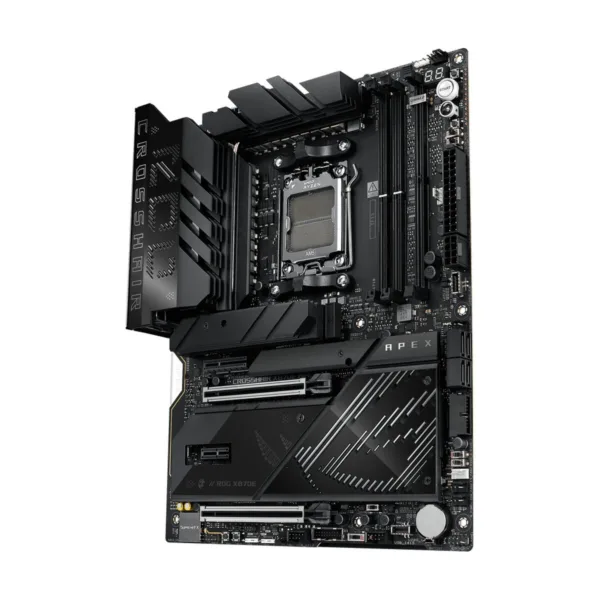

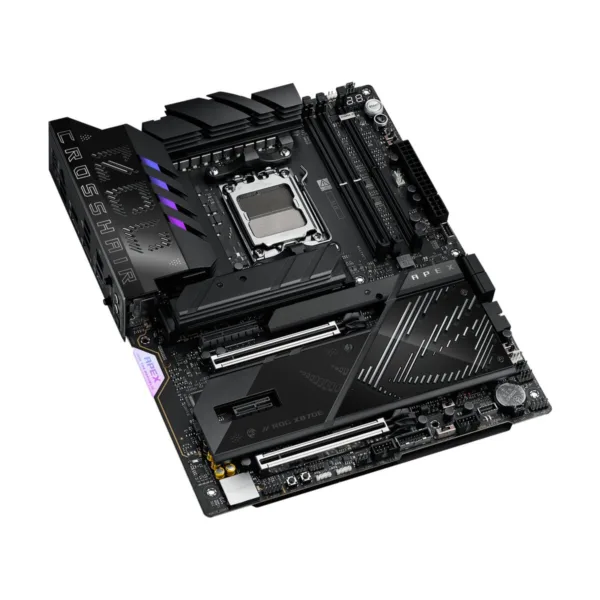

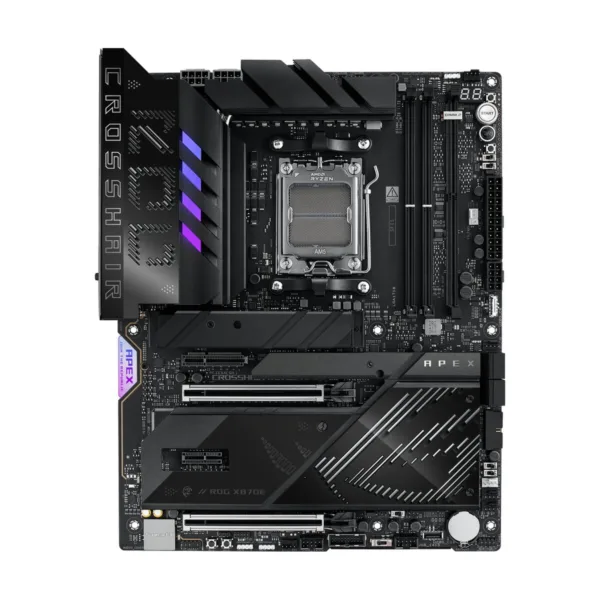

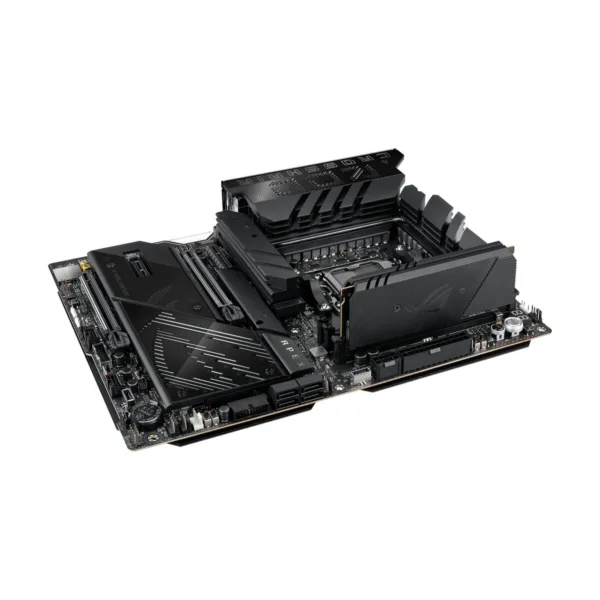

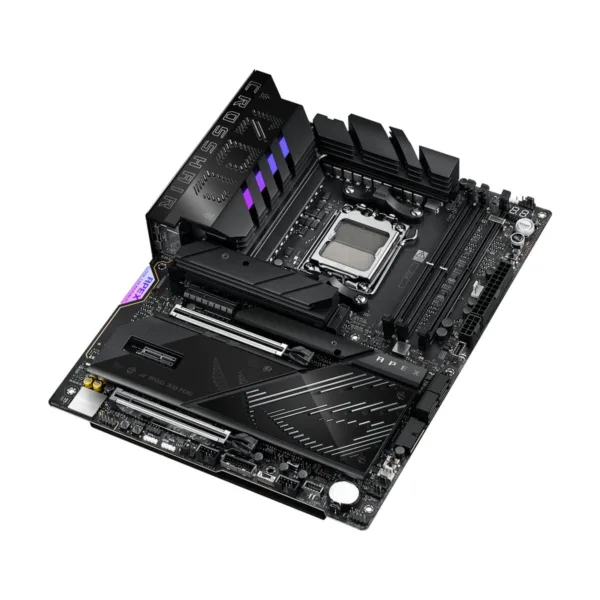

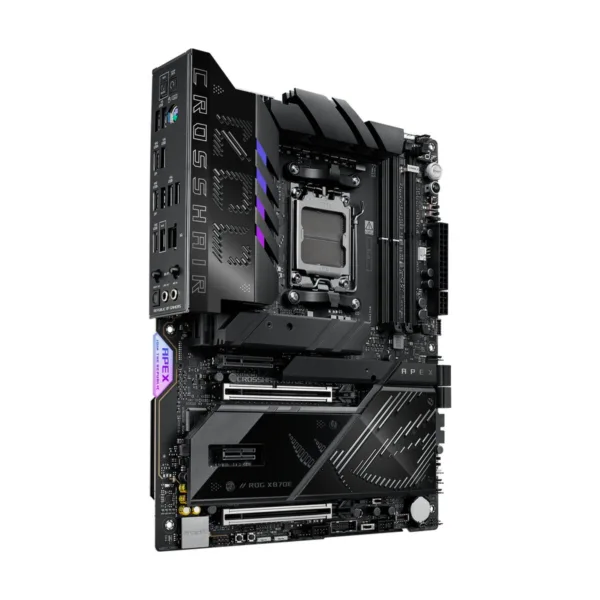

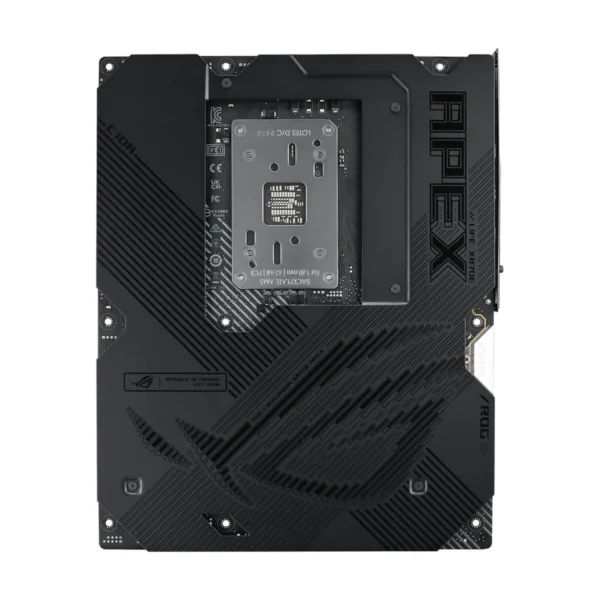

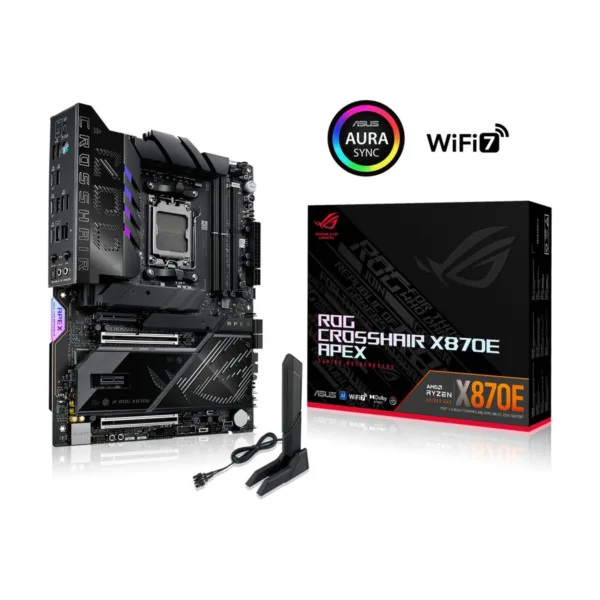

ASUS ROG CROSSHAIR X870E APEX
Original price was: $599.99.$479.99Current price is: $479.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview

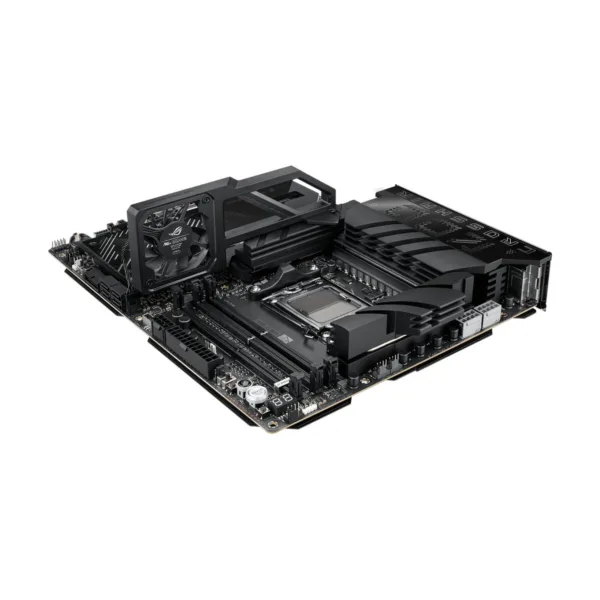

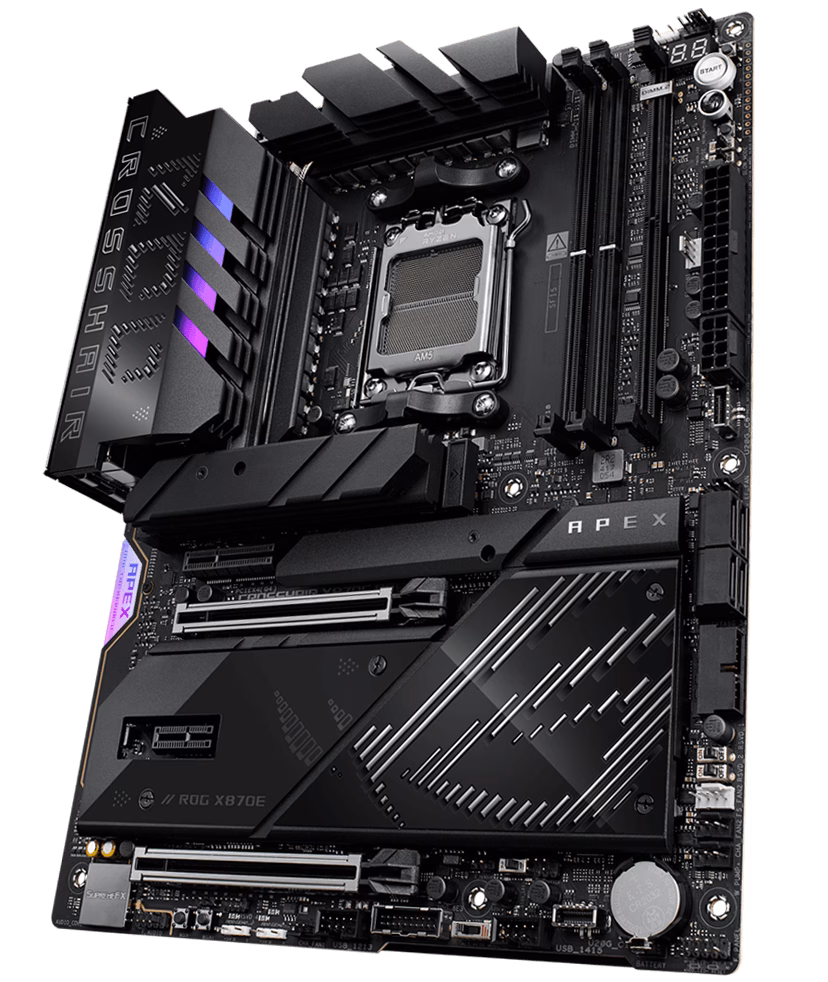

The AI PC-ready ROG Crosshair X870E Apex is built for world-record overclocking, courtesy of extensive BIOS features and the exotic cooling of the ROG-exclusive Memory Fan Kit. Beyond its overclocking prowess, it delivers comprehensive support for cutting-edge graphics cards and storage, making it the ultimate platform for AM5 AMD Ryzen™ performance enthusiasts.
Extensive Gen 5
x3 onboard M.2 slots, and x2 PCIe 5.0 x16 slots
DUAL PROCOOL II POWER CONNECTORS 18(110 A)+2(110 A)+2(80 A) POWER STAGES EXPANSION SLOTS 2 x PCIe® 5.0 x16 Slots 1 x PCIe® 4.0 x4 Slot 1 x PCIe® 3.0 x1 Slot AMD AM5 SOCKET For AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
DDR5, 2 X DIMM Max. 128 GB Dual Channel 5 X M.2 SLOTS 3 x M.2 2280 (PCIe® 5.0 x4) 2 x M.2 22110 (PCIe® 4.0 x4) (via ROG DIMM.2 Card)
