| Weight | 8.75 lbs |
|---|---|
| Dimensions | 14.25 × 12 × 4.4 in |
| Brand | ASUS |
| Part Number | 90MB1IE0-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4400 / DDR5 4800 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports up to 8200+MT/s(OC) with Ryzen 9000 Series Processors, 8600+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8** or x8/x4/x4 modes***) ** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. ***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series De |
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 5Gbps + 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

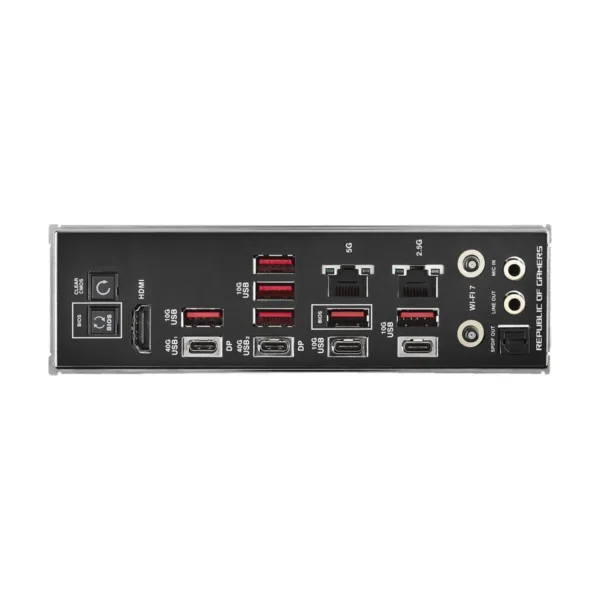

| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS |
| Onboard USB | 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_ |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector |
| BIOS Feature | 256Mb Flash ROM, UEFI AMI BIOS |
| Windows 11 | Supported |
| Features | Extreme OC Kit – FlexKey button – LN2 Mode – ReTry button – Start button Extreme Engine Digi+ – 10K Black metallic capacitors – MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Connector |

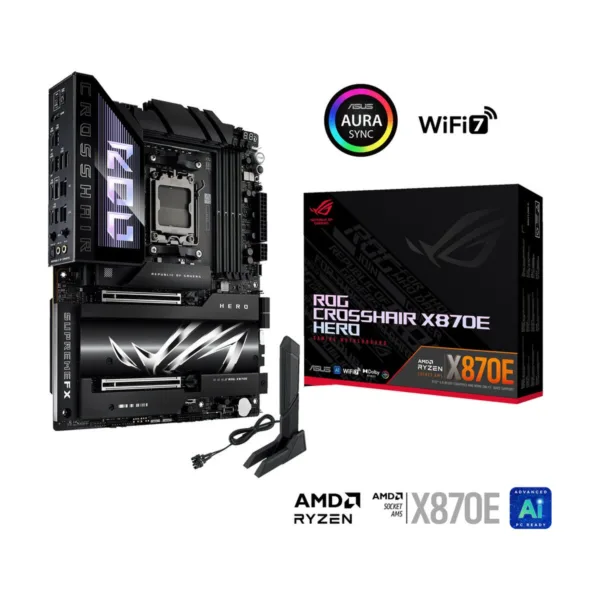

| Package Contents | Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive wi |
| MPN | ROG CROSSHAIR X870E HERO |
| UPC | 197105710306 |

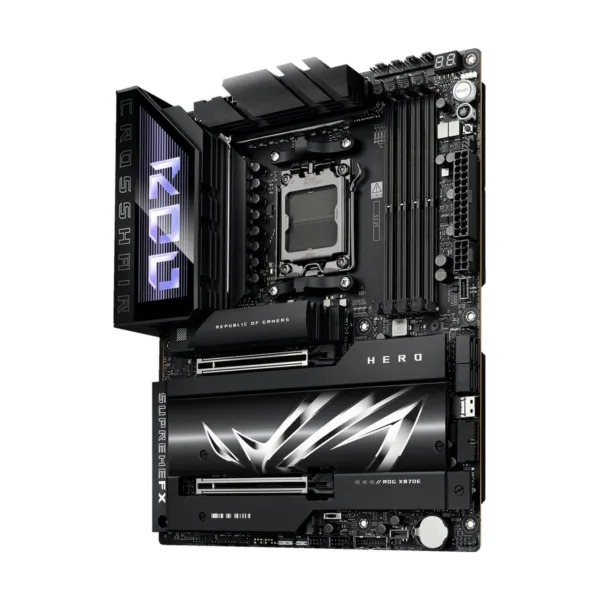

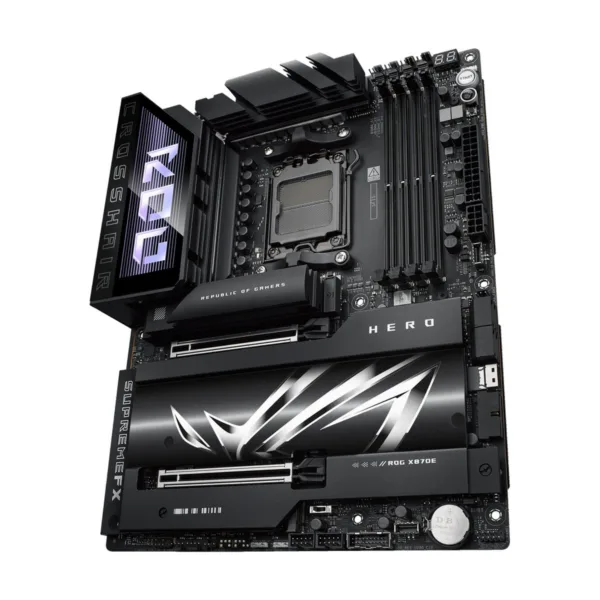

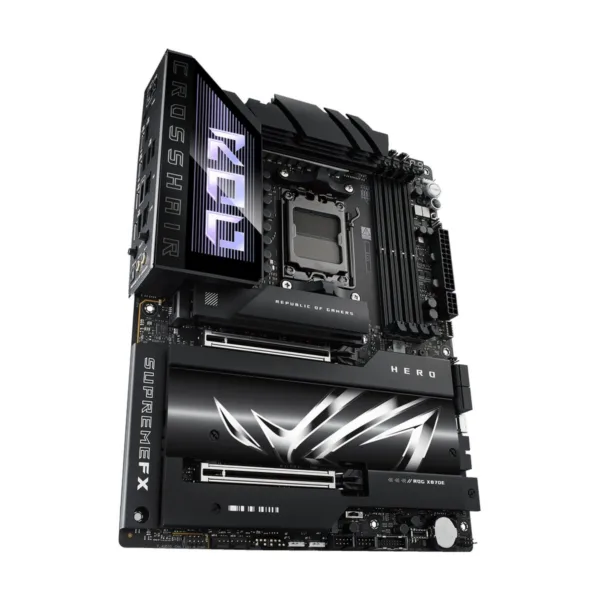

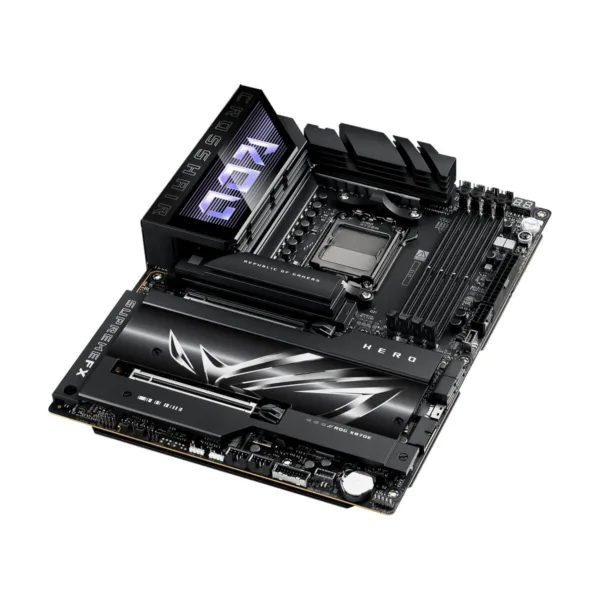

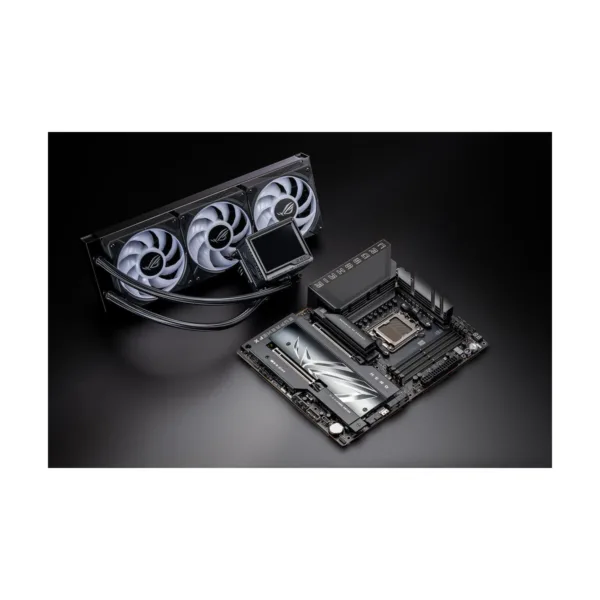

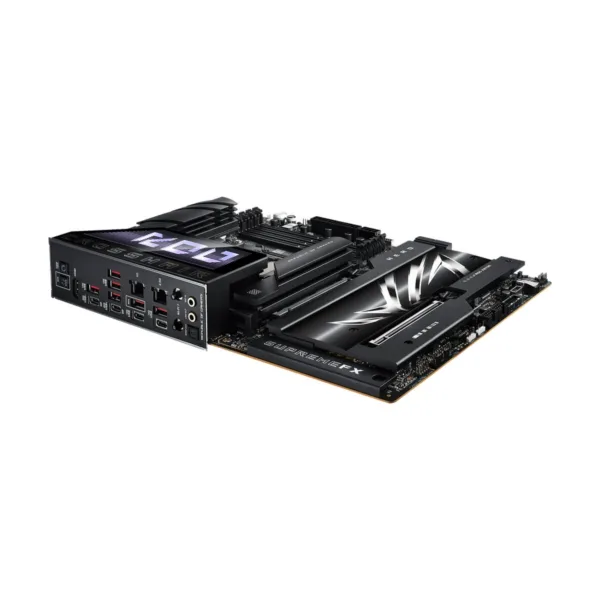

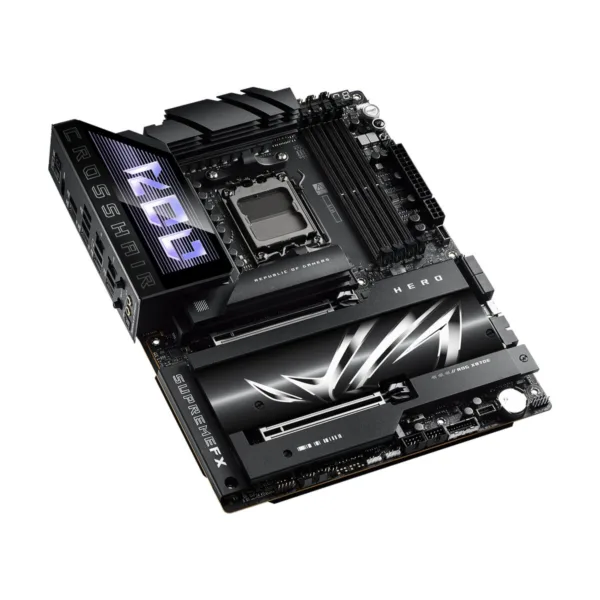

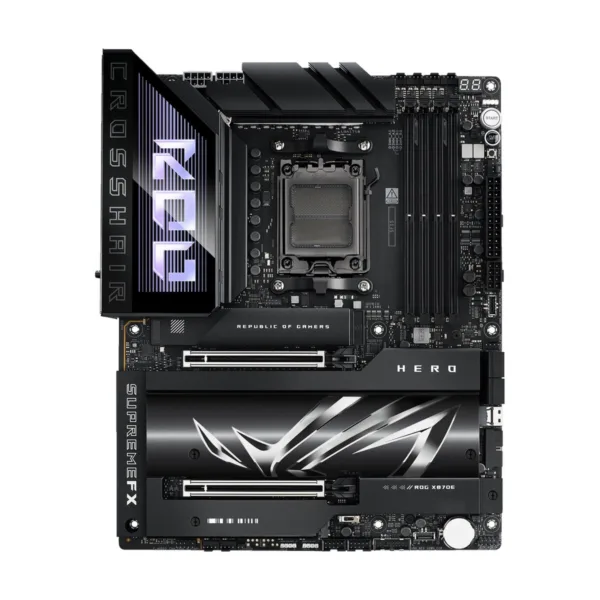

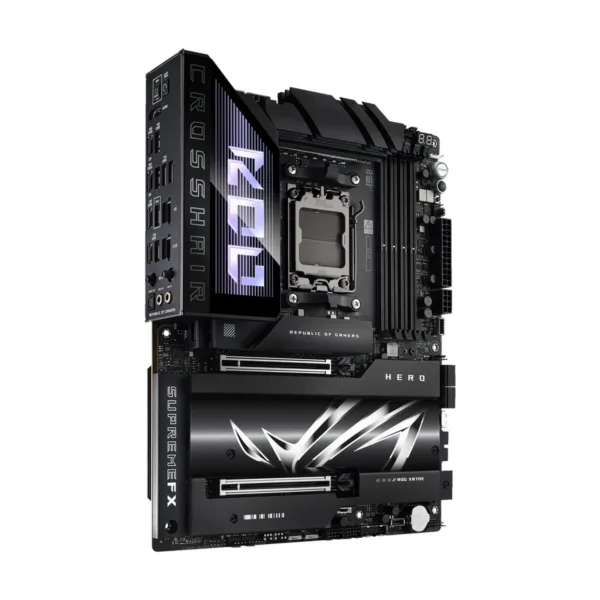

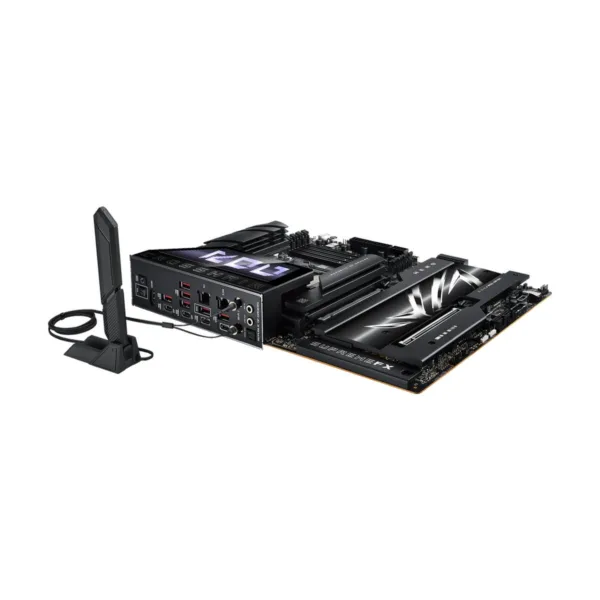

ASUS ROG CROSSHAIR X870E HERO AM5
Original price was: $599.99.$479.99Current price is: $479.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview

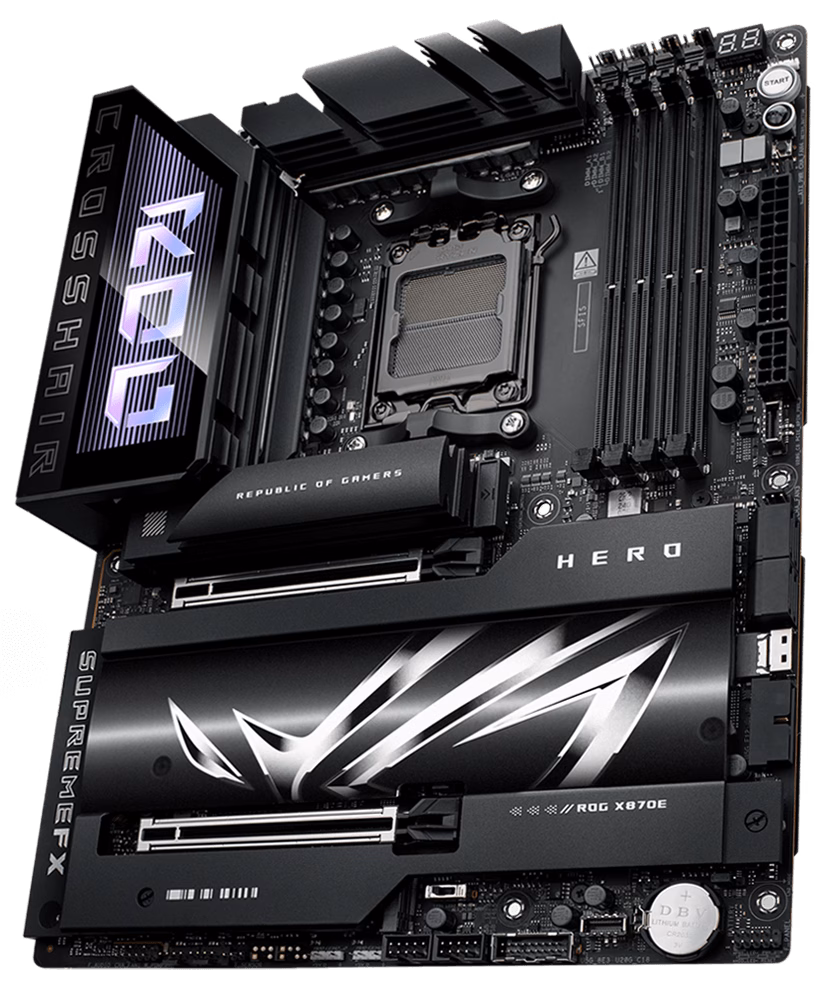

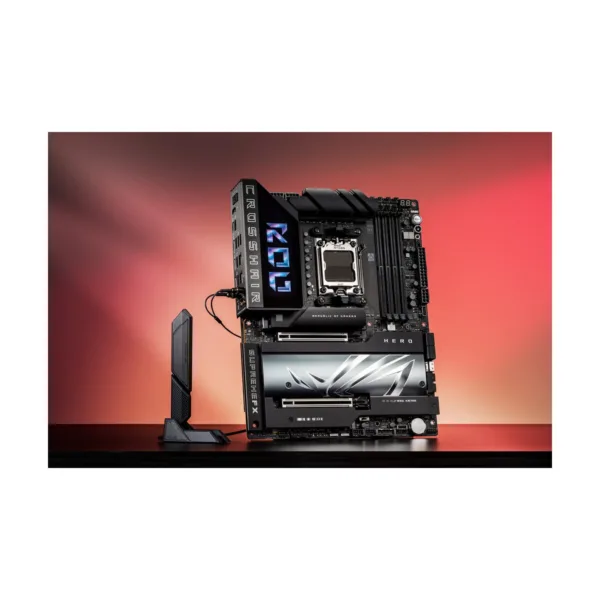

The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
DDR5
Max. 192GB, NitroPath DRAM Technology, AEMP
Extensive Gen 5
x3 onboard M.2 slots, and x2 PCIe 5.0 x16 slots
DUAL PROCOOL II POWER CONNECTORS 18+2+2 POWER STAGES EXPANSION SLOTS 2 x PCIe 5.0 x16 Slots
AMD AM5 SOCKET For AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors DDR5, 4 X DIMM Max. 192 GB Dual Channel 5 X M.2 SLOTS 3 x M.2 2280 (PCIe® 5.0 x4) 2 x M.2 2280 (PCIe® 4.0 x4)
INTEGRATED I/O COVER & VRM HEATSINKS HEATSINKS FOR FIVE M.2 SLOTS Three M.2 Slots with backplates and thermal pads
Related products
-

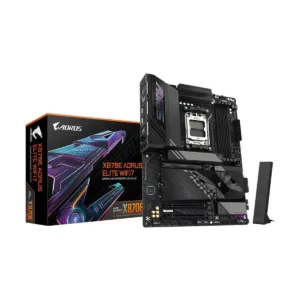

2 MODELS−20%GIGABYTEGIGABYTE X870E AORUS ELITE WIFI7
