| Weight | 9.15 lbs |
|---|---|
| Dimensions | 14.5 × 12.2 × 4.5 in |
| Brand | ASUS |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Up to 8600+MT/s(OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x4/x4 modes**) **When M.2_2 are enabled, PCIEX16_1 will run x8, and M.2_3 will run x4. AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 1 x PCIe 4.0 |
| PCI Express x4 | 1 x PCIe 4.0 x4 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series De |
| SATA RAID | 0/1/5/10 |
| Audio Channels | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| Max LAN Speed | 5Gbps + 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

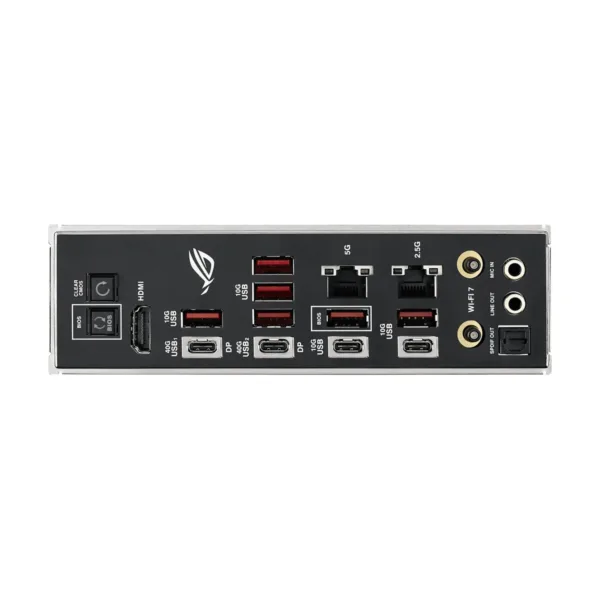

| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS |
| Onboard USB | 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_A |
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary power connector |
| BIOS Feature | 256Mb Flash ROM, UEFI AMI BIOS |
| Software | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Internet Security (1-year full version) – Polymo Lighting II ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync -Fan Xpert 4 (with AI Cooling II) – GameFirst – HWiNFO ASUS AI A |
| Features | Extreme OC Kit – FlexKey button – Start button Extreme Engine Digi+ – 10K Black metallic capacitors – MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Connector – Q-Dashboard – Q-LED (CP |

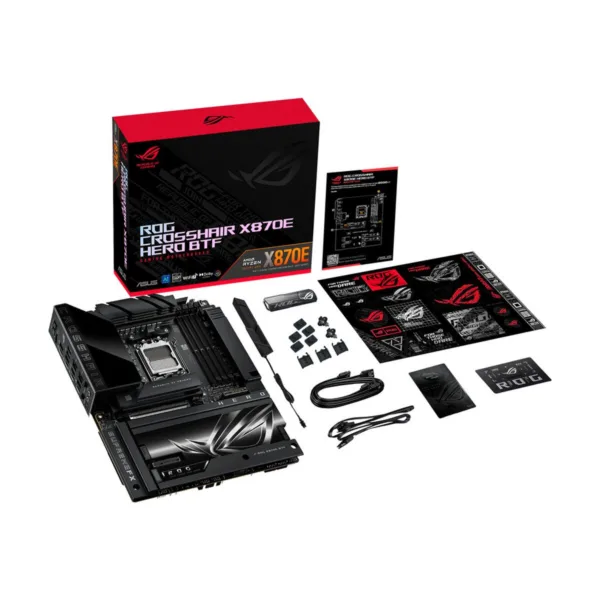

| Package Contents | Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive wi |
| MPN | ROG CROSSHAIR X870E HERO BTF |
| UPC | 199291227095 |

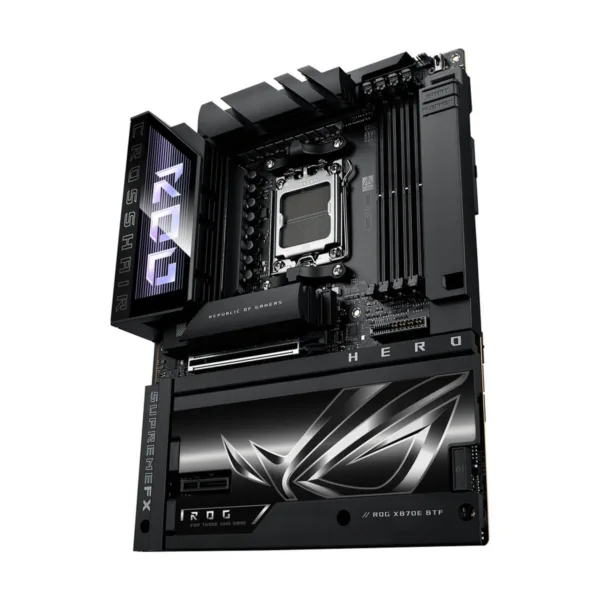

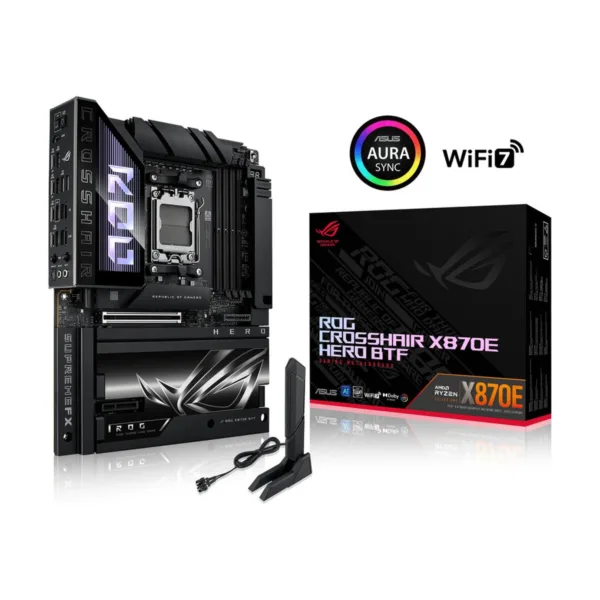

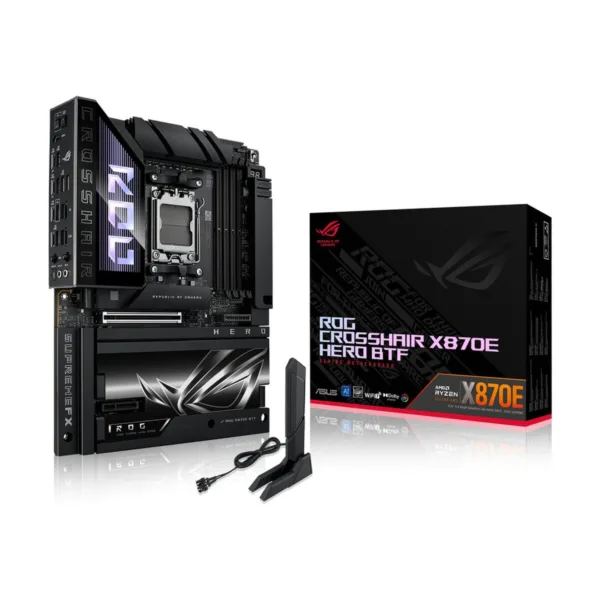

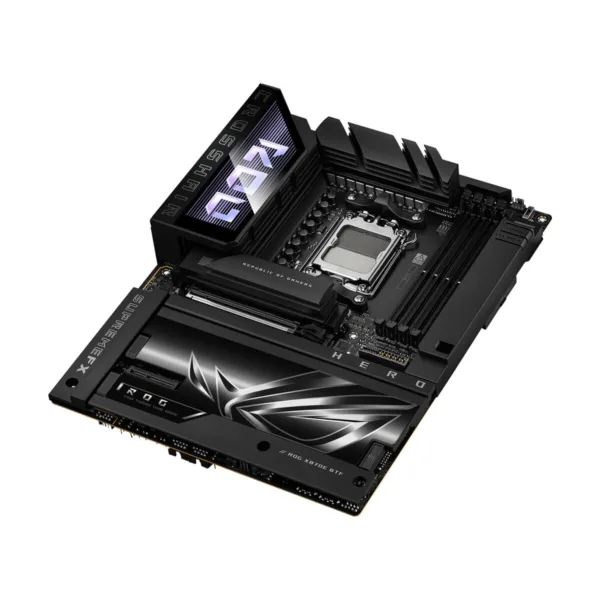

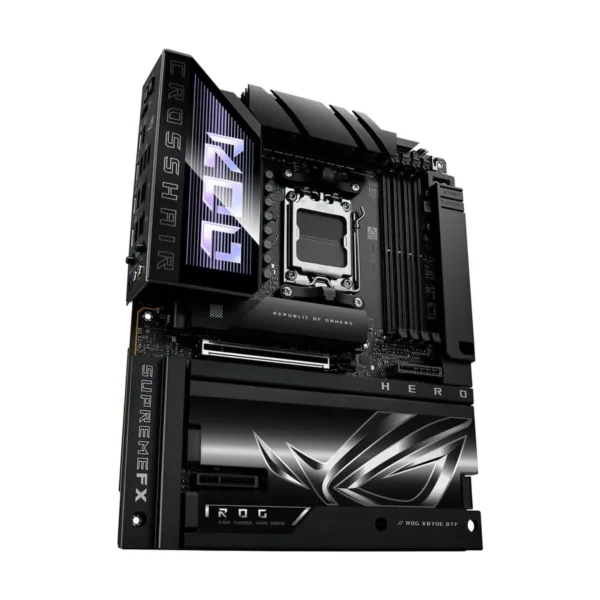

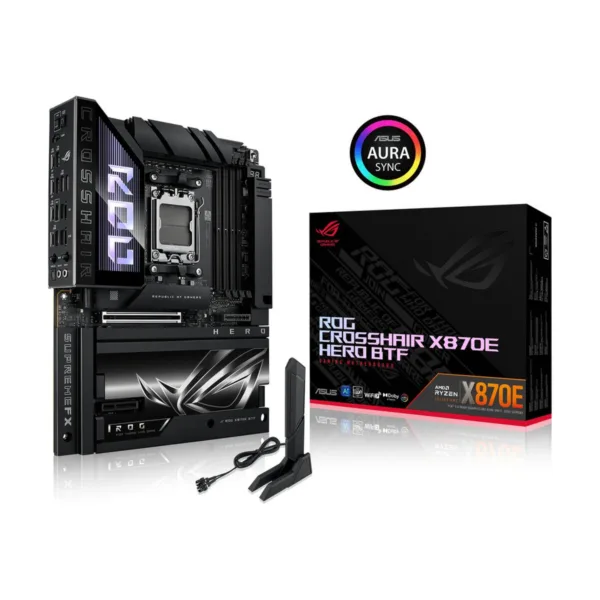

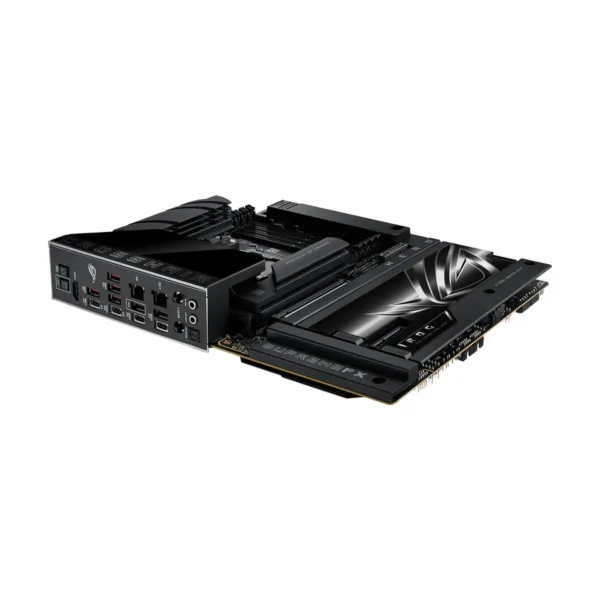

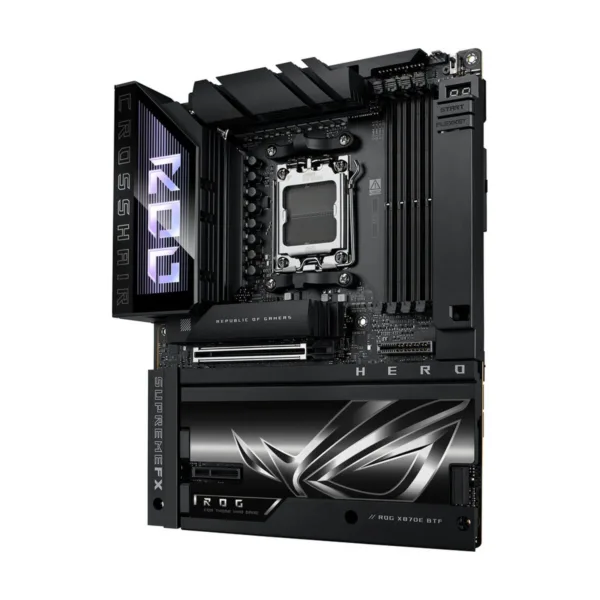

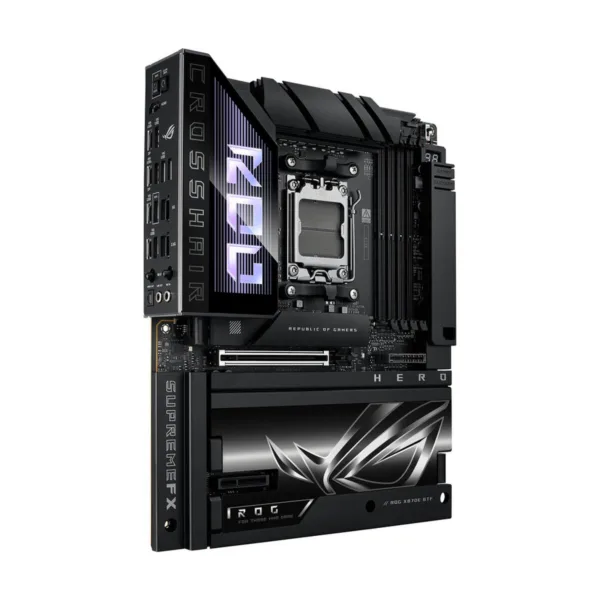

ASUS ROG CROSSHAIR X870E HERO BTF AM5
Original price was: $799.99.$639.99Current price is: $639.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Ready for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview

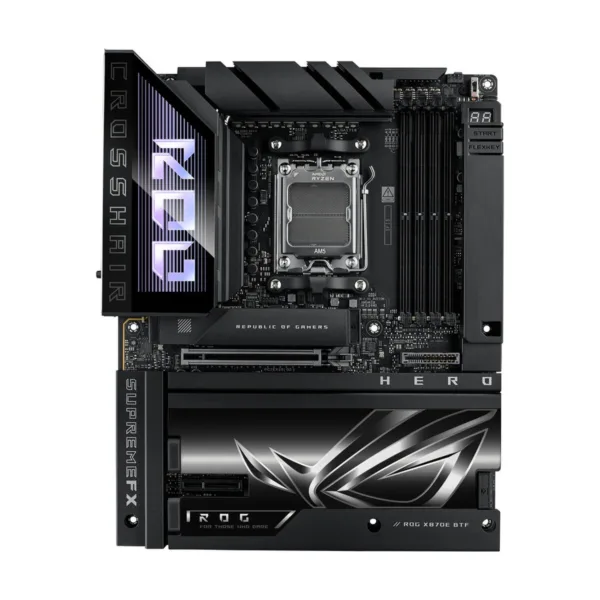

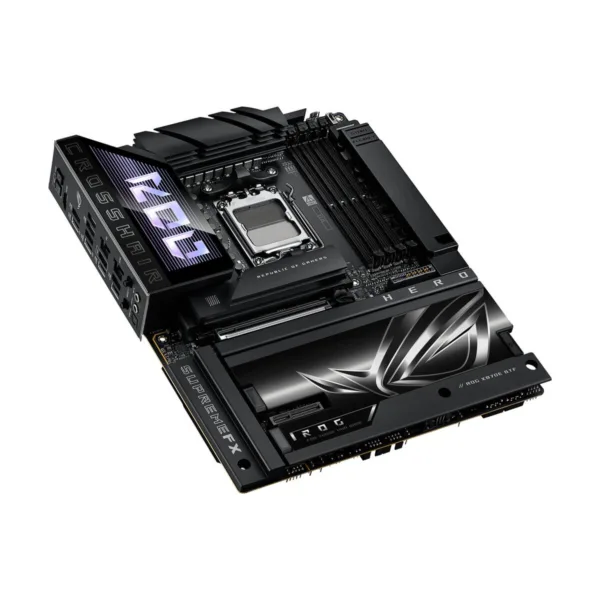

ROG CROSSHAIR X870E HERO BTF

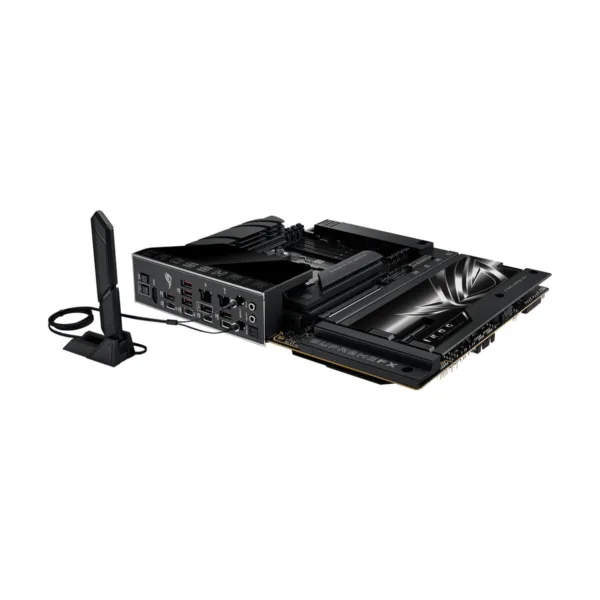

AMD X870E (AM5 Socket) ATX motherboard with a hidden-connector design and graphics card high-power slot for clean cable management,, Advanced AI PC-ready, 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP & NitroPath DRAM Technology, Wi-Fi 7 with ASUS WiFi Q-Antenna, five M.2 slots onboard, three PCIe® 5.0 M.2 slots onboard, PCIe® 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4® ports, one USB 20 Gbps Type-C® front-panel connectors, AI Overclocking, AI Cooling II, AI Networking II, and Polymo Lighting II Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for d

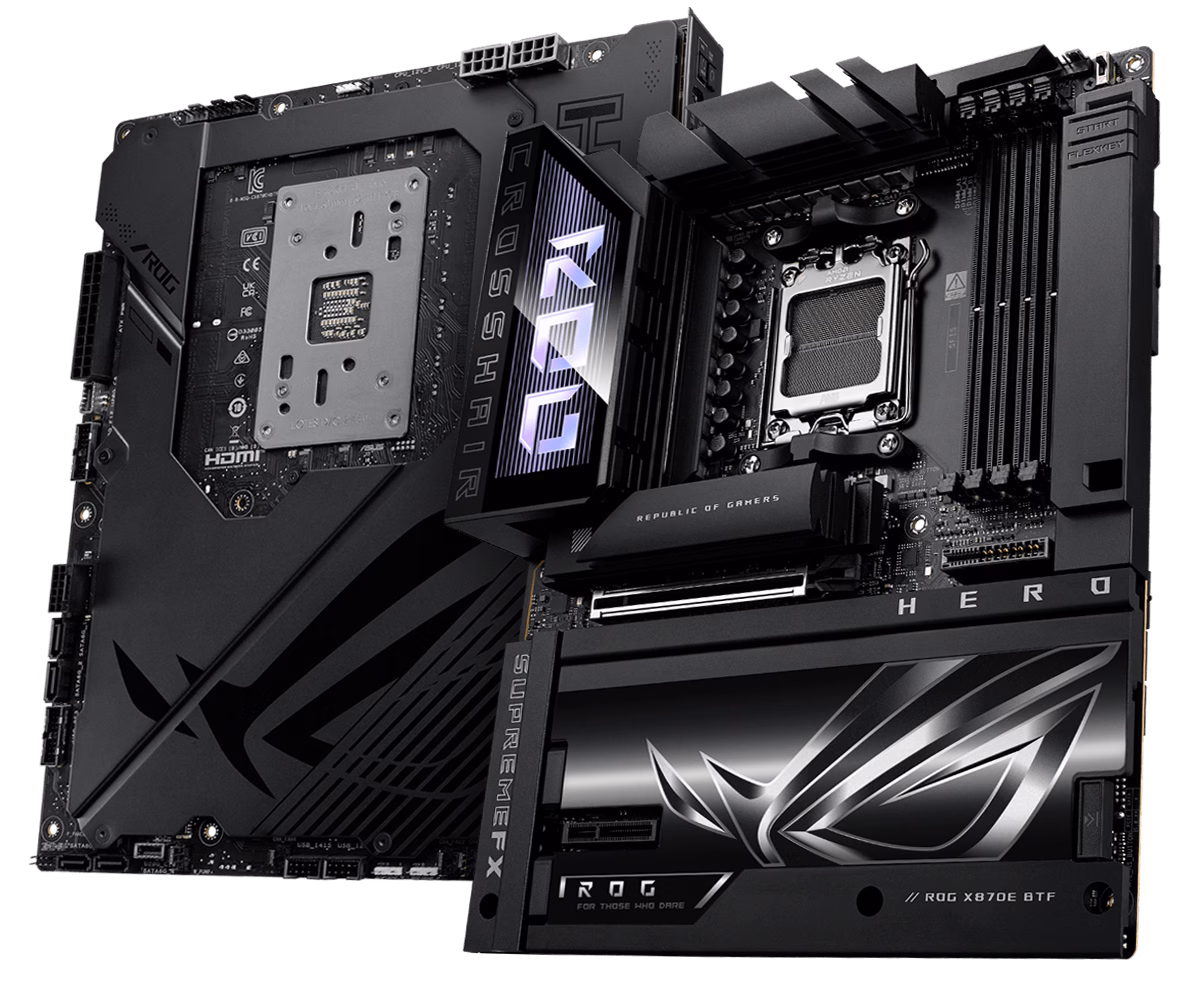

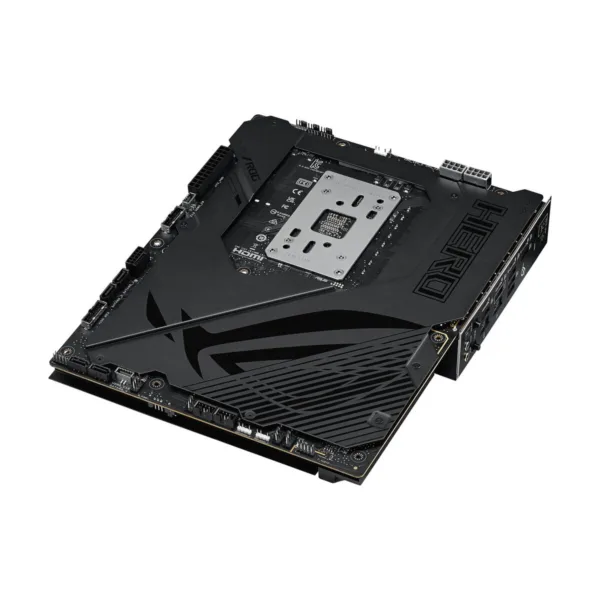

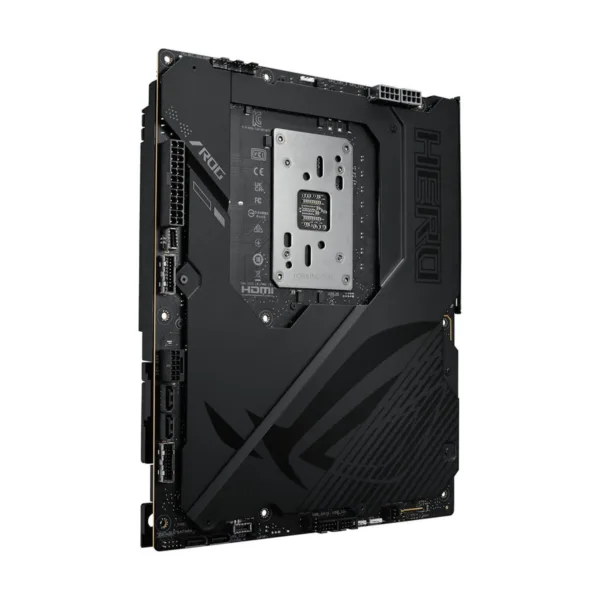

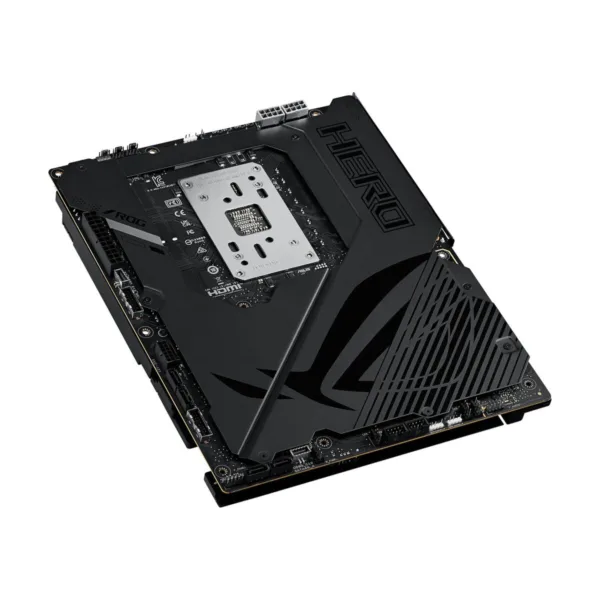

The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.
Graphics Card High-power Slot
Delivering up to 600 watts through motherboard
Extensive Gen 5
x3 onboard M.2 slots, and x1 PCIe® 5.0 x16 slots
ADVANCED BTF DESIGN
With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.

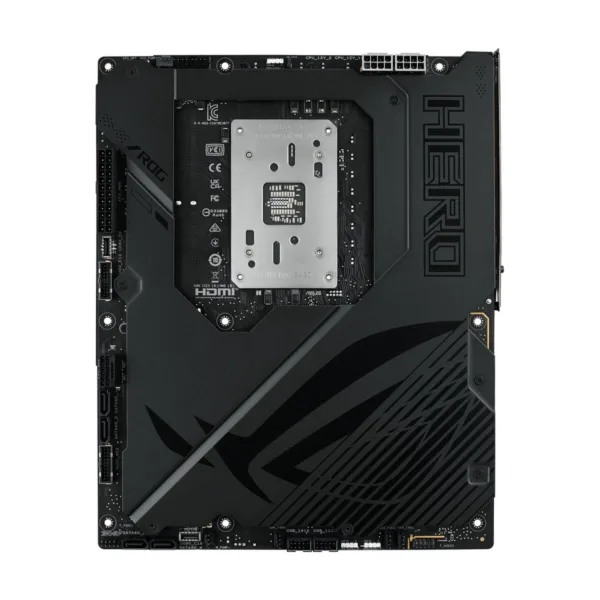

HIDDEN-CONNECTOR DESIGN
The hidden-connector design can be ideal for first-time builders, because it provides easier cable management. The absence of visible cables also creates a clean and tidy look that would normally require an expert.
