| Weight | 2.9 lbs |
|---|---|
| Dimensions | 9 × 7.5 × 4 in |
| Brand | ASUS |
| Part Number | 90MB1JB0-M0AAY0 |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| Number of Memory Slots | 2x288pin (DDR5) |
| Memory Standard | Up to 9066+MT/s (OC) |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| Memory Feature | Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII) |
| PCI Express 5.0 x16 | Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| SATA RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio Chipset | Realtek ALC1220P |
| Audio Channels | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retaski |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |
| Back I/O Ports | 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical |
| Onboard USB | 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Miscellaneous 2 x Addressable Gen2 headers 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software | ROG Exclusive Software – ROG CPU-Z – Dolby Atmos ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – GameFirst – Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core Adobe Creative Cloud (Free |
| Windows 11 | Windows 11 (22H2 & later) |
| Form Factor | Mini ITX |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector |
| Features | Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – M.2 Q-Latch – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heat |
| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 2 x Screw packages for M.2 SSD 1 x Fan Bracket 1 x ROG key chain 1 x ROG Strix stickers Documentation 1 x Quick start guide |
| MPN | ROG STRIX B860-I GAMING WIFI |
| UPC | 197105815995 |
ASUS ROG STRIX B860-I GAMING WIFI LGA 1851 Mini-ITX Motherboard, DDR5, Thunderbolt 4, Wi-Fi 7
Original price was: $329.99.$263.99Current price is: $263.99.
Save 20%Sale ends Dec 23Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel LGA 1851 Socket: Ready for Intel Core Ultra processors (Series 2)
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview
ROG STRIX B860-I GAMING WI-FI
The ROG Strix B860-I Gaming Wi-Fi is designed to dominate with Intel® Core™ Ultra Processors (Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, Wi-Fi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
ROBUST POWER SOLUTION
10 + 1 + 2 + 1 power solution rated for up to 80A per stage
DDR5
9066+ MT/s, MAX. 128GB, DIMM FIT, AEMP III
8-PIN PROCOOL POWER CONNECTOR INTEL® SOCKET LGA1851 FOR INTEL® CORE™ UULTRA PROCESSORS (SERIES 2) EXPANSION SLOT ・ 1 x PCIe 5.0 x16 SafeSlot [CPU]
10(80A)+1(80A)+2(80A)+1(80A) POWER STAGES DDR5 9066+ MT/S (OC) ・ 2 x DIMM ・ Dual Channel 2 x M.2 SLOTS ・1 x M.2 2280 (PCIe 5.0 x4) ・1 x M.2 2280 (PCIe 4.0 x4)
SUPREMEFX ALC1220P CODEC + SAVITECH SV3H712 AMP ・ Hyper-Grounding Technology ・ Silver-plated audio jacks ・ Dedicated audio PCB layers DOLBY ATMOS ®

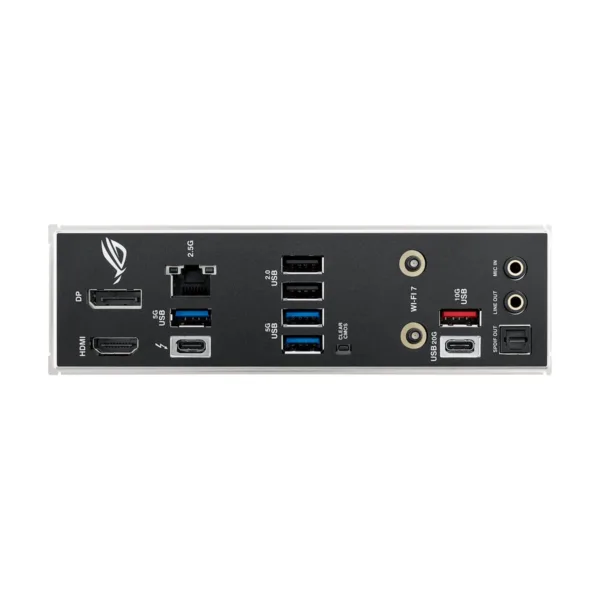

1 x HDMI™ PORT 1 x DISPLAYPORT 1 x THUNDERBOLT™ 4 PORT (1 x USB Type-C®) 3 x USB 5 Gbps PORTS (3 x Type-A) 1 x INTEL® 2.5 Gb ETHERNET 2 x USB 2.0 PORTS (2 x Type-A) CLEAR CMOS BUTTON WI-FI 7
