Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications. AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors.
In stock
Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
Secure checkout Visa, Mastercard, American Express and Discover.

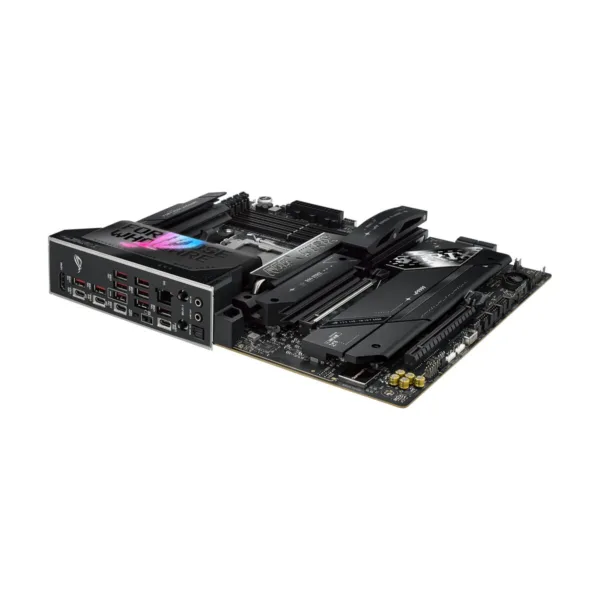

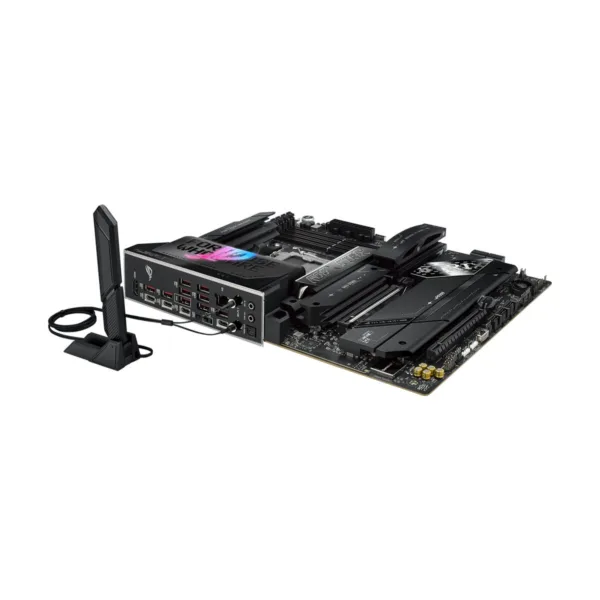

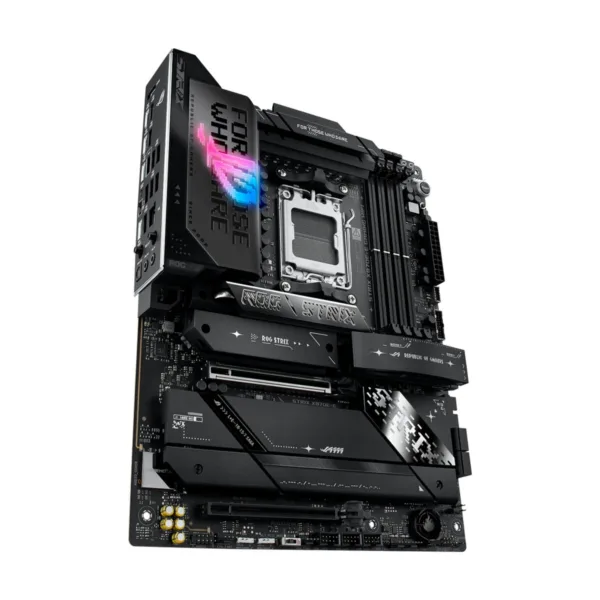

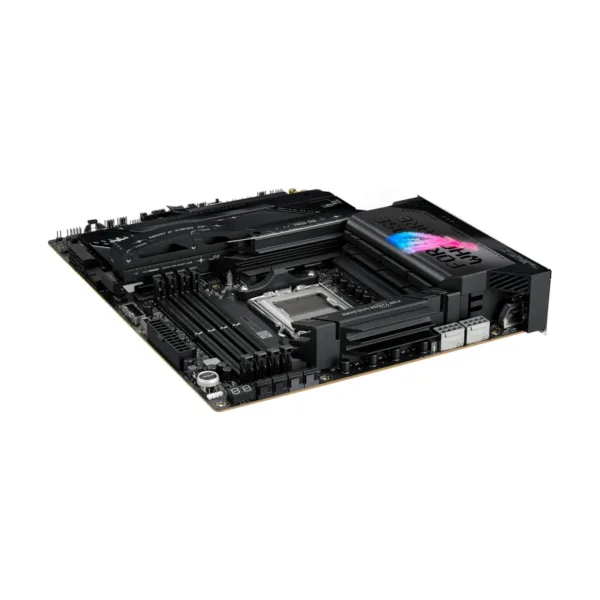

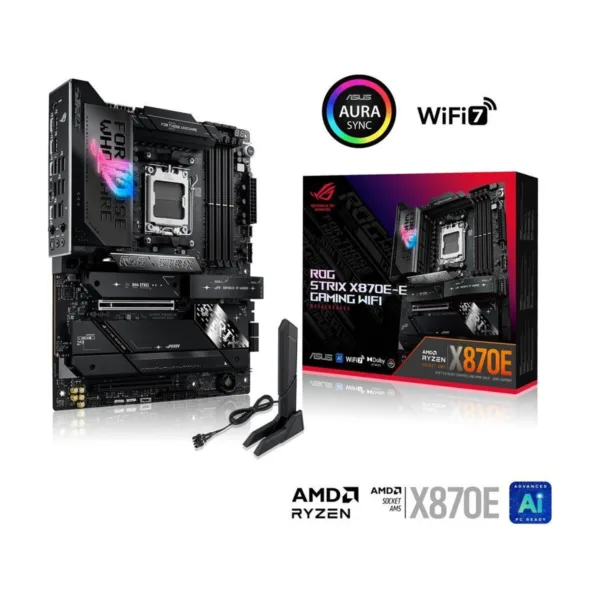

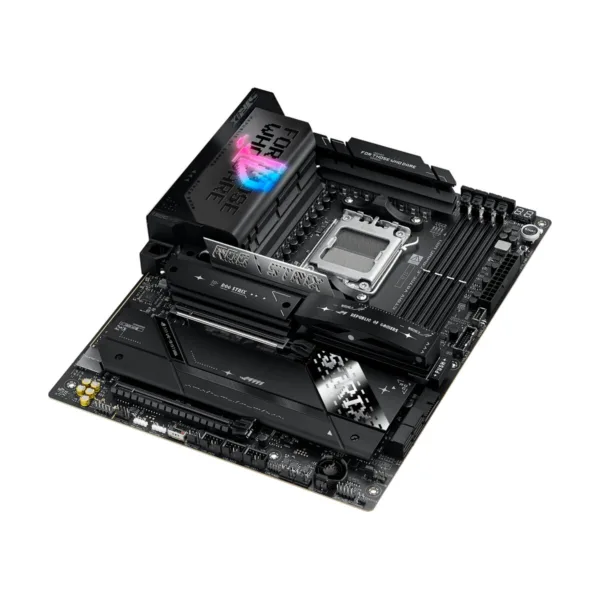

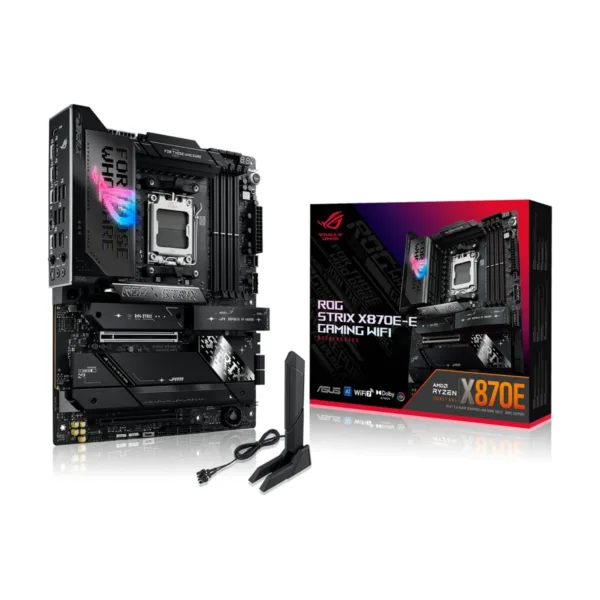

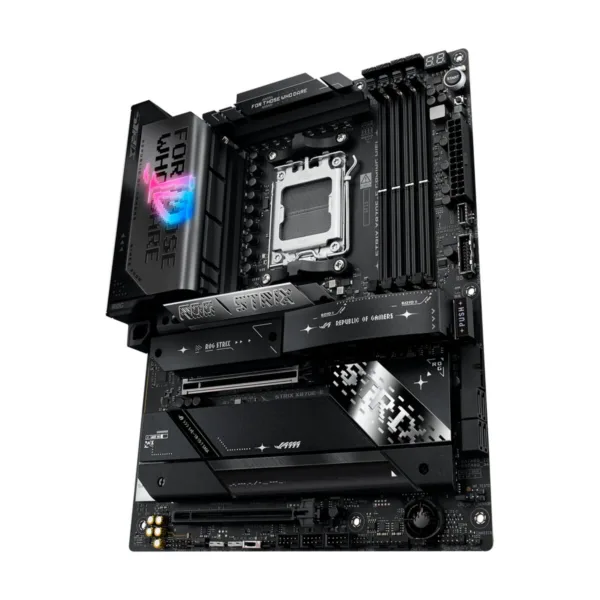

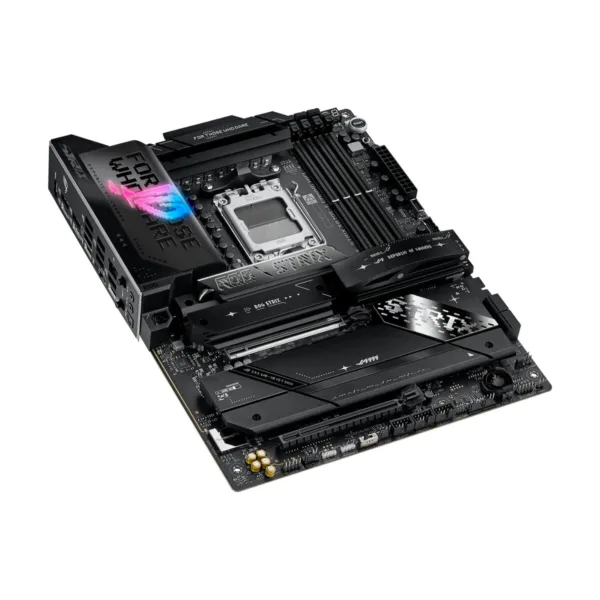

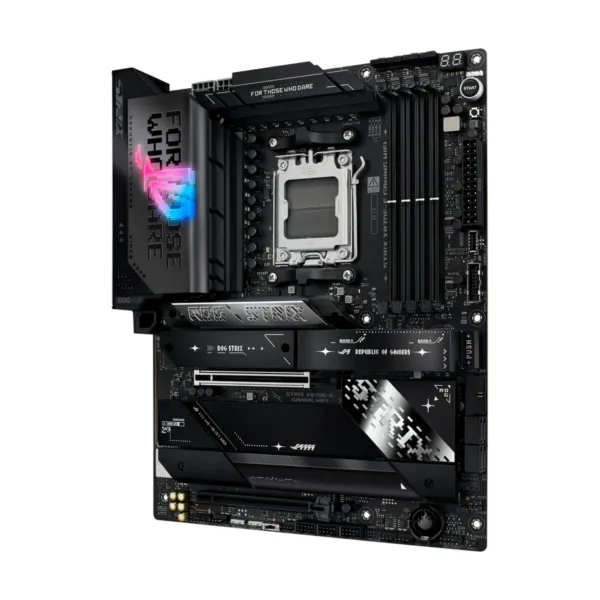

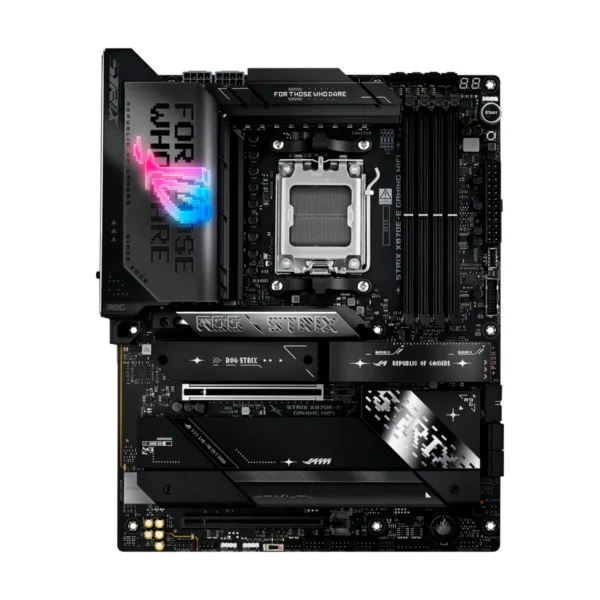

The ROG Strix X870E-E Gaming Wi-Fi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4® Type-C ports and Wi-Fi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
ROBUST POWER SOLUTION
18 + 2 + 2 power solution rated for up to 110A per stage
DDR5
Max. 192GB, NitroPath DRAM Technology, AEMP
DUAL PROCOOL II POWER CONNECTORS AMD SOCKET AM5 FOR AMD RYZEN™ 9000 & 8000 & 7000 SERIES DESKTOP PROCESSORS EXPANSION SLOTS 1 x PCIe 5.0 x16 SafeSlot [CPU] 1 x PCIe 4.0 x16 Slots (x4) [Chipset]
18(110A)+ 2(110A)+ 2(80A) POWER STAGES DDR5 8400+ MT/S (OC) 4 x DIMM Dual Channel 5 x M.2 SLOTS 1 x M.2 22110 (PCIe® 5.0 x4) 2 x M.2 2280 (PCIe® 5.0 x4) 2 x M.2 2280 (PCIe® 4.0 x4)
SUPREMEFX ALC4080 CODEC + SAVITECH SV3H712 AMP Impedance sense 120 dB SNR stereo playback output 110 dB SNR recording input SupremeFX shielding DOLBY ATMOS®
Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset
AMD X870E
Number of Memory Slots
4x288pin (DDR5)
Memory Standard
DDR5 4400
Maximum Memory Supported
256GB
Channel Supported
Dual Channel
Memory Performance Profile
AMD EXPO
ECC Supported
Yes
Buffer Supported
Un-buffered
Memory Feature
Supports up to 8000+MT/s(OC) with Ryzen 9000 Series Processors, 8400+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EX
PCI Express 5.0 x16
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD
SATA RAID
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio Chipset
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
Audio Channels
7.1 Channels
Max LAN Speed
5Gbps
Wireless LAN
Wi-Fi 802.11 be
Bluetooth
Bluetooth 5.4
Back I/O Ports

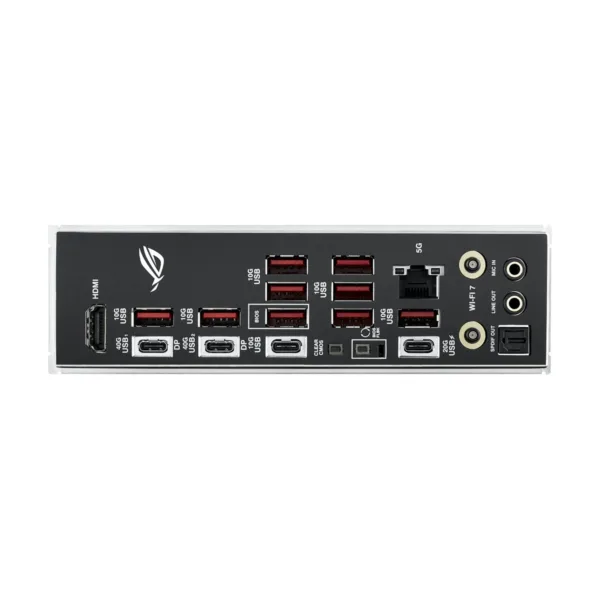

2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge) 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS
Onboard USB
1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over Voltage jumper 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors

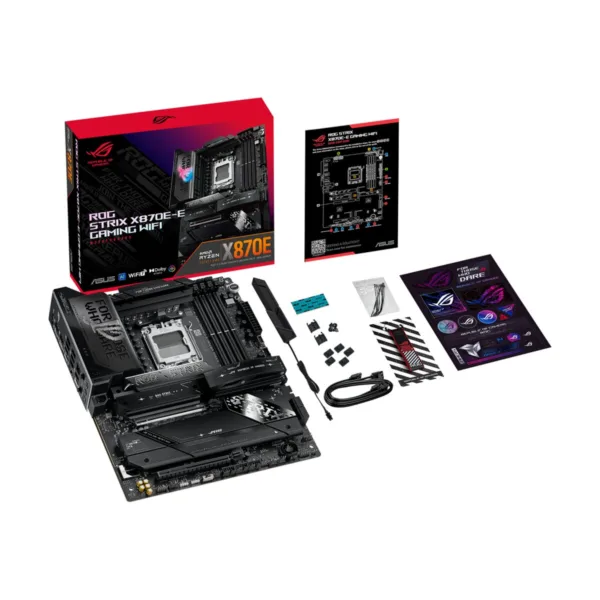

Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 2 x M.2 Q-Slides 1 x ROG key chain 1 x ROG Strix stickers 5 x M.2 Rubbers Documentation 1 x Quick start guide
