Name: GIGABYTE Z790 EAGLE AX LGA 1700
Brand: GIGABYTE
SKU: 13-145-495
Price: 157.49 USD
Availability: InStock

GIGABYTE Z790 EAGLE AX LGA 1700

Save 25%

Sale ends Dec 23

Intel LGA 1700 Socket: Supports 14th and 13th Gen Intel Core Series Processors DDR5 Compatible: Dual Channel DDR5, 4 DIMMs

In stock

Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.

30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.

Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.

Secure checkout Visa, Mastercard, American Express and Discover.

SKU: 13-145-495 Category: Motherboards Brand: GIGABYTE

Overview

Z790 EAGLE AX

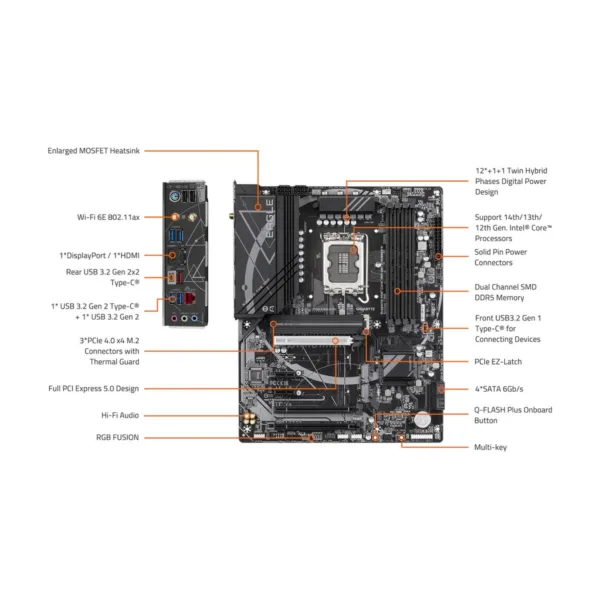

Supports Intel® Core™ 14th/ 13th /12th processors Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution Dual Channel DDR5: 4*DIMMs with XMP 3.0 Memory Module Support Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch: PCIe 4.0×16 Slot with Quick Release Design Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity: DP, HDMI, Rear USB-C® 10Gb/s Smart Fan 6: Featur

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform Unlock DDR5 DDR5 Overclocking Up to 7600 and Beyond* GIGABYTE is offering a tested and proven platform with extreme memory performance boost. * Memory overlocking and XMP profile support may vary depending on hardware configuration. * Please see the complete validated memory support list. Product features may vary by model. Unlock DDR5 Voltage GIGABYTE Exclusive DDR5

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. 802.11ax Wi-Fi 6E The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. * Photo for reference only. 2.5GbE LAN Supercharge your gaming with

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot. Q-Flash Plus Update the BIOS easily without installing the CPU, memory, and graphics card. STEP 1: Plug the 24-pin and 8-pin power supply cables into the motherboard. STEP 2: Download the motherboard BIOS file and rename it to "gigabyte.bin". Save it to a USB flash drive formatted in FAT32. Insert t

Weight	4.25 lbs
Dimensions	13.19 × 10.63 × 3.15 in
Brand	GIGABYTE
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
Chipset	Intel Z790
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5600
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 3.0
Memory Feature	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Supp
PCI Express 5.0 x16	CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16	Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
PCI Express 3.0 x16	Chipset: – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
PCI Express x1	Chipset: – 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Additional RAID Controller	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Audio Channels	7.1 Channels
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	BLUETOOTH 5.3

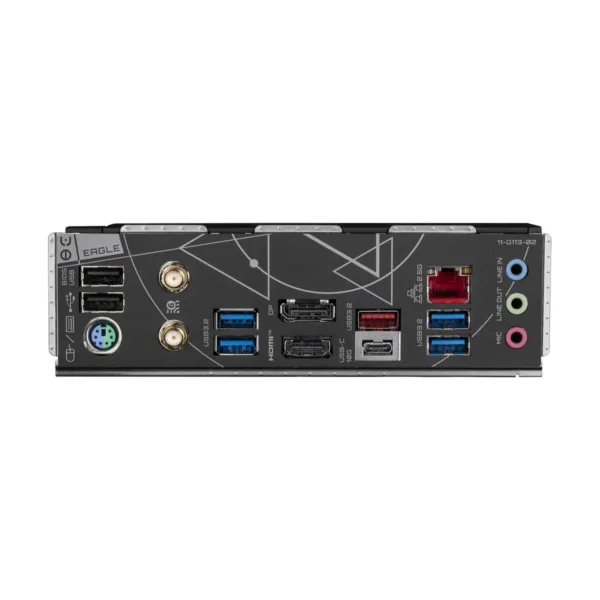

Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out head
Windows 11	Supported
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
MPN	Z790 EAGLE AX
UPC	889523042120
