| Weight | 4.7 lbs |
|---|---|
| Dimensions | 14 × 11 × 2.75 in |
| Brand | ASUS |
| Series | TUF |
| Part Number | 90MB1NY0-M0VAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| South Bridge | AMD X870 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 9600 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO / Intel XMP / ASUS AEMP |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
| PCI Express x16 | 2 x PCI Express x16 |
| PCI Express x4 | 1 x PCI Express x4 |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
| M.2 | 4 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4) |
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Depends on AMD Ryzen Series Processor with Integrated Graphics |
| Audio Chipset | Realtek ALC1220P |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 5Gb |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Yes |

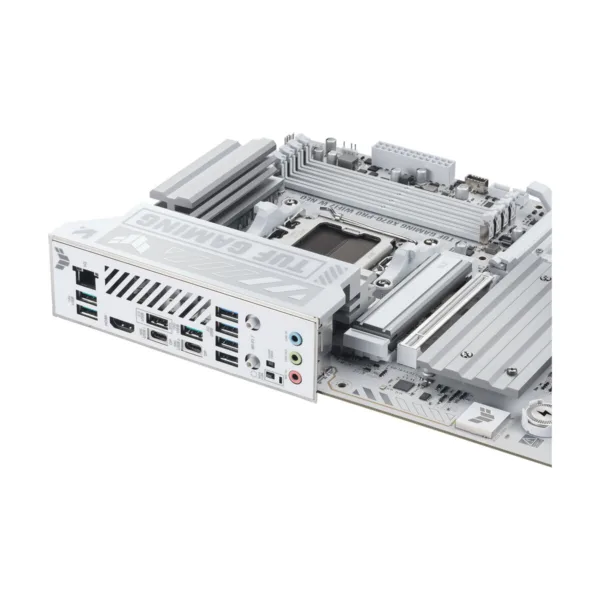

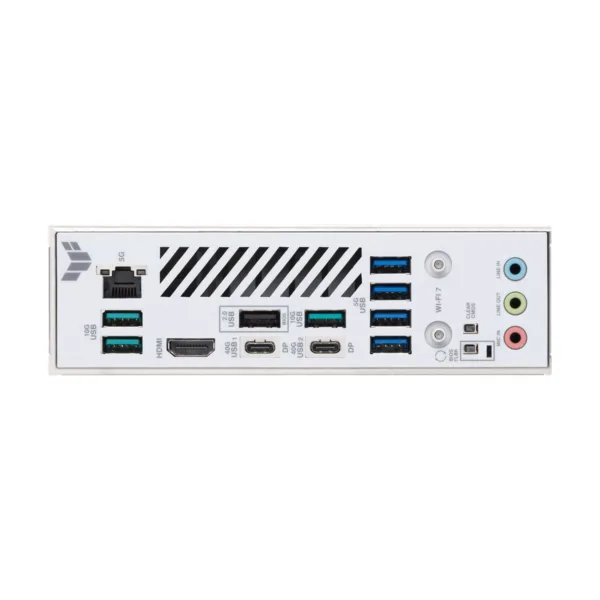

| Back I/O Ports | 2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button |
| COM | 1 |
| Video Ports | HDMI + 2 x USB Type-C |
| HDMI | 1 x HDMI port |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 3 x USB 3.1 |
| USB 3.0 | 6 x USB 3.0 |
| USB 1.1/2.0 | 1 x USB 2.0 |
| USB Type-C | 2 x USB Type-C port, with USB4 (40Gbps) support |
| S/PDIF Out | Yes |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2×2 + 1 x USB 3.2 Gen 1 header + 3 x USB 2.0 headers |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12 inch x 9.6 inch |
| Power Pin | 24 Pin |
| Windows 11 | Supported |
| MPN | 90MB1NY0-M0VAY0 |
| UPC | 199291425248 |

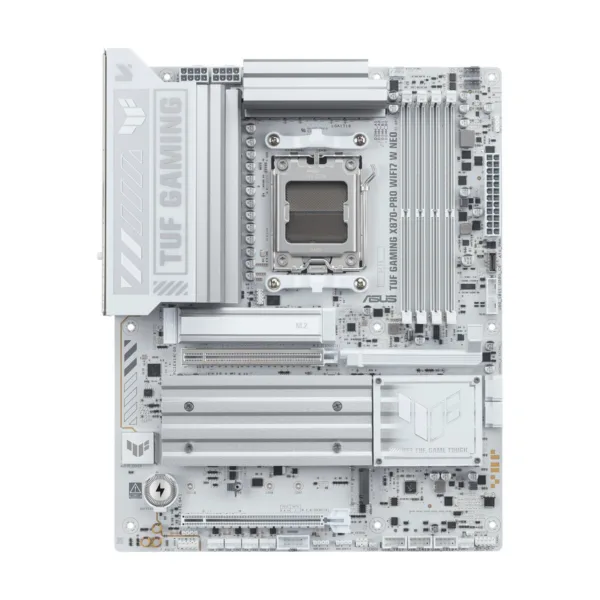

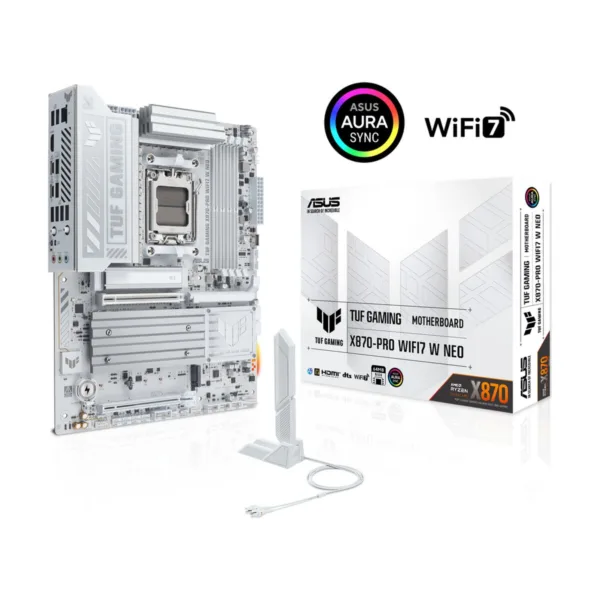

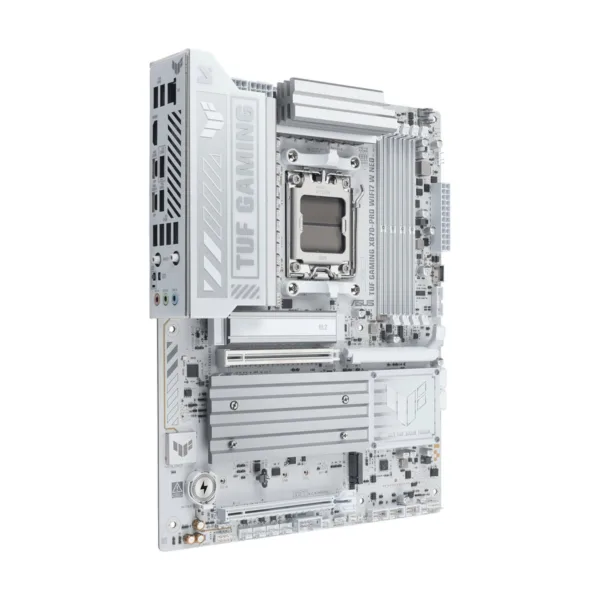

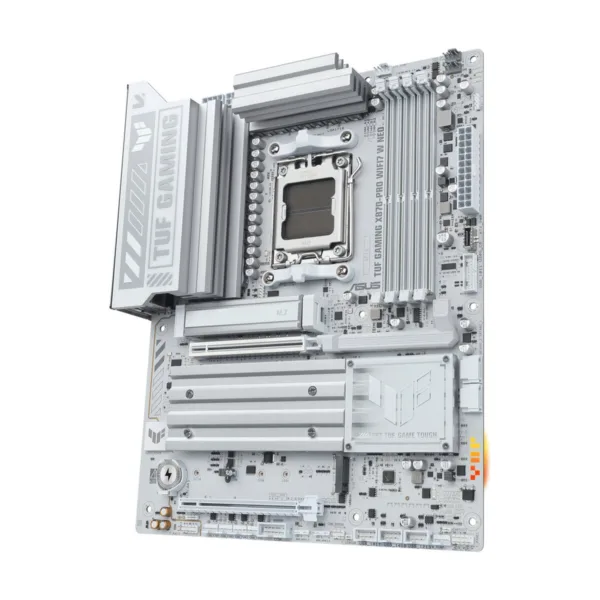

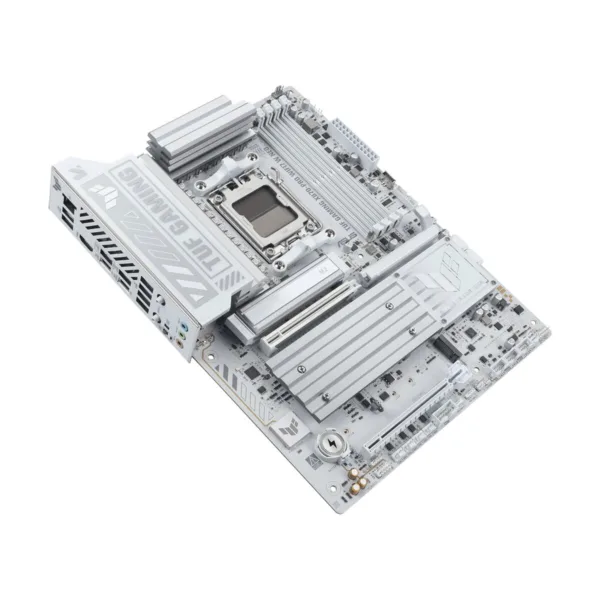

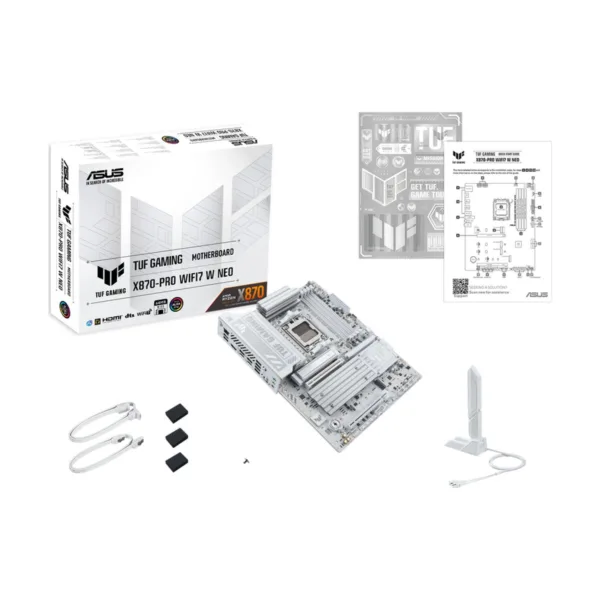

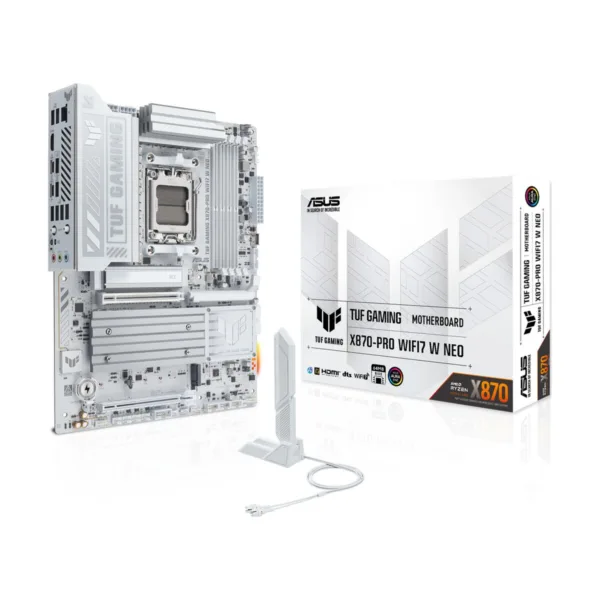

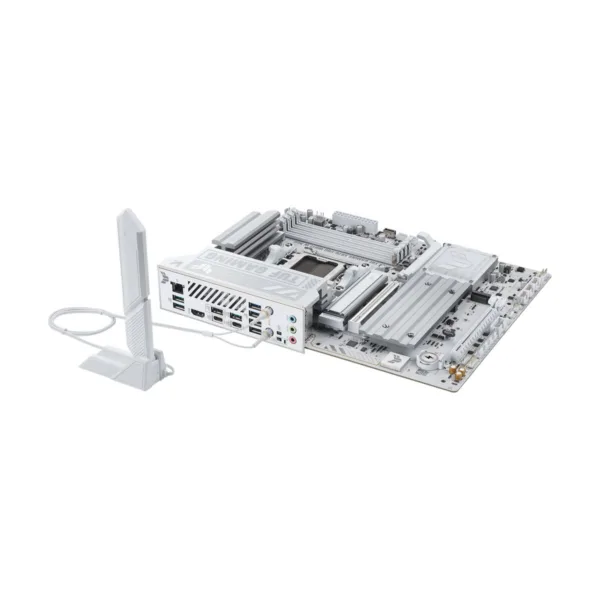

ASUS TUF GAMING X870-PRO WIFI7 W NEO AM5 ATX Motherboard, DDR5, 4x M.2, PCIe 5.0, 5Gb LAN
Original price was: $359.99.$287.99Current price is: $287.99.
Save 20%Sale ends Dec 23Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors.
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview

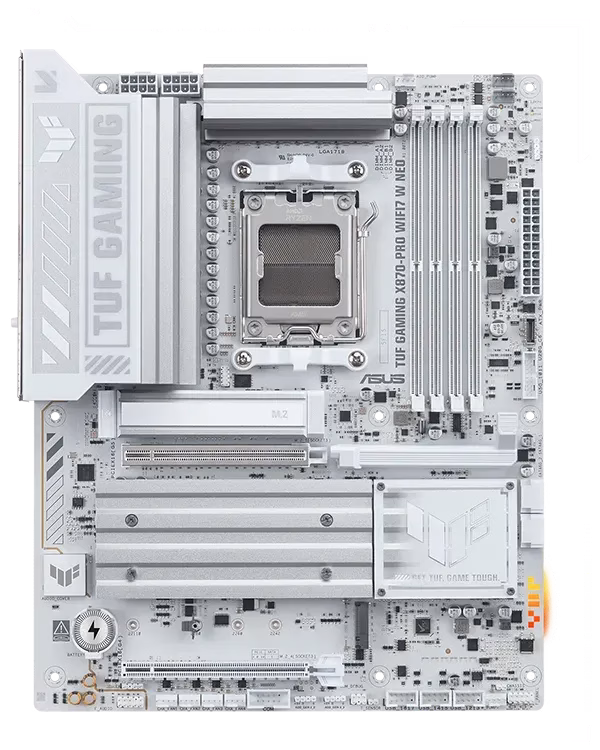

ASUS TUF GAMING X870-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

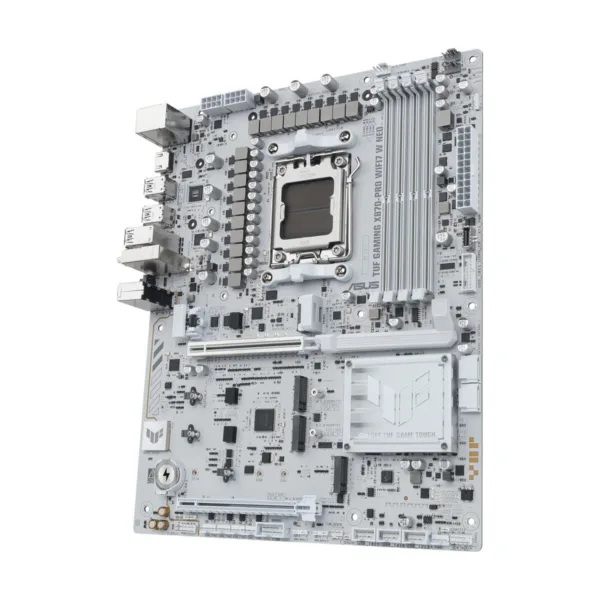

16+2+1 (80 A)
Premium power stages with enlarged VRM heatsinks
AI Solution
AI Cache Boost, AI Advisor, AI Overclocking, AI Cooling II & AI Networking II
Overclocking Technologies
Dynamic OC Switcher, Core Flex & Asynchronous Clock
9600+MT/s(OC), NitroPath DRAM Technology, AEMP
Effortlessly apply to unleash performance
Extensive PCIe® 5.0
One PCIe® 5.0 x16 slot and two PCIe® 5.0 M.2 slots
Empowering Connectivity
USB4® 40 Gbps & front USB 20 Gbps Type-C® with PD fast charge support
DIY Friendly
M.2 Q-Release, M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Clear CMOS button, BIOS FlashBack™ button
Ultrafast Networking
5 Gb Ethernet & Wi-Fi 7 with ASUS Wi-Fi Q-Antenna
64 MB BIOS
Higher ROM capacity and CPU compatibility with the latest AM5 processors

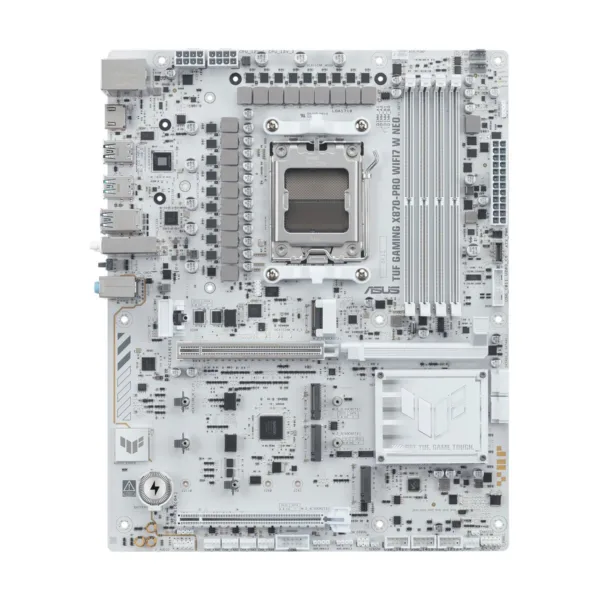

AM5 Socket for AMD Ryzen™ Desktop Processors Expansion Slots 1 x PCIe® 5.0 x16 SafeSlot 1 x PCIe® 4.0 x16 Slot (max @x4) 16(80 A)+2(80 A)+1(80 A) Power Stages
4 x DIMM DDR5 Dual Channel AEMP NitroPath DRAM Technology 4 x M.2 Slots 2 x M.2 2280 PCIe® 5.0 x4 1 x M.2 2280 PCIe® 4.0 x4 1 x M.2 2242/2260/2280/22110 PCIe® 4.0 x4
