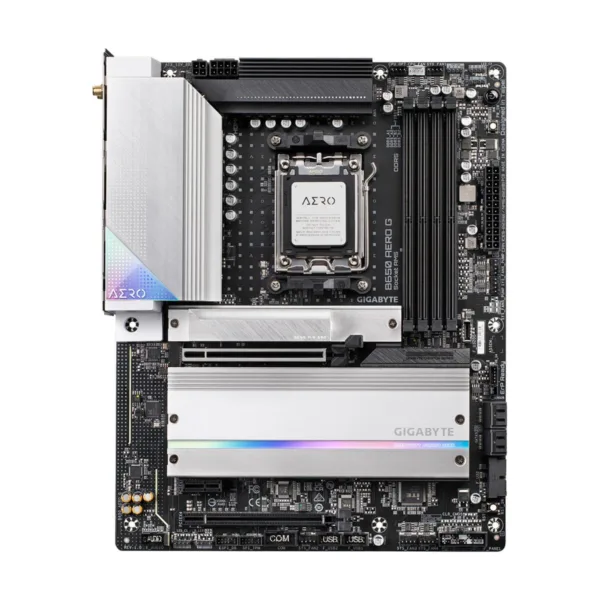

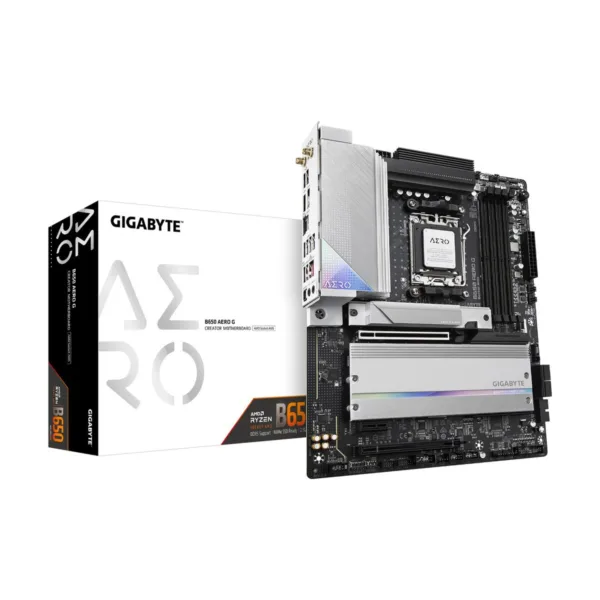

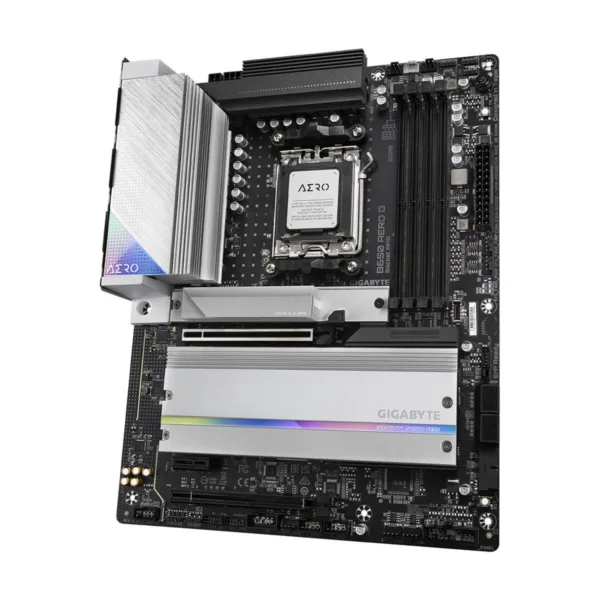

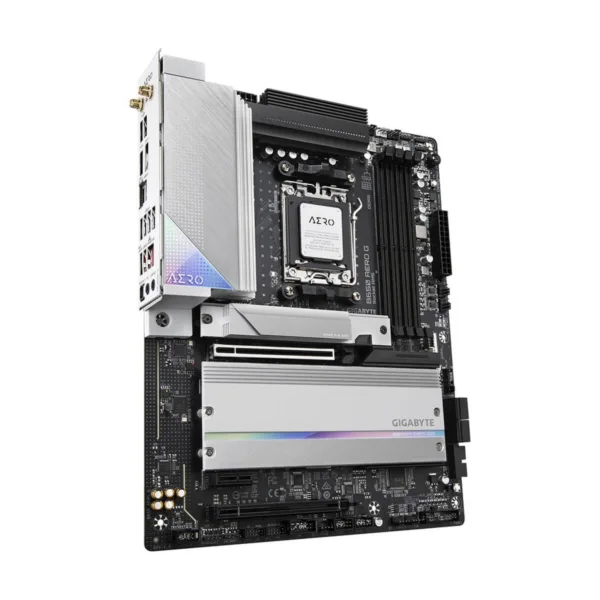

Name: GIGABYTE B650 AERO G AM5 ATX Motherboard, DDR5, PCIe 5.0 M.2, Wi-Fi 6E, 2.5GbE
Brand: GIGABYTE
SKU: 13-145-410
Price: 187.49 USD
Availability: InStock

GIGABYTE B650 AERO G AM5 ATX Motherboard, DDR5, PCIe 5.0 M.2, Wi-Fi 6E, 2.5GbE

Save 25%

Sale ends Dec 23

AMD Socket AM5:Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors DDR5 Compatible: 4*DIMMs with AMD EXPO & Intel XMP Memory Module Support

In stock

Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.

30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.

Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.

Secure checkout Visa, Mastercard and American Express and Discover.

SKU: 13-145-410 Category: Motherboards Brand: GIGABYTE

Weight	5.6 lbs
Dimensions	13.18 × 10.65 × 3.14 in
Brand	GIGABYTE
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series
Chipset	AMD B650
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 3.0 / AMD EXPO
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
PCI Express 4.0 x16	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4
PCI Express 3.0 x16	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280
SATA RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Chipset	Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio.
Audio Channels	2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Max LAN Speed	2.5Gbps
Wireless LAN	AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsSupport for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Bluetooth	Bluetooth 5.2

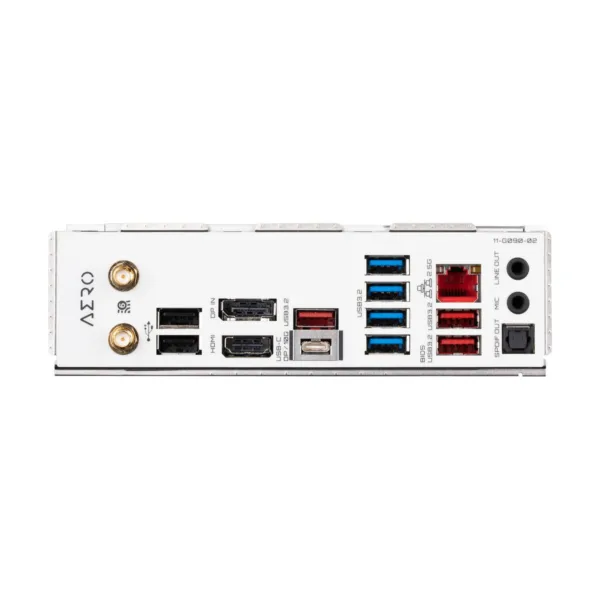

Back I/O Ports	2 x SMA antenna connectors (2T2R) 2 x USB 2.0/1.1 ports 1 x DisplayPort In port 1 x HDMI 2.0 port 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x audio jacks 1 x optical S/PDIF Out conn
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	30.5cm x 24.4cm
Windows 11	Support for Windows 11 64-bit Support for Windows 10 64-bit
Features	AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors VisionLINK: One USB-C® Port for Video, Data Transfer and Charging Dual Channel DDR5:4DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support Next Generation Storage:1PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors Adva
MPN	B650 AERO G
UPC	889523033708
