| Weight | 2.8 lbs |
|---|---|
| Dimensions | 11 × 10.5 × 3 in |
| Brand | GIGABYTE |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series |
| Chipset | AMD B850 |
| South Bridge | AMD B850 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 6400 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO / Intel XMP |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express 2.0 x16 | 0 x PCI Express 2.0 x16 |
| PCI Express x16 | 2 x PCI Express x16 |
| PCI Express x4 | 1 x PCI Express x4 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4/x2) |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | AMD Radeon Graphics |
| Audio Chipset | Realtek Audio CODEC |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 2.5GbE |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | WiFi IEEE 802.11 a / b / g / n / ac / ax / be |
| Bluetooth | Yes |

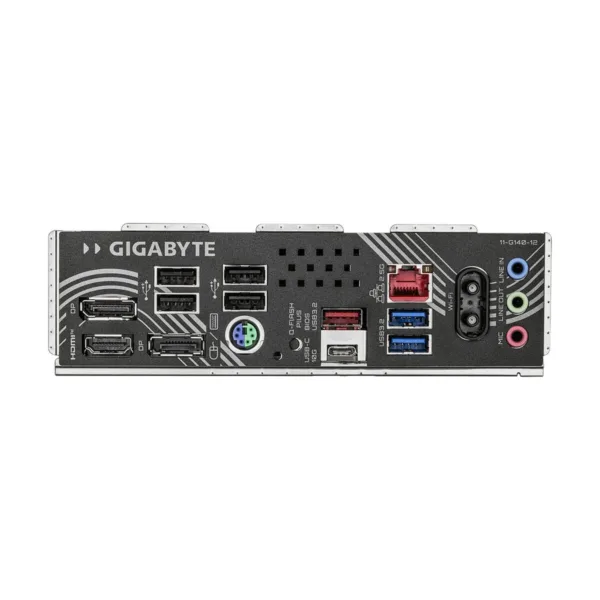

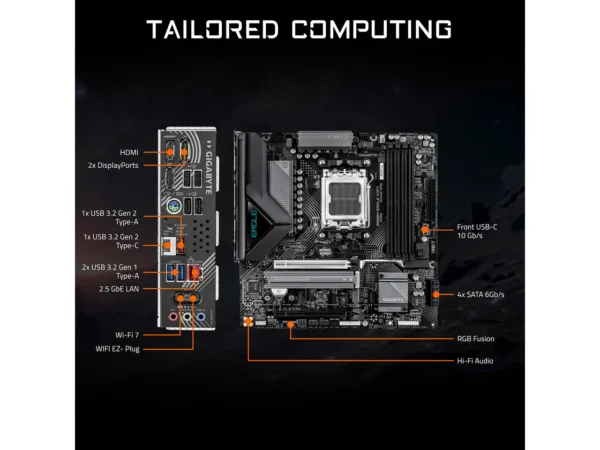

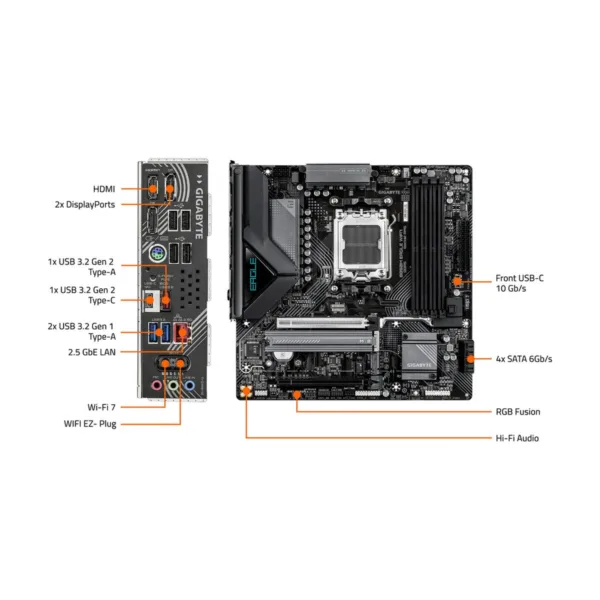

| Back I/O Ports | 1 x HDMI port, 2 x DisplayPorts, 1 x Q-Flash Plus button, 1 x PS/2 keyboard/mouse port, 1 x USB 3.2 Gen 2 Type-A port, 1 x USB Type-C port with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors, 3 x audio jacks |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | HDMI + 2 x Display Port |
| S-Video | No |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 2 x DisplayPort |
| USB 3.1 | 4 x USB 3.1 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 8 x USB 2.0/1.1 ports |
| USB Type-C | 2 x USB Type-C® port, with USB 3.2 Gen 2 support |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB Type-C® header, with USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 header + 2 x USB 2.0 headers |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 24.4cm x 24.4cm |
| Power Pin | 24 Pin |
| Windows 11 | Supported |
| MPN | B850M EAGLE WF7 |
| UPC | 889523056882 |

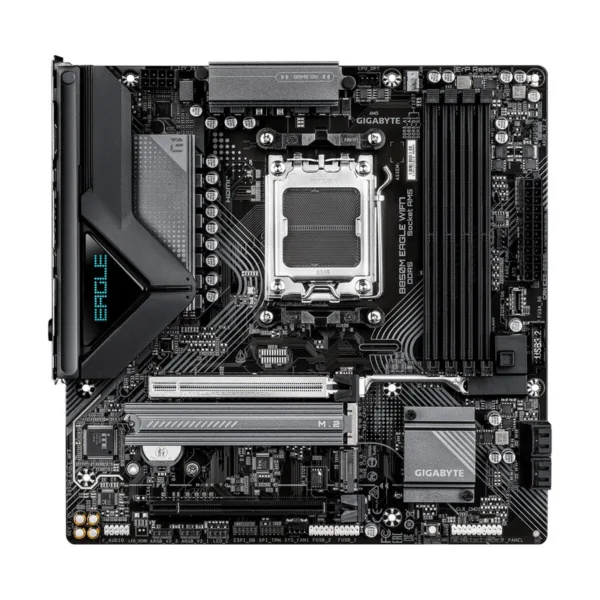

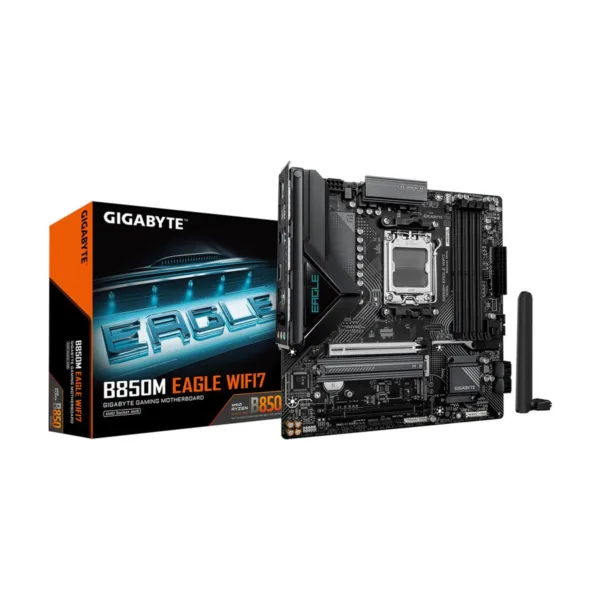

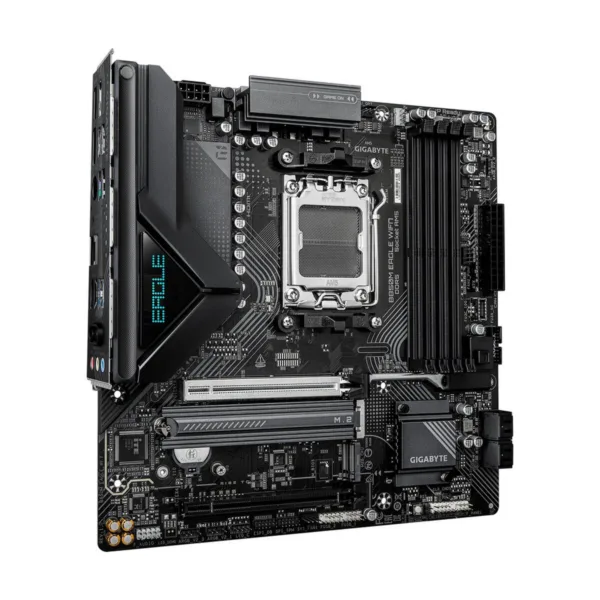

GIGABYTE B850M EAGLE WIFI7 AM5 Micro-ATX Motherboard, DDR5, 2x M.2, PCIe 5.0, Wi-Fi 7
Original price was: $180.99.$144.79Current price is: $144.79.
Save 20%Sale ends Dec 23AMD Socket AM5: Ready to support Ryzen 9000/8000/7000 Series Processors. Enhanced Power Solutions: 8+2+2 Twin Digital VRM Design with 6-layer PCB and premium chokes and capacitors for steady power delivery.
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
