| Weight | 2.75 lbs |
|---|---|
| Dimensions | 9.5 × 9.2 × 3.9 in |
| Brand | GIGABYTE |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| Number of Memory Slots | 2x288pin (DDR5) |
| Memory Standard | DDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9200 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| Memory Feature | Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PCI Express 5.0 x16 | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: – 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |

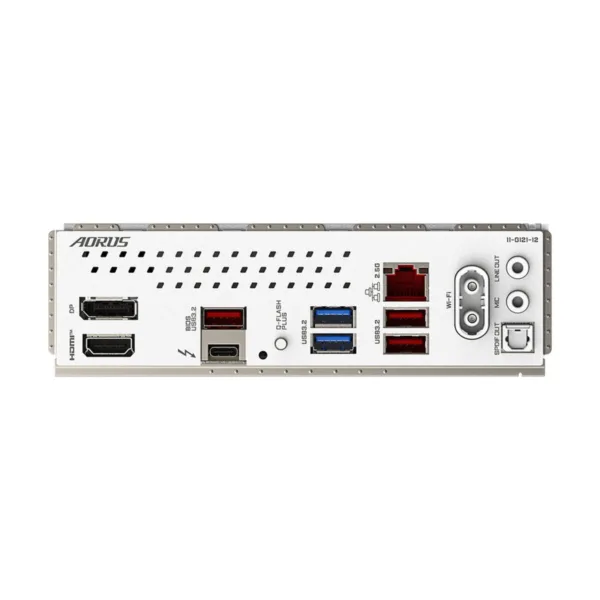

| Back I/O Ports | 1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port) 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Trusted Platform Module heade |
| BIOS Feature | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Mini ITX |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| MPN | B860I AORUS PRO ICE |
| UPC | 889523046722 |

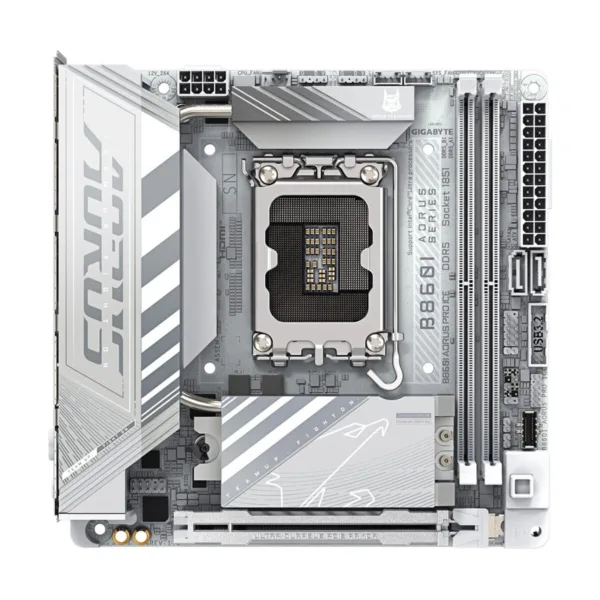

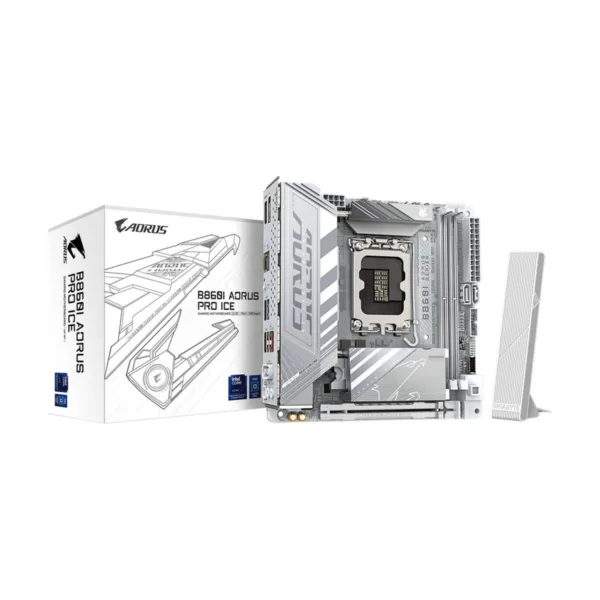

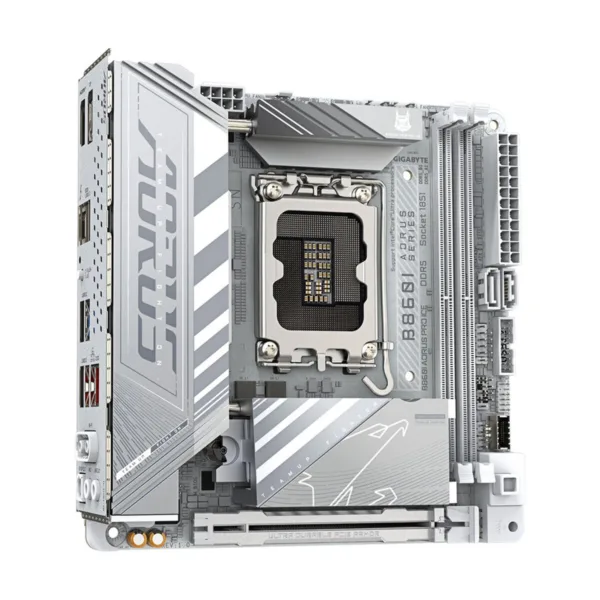

GIGABYTE B860I AORUS PRO ICE LGA 1851 Mini-ITX Motherboard, DDR5, 2x M.2, Thunderbolt 4, Wi-Fi 7
Original price was: $229.99.$183.99Current price is: $183.99.
Save 20%Sale ends Dec 23Supports Intel Core Ultra Processors (Series 2) DDR5 Compatible: 2*DIMMs
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard and American Express and Discover.
Overview
B860I AORUS PRO ICE
Performance
Thermal
Connectivity
DIY Friendly
Infinite Memory Performance
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. * Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
AI Overclocking For peak performance
AORUS AI SNATCH
Auto-Overclocking Software by AI model * Coming soon
AI SNATCH Engine
Advanced AI Overclocking Model
AI Design For MB signal enhancement
