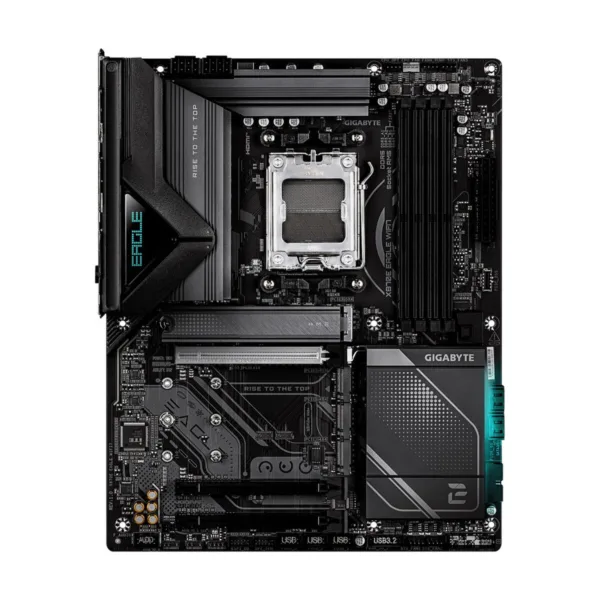

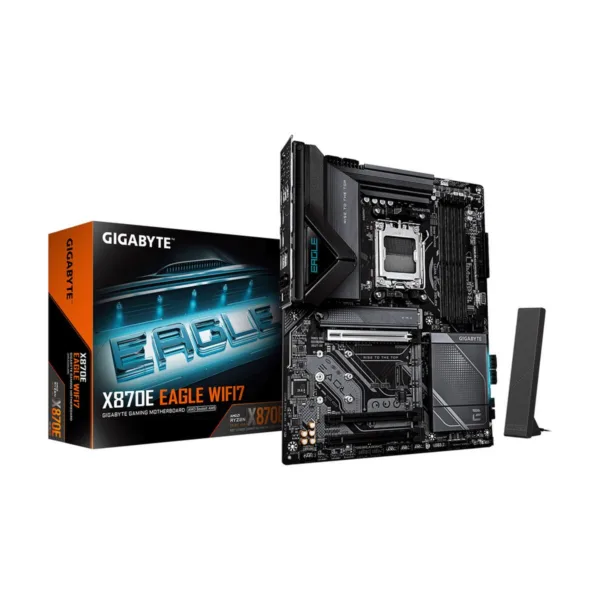

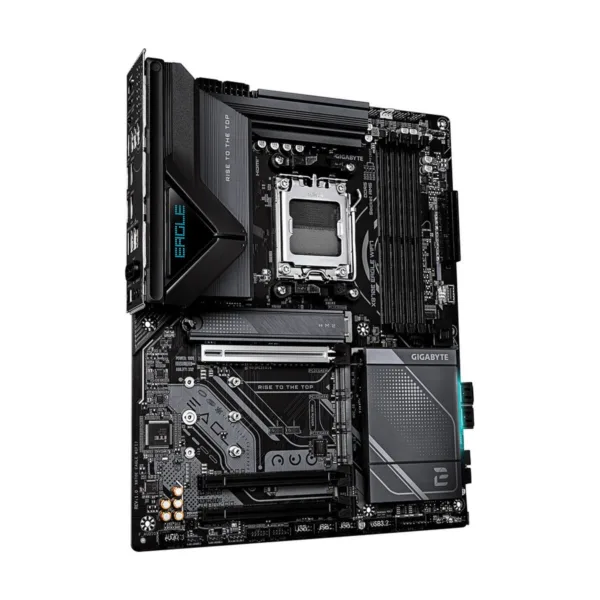

GIGABYTE X870E EAGLE WIFI7 AM5 ATX Motherboard, DDR5, 4x M.2, PCIe 5.0, USB4, Wi-Fi 7, 5GbE

Original price was: $249.99.Current price is: $199.99.

Save 20%Sale ends Dec 23

AMD Socket AM5: Ready to support AMD Ryzen 9000/8000/7000 Series Processors. Enhanced Power Solution: Digital Twin 16+2+2 Power Phase with premium chokes and capacitors for steady power delivery.

In stock

  • Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
  • 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
  • Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
  • Secure checkout Visa, Mastercard and American Express and Discover.

Shipping policyReturns

SKU: 13-145-626 Category: Brand:
Weight 4.2 lbs
Dimensions 13.2 × 10.5 × 3.2 in
Brand

GIGABYTE

CPU Socket Type

AM5

CPU Type

Ryzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series

Chipset

AMD X870E

South Bridge

AMD X870E

Number of Memory Slots

4x288pin (DDR5)

Memory Standard

DDR5 4400

Maximum Memory Supported

256GB

Channel Supported

Dual Channel

Memory Performance Profile

AMD EXPO / Intel XMP

ECC Supported

Non-ECC

Buffer Supported

Un-buffered

PCI Express 5.0 x16

1 x PCI Express 5.0 x16

PCI Express 4.0 x16

1 x PCI Express 4.0 x16

PCI Express 3.0 x16

1 x PCI Express 3.0 x16

PCI Express 2.0 x16

0 x PCI Express 2.0 x16

PCI Express x16

3 x PCI Express x16

PCI Express x4

1 x PCI Express x4

Serial ATA (SATA)

4 x SATA 6Gb/s

M.2

4 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)

SATA RAID

0/1/10

Onboard Video Chipset

AMD Radeon Graphics

Audio Chipset

Realtek ALC1220

Audio Channels

7.1 Channels

LAN Chipset

Realtek 5GbE

Max LAN Speed

5Gbps

Wireless LAN

WiFi IEEE 802.11 a / b / g / n / ac / ax / be

Bluetooth

Yes

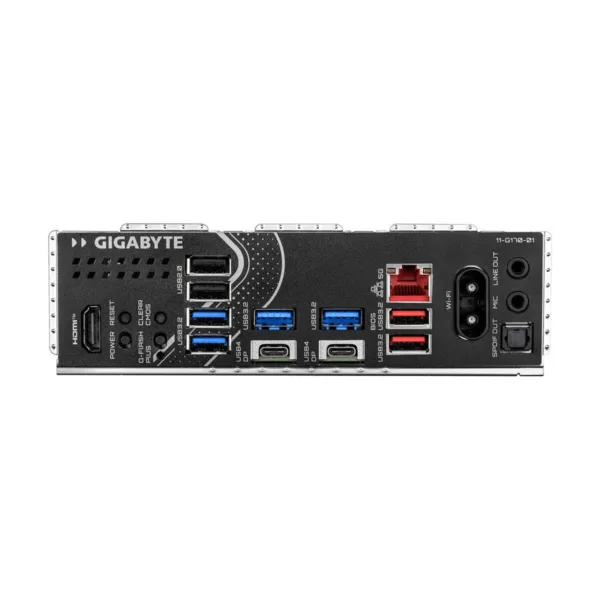

Video Ports

HDMI + 2 x USB Type-C

S-Video

No

HDMI

1 x HDMI port

RJ45

1 x RJ45

DisplayPort

2 x DisplayPort

USB 3.1

10 x USB 3.1

USB 3.0

8 x USB 3.0

USB 1.1/2.0

8 x USB 2.0/1.1 ports

USB Type-C

2 x USB4 USB Type-C® ports, 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support

S/PDIF Out

1 x Optical

Game/MIDI Ports

0

Audio Ports

3 Ports

Onboard USB

1 x USB Type-C® header, with USB 3.2 Gen 2×2 + 2 x USB 3.2 + 3 x USB 2.0

Form Factor

ATX

LED Lighting

RGB

Dimensions (W x L)

30.5cm x 24.4cm

Power Pin

24 Pin

Windows 11

Supported

MPN

X870E EAGLE WIFI7

UPC

889523058121
