| Weight | 4.5 lbs |
|---|---|
| Dimensions | 13.5 × 10.5 × 3 in |
| Brand | GIGABYTE |
| Series | EAGLE |
| CPU Socket Type | AM5 |
| Chipset | AMD X870E |
| South Bridge | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4800 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO / Intel XMP |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x16 | 3 x PCI Express x16 |
| PCI Express x4 | 1 x PCI Express x4 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 4 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4) |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | AMD Radeon Graphics |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 5GbE |
| Max LAN Speed | 5Gbps |
| Wireless LAN | WiFi IEEE 802.11 a / b / g / n / ac / ax / be |
| Bluetooth | Yes |

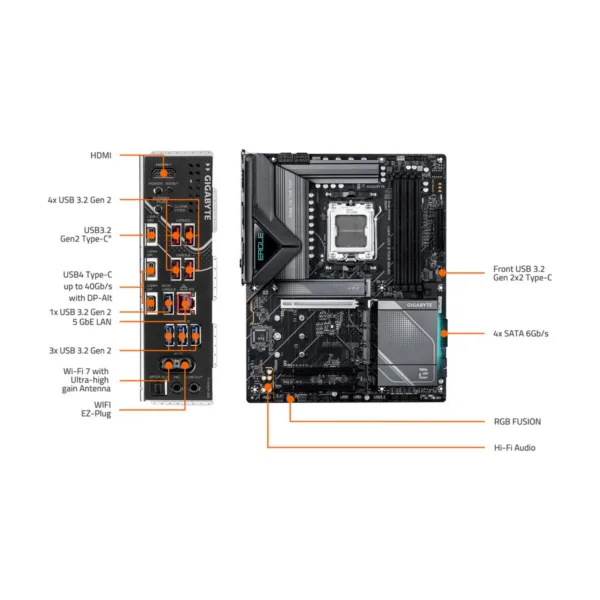

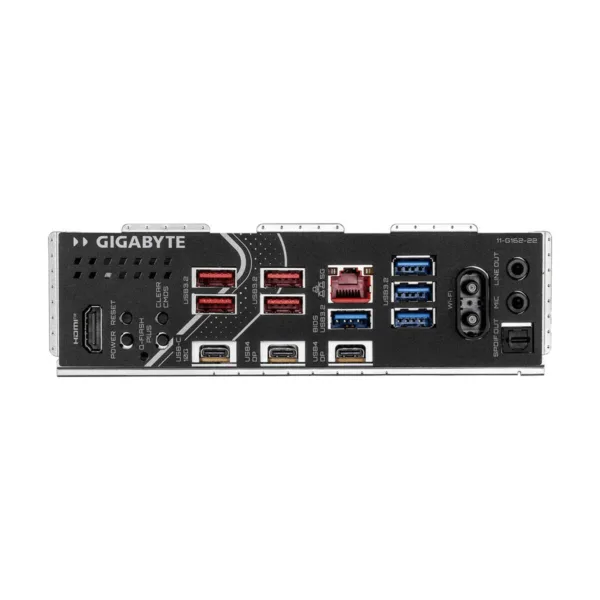

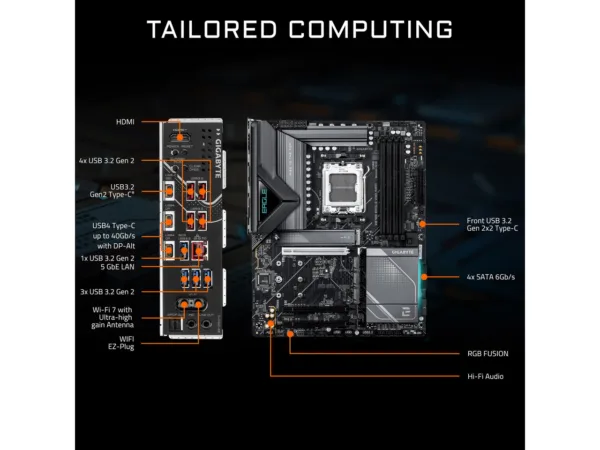

| Back I/O Ports | 1 x HDMI port, 1 x reset button, 1 x power button, 1 x Clear CMOS button, 1 x Q-Flash Plus button, 4 x USB 3.2 Gen 2 Type-A ports, 1 x USB Type-C port, 2 x USB4 USB Type-C ports, 1 x RJ-45 port, 4 x USB 3.2 Gen 1 ports, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF |
| Video Ports | HDMI + 2 x USB Type-C |
| S-Video | No |
| HDMI | 1 x HDMI port |
| RJ45 | 1 x RJ45 |
| DisplayPort | 2 x DisplayPort |
| USB 3.1 | 13 x USB 3.1 |
| USB 3.0 | 8 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0/1.1 ports |
| USB Type-C | 2 x USB4 USB Type-C ports, 1 x USB Type-C port, with USB 3.2 Gen 2 support, 1 x USB Type-C port with USB 3.2 Gen 2×2 support |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 3 Ports |
| Onboard USB | 1 x USB Type-C® header, with USB 3.2 Gen 2×2 + 4 x USB 3.2 + 4 x USB 2.0 |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 30.5cm x 24.4cm |
| Power Pin | 24 Pin |
| Windows 11 | Supported |
| MPN | X870E EAGLE X3D WIFI7 |
| UPC | 889523056844 |

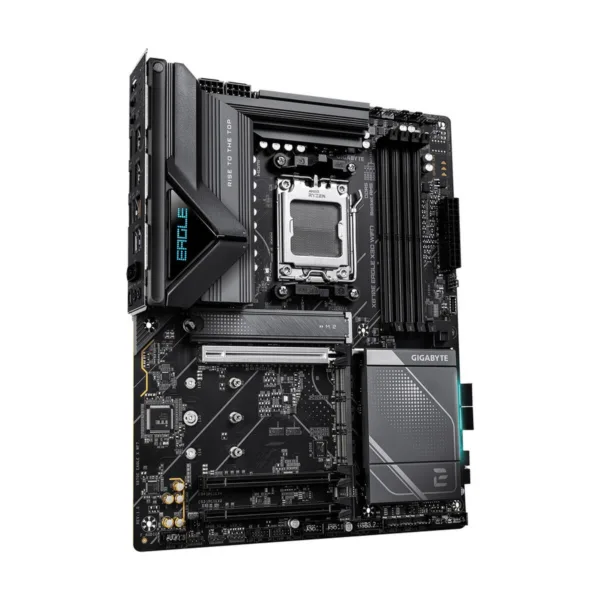

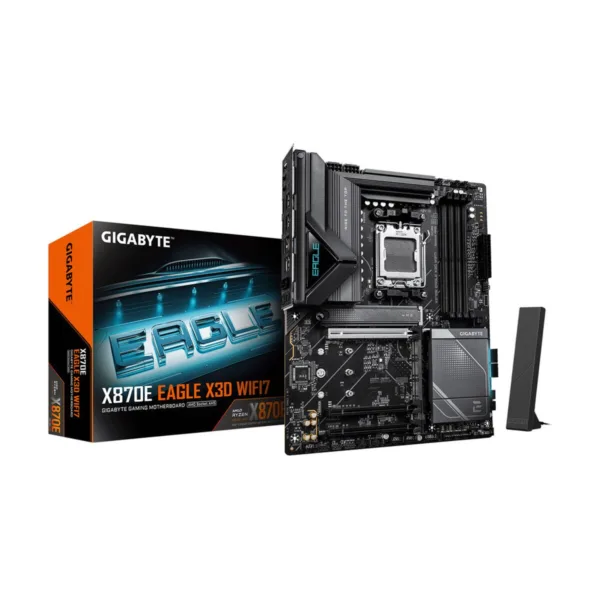

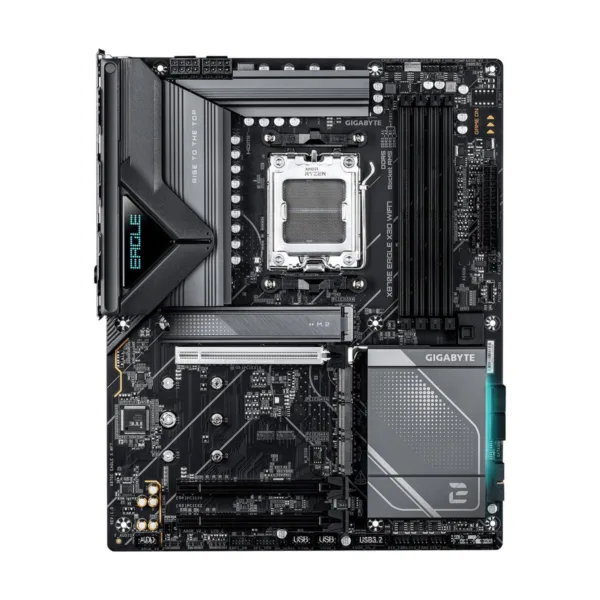

GIGABYTE X870E EAGLE X3D WIFI7 AM5 ATX Motherboard, DDR5, 4x M.2, PCIe 5.0, USB4, 5GbE
Original price was: $319.99.$255.99Current price is: $255.99.
Save 20%Sale ends Dec 23AMD Socket AM5: Ready to support Ryzen 9000/8000/7000 Series Processors. Enhanced Power Solution: Digital Twin 14+2+2 Power Phase with 8-layer PCB and premium chokes and capacitors for steady power delivery.
In stock
- Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
- 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
- Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
- Secure checkout Visa, Mastercard, American Express and Discover.
Overview
X870E EAGLE X3D WIFI7
Performance
Thermal
Connectivity
DIY Friendly
X3D Turbo Mode 2.0
Incredible X3D performance unleashed by AI. X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen™ X3D performance. Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.
One-Click Acceleration:
Faster, fiercer, more precise with a single click. Enhance Up to 25% * Differences in performance enhancement depending on the game.
AI Overclocking For peak performance
AORUS AI SNATCH
Unleash Ultimate Performance with One-Click Activation. * Coming soon
AI Design For MB signal enhancement
