GIGABYTE

GIGABYTE X870I AORUS PRO ICE AM5 Mini-ITX Motherboard, DDR5, 2x M.2, PCIe 5.0, Wi-Fi 7

Original price was: $299.99.Current price is: $239.99.

Save 20%Sale ends Dec 23

AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors DDR5 Compatible: 2*DIMMs with AMD EXPO Support

In stock

  • Free shipping on orders $49+ Standard Ground $4.00 on orders under $49. Ships in 1–2 business days (order by 5:00 PM CT on a business day to start today), then 3–5 business days in transit.
  • 30-day returns We pay return shipping on defective, damaged or wrong items. No restocking fee.
  • Manufacturer warranty New and factory sealed, with the full manufacturer's warranty.
  • Secure checkout Visa, Mastercard and American Express and Discover.

Shipping policyReturns

SKU: 13-145-538 Category: Brand:
Weight 2.85 lbs
Dimensions 9.5 × 9 × 4 in
Brand

GIGABYTE
CPU Socket Type

AM5
CPU Type

Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipset

AMD X870
Number of Memory Slots

2x288pin (DDR5)
Memory Standard

DDR5 5600 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7600 / DDR5 7800 / DDR5 8000 / DDR5 8200 / DDR5 8800 / DDR5 9000
Maximum Memory Supported

128GB
Channel Supported

Dual Channel
Memory Performance Profile

Intel XMP 3.0 / AMD EXPO
ECC Supported

Non-ECC
Buffer Supported

Un-buffered
PCI Express 5.0 x16

1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only sup
Serial ATA (SATA)

2 x SATA 6Gb/s
M.2

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors supp
SATA RAID

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices
Audio Chipset

Realtek ALC4080
Audio Channels

2 Channels
Max LAN Speed

2.5Gbps
Wireless LAN

Realtek Wi-Fi 7 RTL8922AE

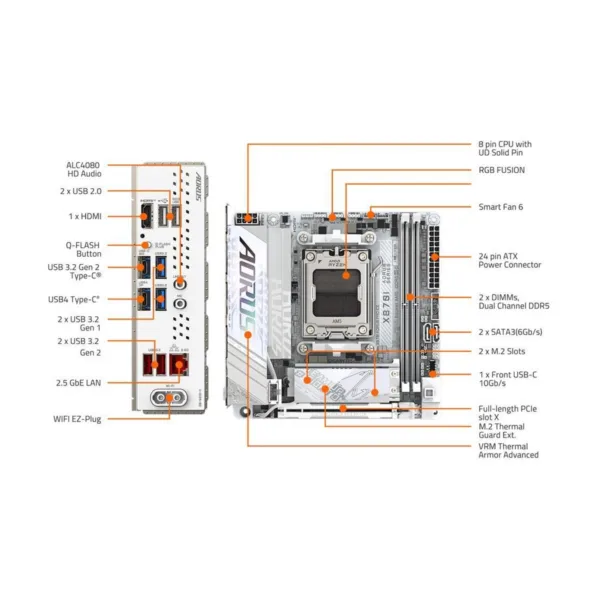

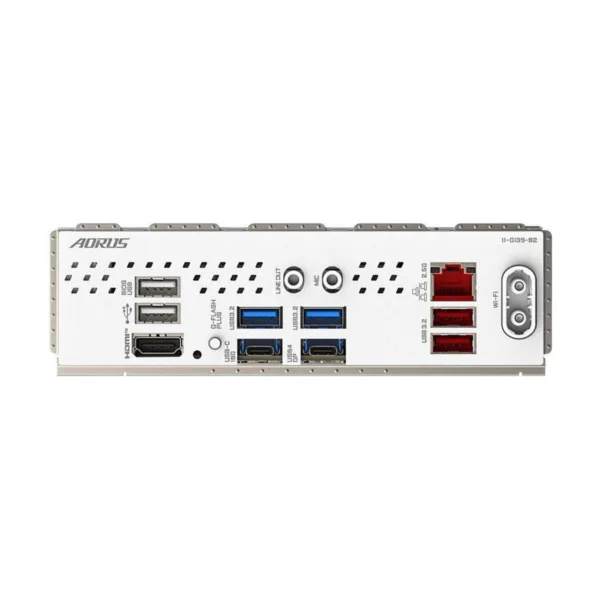

Back I/O Ports

1 x Q-Flash Plus button 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jac
Onboard USB

1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors

1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker header 1 x front panel audio header (routed
Form Factor

Mini ITX
Dimensions (W x L)

6.7" x 6.7"
Power Pin

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
BIOS Feature

1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11

Support for Windows 11 64-bit
Features

Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
MPN

X870I AORUS PRO ICE
UPC

889523045930
